IMPORTANT SAFEGUARDS

When using this appliance, always exercise basic safety

precautions, including the following:

1. Read all of the instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this

use and care guide.

3. This wine cellar must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in

the installation section.

4. Never unplug your wine cellar by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

5. Unplug your wine cellar before cleaning or before making any

repairs. Note: If for any reason this product requires service, we

strongly recommend that a certified technician performs the service.

6. Repair or replace immediately, all electric power cords that have

become frayed or otherwise damaged. Do not use a cord that shows

cracks or abrasion damage along its length, the plug or the connector

end.

7. This wine cellar should not be recessed or built-in an enclosed

cabinet. It is designed for freestanding installation only.

8. If your old wine cellar is not being used, we recommend that you

remove the door and leave the shelves in place. This will reduce

possibility of danger to children.

9. Do not operate your wine cellar in the presence of explosive fumes.

10. Do not store foods in wine cellar as interior temperature may

not be cool enough to prevent spoilage or may cause bacteria growth.

SAVE THESE INSTRUCTIONS

English

Thank you for using our Haier

product. This easy-to-use manual

will guide you in getting the best

use of your wine cellar.

Remember to record the model and

serial number. They are on a label

in back of the wine cellar.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

DANGER

Risk of child entrapment. Before you throw away your old wine

cellar, take off the doors. Leave the shelves in place so that

children may not easily climb inside.

Table Of Contents

PAGE

Safety Precautions......................................................................................1

Parts And Features ....................................................................................4

Installing Your Wine Cellar ..........................................................................5

Unpacking Your Wine Cellar ................................................................5

Leveling Your Wine Cellar ....................................................................5

Proper Air Circulation............................................................................5

Electrical Requirements..........................................................................6

Install Limitations ..................................................................................6

Use of Extension Cord ..........................................................................6

Wine Cellar Features And Use ............................................................................7

Initial Set Up ........................................................................................7

Temperature Adjustment........................................................................7

Shelving ..............................................................................................9

Interior Light ........................................................................................9

Door Lock ............................................................................................9

Normal Operating Sounds ....................................................................9

Proper Wine Cellar Care and Cleaning............................................................10

Cleaning and Maintenance..................................................................10

Power Interruptions..............................................................................11

Vacation and Moving Care ..................................................................11

Troubleshooting ......................................................................................12

Warranty Information ................................................................................13

English

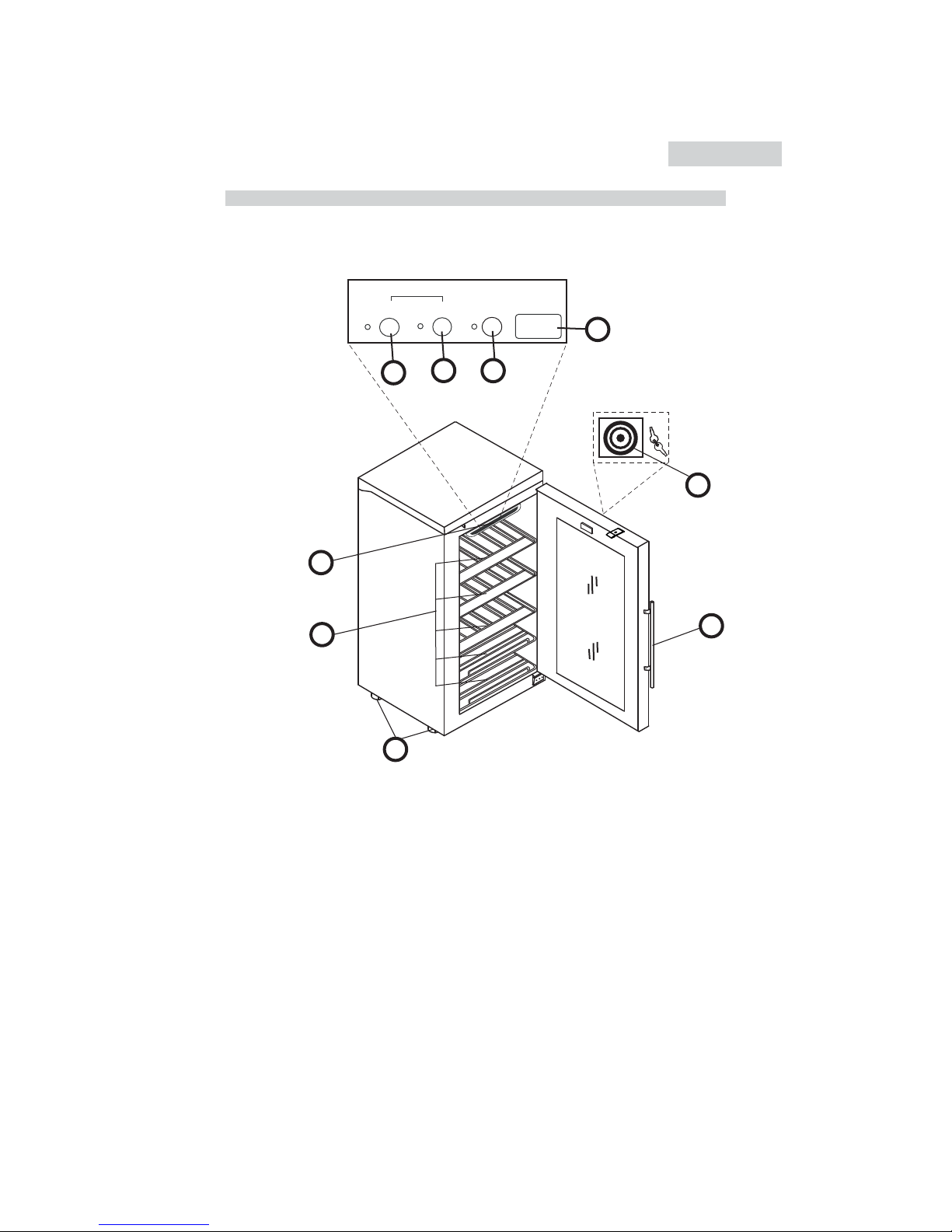

Parts And Features

White Wine Button (-)

Red Wine Button (+)

Set Button

LED Temperature Display

Door Lock and Key

Door Handle

Adjustable Leveling Legs

5 Slid e - Out Shelves-

HW24WF10NG

8 Slid e - Out Shelves-

HW42WF10NG

Interior Light

English

Set

Red

White











TEMPERATURE

Down Up







Electronic Control Unit

(HW24WF10NG)

(Storage capacity vary by mode)

1. Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cellar accessories inside and

outside.

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cellar.

• Your wine cellar has two leveling legs which are located in the

front corners of your wine cellar. After properly placing your

wine cellar in its final position, you can level your wine cellar.

• Leveling legs can be adjusted by turning them clockwise to raise your

wine cellar or by turning them counterclockwise to lower

your wine cellar. The wine cellar door will close easier when the

leveling legs are extended.

• To assure your wine cellar works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cellar:

Sides……………2 "(50mm)

Top....................2" (50mm)

Back..................2" (50mm)

• Do not over fill your wine cellar for proper internal air circulation.

Installing Your Wine Cellar

Unpacking Your Wine Cellar

Proper Air Circulation

Leveling Your Wine Cellar

English

Electrical Requirement

• Make sure there is a suitable power Outlet (115 volts, 15 amps

outlet) with proper grounding to power the wine cellar.

• Avoid the use of three plug adapters or cutting off the third grounding

in order to accommodate a two plug outlet. This is a dangerous

practice since it provides no effective grounding for the wine cellar

and may result in shock hazard.

• Do not install your wine cellar in any location not properly insulated

or heated e.g. garage etc. Your wine cellar was not designed to

operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the wine cellar on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

should be corrected with the leveling legs located on the front and

rear bottom corners of the wine cellar.

• Your wine cellar is designed for free-standing installation only. It is

not designed for built-in application.

• Avoid the use of an extension cord because of potential safety

hazards under certain conditions. If it is necessary to use an extension

cord, use only a 3-wire extension cord that has a 3-blade grounding

plug and a 3-slot outlet that will accept the plug. The marked rating

of the extension cord must be equal to or greater than the electrical

rating of the appliance.

Install Limitations

Use of Extension Cord

Wine Cellar Features And Use

Electronic Controlled Units:

Once you have plugged the unit into an electrical outlet, let the unit run

for at least 30 minutes to acclimate itself before making any adjust-

ments. During this time the Red Wine light may stay on.

Initial Setup

Electronic Control Unit: See ﬁg. # 1

• The wine cellar is preset from the factory to automatically

accommodate temperature requirements for red or white wines.

If you store mostly white wines, press the "White Wine" button and the

wine cellar will maintain an average temperature between

45˚ to 50˚ F . Pushing the "Red Wine" button will yield an

average temperature between 55˚ to 60˚ F.

• The wine cellar can be set to any temperature you desire to

accommodate your wine storage requirements. To set the

temperature, press both the "White Wine" and "Red Wine" buttons

simultaneously and hold for approximately 3 seconds. Now you are

in temperature set mode. Decrease the temperature by pushing the

"White Wine" button and increase the temperature by pressing the

"Red Wine" button. Pressing the appropriate button 3 times will

adjust the temperature 3 degrees, press 4 times equals 4 degrees, 5

times equals 5 degrees, and so on. Once you have selected the

temperature you desire, push the "Light/Set" button. Now the wine

cellar is programmed and the LED readout will return to current

internal temperature reading .

Temperature Adjustments:

English

• There will be approximately a 3 degree variance +/- between the

temperature you select and the temperature indicated on the LED

readout.

This occurs because the wine cellar activates and deactivates

trying to maintain your desired temperature. There is often a

variance between the top and bottom shelves of the wine cellar.

Therefore, if you have set the wine cellar for 50˚ and have a

mix of red and white wines, you may want to put the white wine

on the bottom shelf where the temperature will be cooler , and place

the red wine on the top shelf where the temperature will be warmer.

English

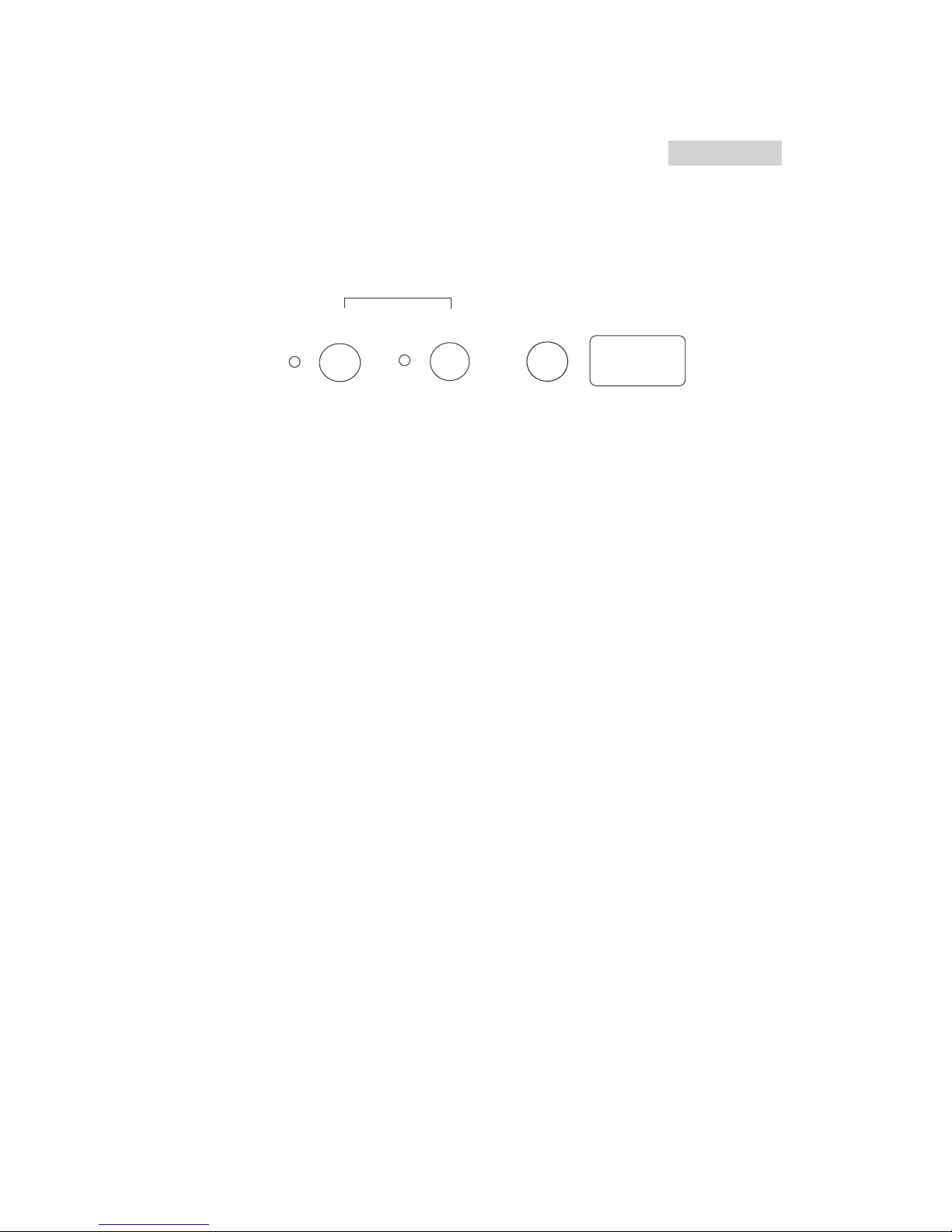

ﬁg. # 1

Set

Red

White

TEMPERATURE

Down Up

• The shelves are designed for ﬂexibility and easy cleaning.

To accommodate different sized bottles the shelves slide out

and can be moved up or down into any of the tracks molded

into the cellar cabinet. Larger bottles or Magnums can be more easily

accommodated on the shelves of the bottom of the cellar.

You will notice that the shelves are designed so the bottles do

not line-up directly over one another. This allows free air

movement and provides more space.

• To complement the look of your wine collection, a soft light has been

built into the wine cellar. Light comes on when doors is opened and

goes off when doors is closed.

Shelving

Interior Light

• For safety and security, your wine cellar is equipped with a door lock.

To eliminate the risk of accidental child entrapment, the lock was

designed so that the door will not lock until the key is removed

• Boiling water, gurgling sounds or slight vibrations that are the result

of the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off .

Door Lock

Normal Operating Sounds You May Hear

English

NOTE:There is a 5 seconds delay after the light shuts off.
