Halsey Taylor HydroBoost HTHB-HAC Guida

Page 1 1000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

HTHB-HAC

Retrot Hydroboost®Bottle Filling Station

HTHB-HAC Bottle Fillers are among the easiest to install on the market today.

To insure you install these models easily and correctly, PLEASE READ THESE

SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR

INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER

APPLICABLE CODES. After installation, leave these instructions with the Fountain

for future reference.

IMPORTANT

THIS IS AN INDOOR APPLICATION ONLY.

ALL SERVICE TO BE PERFORMED BY AN

AUTHORIZED SERVICE PERSON.

IMPORTANT! INSTALLER PLEASE NOTE.

THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES

IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE

BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN

ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER.

THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS

PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN

FROM THE BUILDING PLUMBING SYSTEM. WE SUGGEST THAT THE BOTTLE FILLING STATION AND WATER

COOLER BE PROTECTED BY A GROUND FAULT CIRCUIT INTERRUPTER (GFCI).

INSTALLER

TOOLS REQUIRED

BUT NOT PROVIDED:

SAFETY GLASSES

GLOVES

ELECTRIC DRILL

3/4” WRENCH OR CRECENT

WRENCH

UTILITY KNIFE

TAPE MEASURE

PENCIL

5/32” ALLEN WRENCH

Installation and Use Manual

Page 21000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

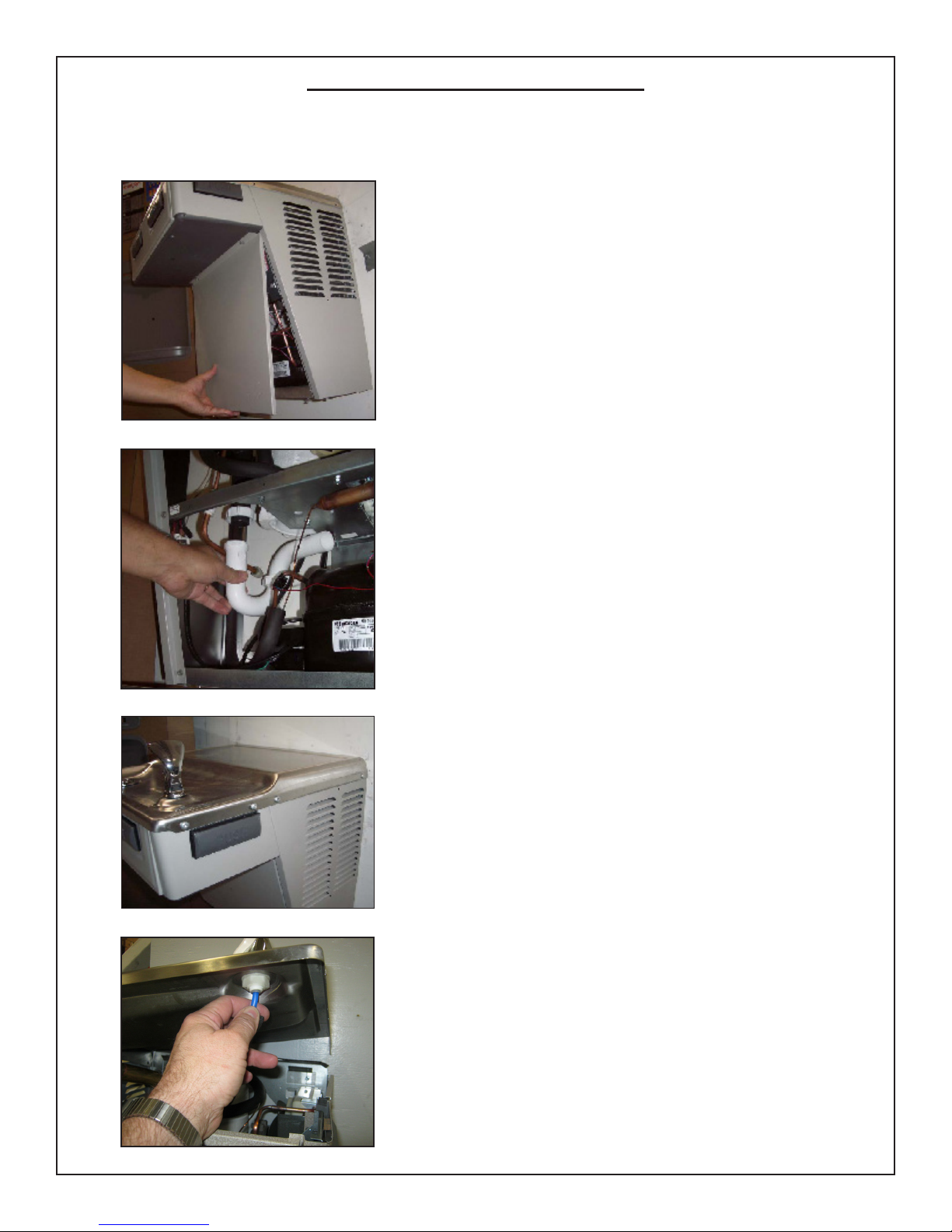

WATER COOLER PREPARATION

3) Remove Basin Fasteners

• Remove Basin Assembly by loosening eight (8)

screws, four on each side of basin.

Remove Front Panel

Loosen Drain Line

Remove Basin Fasteners

1) Remove Front Panel

•Remove lower front panel of water cooler by removing

the four (4) screws, two at top and two at bottom. On

Two Level Models, remove both front panels.

•WARNING: Before proceeding.

Disconnect electrical power supplying the water cooler.

Switch circuit breaker “OFF” or remove fuse.

•Unplug water cooler power cord from electrical

outlet.

• Shut o water supply.

NOTE:

• On Two Level Models, the Bottle Filling Unit can be mounted to the higher or lower unit:

• Two Level Standard Models; high unit is on Left Hand(LH) side.

• Two Level Reverse Models; high unit is on Right Hand(RH) side.

2) Loosen Drain Line

• Loosen Slip-Joint Nut at P-trap.

• Note: Have container/bucket readily available to catch

water from lines.

4) Remove Bubbler Water Line

• Disconnect water line from bubbler.

Remove Bubbler Water Line

Page 3 1000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

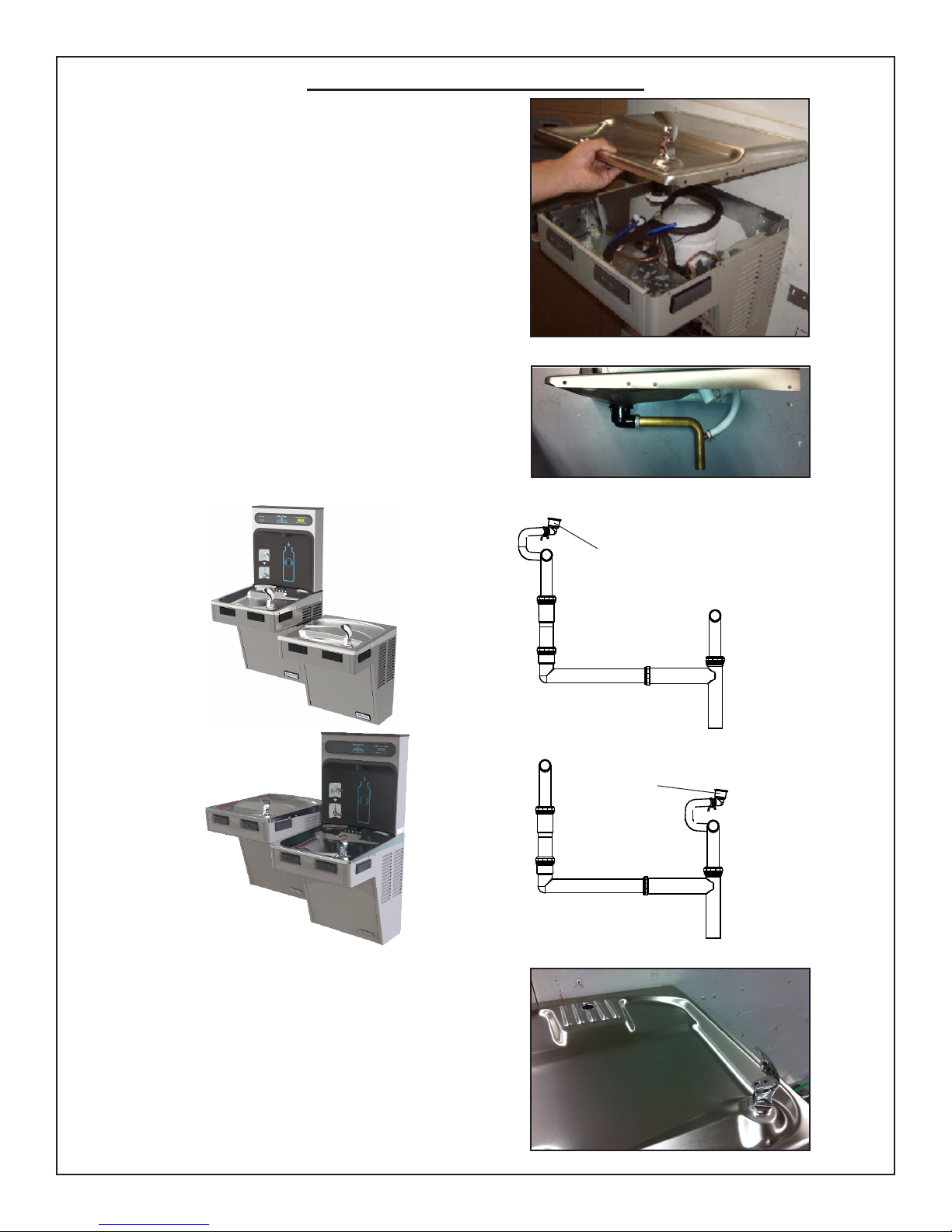

5) Lift and Remove Basin.

• Remove basin assembly by lifting straight up,

disconnecting the drain line from the P-trap.

Lift and Remove Basin.

Exchange Drain hardware.

6) Assemble Drain hardware.

• Remove drain hardware from original basin.

• Remove the protective covering from the basin.

• Reinstall the drain elbow, drain plug, and strainer

plate on to the new basin

• Attach the new drain hardware onto the new basin.

Exchange Bubbler hardware.

WATER COOLER PREPARATION

7) Exchange Bubbler hardware.

• Remove bubbler hardware from original basin.

• Reinstall the bubbler hardware on to the new basin.

• Ensure the bubbler is properly positioned with the

stream falling onto the center of splash ridge.

Bottle Filler

Drain

Bottle Filler

Drain

Page 41000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

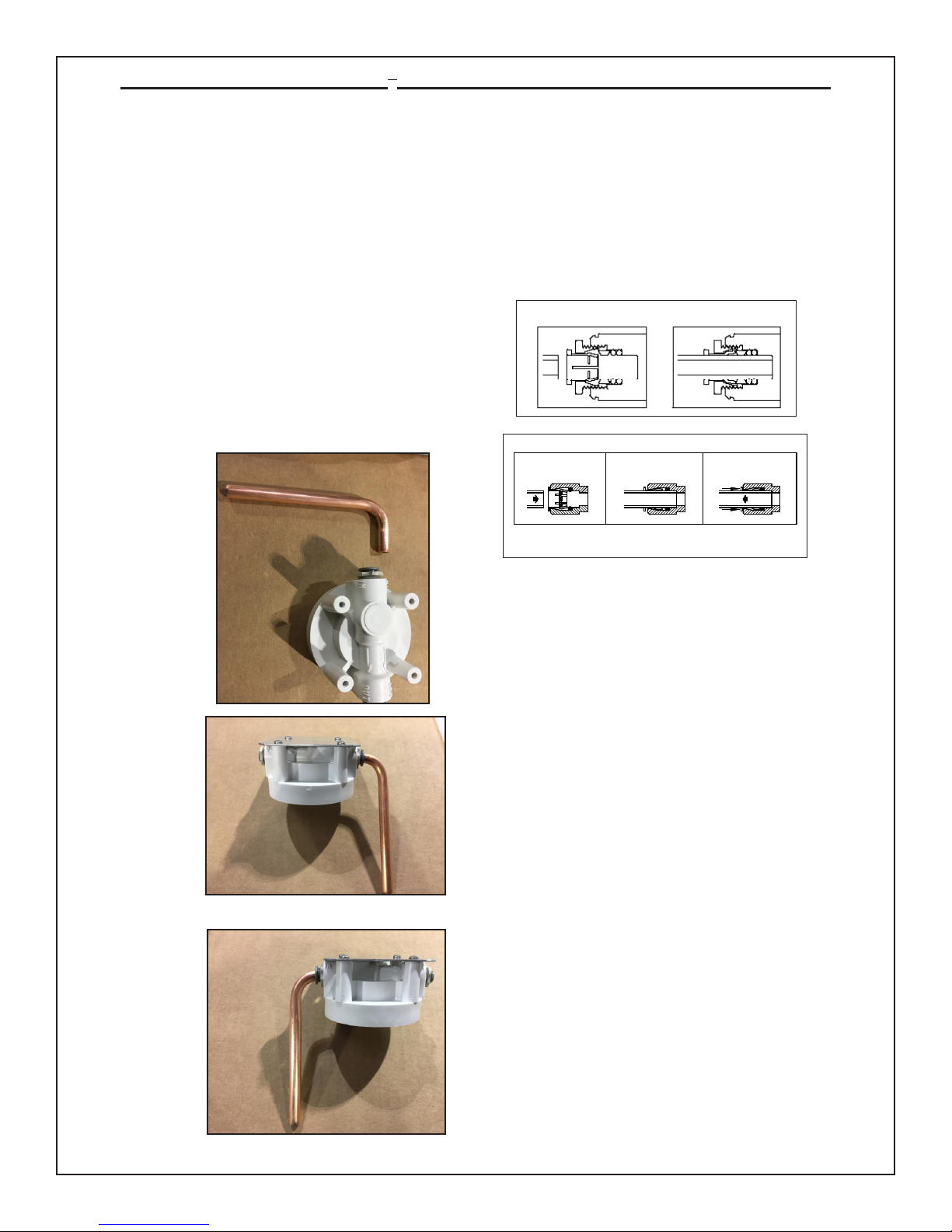

HWF3000 WATERSENTRY® PLUS FILTER INSTALLATION (With Filter)

WARNINGS:

• Do not use with water that is microbiologically unsafe or of unknown quality. For potable water only.

• Do not use with a hot water supply. Rated for water temperature: 33°-100°F(2°-38°C)

 •Waterlinepressuremustnotexceed100PSI(690kPa).Useaninlinewaterpressureregulatorbeforelter

to limit maximum pressure. Rated water supply pressure: 20-100PSI(138-690kPa).

•Filter kits must be installed in compliance with all state and local laws and regulations governing the

installation and use of this product.

• NOTE:Ifexistingplumbingrough-inlocations(Drain,WaterIn,andElectricSupply)donotallowthelter

tobemountedinsidethecoolercabinettheltercanbeinstalledhorizontallybelowtheunit.Aretrotkitis

availabletomountthelterbeneaththecooler.

NOTE:

• Ends of tubing must be cut square and free of

burrs and sharp ends that could cut or nick

the o-rings.

• Loosen the locknut and push tube end past

 botho-ringstoapositivestopinthelter

head recess - approx. 1".

• Locknut may have to be backed out a little

more. Screw the locknut hand tight to seal.

Attach water-in

copper tube to

Filter Head inlet

2) Attach Filter head assembly.

• If not already preassembled. Attach Filter

 headassemblytoltermountingbracket 

with four(4) screws supplied.

Single Level Models

Two Level Models

• Single Level Models

• Mount with 3/8” inlet on Right Side

• Two Level Models

• Mount with 3/8” Inlet on Left Side

OPERATION OF SUPERSEAL STYLE FITTINGS

1) Attach port ttings onto Filter Head:

• Note: Refer to photos at left for proper alignment.

• Insert3/8”90°QuickConnectelbowttinginto

Superseal IN port.

• Insert 1/4” poly tube into Superseal OUT port.

If necessary, insert a 1/4” x 90° Elbow.

•Adjustandtightenportttings.

B CA

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

OPERATION OF QUICK CONNECT FITTINGS

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

OPERATION OF QUICK CONNECT STYLE FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

A B C

Page 5 1000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

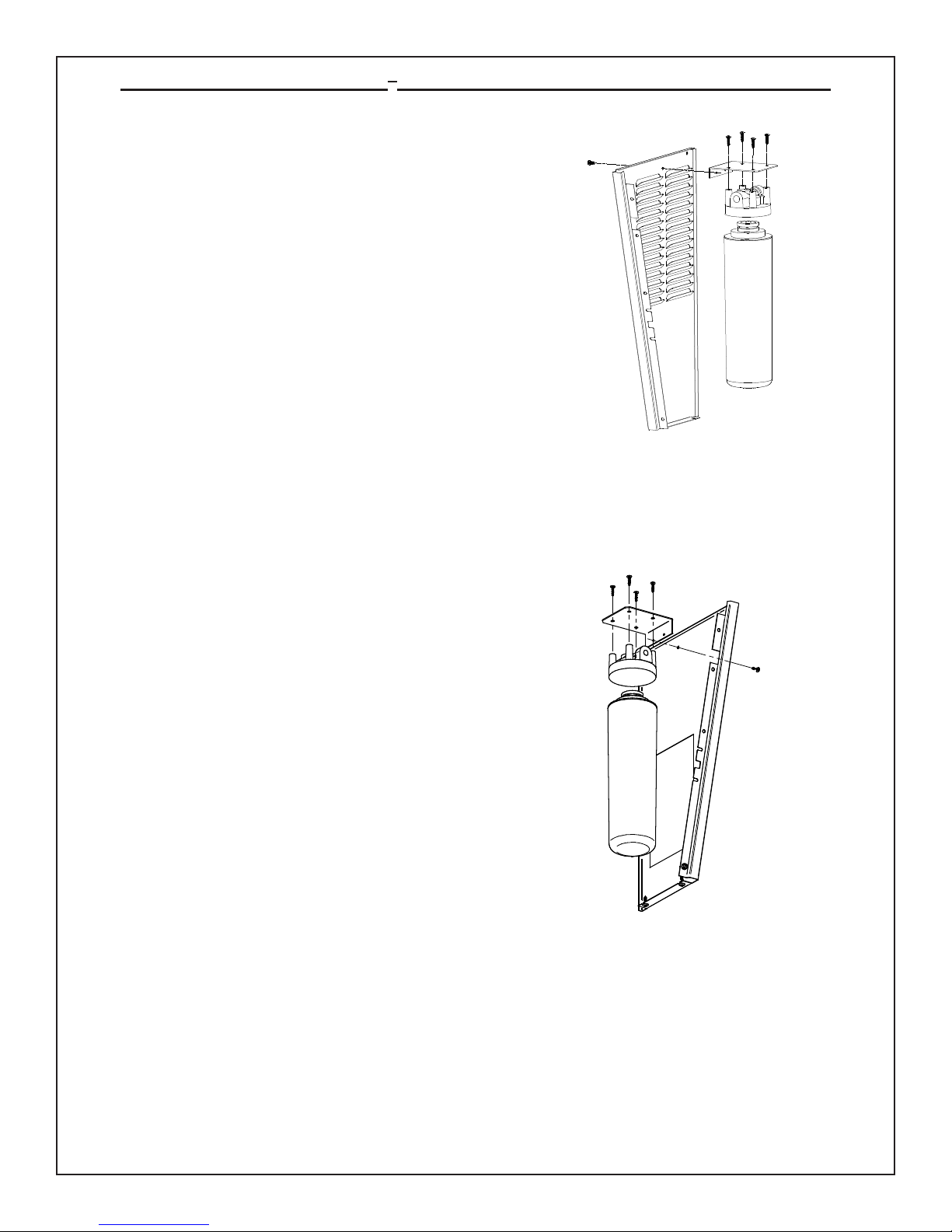

3) Mount Filter Head Assembly

Mount Filter Head Assembly into Cooler.

Unit with single supplied screw:

4) Connect Building water supply.

• Remove the 3/8” water inlet from the in-line strainer.

•Connect3/8”polytubingbetweentheinletofthelterand

the water inlet using the supplied 3/8” x3/8” union

connector.

•Discard in-line strainer.

Single Level Models

Two Level Models

HWF3000 WATERSENTRY® PLUS FILTER INSTALLATION (With Filter)

Fig. 1

• Single Level Models

• Mount on inside of left panel butted up against top lip.

 •NOTE:Thelterbracketismountedwithasinglescrew.

• Two Level Models

• Mount in left hand cooler on the inside of the right

panel, butted up against the top lip.

 •NOTE:Thelterbracketismountedwithasinglescrew.

Page 61000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

1) Connect Water Supply:

• Remove the in-line strainer outlet tube from

the Regulator Inlet.

• Remove the 1/4” copper tubing from the

Regulator Outlet.

• Connect the in-line Strainer Outlet using 1/4”

poly tubing to the Evaporator 1/4” copper

inlet using the supplied 1/4” union.

2) Add water supply to Bottle Filler:

• Cut the Evaporator outlet 1/4” poly tubing

6” from the Evaporator Outlet and insert

the1/4”Teettingbetweenthetwopieces.

•ConnectBottleFillersupplylinetoteetting.

• Remove 1/4” poly tubing from Bubbler.

3) Re-route water supply to Regulator Inlet:

• Insert end of 1/4” poly tubing from the

  TeettingtotheRegulatorInletwhichis

marked with the word “IN” on the regulator.

4) Connect water supply from Regulator to Bubbler:

• Cut a 12” piece of 1/4” poly tube along with

matching length of insulation.

• Insert 1/4” poly tube into insulation.

•Insert 1/4” poly tube into the Regulator

Outlet (unmarked).

• Opposite end of 1/4” poly tube will be

inserted later into the Bubbler.

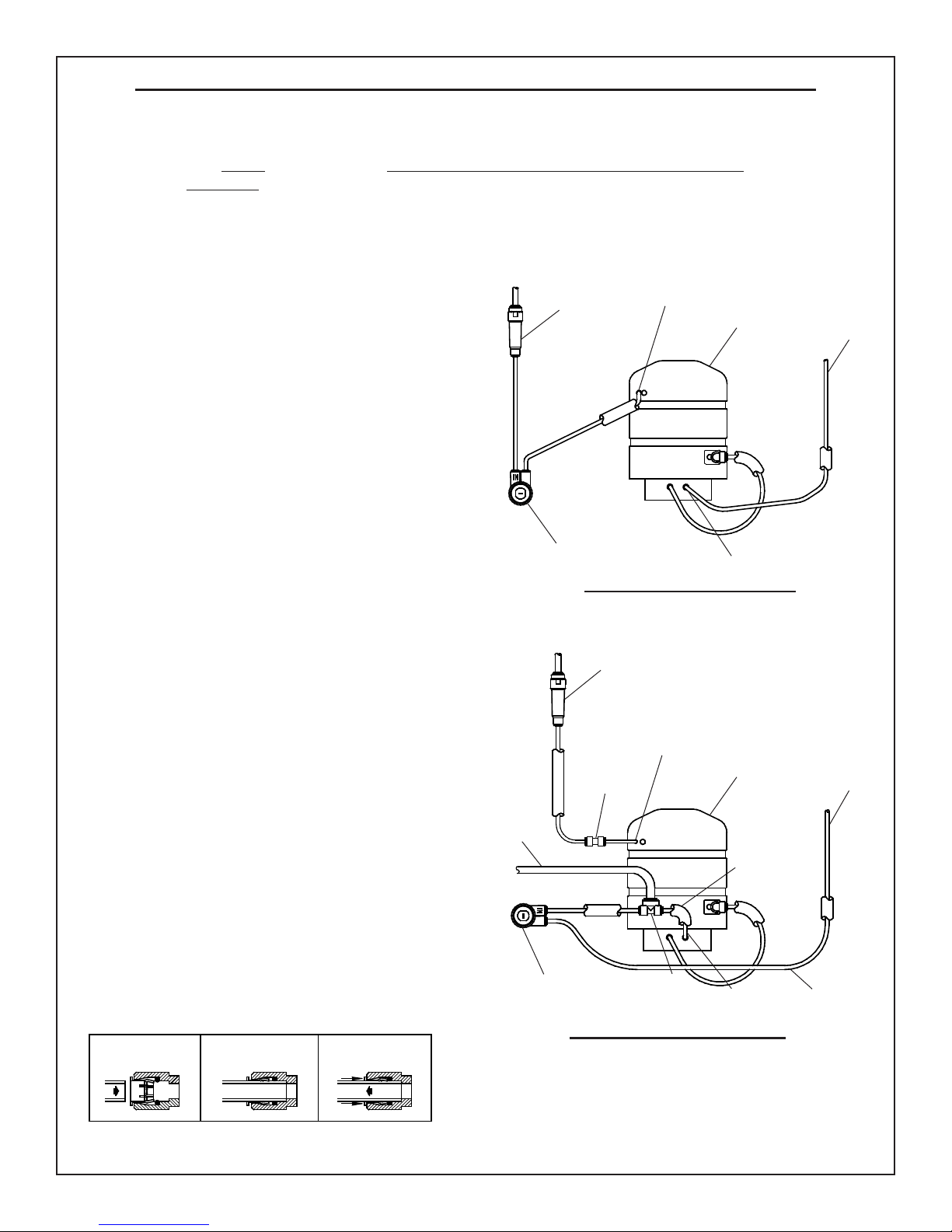

RE-PLUMBING SINGLE STATION WATER CIRCUITS (NON-FILTER)

CAUTION:

• This procedure MUST be performed on ALL SINGLE HALSEY TAYLOR WATER COOLERS or the bottle

llingunitWILL NOT perform properly!

• When disconnecting water lines use a container to catch any water running out of the lines.

IN-LINE

STRAINER

REGULATOR

1/4”UNION

REGULATOR TEE

TO BOTTLE

FILLER

6” TUBING

EVAPORATOR

INLET

EVAPORATOR

OUTLET

EVAPORATOR

OUTLET

EVAPORATOR

STANDARD HAC PLUMBING

HAC Hydroboost PLUMBING

Fig. 2

IN-LINE

STRAINER

12” TUBING

B CA

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

OPERATION OF QUICK CONNECT FITTINGS

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

OPERATION OF QUICK CONNECT FITTINGS

SIMPLY PUSH IN

TUBE TO ATTACH

TUBE IS SECURED

IN POSITION

PUSH IN COLLET

TO RELEASE TUBE

PUSHING TUBE IN BEFORE

PULLING IT OUT HELPS TO

RELEASE TUBE

A B C

TO BUBBLER

EVAPORATOR

INLET

Page 7 1000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

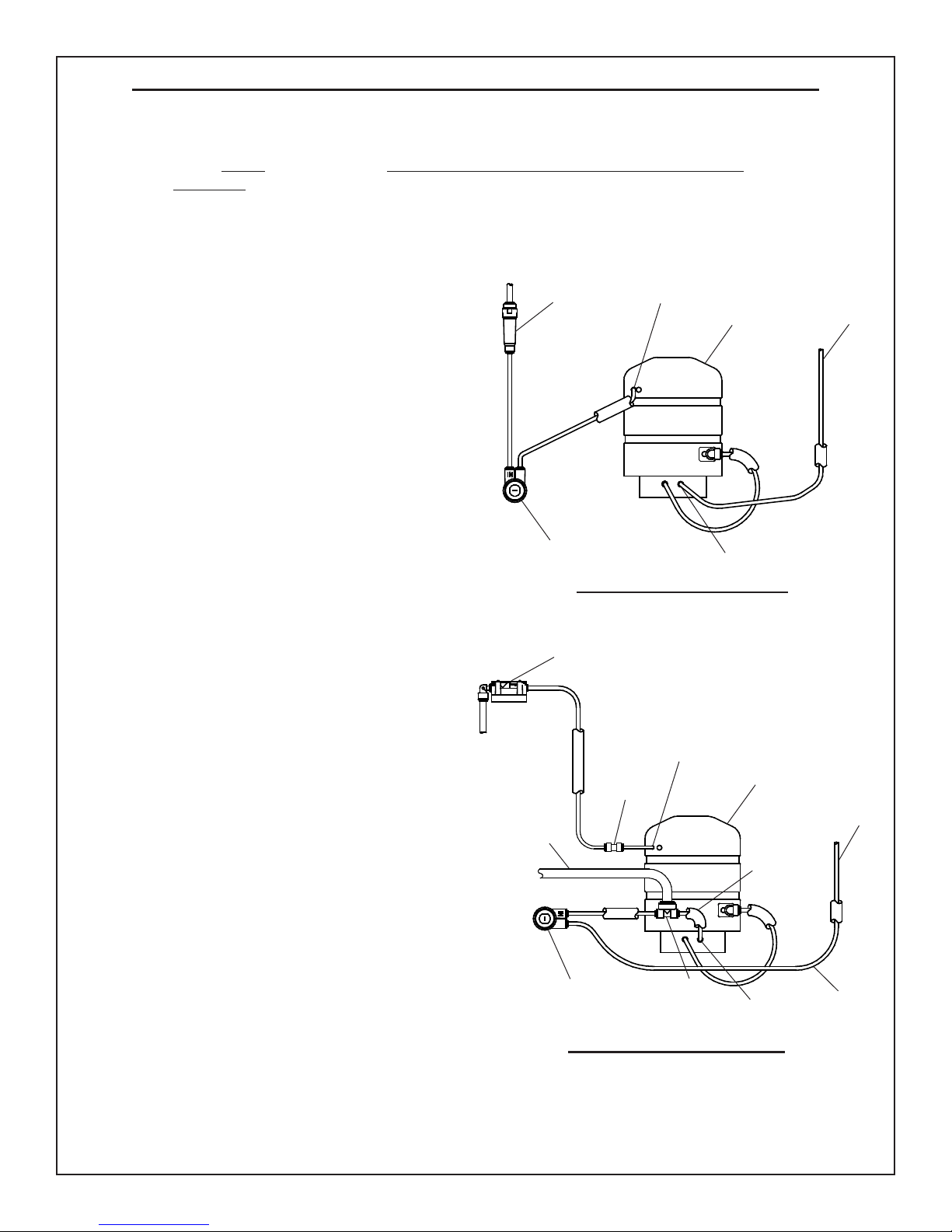

RE-PLUMBING SINGLE STATION WATER CIRCUITS (WITH FILTER)

CAUTION:

• This procedure MUST be performed on ALL SINGLE HALSEY TAYLOR WATER COOLERS or the bottle

llingunitWILL NOT perform properly!

• When disconnecting water lines use a container to catch any water running out of the lines.

FILTER

HAC Hydroboost PLUMBING

1) Connect Water Supply From Filter to Evaporator:

• Remove the in-line strainer outlet tube from

the Regulator Inlet.

• Remove the 1/4" copper tubing from the

regulator Outlet.

• Connect the Filter outlet using 1/4” poly

tubing to the Evaporator 1/4” copper inlet

using the supplied 1/4” union.

2) Add water supply to Bottle Filler:

• Cut the Evaporator Outlet 1/4” poly tubing

6” from the Evaporator Outlet and insert

the1/4”Teettingbetweenthetwopieces.

•ConnectBottleFillersupplylinetoTeetting.

• Remove 1/4” poly tubing from Bubbler.

3) Re-route water supply to Regulator:

• Insertendof1/4”polytubingfromtheTeetting

to the Regulator Inlet. which is marked with

the word “IN” on the Regulator.

4) Connect water supply from Regulator to Bubbler.

• Cut a 12” piece of 1/4” poly tube along with

matching length of insulation.

• Insert 1/4” poly tube into insulation.

•Insert 1/4” poly tube into the Regulator Outlet

(unmarked).

• Opposite end of 1/4” poly tube will be Inserted

later into the Bubbler.

Fig. 3

IN-LINE

STRAINER

STANDARD HAC PLUMBING

1/4”UNION

EVAPORATOR

INLET

EVAPORATOR

6” TUBING

TEE

EVAPORATOR

OUTLET

12” TUBING

REGULATOR

TO BOTTLE

FILLER

TO BUBBLER

EVAPORATOR

INLET

REGULATOR EVAPORATOR

OUTLET

TO BUBBLER

Page 81000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

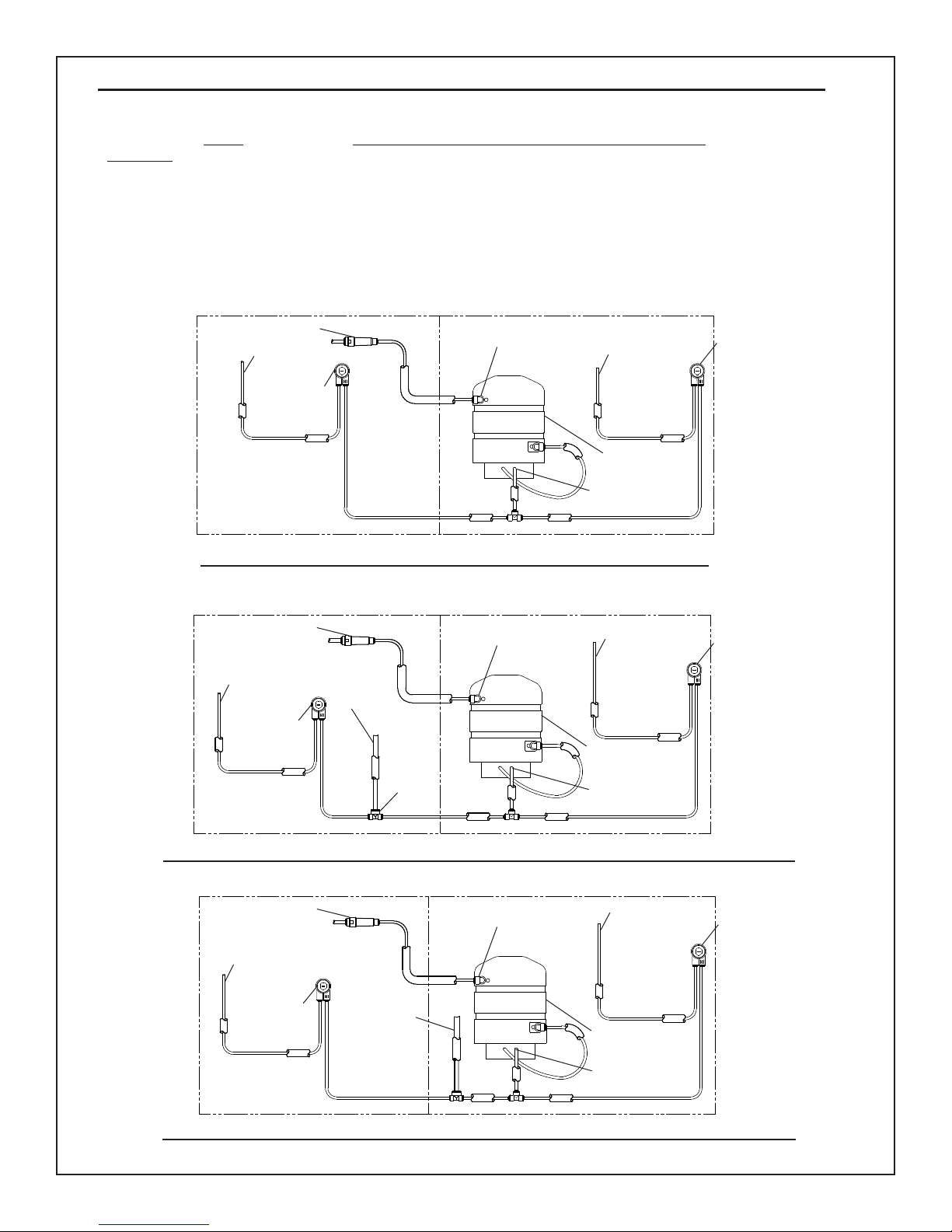

Fig. 4

RE-PLUMBING TWO LEVEL STATION WATER CIRCUITS (NON-FILTER)

HAC TWO LEVEL Hydroboost PLUMBING BOTTLE FILLER ON LH SIDE (SEE NOTE 1)

STANDARD HAC TWO LEVEL PLUMBING WITHOUT BOTTLE FILLER

TO BUBBLER

REGULATOR

EVAPORATOR

INLET

EVAPORATOR

TO BUBBLER

EVAPORATOR

OUTLET

TEE

TO BOTTLE

FILLER

IN-LINE STRAINER

L.H. DUMMY UNIT

R.H. REFRIGERATED UNIT

TO BUBBLER REGULATOR

IN-LINE STRAINER EVAPORATOR

INLET TO BUBBLER REGULATOR

EVAPORATOR

OUTLET

EVAPORATOR

REGULATOR

IN-LINE STRAINER

TO BUBBLER

REGULATOR TO BOTTLE

FILLER

EVAPORATOR

INLET

EVAPORATOR

OUTLET

EVAPORATOR

TO BUBBLER

REGULATOR

L.H. DUMMY UNIT

R.H. REFRIGERATED UNIT

HAC TWO LEVEL Hydroboost PLUMBING BOTTLE FILLER ON RH SIDE (SEE NOTE 2)

1) Add water supply to Bottle Filler to be located on LH unit:

• In the left hand unit, cut the Evaporator outlet 1/4” poly tubing approx. 5” from the access opening between the units,

 insertthe1/4”Teettingbetweenthetwopiecesandconnect3/8”waterlinetotee.

2) Add water supply to Bottle Filler to be located on RH unit:

• In the right hand unit, cut the Evaporator outlet 1/4” poly tubing approx. 2” from the access opening between the units,

 insertthe1/4”Teettingbetweenthetwopiecesandconnect3/8”waterlinetotee.

CAUTION:

• This procedure MUST be performed on ALL TWO LEVEL HALSEY TAYLOR WATER COOLERS orthebottlellingunit

WILL NOT perform properly!

• When disconnecting water lines use a container to catch any water running out of the lines.

Page 9 1000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

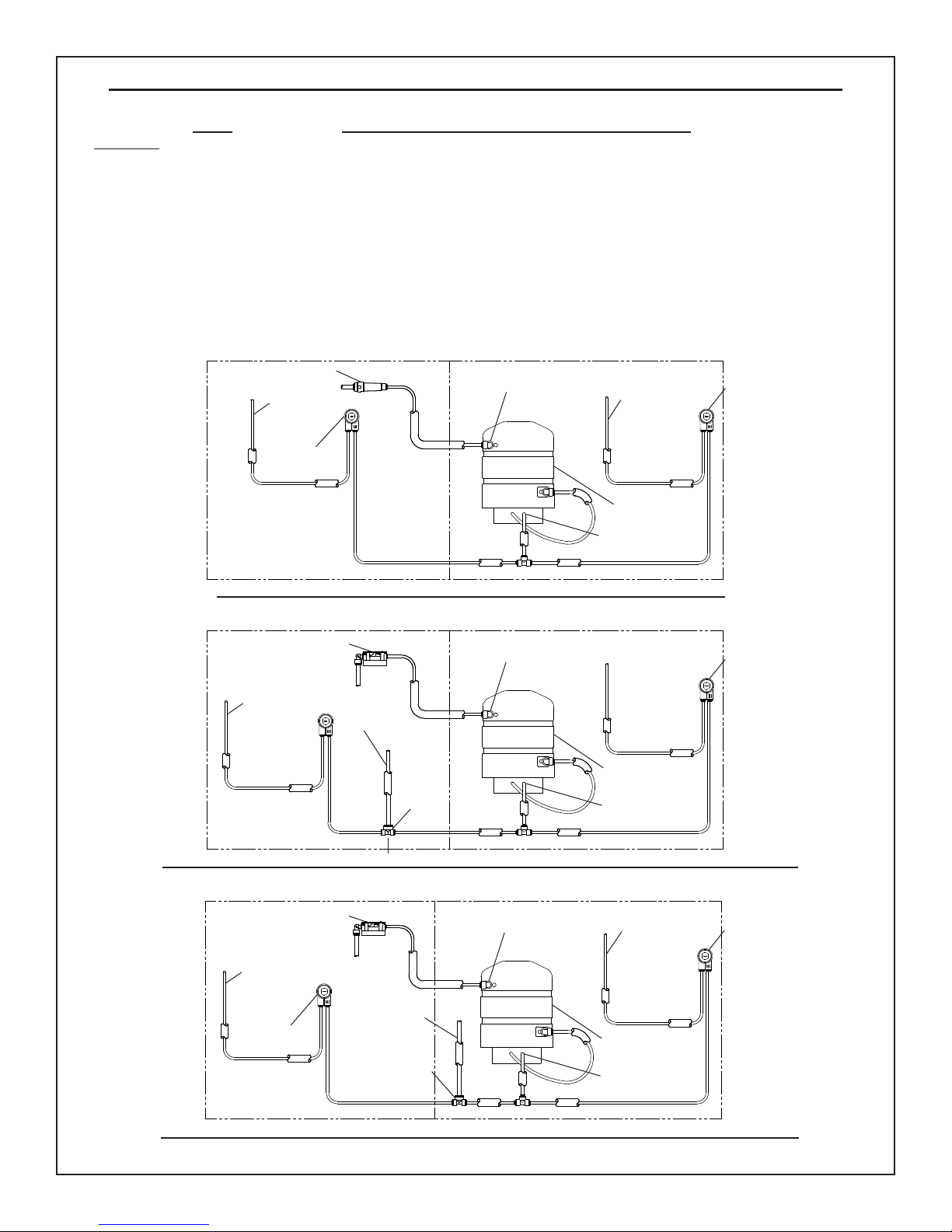

Fig. 5

RE-PLUMBING TWO LEVEL STATION WATER CIRCUITS (WITH FILTER)

HAC TWO LEVEL Hydroboost PLUMBING BOTTLE FILLER ON LH UNIT (SEE NOTE 2)

STANDARD HAC TWO LEVEL PLUMBING WITHOUT BOTTLE FILLER

TO BUBBLER

REGULATOR

IN-LINE STRAINER

REGULATOR

FILTER

L.H. DUMMY UNIT

R.H. REFRIGERATED UNIT

EVAPORATOR

OUTLET

EVAPORATOR

INLET

L.H. DUMMY UNIT

R.H. REFRIGERATED UNIT

EVAPORATOR

OUTLET

EVAPORATOR

INLET REGULATOR

TEE

TO BUBBLER

TO BOTTLE

FILLER

TO BUBBLER

REGULATOR

HAC TWO LEVEL Hydroboost PLUMBING BOTTLE FILLER ON RH UNIT (SEE NOTE 3)

TO BUBBLER

FILTER

TO BOTTLE

FILLER

TEE

EVAPORATOR

INLET

EVAPORATOR

OUTLET

EVAPORATOR

REGULATOR

L.H. DUMMY UNIT

R.H. REFRIGERATED UNIT

CAUTION:

• This procedure MUST be performed on ALL TWO LEVEL HALSEY TAYLOR WATER COOLERS orthebottlellingunit

WILL NOT perform properly!

• When disconnecting water lines use a container to catch any water running out of the lines.

1) Connect Water Supply:

• In the left hand unit,connect the Filter outlet using 1/4” poly tubing to the Evaporator 1/4” copper inlet using the supplied 1/4”

  quickconnecttting.

2) Add water supply to Bottle Filler to be located on LH unit:

• In the left hand unit, cut the Evaporator outlet 1/4” poly tubing approx. 5” from the access opening between the units, insert

  the1/4”Teettingbetweenthetwopiecesandconnect3/8”waterlinetotee.

3) Add water supply to Bottle Filler to be located on RH unit:

• In the right hand unit, cut the Evaporator outlet 1/4” poly tubing approx. 2” from the access opening between the units, insert

 the1/4”Teettingbetweenthetwopiecesandconnect3/8”waterlinetotee.

Page 101000004727 (Rev. A - 09/18)

HAC-HB*1C HAC-HB-NF-*1C

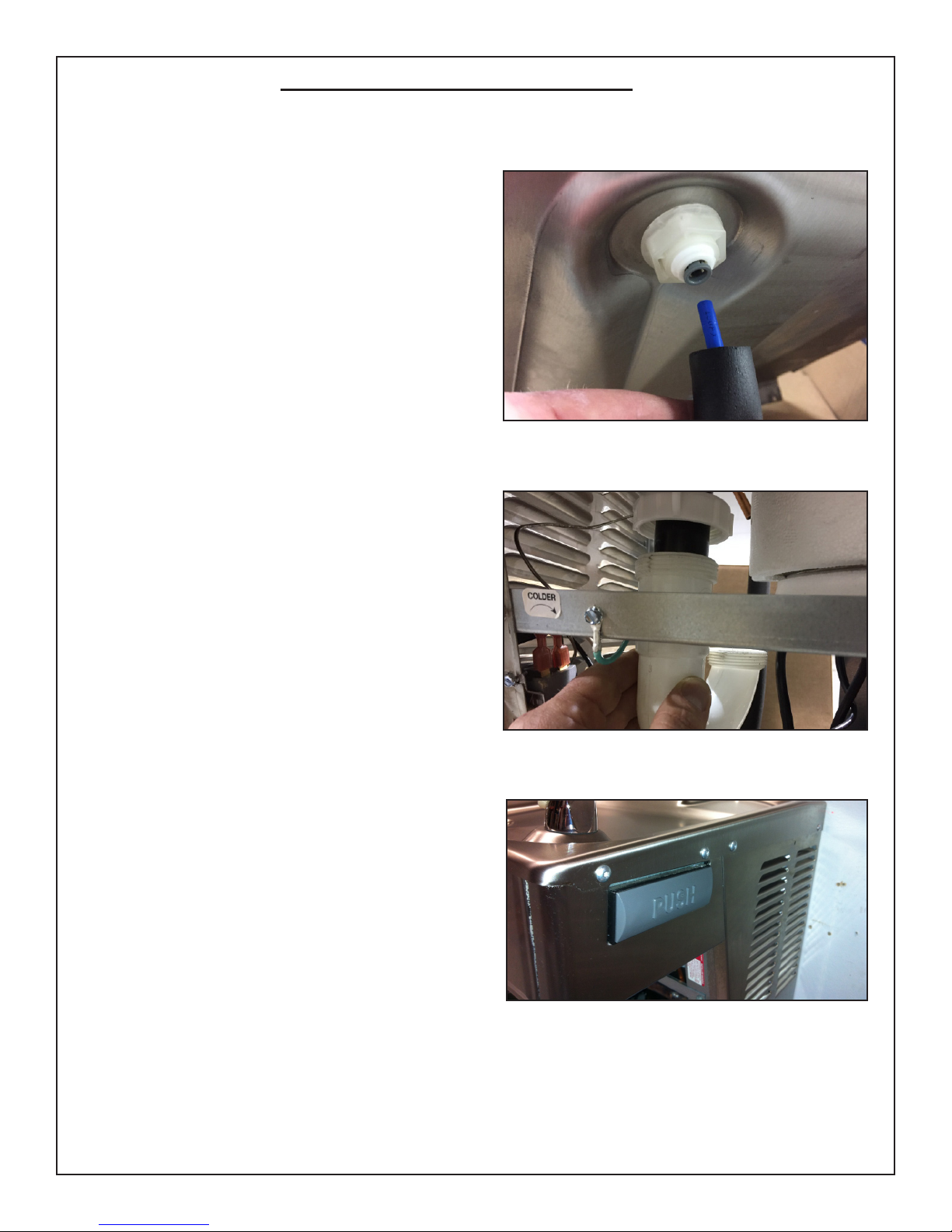

1) Connect Water Line

•Connect water line from Regulator to Bubbler.

2) Install New Basin Assembly

•Reposition Basin Assembly (Basin with Drain and

Bubbler hardware) back onto the cooler.

•Reattach drain line to P-trap and tighten.

3) Fasten Basin Assembly in place.

•Insert and retighten the 8 screws, four per side.

BASIN ASSEMBLY PREPARATION

Reattach drain line to P-trap

Connect Water Line

Fasten Basin Assembly in place.

Indice

Altri manuali Halsey Taylor Distributore d'acqua

Halsey Taylor

Halsey Taylor HTHBHAC8SS-NF-25 Istruzioni per l’uso

Halsey Taylor

Halsey Taylor HACFSCD C Series Manuale utente

Halsey Taylor

Halsey Taylor HAC8FSBLR-Q ADA Manuale utente

Halsey Taylor

Halsey Taylor HAC8EECQ 1E Series Manuale utente

Halsey Taylor

Halsey Taylor HAC4F-Q 1C Series Manuale utente

Halsey Taylor

Halsey Taylor GBMAKV*C Manuale utente

Halsey Taylor

Halsey Taylor OVL Manuale utente

Halsey Taylor

Halsey Taylor HAC8FBLRQ 1F Series Manuale utente

Halsey Taylor

Halsey Taylor HydroBoost HTHBHVR8 Manuale di installazione

Halsey Taylor

Halsey Taylor HCRF-ER Manuale utente

Halsey Taylor

Halsey Taylor WCFS*G*L*R Manuale utente

Halsey Taylor

Halsey Taylor SCWT Series Manuale utente

Halsey Taylor

Halsey Taylor HAC8EECBL 1F Series Manuale utente

Halsey Taylor

Halsey Taylor HVR Series Manuale utente

Halsey Taylor

Halsey Taylor HTV8BLEE-1C Manuale utente

Halsey Taylor

Halsey Taylor BFMRQ*A Series Manuale utente

Halsey Taylor

Halsey Taylor HTVBLEE Series Manuale utente

Halsey Taylor

Halsey Taylor Contour Series Manuale utente

Halsey Taylor

Halsey Taylor HTHB-HACG8SS-WF Manuale utente

Halsey Taylor

Halsey Taylor HAC8FBL-Q 1D Series Manuale utente

Halsey Taylor

Halsey Taylor HOWC8F-Q Series Manuale utente

Halsey Taylor

Halsey Taylor HydroBoost HTHBHACG8BL 1B Series Manuale utente

Halsey Taylor

Halsey Taylor HTVEE Series Manuale utente

Halsey Taylor

Halsey Taylor XP8WQ 1D Series Manuale utente

Manuali Distributore d'acqua popolari di altre marche

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuale utente

Haier

Haier HLM-109B Manuale utente

abc

abc Fleck 5600SXT Manuale utente

GE GXOF18G Istruzioni operative

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Innova

Innova CEV+ Guida rapida

Aries

Aries Hydra DI Manuale

GE GNCF02H Manuale utente

ProFlo

ProFlo PFB Series Manuale utente

Hydrotech

Hydrotech 89DF HIM Manuale utente

A.O. Smith

A.O. Smith FREZYA 300S Manuale utente

Frakco

Frakco Travelsoft RV 2400HD Manuale utente

GE GXSF30V Istruzioni operative

Avanti

Avanti WD31EC Manuale utente

Avanti

Avanti WD360 Manuale utente

BRIO

BRIO CLCTTL520 Guida utente

3M HCD-1 Manuale utente

Elkay

Elkay EFHFA8_2CJO Manuale di installazione
