Hamilton Beach 45237 Manuale del proprietario
English ...................... 2
Francais .................. 12
Español .................. 23

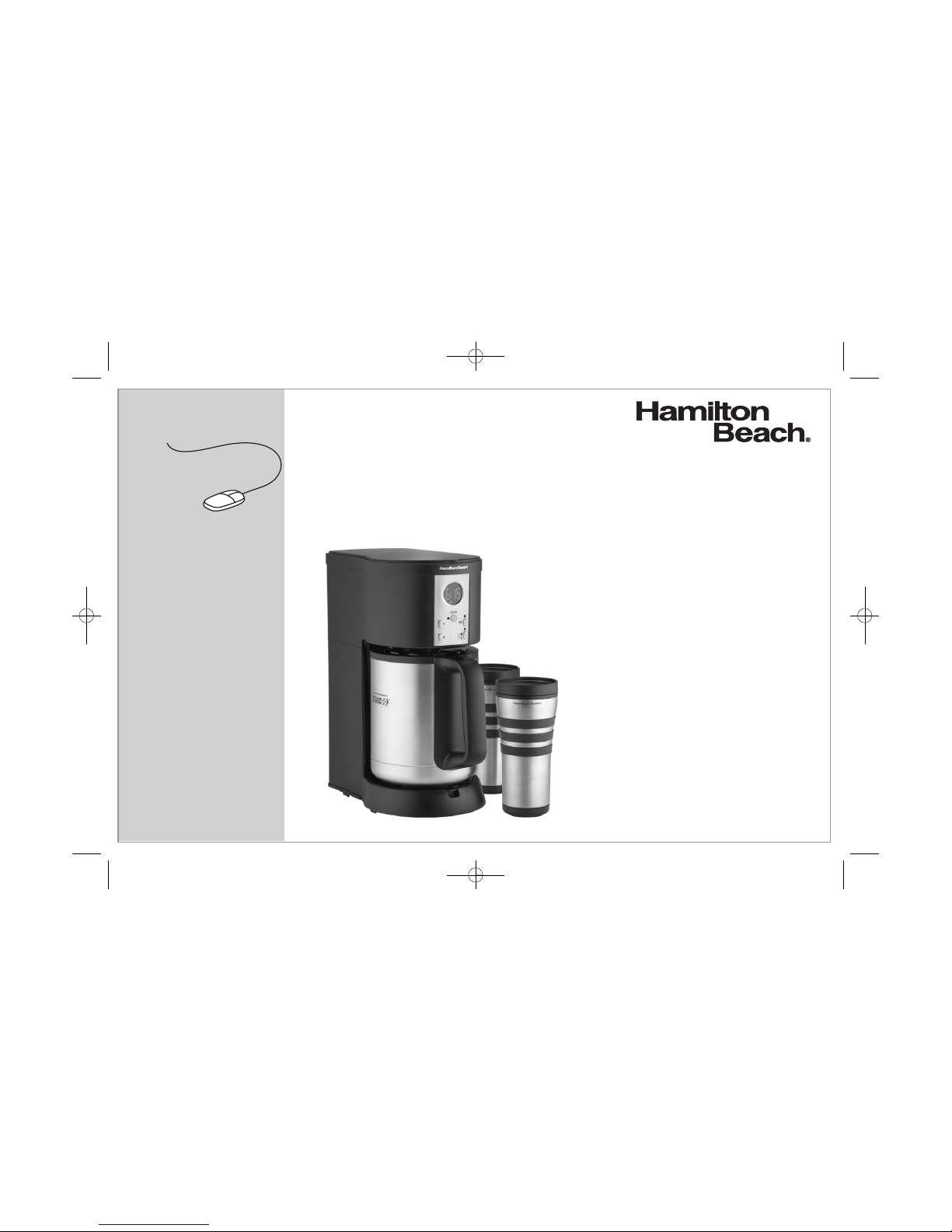

Stay or Go™
Thermal Coffeemaker
Cafetière à carafe thermale
Cafetera de jarra térmica
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.
Visit hamiltonbeach.com for
delicious recipes, tips, and to register
your product online!
Consultez hamiltonbeach.ca pour
de délicieuses recettes, des conseils
pratiques et pour enregistrer votre produit !
¡Visite hamiltonbeach.com.mx para
recetas deliciosas, consejos, y para
registrar su producto en línea!
Questions?
N'hésitez pas à nous appeler –
nos associés s'empresseront
de vous aider.
CAN: 1.800.267.2826
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 1
2
SAVE THESE INSTRUCTIONS!
IMPORTANT SAFEGUARDS
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs. Care must
be taken, as burns can occur from touching hot parts or from
spilled, hot liquid.
3. To protect against electric shock, do not place cord, plug or
coffeemaker in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet by firmly grasping the plug when either
the coffeemaker or clock is not in use and before cleaning.
Allow to cool before putting on or taking off parts and before
cleaning the appliance.
6. Coffeemaker must be operated on a flat surface away from the
edge of counter to prevent accidental tipping.
7. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch
hot surfaces, including stove.
11. The carafe is designed for use with this coffeemaker. It must
never be used on a range top or in a microwave or conven-
tional oven.
12. Do not use carafe with loose or weakened handle.
13. To avoid accidents, do not pour in direction of people.
14. Be certain carafe lid is securely in place during brew cycle and
when pouring coffee. Do not use force when placing lid on carafe.
15. To disconnect coffeemaker, turn controls to OFF, then remove
plug from wall outlet.
16. Do not place coffeemaker on or near a hot gas or electric
burner or in a heated oven.
17. WARNING: To reduce the risk of fire or electric shock, do not
remove the bottom cover. No user serviceable parts are inside.
Repair should be done by authorized service personnel only.
18. Do not use appliance for other than intended use.
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
840168001 ENnv05.qxd:Layout 1 12/16/08 9:11 AM Page 2
3
OTHER CONSUMER SAFETY INFORMATION
This appliance is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug
(one wide blade) that reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or using
an adaptor. If the plug does not fit, reverse the plug. If it still does
not fit, have an electrician replace the outlet.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in or tripping over a
longer cord. If a longer cord is necessary an approved extension
cord may be used. The electrical rating of the extension cord
must be equal to or greater than the rating of the appliance. Care
must be taken to arrange the extension cord so that it will not
drape over the countertop or tabletop where it can be pulled on
by children or accidentally tripped over.
To avoid an electrical circuit overload, do not use another high-
wattage appliance on the same circuit with this appliance.
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 3
4
Parts and Features
Thermal
Carafe
Clock and
Controls Water
Reservoir
Coffee Scoop
Base
Lid
To Order Call:
1-800-851-8900 (U.S.) • 1-800-267-2826 (Canada)
01-800-71-16-100 (Mexico)
or visit hamiltonbeach.com
Optional Accessories
Water Filter
Filter
Basket
Thermal
Carafe
Lid
Thermal
Travel Mugs
Gold Tone
Permanent
Coffee Filter
Drip
Tray
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 4
5
How to Make Coffee
1 2 3
5 6
Remove thermal carafe lid or lid
of thermal travel mug. WARNING: Do not fill beyond
for brewing one mug or for
brewing two mugs. Hot overflow-
ing coffee is a burn hazard.
Align with open lock and twist to
lock in place. For Hotter Coffee: Before brewing,
fill carafe or thermal travel mug
with hot tap water and let stand
1 minute then replace.
Paper filter or optional permanent
filter may be used.
4
Lock filter basket into place.
IMPORTANT: Lid will not close all
the way if filter basket handle is
not locked securely into place.
78
Coffee Usage Chart:
• 1 scoop* or level tablespoon ground coffee per cup
• 3 scoops* or level tablespoons ground coffee per travel mug
*Coffee scoop is optional feature on select models.
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 5
6
How to Make Coffee (cont.)
Programming
1 2 3 4
Press Hand then Mto set clock. Hold PROG until clock flashes. Continue holding PROG button,
press Hand Muntil the desired
brewing start time is reached.
Press PROG momentarily to
activate automatic brewing.
WARNING: Do not remove carafe or thermal travel mugs until
light goes out. If coffeemaker overflows, allow the unit, coffee,
and grounds to cool before cleaning the unit, coffee, or grounds.
11
10
Press to brew coffee in
thermal travel mugs or for
stronger coffee flavor.
Coffeemaker will shut off
immediately after brewing.
9
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 6
7
6
IMPORTANT: Do not remove carafe
or thermal travel mugs until light
goes out. Coffeemaker will shut off
immediately after brewing.
How to Make Iced Coffee
31 2
Fill water reservoir to a maximum
of 5 cups and thermal carafe with
ice to just below inside rim.
Align with open lock and twist to
lock in place.
7
4
Brew double strength coffee for
iced coffee. For a full pot, use 10
scoops.
Lock filter basket into place.
IMPORTANT: Lid will not close all
the way if filter basket handle is
not locked securely into place.
5
OR
Coffee Usage Chart:
1 mug = 1/2mug ice, 11/2cups water, 3 scoops* or level tablespoons
ground coffee
2 mugs = 1/2mug (each) ice, 3 c. water, 6 scoops* or level table-
spoons ground coffee
*Coffee scoop is optional feature on select models.
WARNING: Do not fill beyond
for brewing one mug or for
brewing two mugs. Hot overflow-
ing coffee is a burn hazard.
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 7
8
Cleaning with Vinegar
1 2 3
Remove optional water filter. Pour 1 pint (2 cups/500 ml) vine-
gar into water reservoir. Press ON ( ). Turn OFF ( )
after 20 seconds and wait 30
minutes. Press ON ( ). The unit
will automatically turn off when
brew cycle is completed. When
cool, empty reservoir and rinse.
4
Run 2-3 more brew cycles with
CLEAN WATER only. Allow to
cool between cycles.
Water Filter
1
(Optional Accessory)
23
15 min.
The water filter can help achieve a better tasting cup of coffee by removing
chlorine and impurities from tap water. It is recommended that this filter be
replaced every 60 brew cycles.
4
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 8
9
PROBLEM
Filter basket overflows
or coffee brews slowly.
Coffee leaks onto base.
Coffee tastes bad.
Coffee sediment in cup.
PROBABLE CAUSE
• Excessive amounts of coffee.
• Coffee ground too finely. Set coffee grinder to automatic drip grind.
• Coffeemaker needs cleaning.
If using a paper filter:
• Coffee grounds between paper filter and filter basket.
• Paper filter not open and in proper position.
• Rinse filter basket before inserting paper filter so the edges will remain pressed against the
sides of the basket.
• Poor quality paper filter.
•Thermal travel mugs not properly seated in position indicators on base. Refer to How to Make
Coffee for correct position of thermal travel mugs during brewing.
• Coffeemaker needs cleaning.
• Coffee ground too coarsely or too finely. Set coffee grinder to automatic drip grind.
• Coffee-to-water ratio unbalanced. Adjust for personal preference.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled water).
• Use a high-quality, basket-style paper filter instead of optional permanent coffee filter.
Troubleshooting
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 9
10
PROBLEM
Coffee not brewing or
unit will not turn on.
Longer than normal
brew time.
PROBABLE CAUSE
• Water reservoir is empty.
• Unit is unplugged.
• Power outage.
• Power surge. Unplug then plug the unit back in.
• Clock requires reset after power outage.
• Mineral deposits can build up in the pump of your coffeemaker. Periodic cleaning of the inside
of the unit is recommended. More frequent cleaning may be necessary, depending on the
hardness of your water. See Cleaning with Vinegar section.
NOTE: Do not disassemble the unit.
• 1–4 CUP mode was selected for a full pot.
Troubleshooting
840168001 ENnv05.qxd:Layout 1 12/16/08 9:06 AM Page 10
