Hamilton Beach OG01 Manuale utente

840212100

Type OG01 Gas Grill

Assembly and Operation Manual

Consumer Affairs: 1-800-267-2826

FOR OUTDOOR USE ONLY

Hamilton Beach Brands, Inc.

Glen Allen, Virginia 23060

STOP! TO PREVENT DAMAGING YOUR GRILL, READ THIS

MANUAL FIRST FOR IMPORTANT UNPACKING AND

ASSEMBLY INSTRUCTIONS!

TABLE OF CONTENTS

BEFORE YOU BEGIN

Message to Our Users .............................................................................................................. 3

Safety Symbols ......................................................................................................................... 3

Installation/Safety Precautions ................................................................................................. 4

Propane and Gas Warning ....................................................................................................... 4

Grill Parts List ............................................................................................................................ 5

Grill Parts Diagram .................................................................................................................... 7

ASSEMBLY

Before the Assembly ................................................................................................................ 8

Assembly Steps ...................................................................................................................... 11

POST ASSEMBLY

Gas Connection ...................................................................................................................... 19

Leak Testing ............................................................................................................................ 22

Final Installation Checklist ...................................................................................................... 23

Grill Lighting Instruction .......................................................................................................... 24

Operating Instruction .............................................................................................................. 26

Safety Tips .............................................................................................................................. 28

Care and Maintenance ........................................................................................................... 28

Troubleshooting ...................................................................................................................... 30

Food Safety ............................................................................................................................ 31

Grill Storage ............................................................................................................................ 31

• If you smell gas:

1. Shut off gas to the grill.

2. Extinguish any open flames immediately.

3. Open the grill lid.

4. If the odor persists, keep away from the grill and call your gas supplier or your

fire department immediately.

wDANGER

• Do not store or use gasoline or other flammable items in the vicinity of this grill or

any other appliance.

wWARNING

BEFORE YOU BEGIN

Thank you for your purchase of our gas grill. We sincerely hope you will enjoy using our fine

products.

• Please read this user’s manual in its entirety before using the grill.

• Please contact Consumer Affairs if you have any questions.

• Please read this user’s manual carefully. Failure to follow the provided instruction can

result in serious bodily injury and/or property damage.

• Some parts of this grill may have sharp edges. Please wear suitable protective gloves.

IMPORTANT: This grill is intended for outdoor use only and is not intended to be installed in

or on recreational vehicles or boats.

NOTE TO INSTALLER: Leave this user’s manual with the customer after delivery and/or

installation.

NOTE TO CONSUMER: Leave this user’s manual in a convenient place for future reference.

The symbols listed here are being used throughout this manual. Please pay

special attention to them. The meaning of each of the symbols is listed here:

This symbol indicates an imminently hazardous

situation which will result in death or serious bodily

injury if not followed properly.

wDANGER

wWARNING This symbol indicates serious bodily injury may result

if the instructions are not followed.

wCAUTION This symbol indicates a hazardous situation which

may result in minor or moderate bodily injury if the

instructions are not properly followed.

MESSAGE TO OUR USERS

SAFETY SYMBOLS

wWARNING

BEFORE YOU BEGIN

• This grill is designed to use natural gas only. This grill does not include natural gas hose.

Purchase the proper natural gas hose from local reputable dealer.

• The installation of this appliance must conform with local codes or, in the absence of local

codes, with either the National Fuel Gas Code,ANSI Z223.1/NFPA 54, or CAN/CSA

B149.1, Natural Gas and Propane Installation Code, or CAN/CSA B149.2, Propane

Storage and Handling Code.

• If an external electrical source is utilized, the outdoor cooking gas appliance, when installed,

must be electrically grounded in accordance with local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1. Keep the power cord of the motor away from the hot surfaces of the

grill while in use. Remove and store the motor in a dry place when not in use.

• This grill is safety-certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious bodily injury or property damage.

Hamilton Beach is not responsible for any modifications, and all warranties will be void.

wWARNING

READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL

INSTALLATION/SAFETY PRECAUTIONS

1. Combustion by-products produced when using this product contain chemicals

known to the State of California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead and lead compounds, known to

the State of California to cause cancer, birth defects, or other reproductive harm.

Wash your hands after handling this product.

CALIFORNIA PROPOSITION 65

TOTAL GAS CONSUMPTION:

Total gas consumption (per hour) of OG01 grill with all burners on HI:

3 Main burners x 11,000 Btu/hr each: Total 33,000 Btu/hr

KEY

DESCRIPTION

Lid

Temperature Gauge

Bezel, Temperature Gauge

Logo Plate

Lid Handle

Rotate Rod, Lid

Bezel, Rotate Rod

Firebox

Left-Side Shelf

Warming Rack

Cooking Grate

Heat Diffuser (Flame Tamer)

Main Burner

Manifold, Main Burner

Gas Valve, Main Burner

Control Panel

Control Knob

Rear Panel

Right-Side Shelf

Grease Cup Clip

Grease Cup

Cart Frame

Left Panel

Match Holder Bracket (Nylon

Knot)

Match Holder

Right Panel

QUANTITY

PART NUMBER

990130100

990127300

990127400

990130500

990127500

990127600

990127700

990129900

990127800

990127900

990128000

990128100

990141000

990128300

990128400

990130200

990128500

990139500

990128700

990135000

990135100

990130400

990130300

990137000

990137100

990135600

BEFORE YOU BEGIN

GRILL PARTS LIST

KEY

DESCRIPTION

Front Panel

Bottom Shelf

Standard Caster

Foot

QUANTITY

PART NUMBER

990130000

990129800

990128900

990129000

BEFORE YOU BEGIN

GRILL PARTS LIST

BEFORE YOU BEGIN

GRILL PARTS DIAGRAMGRILL PARTS DIAGRAM

ASSEMBLY

BEFORE THE ASSEMBLY

READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY UNPACK

GRILL PARTS FROM SHIPPING BOX.

STEP 1:

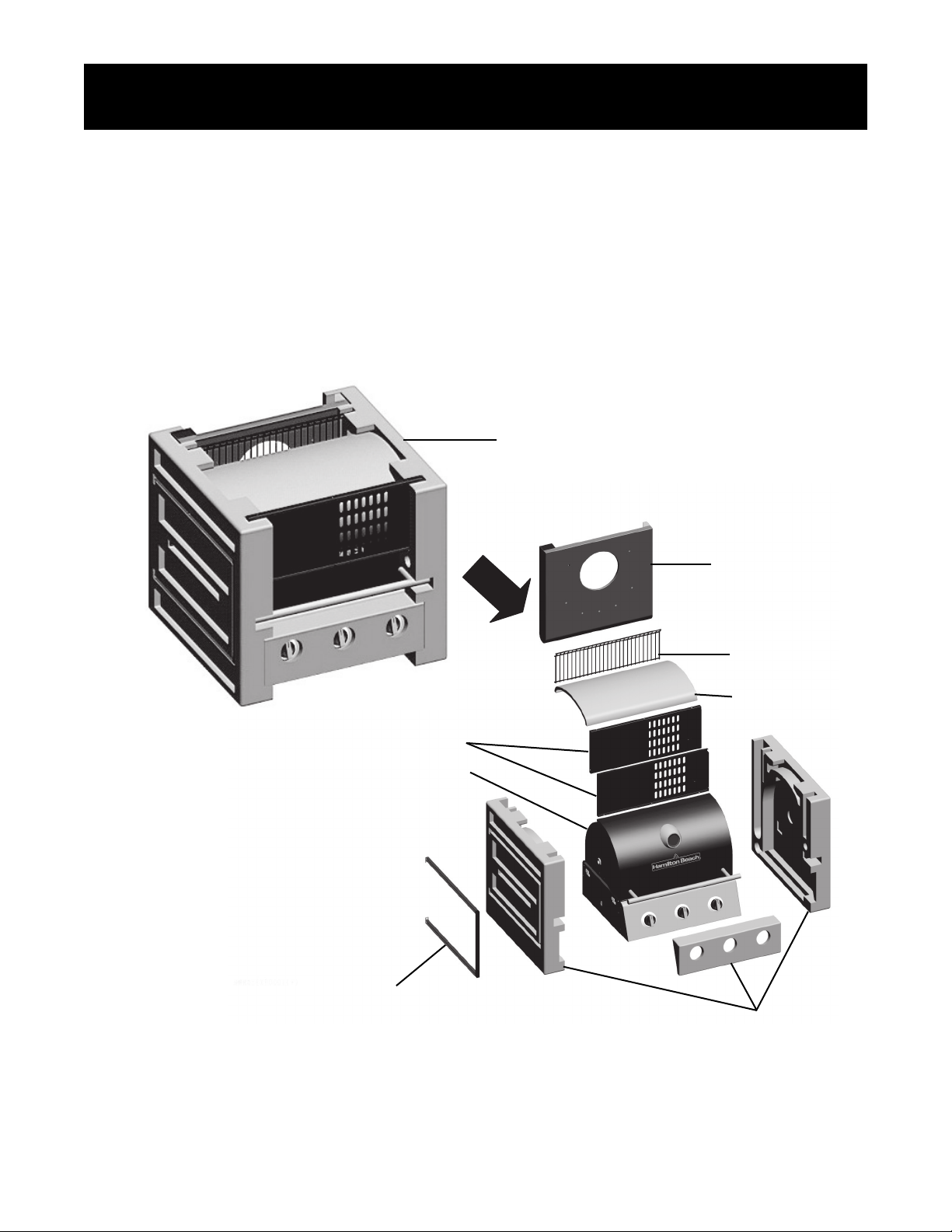

1. Open shipping box by slicing down its edges with a box cutter. Take all the parts out of the

protective styrofoam as shown in Fig. A. Remove all parts from plastic bags.

Grill Head

Bottom Shelf

Warming Rack

Front Panel

Styrofoam

Cart Frame

Grill Head

Left and Right

Panels

Fig. A

ASSEMBLY

BEFORE THE ASSEMBLY

STEP 2:

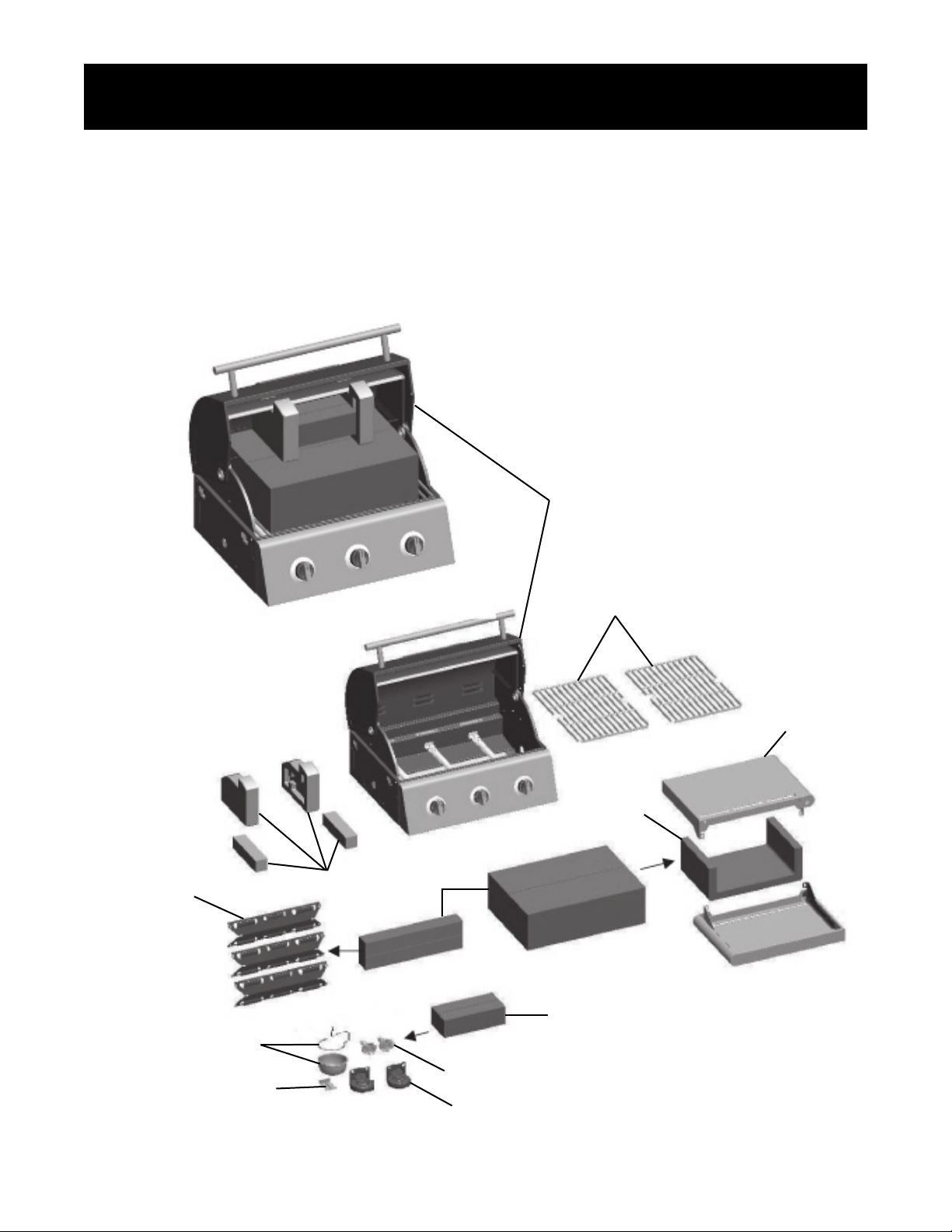

1. Open grill lid, and take out the small boxes packed within the grill head. Remove all packing

materials and remove all parts from boxes as shown in Fig. B below.

Grill Head

Cooking Grids

Left and Right

Shelves

Cardboard

Box

Positioning Gage

Feet

Casters

Grease Cup Clip

and Grease Cup

Heat Diffusers Styrofoam

Fig. B

PLEASE READ AND FOLLOW THESE INSTRUCTIONS CAREFULLY

STEP BY STEP

Tools Required:

• #2 Phillips screwdriver (not provided)

• The following hardware is provided in the blister pack:

ASSEMBLY

BEFORE THE ASSEMBLY

M4 x 10 Screw (12) M5 x 10 Screw (5) M6 x 26 Screw (2)

M6 x 13 Screw (20) Flat M6 Washer (6) M6 Compression Washer (4)

Wrench (1)

Match Holder Bracket (Nylon Knot) (1) Match Holder (1)
