Hammer Strength OHDPR8 Manuale utente

OLYMPIC HEAVY DUTY POWER RACK 8’

(OHDPR8)

Part # 7615401

Rev.C Revision:12/09/031

ASSEMBLYINSTRUCTIONS

PARTS LIST

PART #

LEA7586101

LEA7586501

LEA7584601

LEA7584901

LEA7585801

LEA7586601

LEA7586901

LEA7588301

LEA7584401

LEA7584501

LEA7587501

LEA7587901

LEA7587801

LEA7589201

KEY

QTY

KEY

PART #

LEA7596501

LEA3239318

LEA3239306

LEA3245201

LEA3102502

LEA3237505

LEA3239503

LEA7617301

LEA3102801

LEA3102802

LEA7601701

LEA3239317

LEA3105303

DESCRIPTION

BOTTOMUPRIGHTSUPPORT

1/2X4-1/2” BOLT

1/2X1-1/2” BOLT

3/8X3-3/4”FLATHEADBOLT

1/2”FLATWASHER

1/2”INTTOOTHLOCKWASHER

3/8”INTTOOTHLOCKWASHER

1/2”PLASTICDOMEWASHER

1/2”LOCKNUT

3/8”LOCKNUT

SWIVELSPOTTER

1/2X4-1/4” BOLT

9/16”HOLECAP

QTY

DESCRIPTION

LEFTUPRIGHTBASE

RIGHTUPRIGHTBASE

FRONTUPRIGHT

REARUPRIGHT

CROSSSUPPORT

WEIGHTHORNUPRIGHT

REARUPRIGHTSUPPORT

CHIN-UPSUPPORT

RIGHTADJUSTMENTRACK

LEFTADJUSTMENTRACK

WEIGHTHORN

LEFTBARSUPPORT

RIGHTBARSUPPORT

BARCATCH

BOLT LENGTH

Tools Required forAssembly

NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OFTHE BOLT.

Bolt Length Ruler

* 3/4”, 9/16” wrench

* Ratchet with 3/4”, 9/16” socket

* 7/32”Allen Wrench

1/2 1/2 1/2 1/2 1/2 1/2

23456

10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

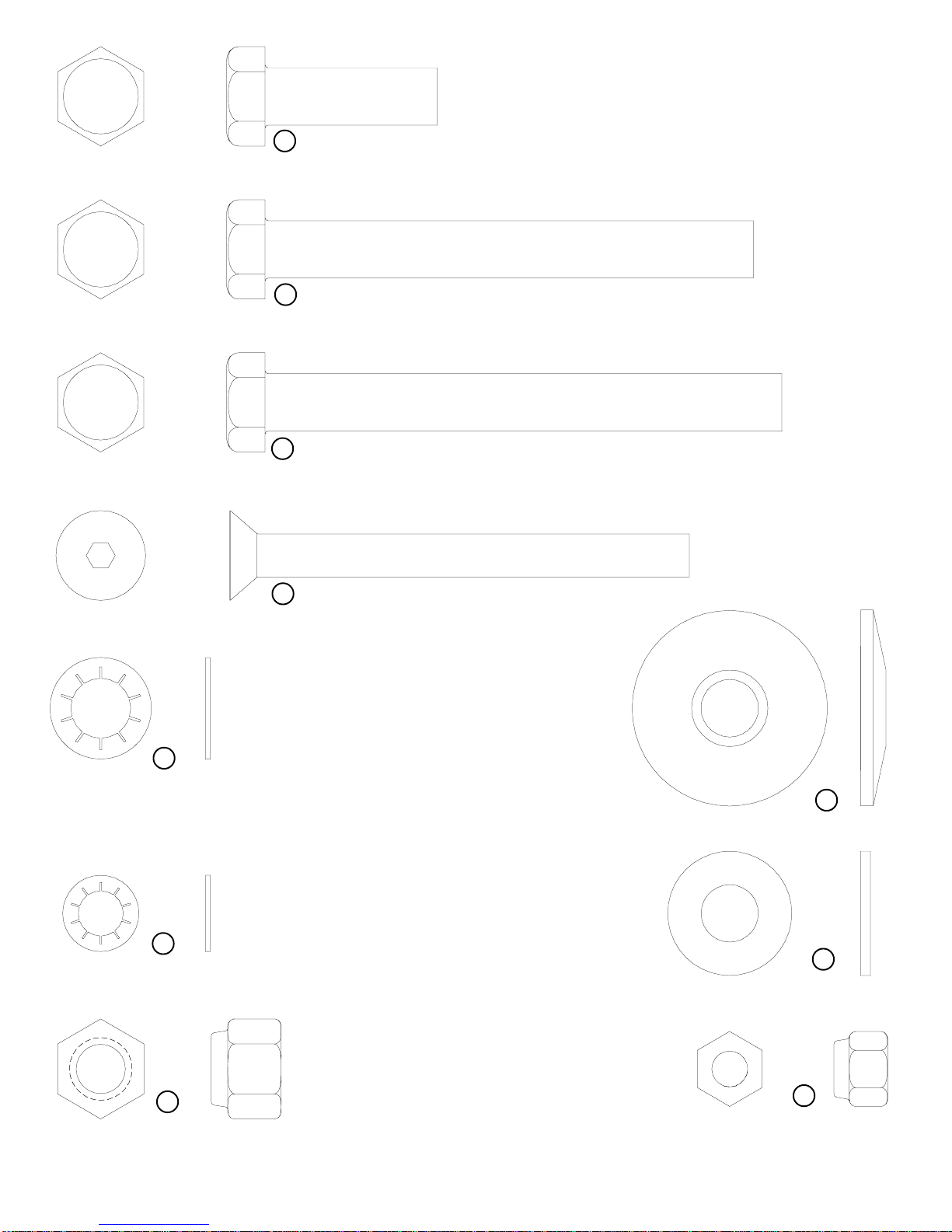

17 1/2X1-1/2” BOLT

16 1/2X4-1/2” BOLT

3/8”INTTOOTH

LOCKWASHER

1/2”INTTOOTH

LOCKWASHER

26 1/2X4-1/4” BOLT

18 3/8X3-3/4” FLATHEADBOLT

3/8”

LOCKNUT

1/2”

LOCKNUT

1/2”

FLATWASHER

1/2”PLASTIC

DOMEWASHER

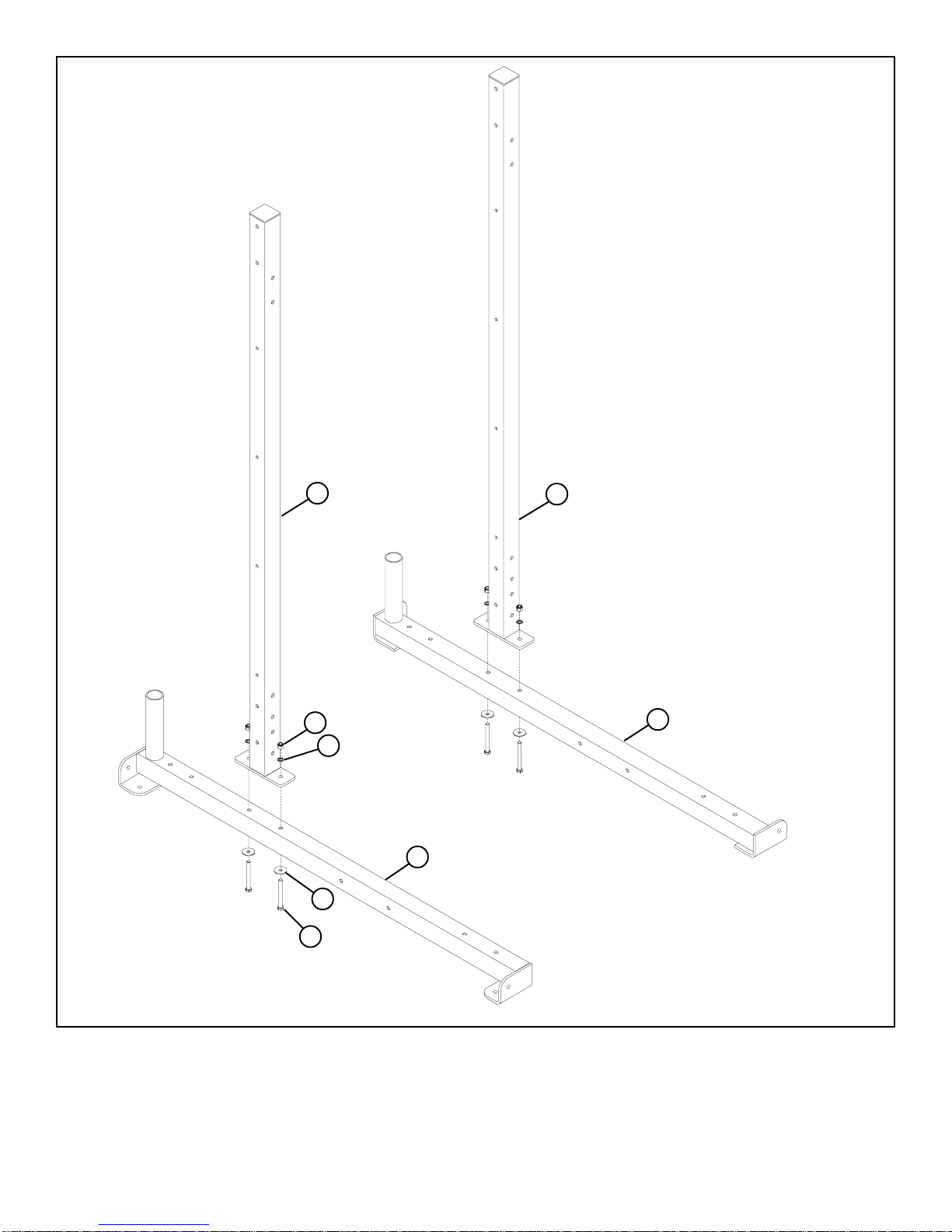

STEP 1:

FIGURE 1

• LOOSELYassemble the REAR UPRIGHT(4) to theLEFTUPRIGHT BASE (1) usingtwo 1/2 X 4-1/4” BOLTS(26),two1/2”PLASITC

DOMEWASHERS (22), two1/2” INTTOOTHLOCKWASHERS(20) and two 1/2”LOCK NUTS(23) asshown in FIGURE 1.

4 4

26 1/2X 4-1/4”

• LOOSELY assemble the REAR UPRIGHT(4) to the RIGHTUPRIGHTBASE(2)usingtwo1/2X4-1/4”BOLTS (26), two 1/2” PLASITC

DOMEWASHERS (22), two 1/2” INTTOOTH LOCKWASHERS (20) andtwo 1/2” LOCKNUTS (23) asshown in FIGURE1.

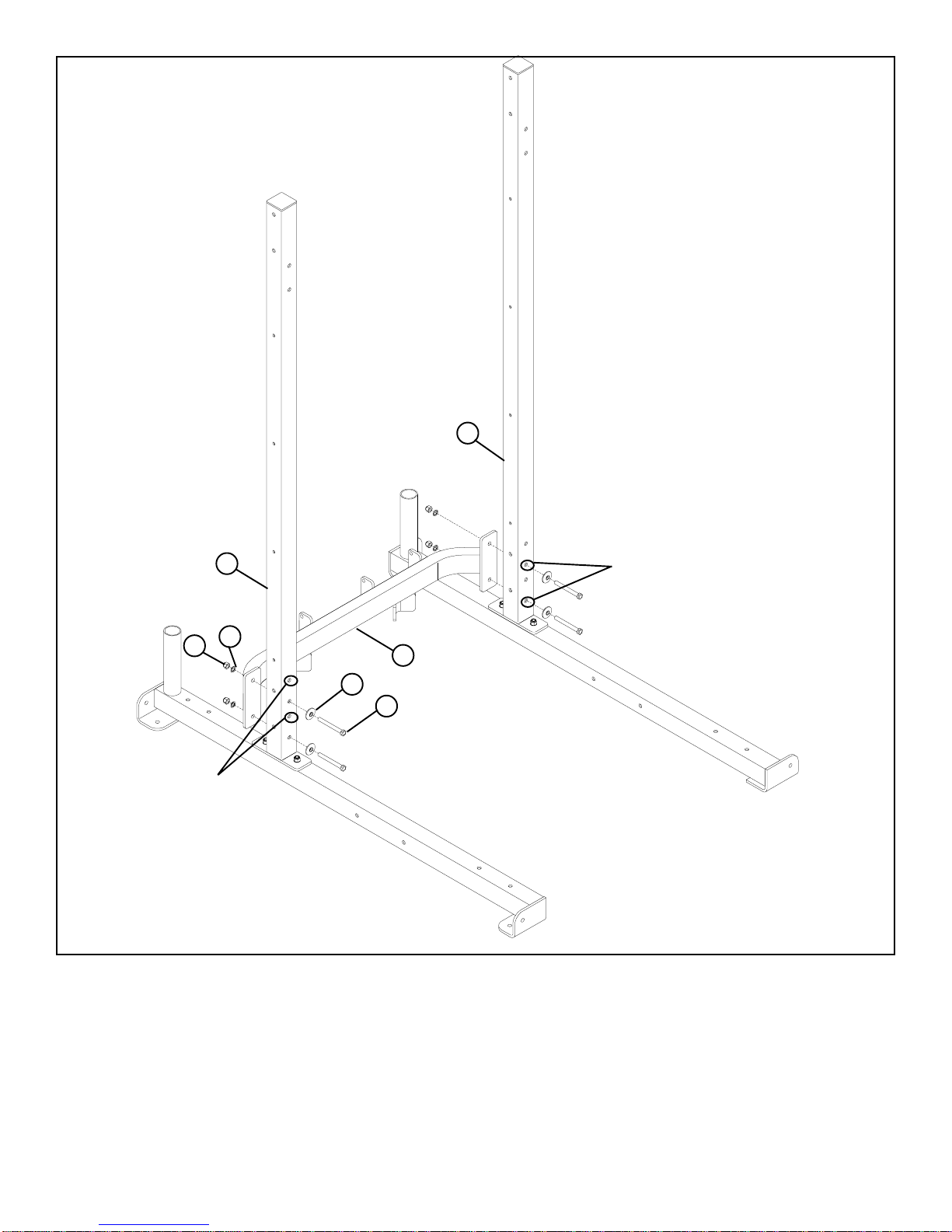

STEP 2:

FIGURE 2

• LOOSELY assemble the BOTTOMUPRIGHTSUPPORT(15) to the REARUPRIGHTS (4) using four 1/2 X 4-1/4”BOLTS(26),four

1/2”PLASITC DOMEWASHERS(22),four 1/2” INTTOOTHLOCKWASHERS (20) andfour1/2” LOCK NUTS (23) as shown in

FIGURE2.

26 1/2X 4-1/4”

Use this set of holes for

assembly with PLATFORM.

Use this set of holes for

assembly without PLATFORM.

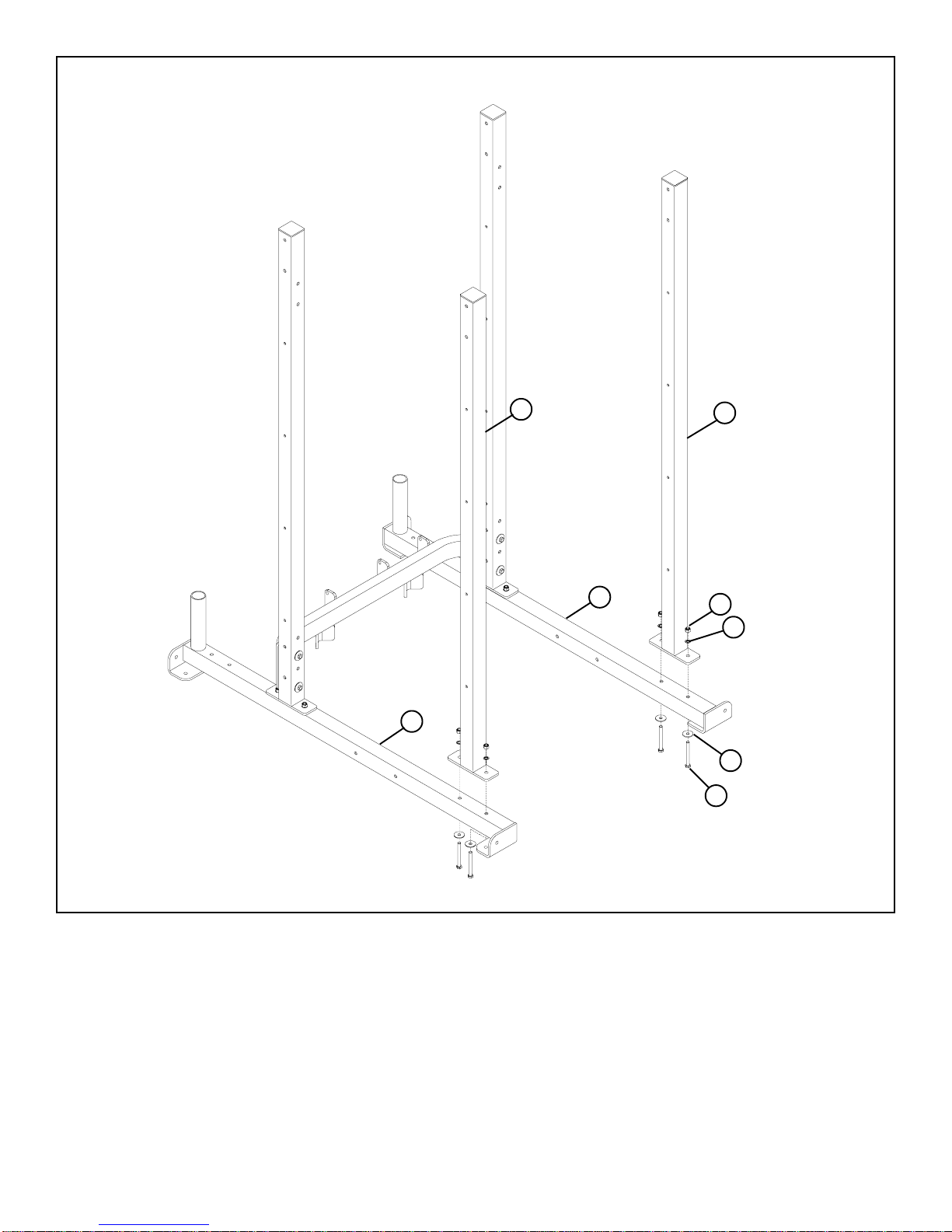

STEP 3:

FIGURE 3

• LOOSELYassembletheFRONTUPRIGHT(3)totheLEFTUPRIGHTBASE (1) using two 1/2 X 4-1/4” BOLTS(26),two1/2”PLASITC

DOMEWASHERS (22), two 1/2” INTTOOTH LOCKWASHERS(20)and two 1/2” LOCKNUTS (23) asshown in FIGURE 3.

3 3

26 1/2X 4-1/4”

• LOOSELYassemble the FRONT UPRIGHT(3) to the RIGHTUPRIGHTBASE (2) usingtwo 1/2 X 4-1/4” BOLTS (26), two 1/2” INT

TOOTHLOCKWASHERS(20),two 1/2” PLASITC DOMEWASHERS(22) and two1/2” LOCK NUTS (23)as shown in FIGURE3.

STEP4:

FIGURE 4

• LOOSELY assemblethe REAR UPPER SUPPORT(7)and the CROSS SUPPORTS(5) to the REAR UPRIGHTS (4) using four1/2 X 4-

1/2”BOLTS(16), eight1/2” INTTOOTHLOCKWASHERS (20) and four 1/2” LOCK NUTS (23) as shown in FIGURE 4.

• LOOSELYassembletheCROSSSUPPORTS (5)totheFRONTUPRIGHTS(3)usingtwo1/2X 4-1/4” BOLTS(26),two1/2”INTTOOTH

LOCKWASHERS(20), two 1/2” PLASITC DOMEWASHERS(22) and two 1/2” LOCKNUTS (23) as shown in FIGURE 4.

1/2X 4-1/4” 26 22

1/2X 4-1/2” 16

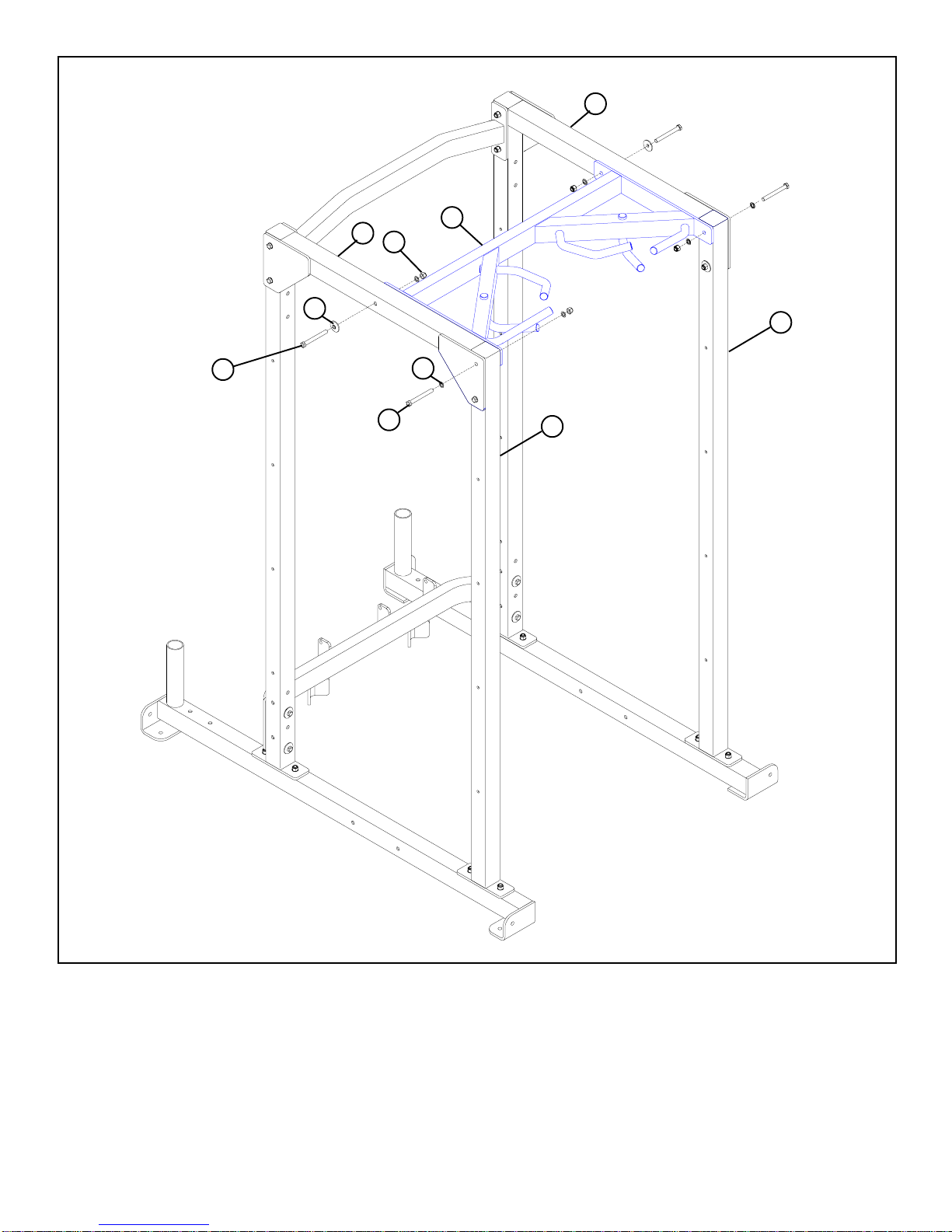

STEP5:

FIGURE 5

• LOOSELY assemblethe CHIN-UPSUPPORT(8)to the CROSS SUPPORTS(5) and the FRONTUPRIGHTS(3)using two 1/2 X 4-1/2”

BOLTS(16),two1/2X4-1/4”BOLTS(26),six1/2” INTTOOTHLOCKWASHERS(20),two1/2”PLASTICDOMEWASHERS(22)and

four1/2” LOCK NUTS (23) as shown in FIGURE 5.

1/2X 4-1/2” 16

1/2X 4-1/4” 26

STEP6:

FIGURE 6

• LOOSELY assemble theWEIGHTHORNUPRIGHTS(6)totheLEFT&RIGHTUPRIGHTBASE(1&2)using four 1/2 X4-1/4”BOLTS

(26), four 1/2” PLASTIC DOME WASHERS (22), four 1/2” INTTOOTH LOCKWASHERS (20) and four 1/2” LOCK NUTS (23) as

showninFIGURE 6.

20 22

1/2X 4-1/4” 26

26 1/2X 4-1/4”

• LOOSELY assemble theWEIGHTHORN UPRIGHTS (6) to the REAR UPRIGHTS (4) using four 1/2 X 4-1/4” BOLTS(26), four1/2”

PLASTICDOMEWASHERS (22), four 1/2” INTTOOTHLOCKWASHERS(20)andfour1/2”LOCKNUTS (23) as shown in FIGURE

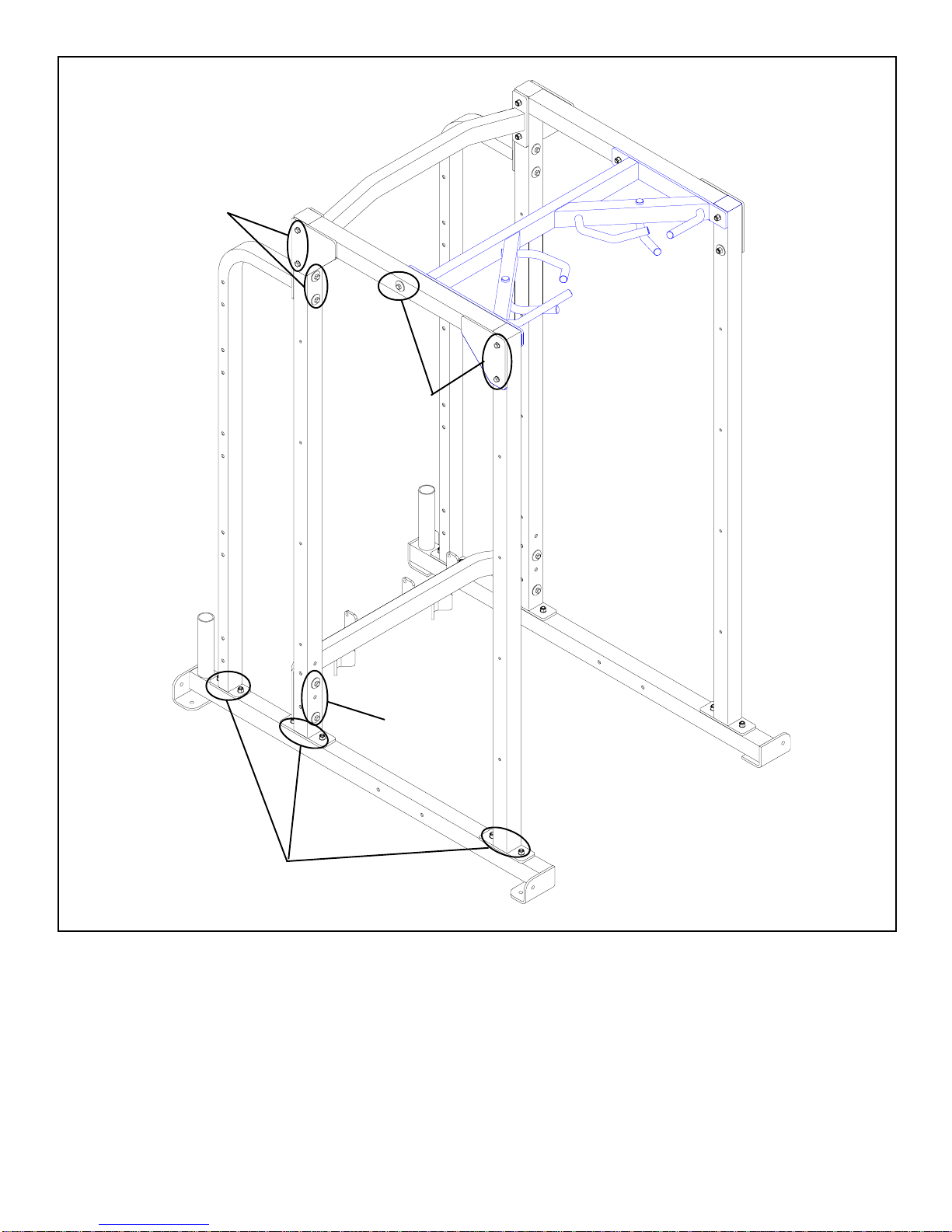

STEP7:

FIGURE 7

•Securely tighten all loose frame connections made to this point.

TIGHTEN!
