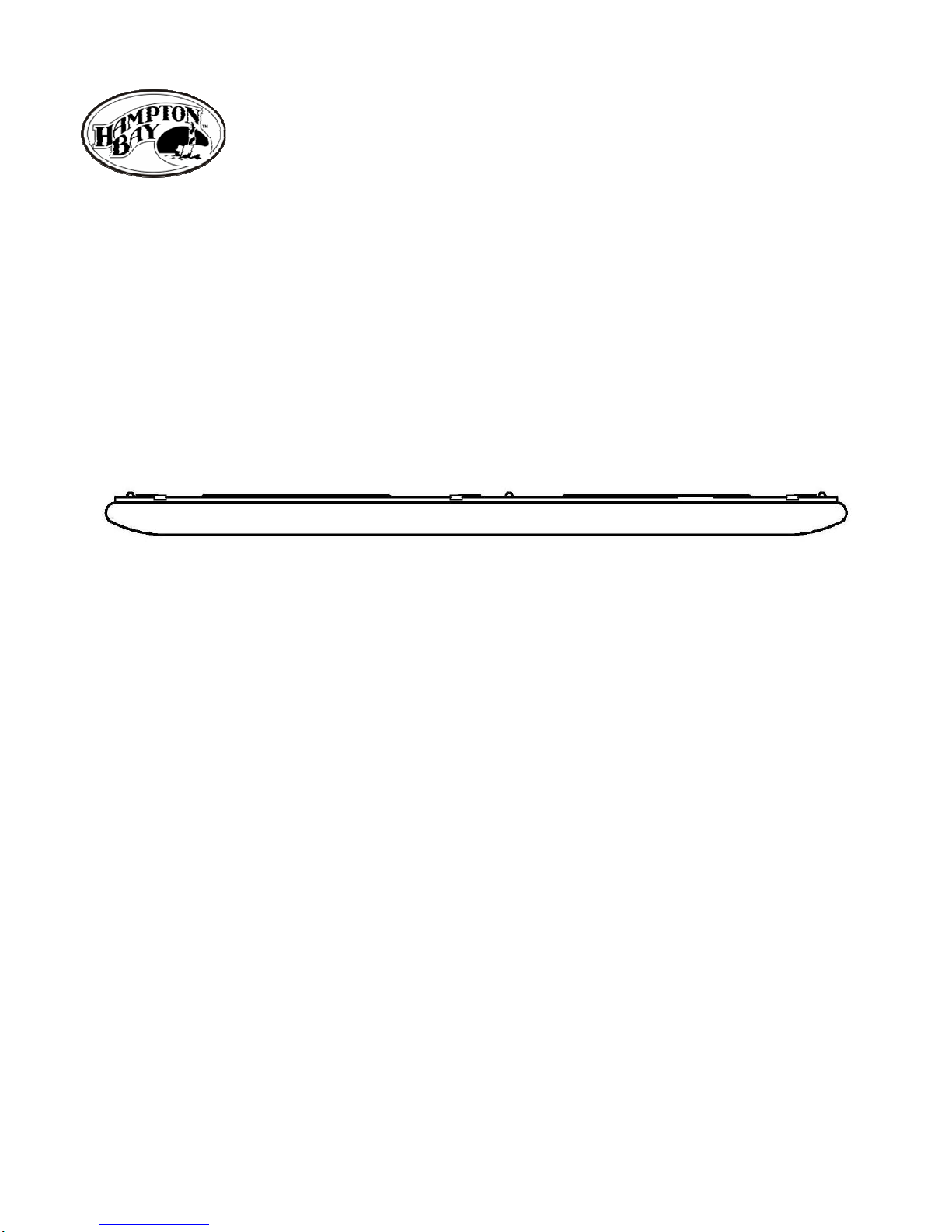

INSTRUCTIONS MANUAL

FLUORESCENT CEILING FLUSH MOUNT FIXTURE

Page 1

HOME DEPOT SKU# 201-014 (UPC# 046335949782)

Page 2

Thank you for purchasing this Hampton Bay Fluorescent Ceiling Flush

Mount Fixture. This product has been manufactured with the highest

standards of safety and quality.

FEATURES:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (201-014) or UPC (046335949782).

QUESTIONS, PROBLEMS, MISSING PARTS:

1. Easy to install.

2. Handsome White finish with Glacier acrylic lens.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS. If you have any non-electrical

questions about this fixture, please call our Customer Service Team

at 1-877-527-0313 or visit www.homedepot.com. Please reference

your SKU (201-014) or UPC (046335949782).

3. KEEP your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

Safety

goggles

Wire

strippers

Phillips

screwdriver

Electrical

tape

Wire

cutters

Flathead

screwdriver

2 ea 28 W T5 Fluorescent

Light Bulbs (#2)

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

ASSEMBLY INSTRUCTIONS:

1 ea Fixture Pan (#1)

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Before continuing Assembly, please proceed to the Installation

Instructions.

3. Insert 28 W T5 Fluorescent Light Bulbs (#2) (not included) into the

provided Lamp Sockets (#3). (Fig. 1)

4. Open the Latches (#4) on the Fixture Pan (#1). Slide the Acrylic

Lens (#5) onto the Fixture Pan (#1). Close the Latches (#4) to secure

the Acrylic Lens (#5) onto the Fixture Pan (#1). (Fig. 2)

1 ea Acrylic Lens (#5)

Page 4

ASSEMBLY:

Page 5

2. Fluorescent Light

Bulb

3. Lamp Socket

1. Fixture Pan

Fig. 1

5. Acrylic Lens

1. Fixture Pan

Fig. 2

4. Latch 4. Latch

4. Latch

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

INSTALLATION INSTRUCTIONS:

3 ea Wire Nuts (#10) 4 ea Mounting Screws (#8) 4 ea Ceiling Anchors (#18)

1. Place the Fixture Pan (#1) onto the desired location, centering it over

the Outlet Box (#6). Mark the location of all the Keyhole Slots

(#16).

2. Remove the Fixture Pan (#1) from the Ceiling (#7). Drill

appropriately sized Holes (#17) at the marked keyhole locations.

Insert the Ceiling Anchors (#18) into the Holes (#17). (Fig. 3)

3. Thread the Mounting Screws (#8) halfway into the Ceiling Anchors

(#18). (Fig. 3)

4. Pull the power supply wires out from the Outlet Box (#6). Attach the

Black Supply Wire (#14) to the Black Fixture Wire (#15) and the

White Supply Wire (#9) to the White Fixture Wire (#11) using Wire

Nuts (#10). Connect the Fixture Ground Wire (#12) and the Supply

Ground Wire (#13) together using a Wire Nut (#10). (Fig. 4) Wrap

all wire connections with electrical tape for a more secure

connection. Note: If you have electrical questions, consult your local

electrical code for approved grounding methods.

Page 6

INSTALLATION INSTRUCTIONS (CONT.):

5. Carefully tuck all wire connections into the Outlet Box (#6). Place

the Fixture Pan (#1) onto the desired location, making sure that the

halfway threaded Mounting Screws (#8) feed through the large

openings of the Keyhole Slots (#16). Slide the Fixture Pan (#1) so

that the Mounting Screws (#8) slide into the narrow slots of the

Keyhole Slots (#16). Tighten the Mounting Screws (#8) down to

secure the Fixture Pan (#1) in place. (Fig. 5 & 5-1)

6. Proceed to Step 3 of the Assembly Instructions.

7. Installation is complete. Turn on power at the circuit breaker or fuse

box. Turn the light switch on to activate the fixture.

Page7

Fig. 3

18. Ceiling

Anchor

1. Fixture Pan

7. Ceiling

17. Hole

6. Outlet Box

Fig. 4

11. White Fixture Wire

12. Fixture Ground Wire

10. Wire Nut

9. White Supply Wire

14. Black Supply Wire

13. Supply Ground Wire

15. Black Fixture Wire

6. Outlet Box 7. Ceiling

1. Fixture Pan

8. Mounting

Screw

INSTALLATION:

Page 8

INSTALLATION (CONT.):

6. Outlet Box

1. Fixture Pan

7. Ceiling Fig. 5

16. Keyhole

Slot

8. Mounting

Screw 16. Keyhole

Slot

Bottom View

Fig. 5-1

18. Ceiling

Anchor

8. Mounting

Screw

Page 9

Possible Cause Corrective Action

1. Power is off. 1. Make sure power supply is on.

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Light will not turn on.

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of

the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of two (2) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at

the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,

accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product

that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,

such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not

warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a

particular purpose, other than the warranty contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any consequential or incidental loss or damage,

including but not limited to any labor/expense costs involved in the replacement or repair of said

product.
