INSTRUCTION MANUAL

1LT Interior Wall Sconce

The Home Depot SKU 255 751 (UPC 725916822699)

Page 2

Thank you for purchasing this Hampton Bay interior wall sconce. This

product has been manufactured with the highest standards of safety and

quality.

FEATURES:

1. One light interior wall sconce in brushed nickel finish with frosted opal

glass. This sconce has a rotary switch on the fixture to turn the light on/off.

2. This fixture has been engineered to safely use a 60 watt medium base

incandescent light bulb (do not exceed 60 watts) (not included).

3. For energy savings, this fixture has been engineered to safely use a

standard base compact fluorescent light bulb (for equivalent light output,

do not exceed 15 watts) (not included).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local The Home Depot, please call our Customer

Service Team at 1 877 527 0313 or visit www.homedepot.com. Please

reference your SKU 255 751 or UPC 725916822699.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous fixture,

disconnect the power by turning off the circuit breaker or by removing

the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS.

3. If you have any non electrical questions about this fixture, please contact

our Customer Service Team at 1 877 527 0313 or visit

www.homedepot.com. Please reference your SKU 255 751 or UPC

725916822699.

4. Keep your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION

(not included):

Light Bulb Safety Goggles Ladder Gloves Wire Strippers

(60 watt maximum)

(or CFL equivalent)

Flathead Screwdriver Phillips Screwdriver Electrical Tape Wire Cutters

Page 4

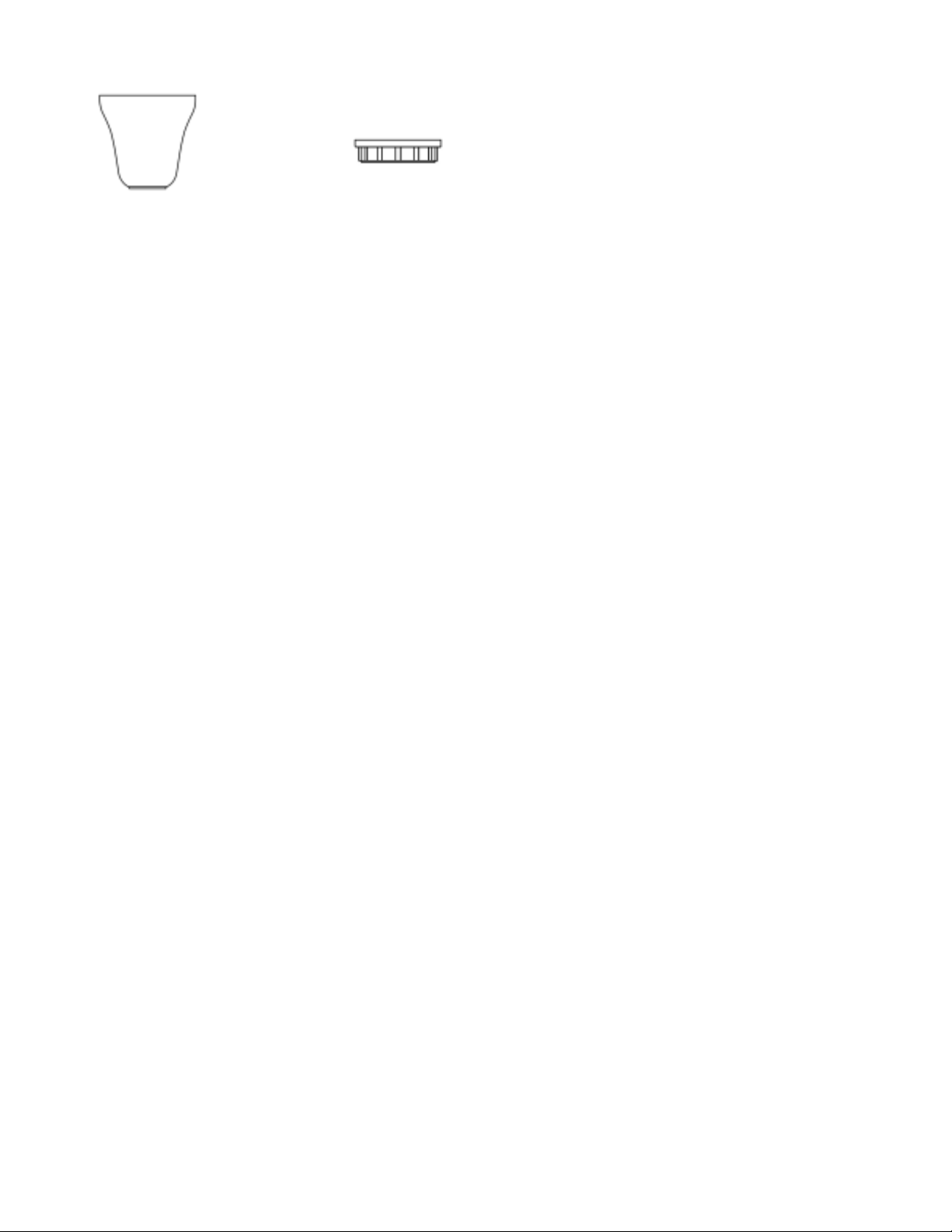

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

1ea Shade (#4) 1ea Socket Ring (#5)

ASSEMBLY INSTRUCTIONS:

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Unscrew the Socket Ring (#5) from the Socket (#3). Place the Shade (#4)

over the Socket (#3). Screw the Socket Ring (#5) onto the Socket (#3) to

secure the Shade (#4).

3. Install a 60 watt medium base incandescent light Bulb (#6) (not included)

or an equivalent standard base compact fluorescent light bulb (not included)

in the Socket (#3) in the fixture.

Page 5

ASSEMBLY:

Page 6

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

2ea Lock Nuts (#2) 3ea Wire Connectors (#8) 1ea Cross Bar (#9)

2ea Outlet Box Screws (#10) 2ea Mounting Screws (#11) 1ea Ground Screw (#12)

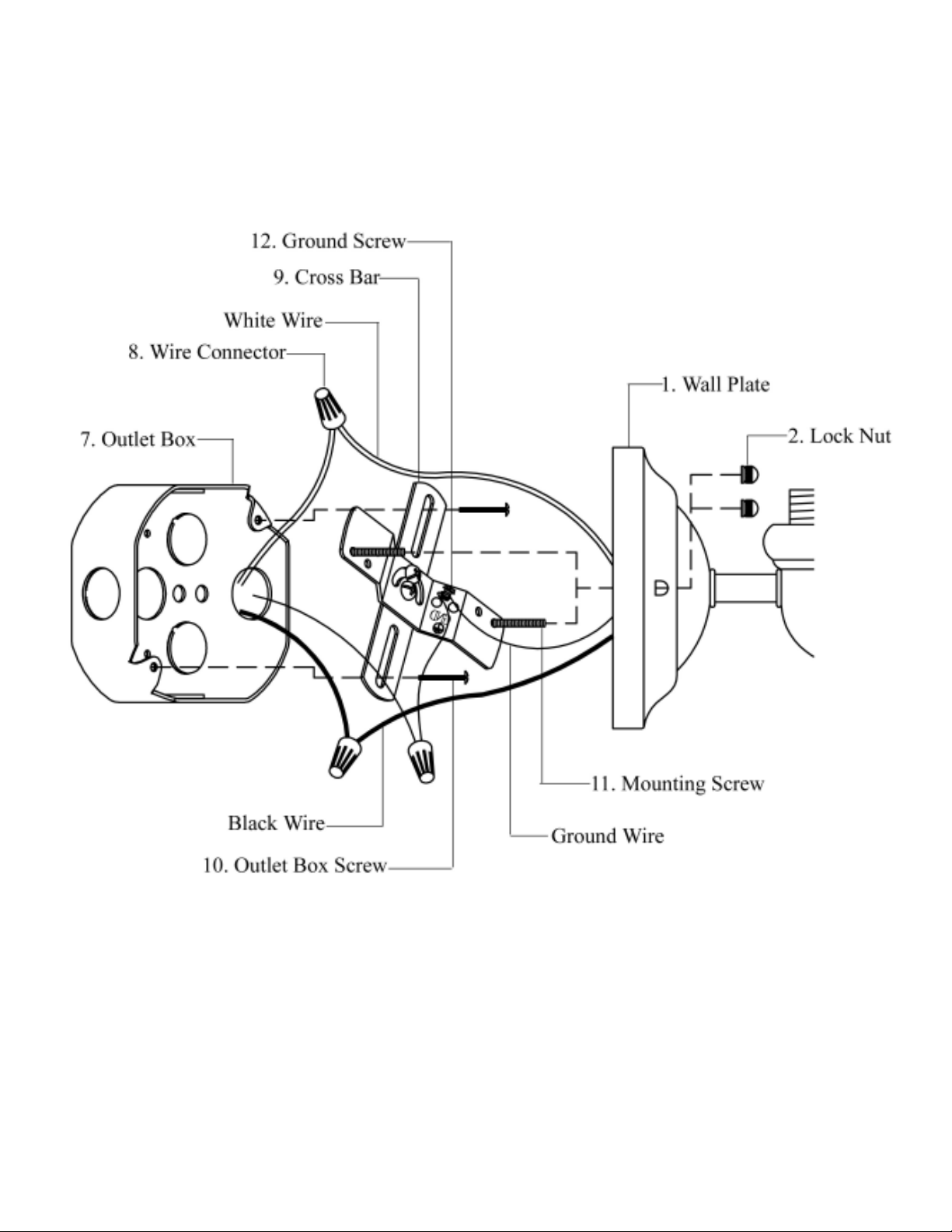

INSTALLATION INSTRUCTIONS:

1. Screw the two Mounting Screws (#11) onto the Cross Bar (#9). Mount the Cross Bar (#9)

to the Outlet Box (#7) using the two Outlet Box Screws (#10). [Make sure the threads of

the Mounting Screws (#11) are facing outside when the Cross Bar (#9) is attached to the

Outlet Box (#7).]

2. Wrap the ground wire from the fixture around the Ground Screw (#12) on the Cross Bar

(#9), and then connect the ground wire from the fixture to the ground wire from the

Outlet Box (#7). Connect the white wire from the fixture to the white wire (neutral wire)

from the Outlet Box (#7). Connect the black wire from the fixture to the black wire (live

wire) from the Outlet Box (#7). Cover the three connections using the three Wire

Connectors (#8). Wrap the three wire connections with electrical tape for a more secure

connection. Position the wires back inside the Outlet Box (#7). Note: If you have

electrical questions, consult your local electrical code for approved grounding methods.

3. Place the fixture body on the wall by aligning the protruding Mounting Screws (#11) all

the way through the holes on the Wall Plate (#1). Tighten the fixture to the wall by

screwing the two Lock Nuts (#2) onto the two protruding Mounting Screws (#11).

4. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn the

light switch on the wall and the light Switch (#13 on Page 5) on the fixture to activate the

fixture.

Page 7

INSTALLATION:

Page 8

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the glass and surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period

of five (5) years from date of purchase. This warranty applies only to the original consumer purchaser and only

to products used in normal use and service. If this product is found to be defective, the manufacturer’s only

obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been

improperly installed, set up, or used in any way not in accordance with the instructions supplied with the product.

This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating to faulty material or workmanship. This

warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is

considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty,

whether express or implied, of fitness for a particular purpose, other than the warranty contained herein.

The manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor / expense costs involved in the

replacement or repair of said product.

Problem Possible Cause Corrective Action

1. Light bulb is burned out. 1. Replace light bulb.

2. Power is off. 2. Make sure power supply

is on.

3. Faulty wire connection. 3. Check wiring.

Light bulb will not

illuminate.

4. Faulty switch. 4. Test or replace switch.

Fuse blows or circuit

breaker trips when light

bulb is illuminated.

Crossed wires or power wire

is grounding out.

Check wire connections.

Page 9

MANUAL DE INSTRUCCIONES

Aplique de la Pared para Interiores de 1 Luz

The Home Depot SKU 255 751 (UPC 725916822699)

Page 10

Gracias por comprar este aplique de la pared para interiores Hampton Bay.

Este producto ha sido manufacturado con los estándares de seguridad y

calidad más altos.

CARACTERÍSTICAS:

1. Aplique de pared para interiores de una luz en acabado en níquel cepillado

con cristal de ópalo escarchado. Este aplique tiene un interruotir rotatório

en la instalación para encender o apagar la luz.

2. Esta instalación ha sido diseñado para usar con seguridad una bombilla de

luz de 60 vatios de base medio incandescente (no exceder de 60 vatios)

(no incluido).

3. Por ahorro de energía, esta instalación ha sido diseñado para usar con

seguridad una bombilla de luz fluorescente estándar de base compacta

(para la salida de luz equivalente, no exceder de 15 vatios) (no incluido).

PREGUNTAS, PROBLEMAS, PARTES QUE FALTAN:

Antes de devolver a su The Home Depot local, por favor llame a nuestro

Equipo de Atención al Cliente al 1 877 527 0313 o visite

www.homedepot.com. Por favor haga referencia de su SKU 255 751 o UPC

725916822699.
