HAMPTON BAY 5284002012 Manuale utente

USE AND CARE GUIDE

OUTDOOR WALL LANTERN

Item #1005 156 445

Model #5284002012

THANK YOU

We appreciate the trust and co dence you have placed in Hampton Bay through the purchase of this wall lantern. We strive to continually create

quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank

you for choosing Hampton Bay!

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONABY.COM

Table of Contents

Safety Information.........................................................2

Warranty......................................................................... 2

Pre-installation .............................................................3

Planning Installation ............................................................... 3

Tools

Required ........................................................................ 3

Safety Information

Hardware Included...................................................................3

Package Contents .................................................................... 4

Installation

.....................................................................5

Care and Maintenance .................................................7

Troubleshooting

............................................................7

Please read and understand this entire manual before

attemp

ting

to operate or install the products.

WARNING:

This light fixture is designed to

fit

standard

junction boxes as defined by the National Electrical Code.

WARNING:

Consult a qualified electrician

you are

certain about the installation process. Always install wiring

connections

accordance with local code, ordinances

the National

tric

Code.

WARNING:

Changes or modifications to this unit not

expressly approved by the party responsible for

mplianc

could void the user’s authority to operate the equipment.

WARNING:

Before

installing this fixture, turn off all power

to the fixture location by turning off power at the m

circuit breaker or fuse

box.

Warranty

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of one (1) years (excluding

the bulb) from date

of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and

service.

If this

product is found to be defective, the manufacturer's only obligation, and your exclusive remedy, is the repair or replacement

of the product at the manufacturer's discretion, provided that the product has not been damaged through misuse, abuse, accident,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly

installed, set-up,

used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a

failure of the

product

as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product, due to weathering, as this is

considered normal

wear

and tear. The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied,

of fitness for a particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall

not be liable for

any

consequential or incidental loss or damage, including but not limited to, any labor

expense costs involved in the

replacement or repair

said

product.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.

modifications,

Pre-installation

Before you begin to install this lighting fixture, ensure all parts are present. Compare parts with the Hardware Included and

ackage

Contents lists. If any part is missing or damaged, do not attempt to assemble the product.

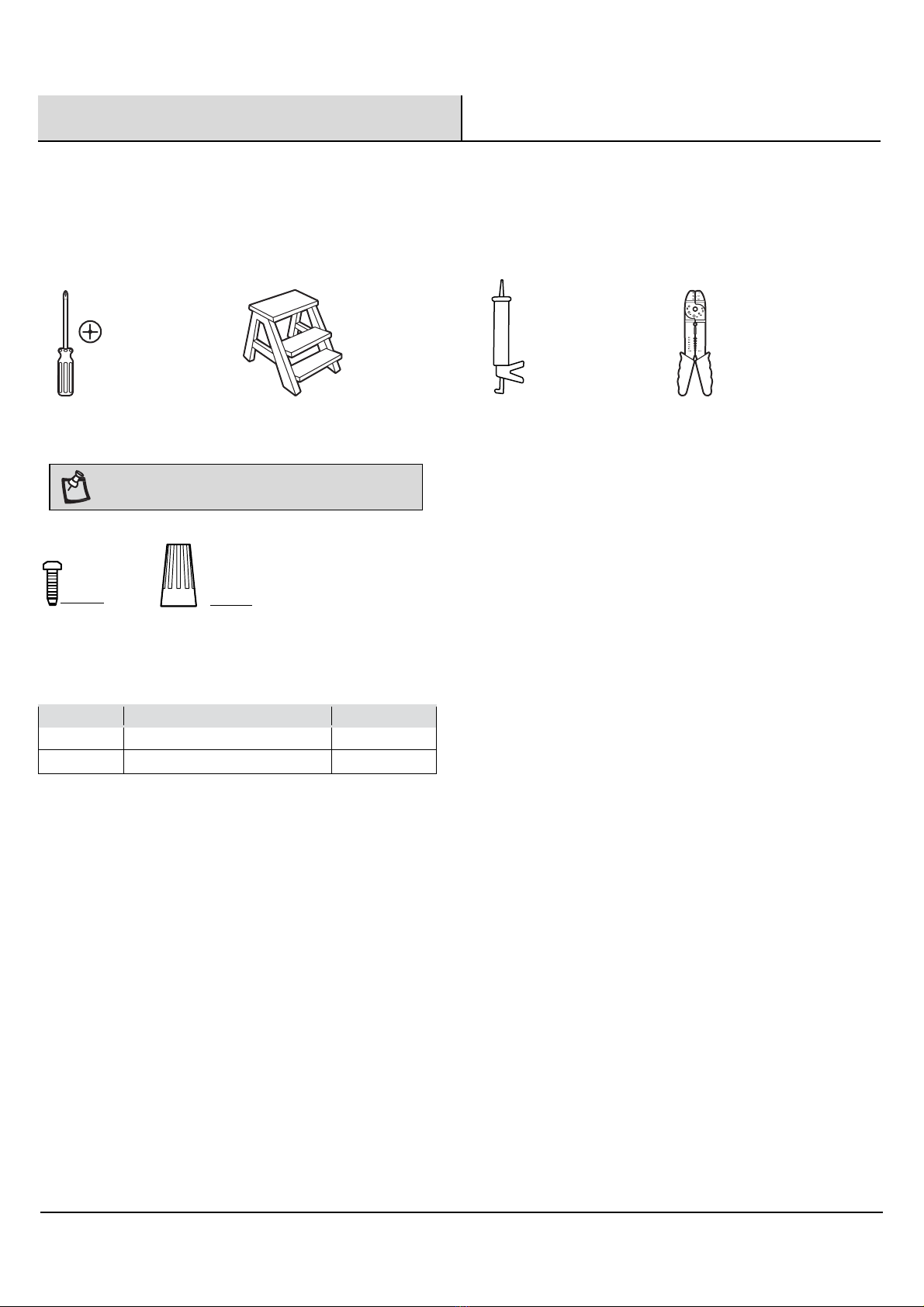

Phillips

screwdriver

Step

ladder

Silicone

sealant

Wire

strippers

(optional)

NOTE:

Hardware not shown to actual

size.

BBAA

Screw 2

Wire

nut

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

PLANNING INSTALLATION

TOOLS REQUIRED

HARDWARE INCLUDED

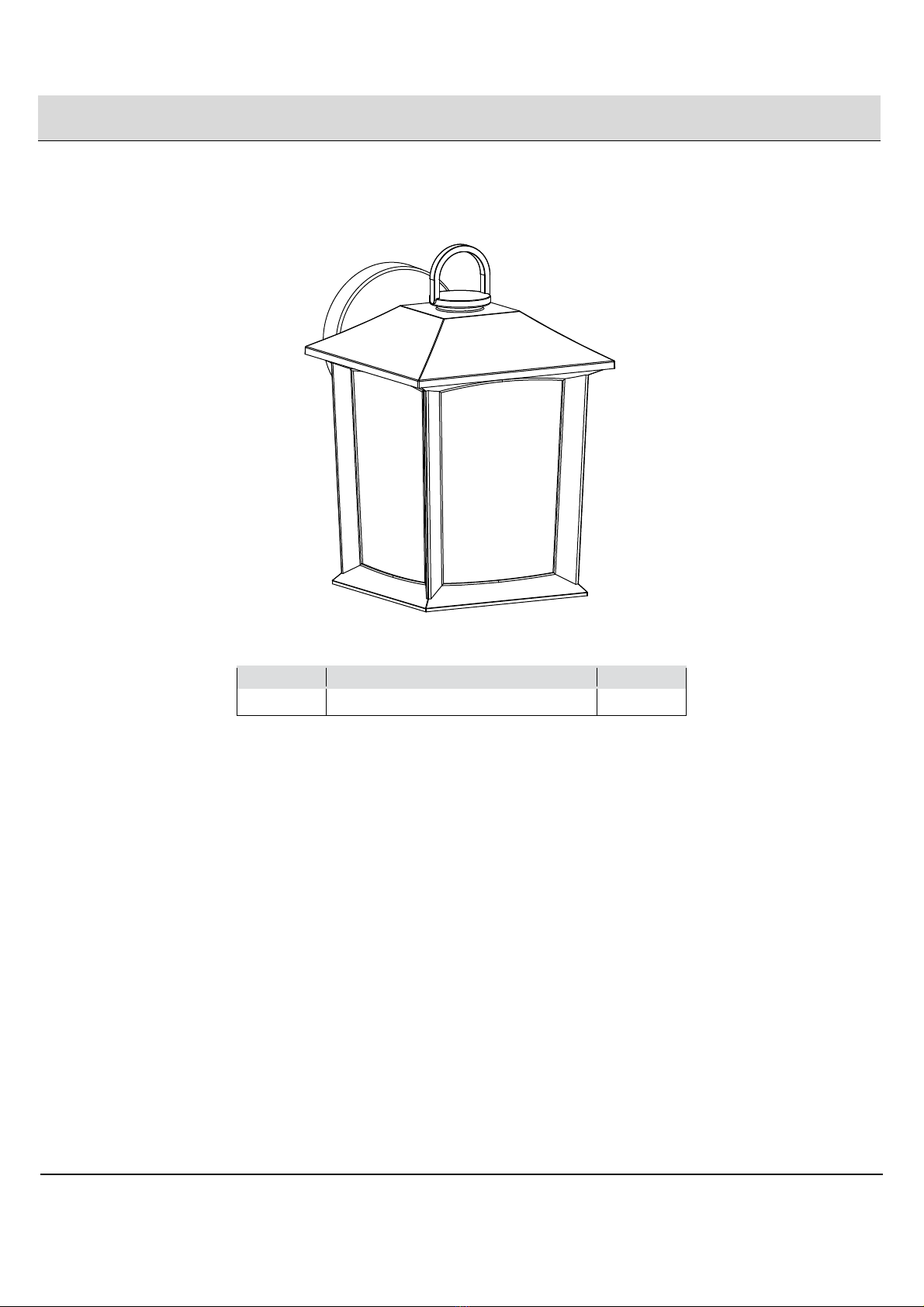

Part Description Quantity

Light fixture

Pre-installation (continued)

—

Pre-installation (continued)

PACKAGE CONTENTS

Part Description Quantity

Installation

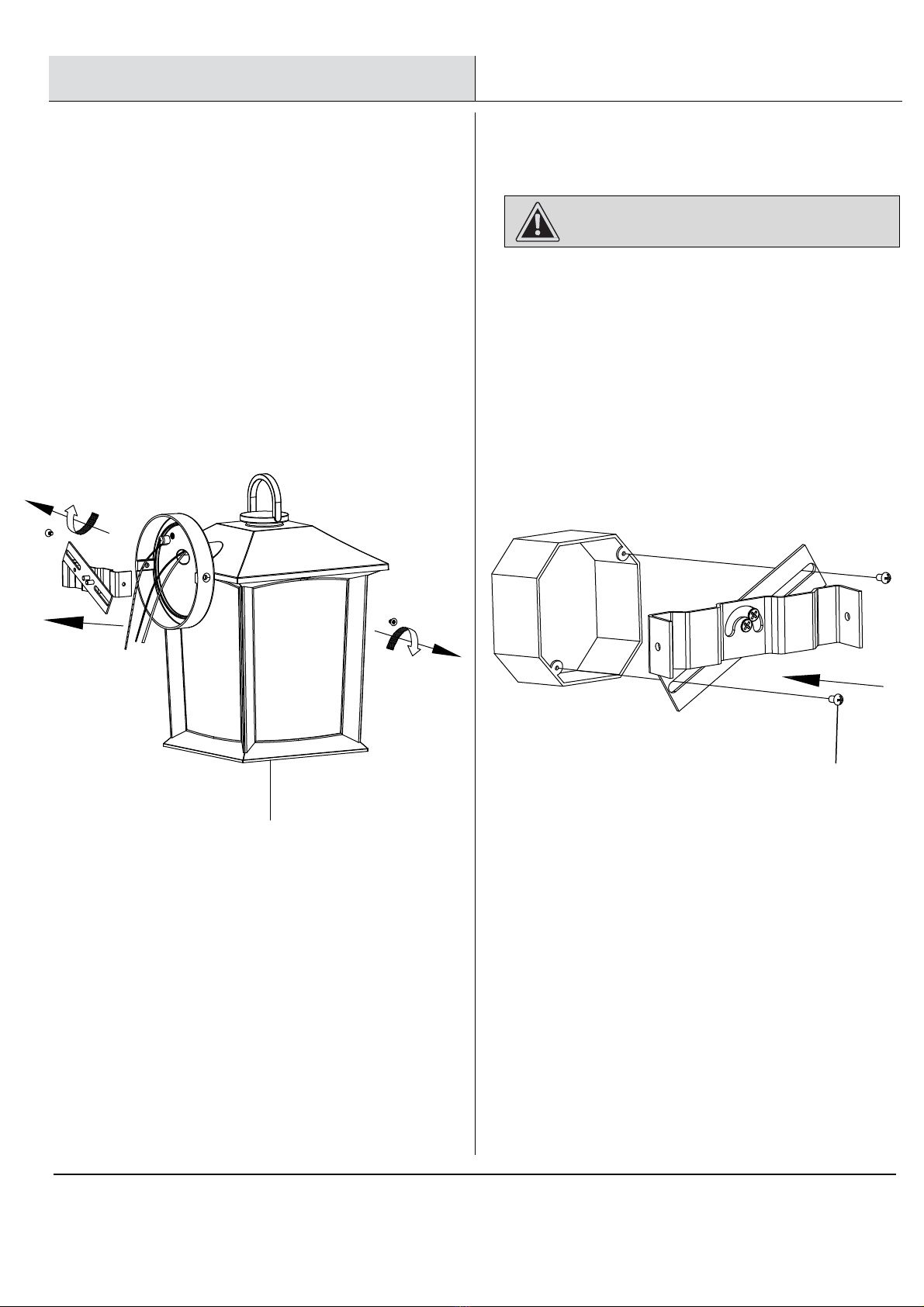

2Installing the crossbar

Attach the crossbar to the junction box using the

screws (AA).

CAUTION:

Never rely on the wall switch alone to turn

off

power.

□

Detach the crossbar from the fixture (A) by unscrewing

the screws pre-assembled in fixture (A).

1Detaching the crossbar

□

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Connect the white wire from the junction box to the white

wire from the fixture (A) by twisting a wire nut (BB) onto

the bare ends of the wires.

Connect the black wire from the junction box to the black

wire from the fixture (A) by twisting another wire nut (BB)

onto the bare ends of the wires. Make sure wire

connections are secure.

Carefully place the wires into the junction box. Then

secure the fixture (A) by screwing the screws removed in

step 1.

□

NOTE:

The ground wire is green.

Connect the ground wire from the junction box to the

ground screw on the crossbar. Then connect the ground

wire from the junction box to the ground wire from the

fixture (A).

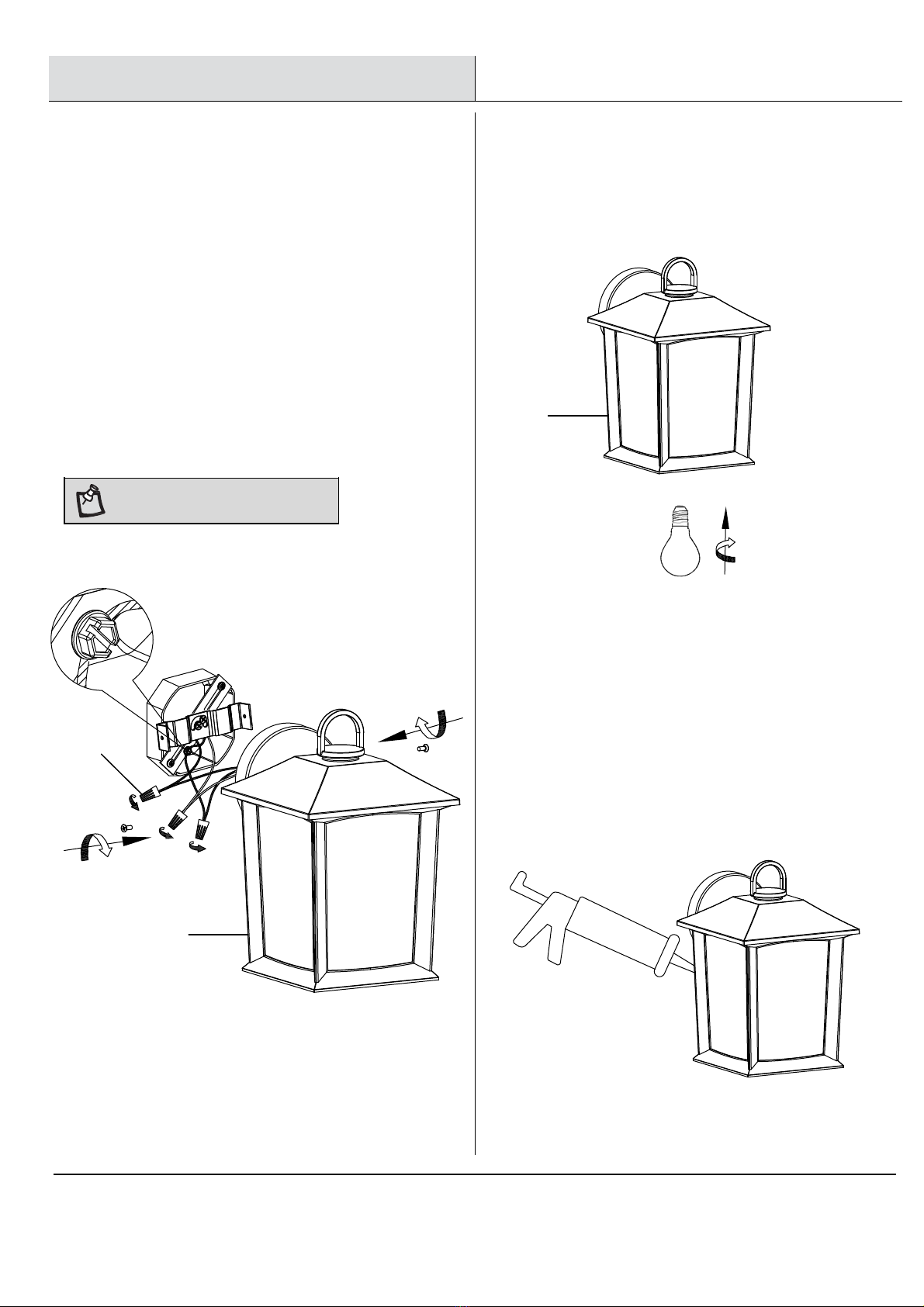

3Connecting the wires and installing

the xture

□

Installation (continued)

□Rotate the bulb (not included) into the fixture (A).

Installing the bulb

□Apply silicone caulking adhesive (not included)

completely around the perimeter of the fixture (A)

where the back meets the mounting surface to

prevent water from seeping into the junction box.

Sealing the xture

Care and Maintenance

CAUTION:

Turn OFF

all power to circuit at main circuit breaker or fuse box.

DO NOT

rely on wall switch alone

turn off

power.

□

This

lantern provides years of maintenance-free service

□

Do not touch the bulb

or open the fi ixture housing.

□

To clean, turn OFF

all power to the circuit and clean surfaces with a mild, non-abrasive cleaner.

Troubleshooting

Problem

Probable Cause

Solution

The light does not

illuminate.

There may be a

poor connection between

the light and the supply wires inside

the

junction box.

Check the wire connections.

There is no power going to the

light.

Check that the switch is on and there

power to the light fixture.

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Retain this manual for future use.

Artículo n.º 1005 156 445

Modelo n.º 5284002012

GUÍA DE USO Y CUIDADO

FAROL DE PARED PARA EXTERIORES

¿Tiene preguntas o problemas, o le faltan piezas? Antes de devolver a la tienda,

llame a Atención al Cliente de Hampton Bay

Lunes a viernes de 8:00 a.m. a 7:00 p.m., EST, y los sábados de 9:00 a.m. a 6:00 p.m., EST,

1-855-HD-HAMPTON

HAMPTONABY.COM

GRACIAS

Agradecemos la confianza que ha puesto en Hampton Bay al comprar este farol de pared. Nos esforzamos continuamente para crear productos

de calidad diseñados para mejorar su hogar. Visítenos en línea para ver nuestra línea completa de productos disponibles para sus necesidades

de mejoramiento del hogar. ¡Gracias por elegir a Hampton Bay!

Información de seguridad............................................................10

Garantía........................................................................................10

Antes de la instalación.................................................................11

Planificación de la instalación ...................................................11

Herramientas requeridas ..........................................................11

Herraje incluido .........................................................................11

Contenido del paquete ..............................................................12

Instalación.....................................................................................13

Cuidado y mantenimiento.............................................................15

Resolución de problemas.............................................................15

Lea y entienda este manual por completo antes de intentar operar o

instalar los productos.

El fabricante garantiza que esta lámpara estará libre de defectos en materiales y mano de obra por un periodo de uno (1) años (excluyendo la bombilla) a partir de la

fecha de su compra. Esta garantía aplica solo al consumidor que hace la compra original y solo a productos que se usan para servicio y uso normales.

Si se encuentran defectos en este producto, la única obligación delfabricante, y su exclusivo remedio, es la reparación o reemplazo del producto, a criterio del

fabricante, suponiendo que el producto no ha sido dañado debido a uso inadecuado, abuso, accidente, modificaciones, alteraciones, negligencia o manejo

inadecuado. Esta garantía no aplicará a ningún producto que se determine que se instaló, ajustó o usó inadecuadamente en cualquier manera que no sea

congruente con las instrucciones proporcionadas con el producto. Esta garantía no aplicará a unafalla del producto que sea resultado de un accidente, uso indebido,

abuso, negligencia, alteración, instalación con fallas, o cualquier otra falla que no se relacione con mano de obra o material defectuoso. Esta garantía no aplicará al

acabado de ninguna porción del producto, debido a factores climáticos, ya que esto se considera desgaste normal. El fabricante no garantiza la idoneidad para

cualquier propósito particular, y específicamente renuncia a cualquier garantía expresa o implícita sobre ella, aparte de la garantía contenida en este documento.

El fabricante renuncia específicamente a cualquier responsabilidad, y no será responsable de ningún daño o pérdida resultante o incidental, incluido pero sin

limitarse a cualquier costo por mano de obra o gastos incurridos en el reemplazo o reparación de dicho producto.

Comuníquese con el Equipo de Atención al Cliente al 1-855-HD-HAMPTON o visite www.HAMPTONBAY.com.

Índice

Información de seguridad

ADVERTENCIA: Esta lámpara está diseñada para

ajustarse a cajas de conexión estándares según el

Código Eléctrico Nacional.

ADVERTENCIA: Consulte a un electricista

calificado si no tiene certeza sobre todo el proceso

de instalación. Siempre instale las conexiones

eléctricas en conformidad con los códigos locales y

el Código Eléctrico Nacional.

ADVERTENCIA: Los cambios o las modificaciones

a esta unidad que no sean aprobados en forma

expresa por la parte responsable del cumplimiento

pueden invalidar el permiso del usuario para usar

el equipo.

Garantía

ADVERTENCIA: Antes de instalar esta lámpara,

desconecte la energía eléctrica en la ubicación de la

lámpara apagando la alimentación en el disyuntor

principal o en la caja de fusibles.
