HAMPTON BAY HB7072LED-05 Manuale utente

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. –6 p.m., EST, Monday –Friday

1-855-HD-HAMPTON

HAMPTONBAY.COM

USE AND CARE GUIDE

____________________________________

EXTERIOR CEILING LED FLUSH MOUNT

THANK YOU

We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this exterior ceiling

LED flush mount. We strive to continually create quality products designed to enhance your home. Visit us online to

see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

Item:

Model: 1000 64 0737

HB7072LED-05

Before starting installation of this fixture or

removal of a previous fixture, disconnect

the power by turning off the circuit breaker

or by removing the fuse at the fuse box.

Consult a qualified electrician if you have

any electrical questions or need to replace

the driver.

If you have any non-electrical questions

about this fixture, please contact our

Customer Service Team at

1‐855‐HD‐HAMPTON or

HAMPTONBAY.COM.

WARNING: Disconnect the power prior to

removing or installing a light fixture.

Table of Contents

Safety Information

Warranty

WHAT IS COVERED

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship

for a period of five (5) years from date of purchase. This warranty applies only to the original

consumer purchaser and only to products used in normal use and service. If this product is found to

be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or

replacement of the product at the manufacturer’s discretion, provided that the product has not been

damaged through misuse, abuse, accident, modifications, alterations, neglect or mishandling.

WHAT IS NOT COVERED

This warranty shall not apply to any product that is found to have been improperly installed, set-up,

or used in any way not in accordance with the instructions supplied with the product. This warranty

shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating to faulty material or workmanship.

This warranty shall not apply to the finish on any portion of the product, such as surface and/or

weathering, as this is considered normal wear and tear.

The manufacturer does not warrant and specially disclaims any warranty, whether expressed or

implied, of fitness for a particular purpose, other than the warranty contained herein. The

manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor/expense costs involved in the

replacement or repair of said product.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.HAMPTONBAY.com.

Installation 5

Operation 7

Care and Cleaning 7

Exterior Maintenance 7

Interior Maintenance 7

Driver Replacement 7

FCC Notice 8

Troubleshooting 8

Table of Contents 2

Safety Information 2

Warranty 2

Pre-Installation 3

Planning the Installation 3

Tools 3

Hardware 3

Package Contents 4

WARNING: Changes or modifications not

expressly approved by the party responsible for

compliance could void the user's authority to

operate the equipment.

Pre-Installation

PLANNING THE INSTALLATION

Read all instructions before assembly and installation. Before starting installation of the fixture or

removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing

the fuse at the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive

surface such as carpet or cardboard.

NOTE: Keep your receipt and these instructions

for Proof of Purchase.

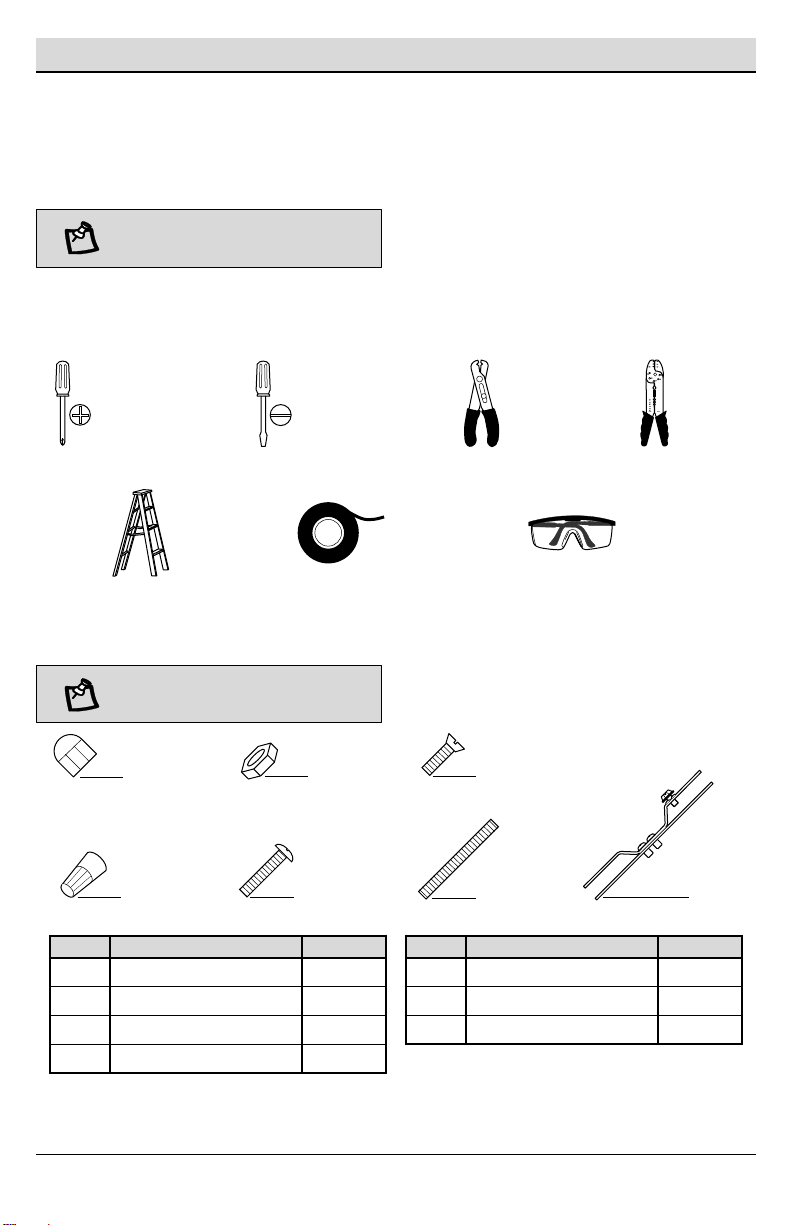

TOOLS REQUIRED

HARDWARE REQUIRED

NOTE: Hardware not shown to actual size.

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Phillips

Screwdriver

Wire

Cutter

Wire

Stripper

Flathead

Screwdriver

Ladder Safety

Goggles

Electrical

Tape

Part

Description

Quantity

Bracket Mounting Screw

Fixture Mounting Screw

Mounting Bracket

Part

Description

Quantity

Lock Nut

Hex Nut

Cage Screw

Wire Nut

BB CC

DD FF

Pre-Installation (continued)

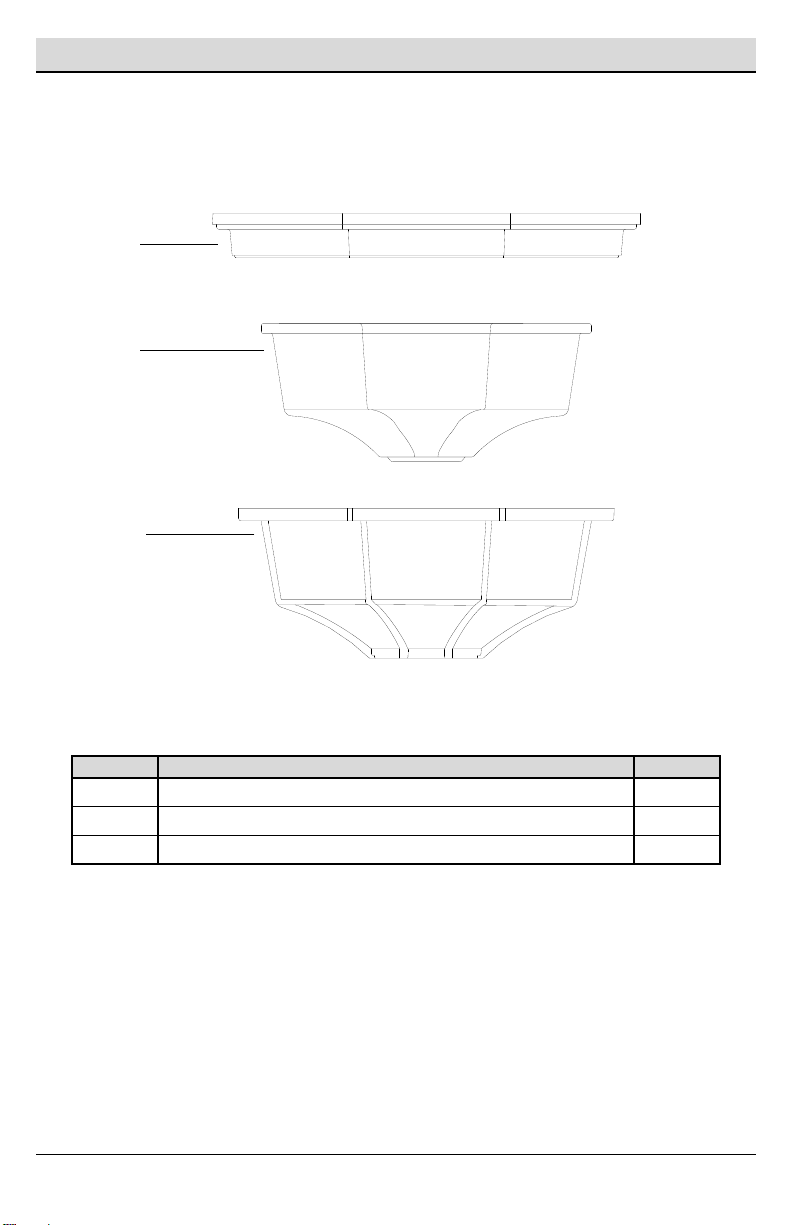

PACKAGE CONTENTS

Part

Description

Quantity

Fixture Pan

Glass Shade

Cage

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

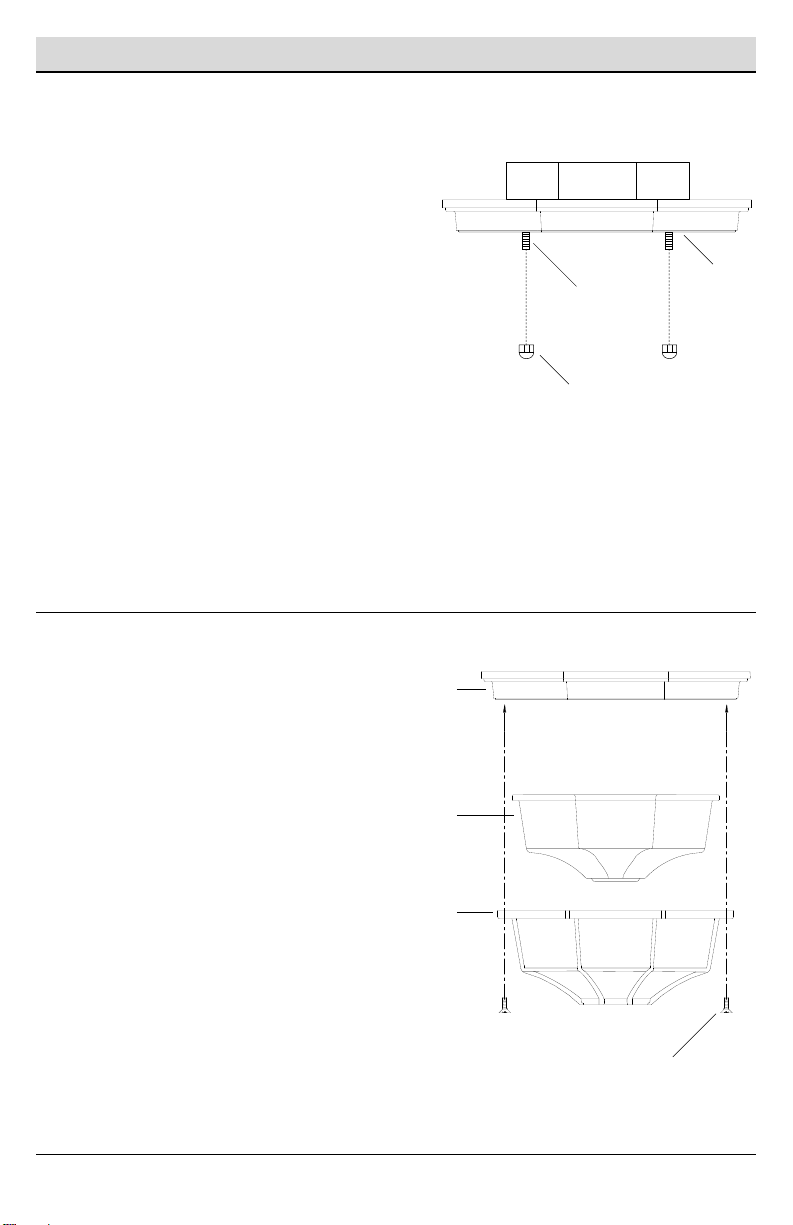

1 Mounting the hardware

Thread the fixture mounting screws (FF)

into the provided holes of the mounting

bracket (GG).

Thread the hex nuts (BB) onto the fixture

mounting screws (FF). Do not tighten the

hex nuts (BB) at this time.

Pull the supply wires out from the outlet

box and mount the mounting bracket (GG)

to the outlet box using the bracket

mounting screws (EE).

Place the fixture pan (A) over the outlet

box and onto the fixture mounting screws

(FF).

Adjust the fixture mounting screws (FF)

until they protrude out from the fixture pan

(A) 1/4 in.

Remove the fixture pan (A) and secure the

position of the fixture mounting screws (FF)

by tightening the hex nuts (BB) against the

mounting bracket (GG).

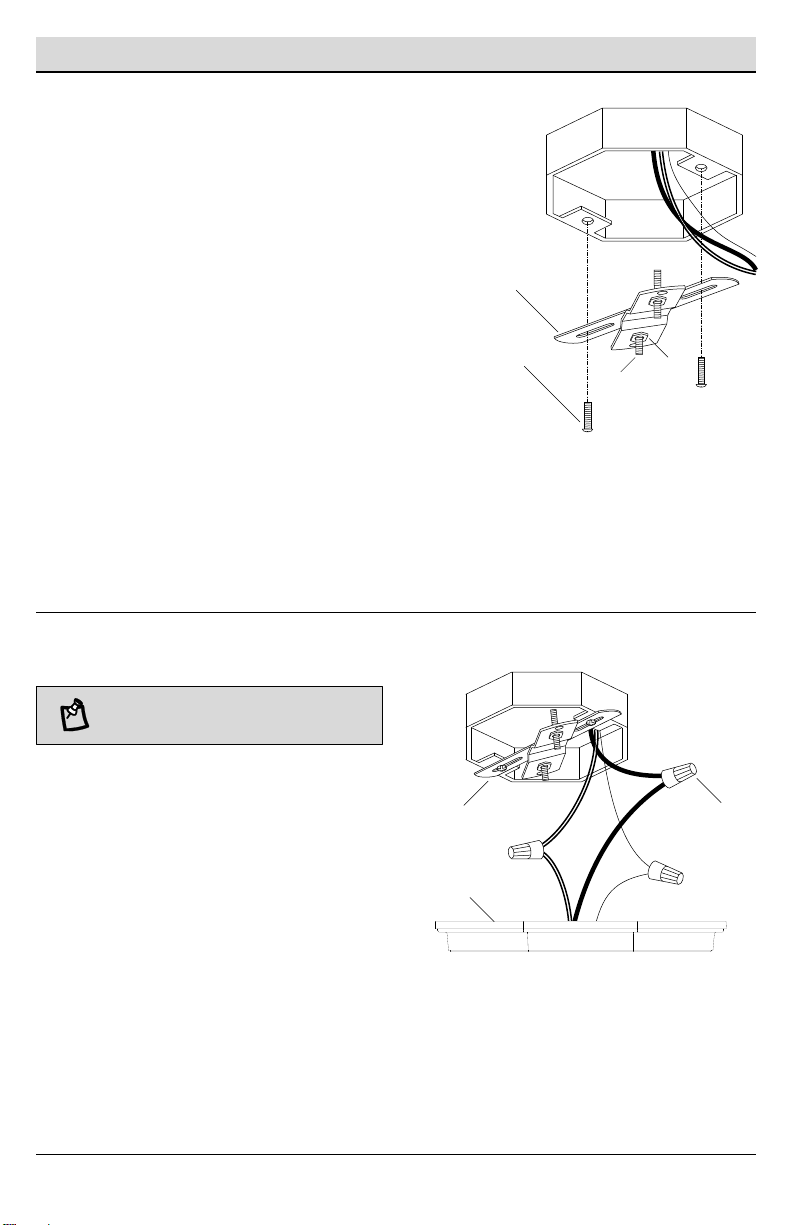

2 Connecting the wires

Connect the black supply wire to the black

fixture wire using a wire nut (DD).

Connect the white supply wire to the white

fixture wire using a wire nut (DD).

Connect the fixture ground wire to the

supply ground wire using a wire nut (DD).

Wrap all wire connections with electrical

tape for a more secure connection.

Carefully tuck the wires and wire nuts (DD)

into the outlet box.

Installation

NOTE: If you have electrical questions consult

your local electrical code for approved

grounding methods.

FF BB

3 Mounting the fixture

Place the fixture pan (A) onto the fixture

mounting screws (FF) and secure it into

place by using the lock nuts (AA) provided.

4 Assembling the fixture

Place the cage (C) over the glass shade

(B) and place both over the fixture pan (A).

Secure the cage (C) to the fixture pan (A)

by using the cage screws (CC).

Installation (continued)

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Operation

Turn on power at the circuit breaker or fuse box.

Turn the light switch on to activate the fixture.

Care and Cleaning

EXTERIOR MAINTENANCE

Use a dry or slightly dampened clean

cloth and wipe the surface of the fixture.

INTERIOR MAINTENANCE

Disconnect power to the fixture by turning

off the circuit breaker or by removing the

fuse at the fuse box.

Use a dry or slightly dampened clean

cloth to wipe the interior surface of the

fixture.

Driver Replacement

This product is ENERGY STAR ® listed. The driver can be replaced without having to cut wires.

Please contact a qualified electrician if driver replacement is needed.

NOTE: Do not use any cleaners with chemicals,

solvents, or harsh abrasives. Use only a dry

soft cloth to dust or wipe carefully.

FCC Notice

NOTICE: This device has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. However, there is no guarantee

that interference can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interface by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the device and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Troubleshooting

Problem

Solution

The

light will not turn on.



Make sure the power supply is on.



Test or replace the switch.



Check the wiring.



Replace the driver.

The

fuse blows or circuit breaker trips

when light is turned on.



Check the wire connections.

HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

This page is intentionally left blank.

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. –6 p.m., EST, Monday-Friday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Retain this manual for future use.
