H&S MINI MAX Manuale utente

1-888-628-1730 • Mini Maxx Installation Manual 11-888-628-1730 • Mini Maxx Installation Manual 1

Rev: 04.02.13

2 Mini Maxx Installation Manual • www.hsperformance.com

WARNING!

THIS IS A HIGH PERFORMANCE PRODUCT TO BE USED AT YOUR OWN RISK!

Do not install this product until you have read and fully understand the following disclaimer of liability. The fol-

lowing disclaimer of liability sets forth the terms and conditions for the installation and/or use of this product. By

installing this high performance product, the buyer acknowledges that they have read and fully understand this

disclaimer and accepts its terms and conditions.

DISCLAIMER OF LIABILITY

H&S Performance, LLC and their successors, distributors, jobbers, dealers, and retailers (SELLER) shall in no way be respon-

sible for any direct, indirect, or consequential damage resulting from improper installation and/or use of this product. The

BUYER/USER assumes all responsibility for any damage resulting from the use or misuse of this product The buyer hereby

waives all liability claims for the use of this product.

The BUYER acknowledges that he/she is not relying on the SELLER’s skill or judgment to select or furnish goods suitable for

any particular purpose and that there are no liabilities which extend beyond the description herein, and the BUYER hereby

waives all remedies or liabilities, expressed or implied, arising by law or otherwise, (including without any obligations of the

SELLER with respect to tness, merchantability and consequential damages) or whether or not occasioned by the SELLER’s

negligence.

The SELLER disclaims any warranty and expressly disclaims any liability for personal injury or damages.The BUYER acknowl-

edges and agrees that the disclaimer of any liability for personal injury is a material term for this agreement and the BUYER

agrees to indemnify the SELLER and to hold the SELLER harmless from any claim related to the product purchased. Under no

circumstances will the SELLER be liable for any damages or expenses by reason of use or sale of any such products.

The SELLER assumes no liability regarding the improper installation, misuse, or misapplication of its products. It is the buyer

and/or installer’s responsibility to check for proper installation.

TROUBLESHOOTING:

Please read and understand all installation instructions before proceeding with the installation.

If you have questions during the installation of this product, please call H&S Performance support at

1-888-628-1730

INTERNET UPDATES:

H&S Performance regularly issues free internet updates and custom tunes for the Mini Maxx. Please

check to see if there are any available for your truck by going to the updates section at:

www.hsperformance.com

Revision Date

These instructions are current as of 04/02/13. Revisions may apply, and are available at

www.hsperformance.com

1-888-628-1730 • Mini Maxx Installation Manual 3

LIMITATION OF WARRANTY

H&S Performance, LLC (“SELLER”) gives LimitedWarranty as to the description, quality, merchantability, tness for any prod-

uct’s purpose, or any other matter of SELLER’s product sold herewith. The SELLER shall be in no way responsible for the prod-

uct’s use and service and the BUYER hereby waives all rights other than those expressly written herein.ThisWarranty shall not

be varied except by a written agreement signed and dated by SELLER and BUYER.

The Warranty is Limited to one (1) year from the date of sale and limited solely to the parts contained within the product’s

original packaging. All products that are in question of Warranty must be returned shipping prepaid to the SELLER and must

be accompanied by a dated proof of purchase receipt. AllWarranty claims are subject to approval by H&S Performance, LLC.

Under no circumstances shall the SELLER be liable for any labor charges incurred, or travel time incurred in diagnosis for

defects, removal, or re-installation of this product, or any other contingent expenses. Any product deemed defective and

consequently repaired or replaced by SELLER, shall retain the remainder of the warranty period from date of purchase, as the

warranty period shall not be extended due to repair or replacement. Under no circumstances will the SELLER be liable for any

damage or expenses incurred by reason of the use or sale of any such product.

-This warranty is null and void after 90 days for an unregistered product.

www.hsperformance.com/product-registration/

-This warranty is null and void for any new products purchased through unauthorized dealers.

www.hsperformance.com/unauthorized-dealers/

-This warranty is null and void for any products sold as USED or REFURBISHED.

-This warranty is null and void for any products purchased below the H&S UNILATERAL PRICING POLICY

www.hsperformance.com/pricing-policies/

-This warranty is null and void for any products that have been altered by a 3rd party.

If the buyer does not agree to the terms of this limited warranty or the disclaimer of liability, the buyer may return this product

to the SELLER in a new and unused condition, along with dated proof of purchase, within 30 days of purchase, for a full refund.

To register your product online, visit www.hsperformance.com/register or scan the QR code.

Benets to registering your product include:

• Guarantee full warranty coverage.

• Get entered into drawings for free H&S products and prizes.

• Get notied of software updates and upcoming features.

4 Mini Maxx Installation Manual • www.hsperformance.com

TABLE OF CONTENTS

BILL OF MATERIALS.................................................................................................................................. 5

PARTS DESCRIPTIONS.............................................................................................................................. 6

MINI MAXX INSTALLATION..................................................................................................................... 9

Section 1: Mounting the Mini Maxx..............................................................................................10

Windshield Mounting ................................................................................................................10

Section 3: OBD II Adapter plug ......................................................................................................11

Section 4: Installing the Power Wire .............................................................................................12

Section 5: Run Mini Maxx HDMI Cable .........................................................................................13

MINI MAXX OPERATION ........................................................................................................................ 14

Section 1: Button Navigation.........................................................................................................14

Section 2: Install Download............................................................................................................15

Section 3: Exploring the Main Screen...........................................................................................16

Section 4: Exploring the Menu System ........................................................................................18

Section 5: Vehicle Setup..................................................................................................................19

Defueling Parameters ................................................................................................................19

Set Defuel Levels.........................................................................................................................20

Section 6: Other Mini Maxx Features............................................................................................21

Gauge Setup ................................................................................................................................21

Adjust Backlight..........................................................................................................................22

Change Background Color ........................................................................................................22

Performance Testing ..................................................................................................................23

Diagnostics...................................................................................................................................24

Reset to Default Setting.............................................................................................................25

Show Settings..............................................................................................................................26

T.V.#................................................................................................................................................26

SD Card .........................................................................................................................................26

Web Updates................................................................................................................................26

Section 7: USA / ULSD Calibration Vehicle Specic Features...................................................27

2006-2007 5.9L Dodge Cummins.............................................................................................27

2007.5-2009 6.7L Dodge Cummins .........................................................................................30

2010-2012 6.7L Dodge Cummins.............................................................................................33

2003-2007 6.0L Ford Powerstroke...........................................................................................36

2008-2010 6.4L Ford Powerstroke...........................................................................................37

2011-2013 6.7L Ford Powerstroke...........................................................................................40

2007.5-2010 6.6L LMM Duramax.............................................................................................42

2011-2013 6.6L LML Duramax..................................................................................................45

Section 8: High Sulfur Calibration Vehicle Specic Features ...................................................48

2007.5-2009 6.7L Dodge Cummins .........................................................................................49

2010-2012 6.7L Dodge Cummins.............................................................................................51

2008-2010 6.4L Ford Powerstroke...........................................................................................53

2011-2013 6.7L Ford Powerstroke...........................................................................................55

2007.5-2010 6.6L LMM Duramax.............................................................................................57

2011-2013 6.6L LML Duramax..................................................................................................58

1-888-628-1730 • Mini Maxx Installation Manual 5

BILL OF MATERIALS

The list below includes by name the major parts included in your Mini Maxx package.

1. Mini Maxx

• Micro SD Card

(in Mini Maxx)

2. Mini Maxx Power Cable

3. OBD II Adapter

4. Windshield Mount

5. Mini USB Cable

6. HDMI Cable

7. USB Adapter

3. 4.

6 Mini Maxx Installation Manual • www.hsperformance.com

PARTS DESCRIPTION

This section describes each of the parts in the Bill of Materials, the descriptions provide a physical set of

attributes and a purpose for each part. The parts descriptions also list everything that is included in each

assembly.

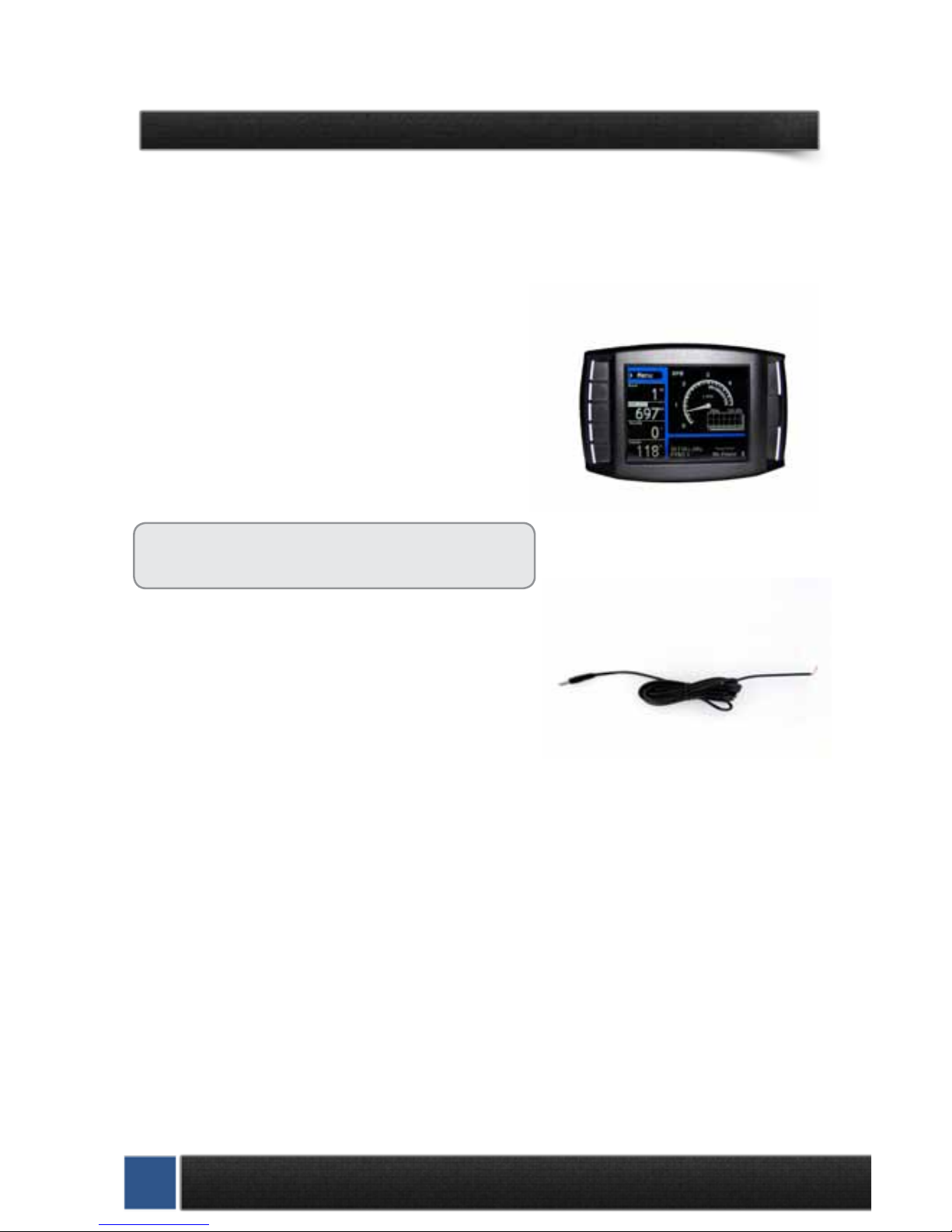

The Mini Maxx Head Unit

The main component is the Mini Maxx Head Unit. The Head

Unit is the interface in which you control vehicle perfor-

mance parameters. It is also the brains that will save vehicle

activity and defuel a vehicle. Notice that the head unit has:

seven total buttons, ve on the left side and two on the right,

a large color screen, and an electronic plug for docking on

the back. Note that this is the last piece that you will install.

Note: Mini Maxx includes a micro SD card inserted

in the side of the Head Unit.

Power Cable

The Power cable connects the OBD ll Adaptor Plug to the ve-

hicle fuse box to supply power to the Mini Maxx. It is optional

to use as there are two ways to power up your Mini Maxx

1. (Recommended) Use this power cable and wire it to the

designated location specied later in this manual.

2. The OBD II port provides constant 12V+ power, so your Mini Maxx can power o of the OBD II

port alone. But in this situation the Mini Maxx will not turn on and o with the ignition. There is

a switch on the OBD II adapter plug in order to turn the Mini Maxx on and o.

1-888-628-1730 • Mini Maxx Installation Manual 7

Universal Windshield Mount

This universal windshield mount is used to install the

Mini Maxx rmly onto the windshield, it is a suction

cup mount that will work on any vehicle windshield.

Check our web site for other mounting options, the

Mini Maxx is adaptable to a range of other mounting

styles.

H&S Also oers custom vehicle specic solutions. See www.hsperformance.com for details.

OBD II Adapter Plug

The OBD II Adapter is a communication hub for the Mini Maxx.

The OBD ll Adaptor plugs directly into the vehicle OBD ll port.

Notice the OBD ll Adaptor has many ports to support various

other functions of the Mini Maxx.

8 Mini Maxx Installation Manual • www.hsperformance.com

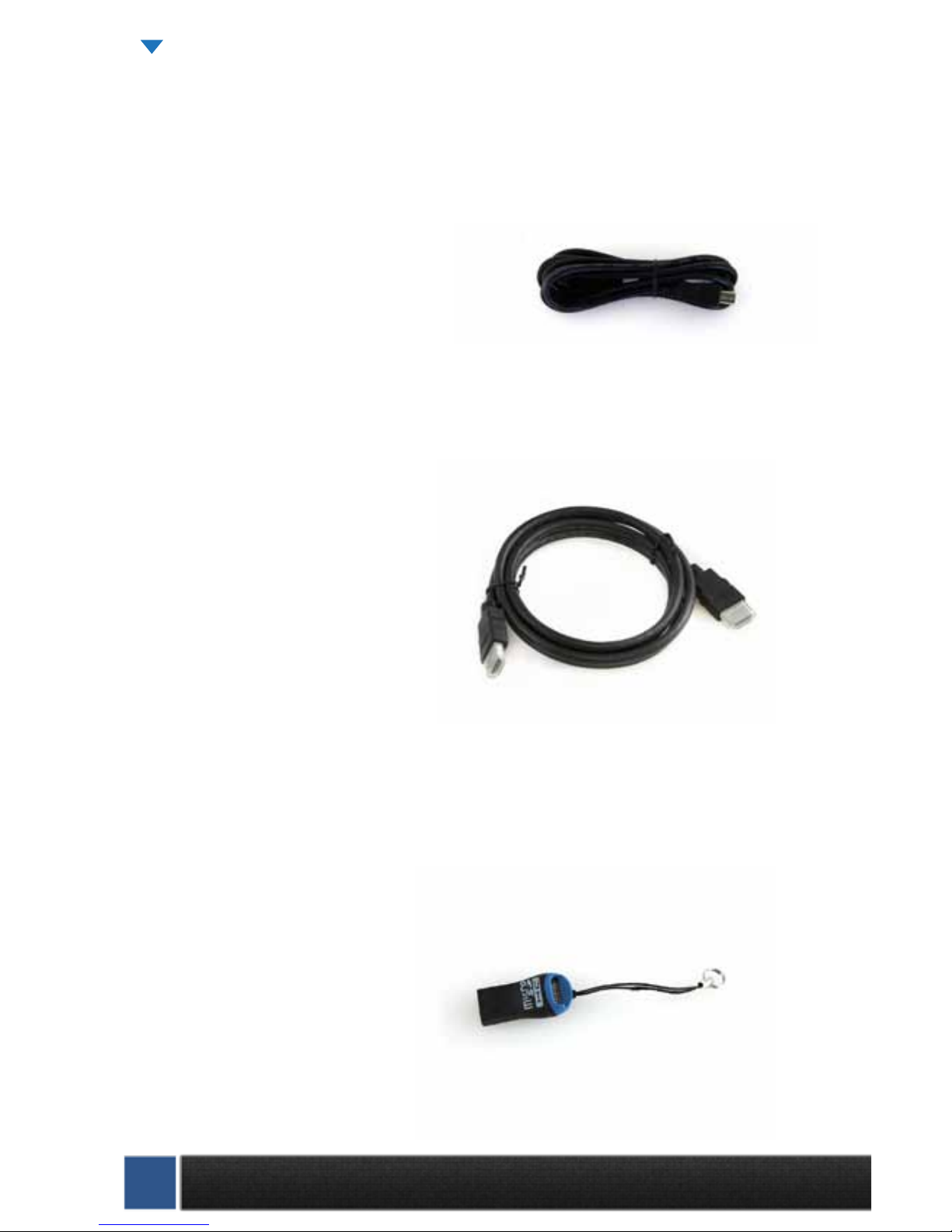

Mini USB Cable

Use this cable to connect your Mini Maxx to your personal computer to install software updates. Visit

www.hsperformance.com in the downloads section for product updates. Please nd your product ap-

plication and follow the posted instructions there to update your Mini Maxx.

HDMI Cable

The HDMI Cable connects the Mini Maxx to the OBD ll Adapter Plug and acts as the main line of com-

munication for the Mini Maxx.

USB to Micro SD Adapter

The USB to Micro SD Adapter is what you will use to update your Mini Maxx. You will take the Micro

SD card out of the Mini Maxx and insert it into the adapter, then insert the adapter into your personal

computer.

PARTS DESCRIPTION CONTINUED

1-888-628-1730 • Mini Maxx Installation Manual 9

Mini Maxx & Windshield Mount

OBD II Adapter Plug

OBD II Port

Power Cable

(Optional)

Fuse Box

Fire wall grommet

MOST APPLICATIONS

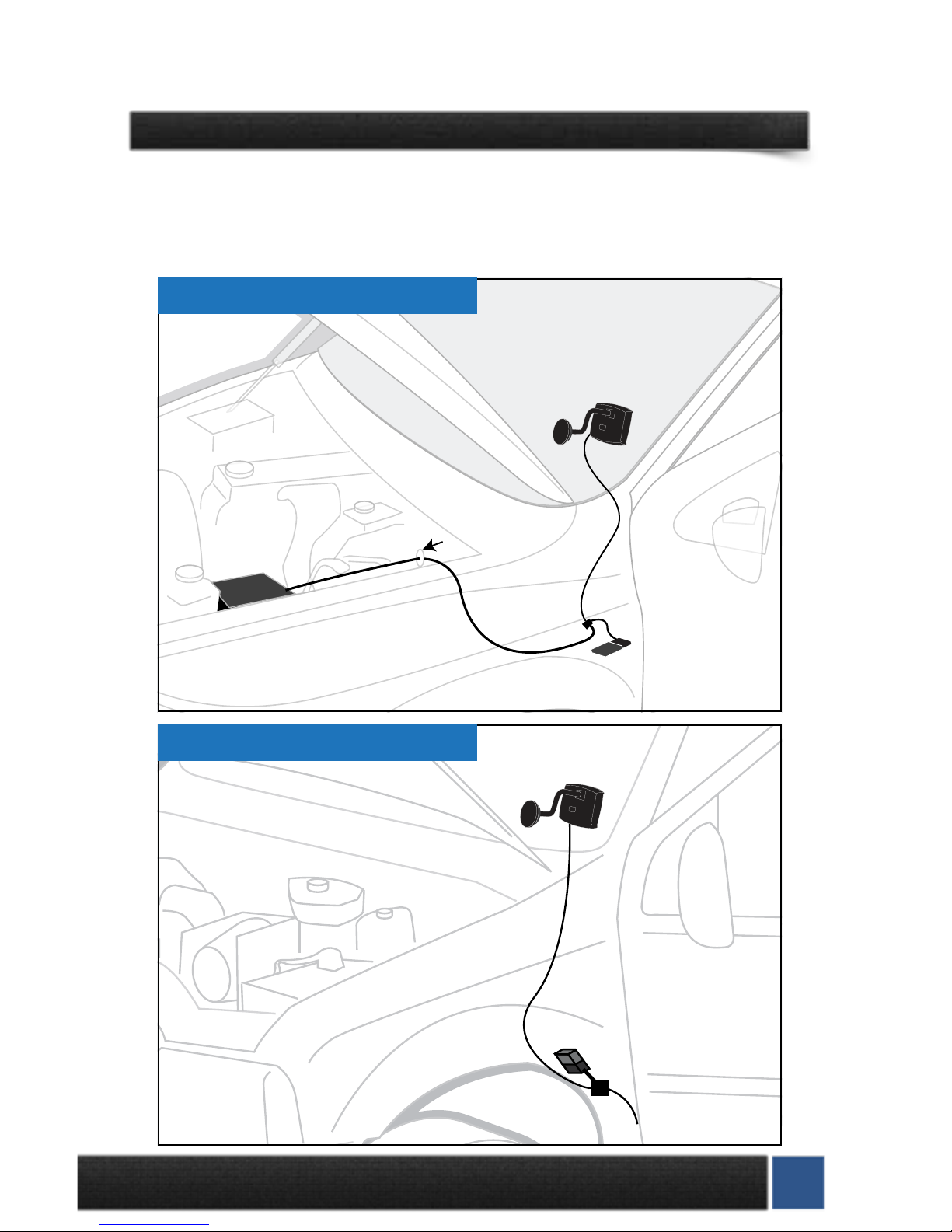

INSTALLATION OVERVIEW

The installation overview illustrates a totally installed and functional Mini Maxx system. This overview is

meant to help reference the general location of installed parts and pieces of the Mini Maxx. Notice that there

are dierent overview diagrams. Use the correct diagram for your truck. For more complete wiring diagrams

and instructions, please see vehicle specic features starting on page 27.

OBD II Port

OBD II Adapter Plug

Power Wire

(Optional.To purple

ignition

wire under dash)

MINI MAXX &

Windshield mount

HDMI Cable

FORD POWER STROKE‘08’10

10 Mini Maxx Installation Manual • www.hsperformance.com

MINI MAXX INSTALLATION INSTRUCTIONS

SECTION 1: MOUNTING THE MINI MAXX

In this section you will decide where to mount the Mini Maxx Cradle, so you are essentially choosing the loca-

tion for the Mini Maxx inside the vehicle cab. First, decide which mounting style you will choose for the Mini

Maxx; we oer two dierent styles of mounting:

1.Windshield mounting

2.Custom Pod mounting (Refer to the instructions included with your custom pod)

Visit www.hsperformance.com for custom options

INSTALLATION CONTINUED

WINDSHIELD MOUNTING

1. Locate the T-shaped mount socket on the back side of the Mini Maxx.

2. Notice that the top of the universal mount will t into T-shaped socket and slide forward to

secure the Mini Maxx to the mount.

3. With the Mini Maxx connected to the mount use the windshield mount to secure the Mini Maxx

to the wind- shield. Be sure that the position of the Mini Maxx does not obstruct the view of

the road or distract the driver from their primary responsibility, which is driving responsible.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali H&S Elettronica per automobili

H&S

H&S XRT Pro Manuale utente

Manuali Elettronica per automobili popolari di altre marche

GoldCruise

GoldCruise GC90Ci Manuale utente

DRG

DRG LC 120 Manuale utente

Blue Ox

Blue Ox BX8848 Manuale utente

Dometic

Dometic MAGICWATCH MWE890K Manuale utente

Perfect Power

Perfect Power SMT8-T5 Manuale utente

Honeywell

Honeywell Thor VM3A Manuale utente

Waeco

Waeco MagicWatch MWE250 Manuale utente

Rydeen

Rydeen BKM091 Manuale utente

Skoda

Skoda 5E0 054 630 Manuale utente

VDO

VDO SENDER UNIT 2159-0 Manuale utente

iDataLink

iDataLink maestro Rr Manuale utente

Audiovox

Audiovox PRO-PDA15 Manuale utente

Movon

Movon MDAS-3LFFHD Manuale utente

Pioneer

Pioneer Comfort adapter CA-D-PI.150 Manuale utente

Dietz

Dietz 1110 Manuale utente

Crux

Crux RVCFD-79 Manuale utente

Nonda

Nonda ZUS Manuale utente

iDataLink

iDataLink Maestro Manuale utente
