Hanwha Techwin WISENET SCB-6005 Manuale utente

High Resolution Box Camera

User Manual

SCB-6005

High Resolution Box Camera

User Manual

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks

mentioned in this manual are the registered trademark of their respective company.

Restriction

reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Techwin makes the best to verify the integrity and correctness of the contents

in this document, but no formal guarantee shall be provided. Use of this document and the

subsequent results shall be entirely on the user’s own responsibility. Hanwha Techwin

reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

English_3

●SAFETY INFORMATION

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric

shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence

of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING

• To prevent damage which may result in fire or electric shock hazard, do not expose this

appliance to rain or moisture.

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with

the installation instructions.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,

electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause

abnormal heat generation or fire.

4. Securely plug the power cord into the power receptacle. insecure connection may cause

fire.

5. When installing the camera, fasten it securely and firmly. The fall of camera may cause

personal injury.

4_ safety information

safety information

6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers

filled with water on top of the camera. doing so may cause personal injury due to fire,

electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric

shock.

8. If any unusual smells or smoke come from the unit, stop using the product. in such case,

immediately disconnect the power source and contact the service center. continued use in

such a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service center. never

disassemble or modify this product in any way. (Hanwha Techwin is not liable for problems

caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. doing so may cause

fire or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a location

subject to excessive vibrationor magnetic interference.

2. Do not install in a location subject to high temperature (over 55°C), low temperature

(below -10°C), or high humidity. Doing so may cause fire or electric shock.

3. If you want to relocate the already installed product, be sure to turn off the power and then

move or reinstall it.

4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so

may cause fire or damage to the product.

5. Keep out of direct sunlight and heat radiation sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may

damage the CMOS image sensor.

8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.

9. The Mains plug is used as a disconnect device and shall stay readily operable at any time

10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the CMOS.

English_5

●SAFETY INFORMATION

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be

disposed of with other household waste at the end of their working life. Where marked, the chemical symbols

Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC

Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health

or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste

and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their

working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

please separate these items from other types of waste and recycle them responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

6_important safety instructions

important safety instructions

Other Notes

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong is provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus.

13. Unplug this apparatus when a card is used. Use caution when moving

the cart/ apparatus combination to avoid injury from tip-over.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as powersupply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or has been dropped.

15. If you use excessive force when installing the product, the camera may be damaged and

malfunction.

If you forcibly install the product using non-compliant tools, the product may be damaged.

English_7

●IMPORTANT SAFETY INSTRUCTIONS

16. Do not install the product in a place where chemical substances or oil mist exists or may

be generated. As edible oils such as soybean oil may damage or warp the product, do not

install the product in the kitchen or near the kitchen table.

This may cause damage to the product.

17. When installing the product, be careful not to allow the surface of the product to be

stained with chemical substance.

Some chemical solvents such as cleaner or adhesives may cause serious damage to the

product’s surface.

18. If you install/disassemble the product in a manner that has not been recommended, the

production functions/performance may not be guaranteed.

Install the product by referring to “Installation & connection” in the user manual.

19. Installing or using the product in water can cause serious damage to the product.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus

Hanwha Techwin cares for the environment at all product manufacturing

stages, and is taking measures to provide customers with more

environmentally friendly products.

The Eco mark represents Hanwha Techwin's devotion to creating

environmentally friendly products, and indicates that the product satisfies

the EU RoHS Directive.

8_ contents

contents

INTRODUCTION

9 Features

10 Components and Accessories

11 Overview

13 Lens

CONNECTION

16 Connecting to Monitor

16 Connecting to Power

17 Control via RS-485 Interface

18 To connect the Day & Night

Input

18 To connect the Motion

Detection Output

19 Using Coaxial Communications

CAMERA OPERATION

20 Menu Conguration

20 Menu Setup

TROUBLESHOOTING

34 Troubleshooting

English_9

●INTRODUCTION

introduction

FEATURES

yHigh Resolution

Use of a 2 mega pixel CMOS device provides clear pictures with a resolution of 1945x1097.

yExcellent Sensitivity

The built-in high sensitivity COLOR CMOS produces a clear image.

Color : 0.04Lux (F1.2, 1/30sec)

BW: 0.004Lux(F1.2)

ySSNR4 Function

High performance DSP chip removes noises of GAIN resulting from the low light level and

shows a vivid, high definition video even in the dark place.

yDay&Night

This camera has a function that automatically selects the mode that is appropriate

for daytime or night-time conditions. The COLOR mode operates in daytime condi-

tions to provide optimum colors, and B/W mode operates in night-time conditions

to enhance the definition of the image.

yPROFILE

You can set a mode according to the camera installation conditions.

- BASIC, DAYNIGHT, BACKLIGHT, ITS, INDOOR, USER

yDWDR

By adopting a proprietary high performance DSP chip, the camera delivers clear,

high quality pictures even in backlight, by increasing exposure in dark areas while

decreasing it in bright areas; a corrected image with clear details results.

yDC Drive Lens Support

You can select Manual or DC Drive Lens from the menu.

yMiscellaneous Functions

HLC(High Light Compensation), REVERSE , SHARPNESS and PRIVACY functions are

provided.

yCommunication

Coaxial and RS-485 communication methods are supported.

- Coaxial Communications: ACP(AHD), Pelco-C(CVBS)

- RS-485 Communications : SAMSUNG-T, HONEYWELL, BOSCH, PELCO-P, PELCO-D

10_ introduction

introduction

COMPONENTS AND ACCESSORIES

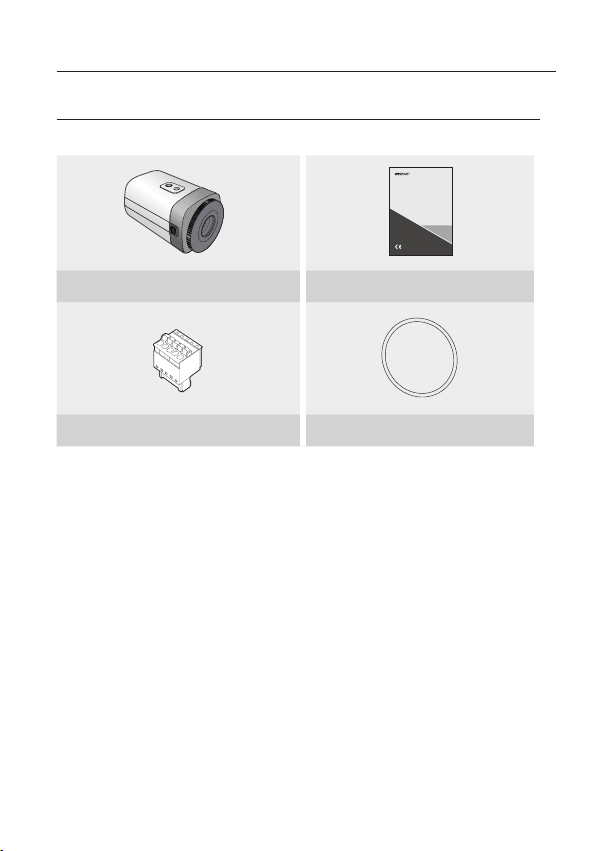

Check if the following items are included in the product package.

High Resolution Box Camera

User Manual

SCB-6005

Camera

User Manual

Terminal Block

Sheets lens mount

Indice

Altri manuali Hanwha Techwin Telecamera di sicurezza

Hanwha Techwin

Hanwha Techwin Wisenet QND-8010R Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet QNE-8011R Manuale utente

Hanwha Techwin

Hanwha Techwin QNP-6320R Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XND-6010 Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet HCD-6080R Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet TNO-6321E Manuale utente

Hanwha Techwin

Hanwha Techwin Bandit Barrier XNB-H6280B Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNP-6230RH Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XNV-6081Z Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNP-L6233RH Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XNB-6001 Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XND-6011F Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet ANV-L6023R Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SLA-T1080F Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XNO-6085R Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNP-5321 Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNP-6320RH Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNO-6085R Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNB-6004F Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET TNO-6010M Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet HCD-7070RA Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet SNP-L5233 Manuale utente

Hanwha Techwin

Hanwha Techwin WISENET XND-6080 Manuale utente

Hanwha Techwin

Hanwha Techwin Wisenet HCP-6230 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
