Harbour HBRBC93B Manuale utente

93 Litre

Beverage Chiller

INSTRUCTION MANUAL

IM VERSION: V1.1 |MODEL: HBRBC93B |PRODUCT CODE: 708201 |ISSUE DATE: 03/2022

SUPPORT: 1300 11 4357 |WWW.HARBOUR-APPLIANCES.COM.AU

Congratulations on purchasing your new Beverage Chiller.

All products brought to you by Harbour are manufactured to the highest standards

of performance and safety and, as part of our philosophy of customer service and

satisfaction, are backed by our comprehensive 3 Year In Home Warranty.

We hope you will enjoy using your purchase for many years to come.

Welcome

Contents

02 Welcome

04 Warranty Details

05 General Safety Instructions

09 Product Overview

10 Getting Started

11 Operation Instructions

12 Installation Instructions

13 Reversing the Door Swing

15 Maintenance and Cleaning

16 FAQs and Troubleshooting

17 Specifications

18 Repair and Refurbished Goods or Parts Notice

19 Warranty Returns

The product is guaranteed to be free from defects in workmanship and parts for a period

of 36 months from the date of purchase. Defects that occur within this warranty period,

under normal use and care, will be repaired, replaced or refunded at our discretion. The

benets conferred by this warranty are in addition to all rights and remedies in respect of

the product that the consumer has under the Competition and Consumer Act 2010 and

similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and for compensation

for any other reasonably foreseeable loss or damage. You are also entitled to have the

goods repaired or replaced if the goods fail to be of acceptable quality and the failure does

not amount to a major failure.

Beverage Chiller 93L Capacity

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety

precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.

Make sure you understand all instructions and warnings.

Keep the manual in a safe place for future reference, along with the completed warranty card and

purchase receipt. If you sell or transfer ownership of this product, pass on these instructions to the

new owner.

Always follow basic safety precautions and accident prevention measures when using an electrical

appliance, including the following:

IMPORTANT: Pay particular attention to messages that contain the words DANGER, WARNING or

CAUTION. These words are used to alert you to a potential hazard that can seriously injure you and

others. The instructions will tell you how to reduce the chance of injury and let you know what can

happen if the instructions are not followed.

CAUTION

RISK OF FIRE

This symbol alerts you to take care as this appliance contains a flammable

refrigerant (isobutane) and insulation blowing gas (cyclopentane).

Do not expose it to high heat, sparks and open flames.

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of

the appliance, a gas with a high level of environmental compatibility, which is

nevertheless flammable. During transportation and installation of the appliance,

ensure that none of the components of the refrigerant circuit become damaged.

WARNING: Do not damage the refrigerant circuit! Never use an appliance with a damaged refrigerant

circuit! If the refrigerant circuit becomes damaged, avoid proximity to open fires and all types of heat and

ignition sources. Thoroughly ventilate the room in which the appliance is located.

DANGER: It is hazardous for anyone other than an authorised service person to service this appliance.

In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon

refrigerants to carry out servicing or repairs which involve the removal of covers.

The room for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and type of

refrigerant in the appliance can be found in the Technical Specifications section of this user manual and

on the rating plate, found on the appliance.

USAGE CONDITIONS AND RESTRICTIONS

• Domestic use only: This appliance is intended for indoor household use only. It is not intended for

commercial, industrial or outdoor use. It is not intended for use in a recreational vehicle.

• Purpose: Do not use this appliance for anything other than its intended purpose. Other uses are not

recommended and may cause fire, electric shock or personal injury.

• Attachments: The use of attachments is not recommended by the appliance manufacturer and

distributor as they may be hazardous.

• Improper use: Damage due to improper use, or repairs made by unqualified personnel will void

your warranty. We assume no liability for any eventual damages caused by misuse of the product or

noncompliance with these instructions.

GENERAL SAFETY INSTRUCTIONS CONT.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other

than those recommended by the manufacturer.

• Usage restriction: This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instructions concerning use of the appliance by a person responsible for their safety.

• Children: Supervise young children to ensure they do not play with the appliance. Never allow children

to operate, play with or crawl inside the appliance.

• WARNING: Do not use electrical appliances inside the appliance, unless they are of the type

recommended by the manufacturer.

• Explosive or flammable substances: Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance. Do not store or use petrol or any other flammable vapours

and liquids in the vicinity of this or any other appliance. Do not use such substances for cleaning the

appliance. The fumes can create a fire hazard or an explosion.

• Damage: Do not use the appliance if the power cord, plug or the appliance itself is damaged. If the cord

is damaged, contact the after sales support line and have the cord replaced by qualified personnel in

order to avoid a hazard.

• WARNING: Do not damage the refrigerant circuit.

• Do not modify: Do not attempt to alter or modify this appliance in any way.

• Repair: Do not attempt to repair or replace any part of this appliance unless it is specifically

recommended in this manual. All other servicing should be referred to a qualified technician. Contact

the after sales support line for advice.

• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of

the appliance.

• Usage: The gaps between chiller door and chiller body are small, because not to jam your fingers in

these areas. Please be gentle when close or open the chiller door to avoid falling objects.

• Care: Do not use chiller body, chiller door, etc. as pedal or support

ELECTRICAL SAFETY

• Voltage: Before connecting and turning on the appliance, ensure the electrical voltage and circuit

frequency correspond to that indicated on the appliance rating label.

• Earthing: This appliance should be properly earthed for your safety. The power cord of this appliance

is equipped with a three-prong plug for use in standard wall outlets to minimise the possibility of

electrical shock. Do not modify the cord and/or plug provided with the appliance. Improper use of the

earthed plug can result in the risk of electric shock.

• Connection: This appliance requires a standard 220-240 V AC 50Hz electrical outlet. Do not overload

the electrical circuit.

• Power cord: Do not kink or damage the power cord; do not leave it exposed or dangling. Secure it at

the back of the appliance so no one steps on or places anything on the cord or against it. Keep the cord

out of reach of children. When moving the appliance, make sure not to damage the power cord. When

removing the power cord, firmly grasp the plug and pull out it from the socket directly.

• Auxiliary Items: Do not use an inverter, adaptor or extension cord with this appliance. If the cord is too

short, have a qualified electrician install an outlet near the appliance. Use of an extension cord and an

inverter can negatively affect the performance of the unit.

• Protect from moisture: To protect against the risk of electric shock, do not immerse the unit, cord or

plug in water or spray it with any other liquid. Do not connect or disconnect the electric plug when your

hands are wet. Turn the power switch off before removing the plug from the socket.

• WARNING: Disconnect! To reduce the risk of fire, electric shock or personal injury, always unplug the

appliance from the socket when not in use, when moving and before cleaning or servicing. Never

unplug the unit by pulling the power cord. Always grip the plug firmly and pull straight out from the

power point.

• Electrical work: Any electrical work required for the installation of this appliance should be carried out

by a qualified electrician.

GENERAL SAFETY INSTRUCTIONS CONT.

Never use this appliance with a damaged refrigerant circuit! If the coolant circuit becomes damaged, avoid

proximity to open fires and all types of heat sources. The room in which the appliance is located should be

ventilated for a few minutes.

WARNING: Leaking Gas: In the case of leaking gas, turn off the valve of the leaking gas, open the doors

and windows in case of leakage of gas and other flammable gases. Do not unplug the chiller and other

electrical appliances considering that spark may cause a fire.

INSTALLATION

Heavy: This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two

person lift or mechanical aid when installing it. Failure to do so can result in back or other injury.

Damage: When unpacking, check the appliance carefully for damage. If it is damaged, do not install the

appliance. Contact our after sales support centre on 1300 11 43 57 for advice on examination or return of

the damaged appliance.

Protect from moisture: Install the appliance in an indoor area protected from wind, rain, water spray or drips.

Protect from heat: Do not install the appliance next to an oven, grill or other source of high heat, or where

it will be exposed to direct sunlight for prolonged periods of time.

WARNING: Ventilation: To ensure proper ventilation, keep any ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstructions. Ensure adequate air circulation around the

appliance to prevent overheating.

Level: Install the appliance level in order to ensure proper operation.

Location: To ensure safety, it is not recommended to place socket, regulators, rice cookers, microwave

ovens and other appliances at the top of the beverage chiller, those recommended by the manufacturer

are not included. Do not use electrical appliances in the food pantry.

Children: Do not give package and other components to children to play. The bending board and plastic

film may lead to suffocation! Do not allow children to enter or climb the chiller to prevent that children are

sealed in the chiller or children are injured by the falling chiller.

CLEANING AND MAINTENANCE

Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock,

injury or death. Do not connect or disconnect the plug when your hands are wet.

Flames: Do not let open flames or ignition sources enter the appliance.

Flammable/explosive substances: Never clean this appliance with flammable fluids. Do not store or use

volatile, flammable or explosive propellants or liquids in or close to this or any other appliance. The fumes

can create a fire hazard or explosion.

Washing: Do not spray or wash the chiller; do not put the chiller in moist places easy to be splashed with

water so as not to affect the electrical insulation properties of the chiller.

Solvents: Do not use solvent based cleaning agents or abrasives on the interior as these may damage or

discolour the surfaces of the appliances.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process. Never use

a sharp or metal instrument to remove frost or clean the appliance. Use a plastic scraper, if necessary.

Service: Do not attempt to repair, modify or replace any part of the appliance unless specifically

recommended in this manual. Refer all other servicing to a qualified technician, or contact the after sales

support line for advice on examination or repair of the appliance.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste

separately for special treatment is necessary.

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material

resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental

safe recycling.

For more detailed information about treatment, recovery and recycling of this product, please

contact your local city office, your household waste disposal service or the shop where you

purchased the product.

GENERAL SAFETY INSTRUCTIONS CONT.

WARNINGS RELATED TO PLACING ITEMS

• Objects: Do not place heavy objects on the top of the chiller considering that objects may fall when

open or close the door, and accidental injuries might be caused.

• Items in the chiller: Do not put flammable, explosive, volatile and highly corrosive items in the chiller to

prevent damages to the product or fire accidents.

• Flammable items: Do not place flammable items near the chiller to avoid fires.

• Usage: This product is household chiller and this equipment can only be used for the storage of

beverages. According to the standard requirements, household chiller shall not be used for other

purposes, such as storage of food, blood, drugs or biological products.

ENERGY WARNINGS

• Beverage Chiller might not operate consistently when siled for an extended period of time below the

cold end of the range of temperatures for which the chiller appliance is designed.

• The need to not exceed the storage time(s) recommended by the beverage manufacturers for any kind

of beverage.

• The precautions necessary to prevent an undue rise in the temperature of the beverage while defrosting

the Beverage Chiller.

• The fact that a rise in temperature of the beverage during manual defrosting, maintenance or cleaning

could shorten the storage life.

• The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children

and not in the vicinity of the chiller appliance, in order to prevent children from being locking inside.

• Please keep the interior of the Beverage Chiller dry.

RESPONSIBLE DISPOSAL

Note: At the end of its working life, do not throw this appliance out with your household rubbish. Electrical

and electronic products contain substances that can have a detrimental effect on the environment and

human health if disposed of inappropriately. Observe any local regulations regarding the disposal of

electrical consumer goods and dispose of it appropriately for recycling and recovery of the refrigerant and

blowing agent. Contact your municipal authorities for advice on recycling facilities in your area. When the

beverage chiller is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors

and shelves in a proper place, so as to prevent entrapment of any children.

WARNING! This refrigeration appliance contains flammable refrigerants and insulation blowing gases,

which must be removed before disposal. Contact your municipal authorities for any codes or regulations

concerning the disposal of such materials.

Product Overview

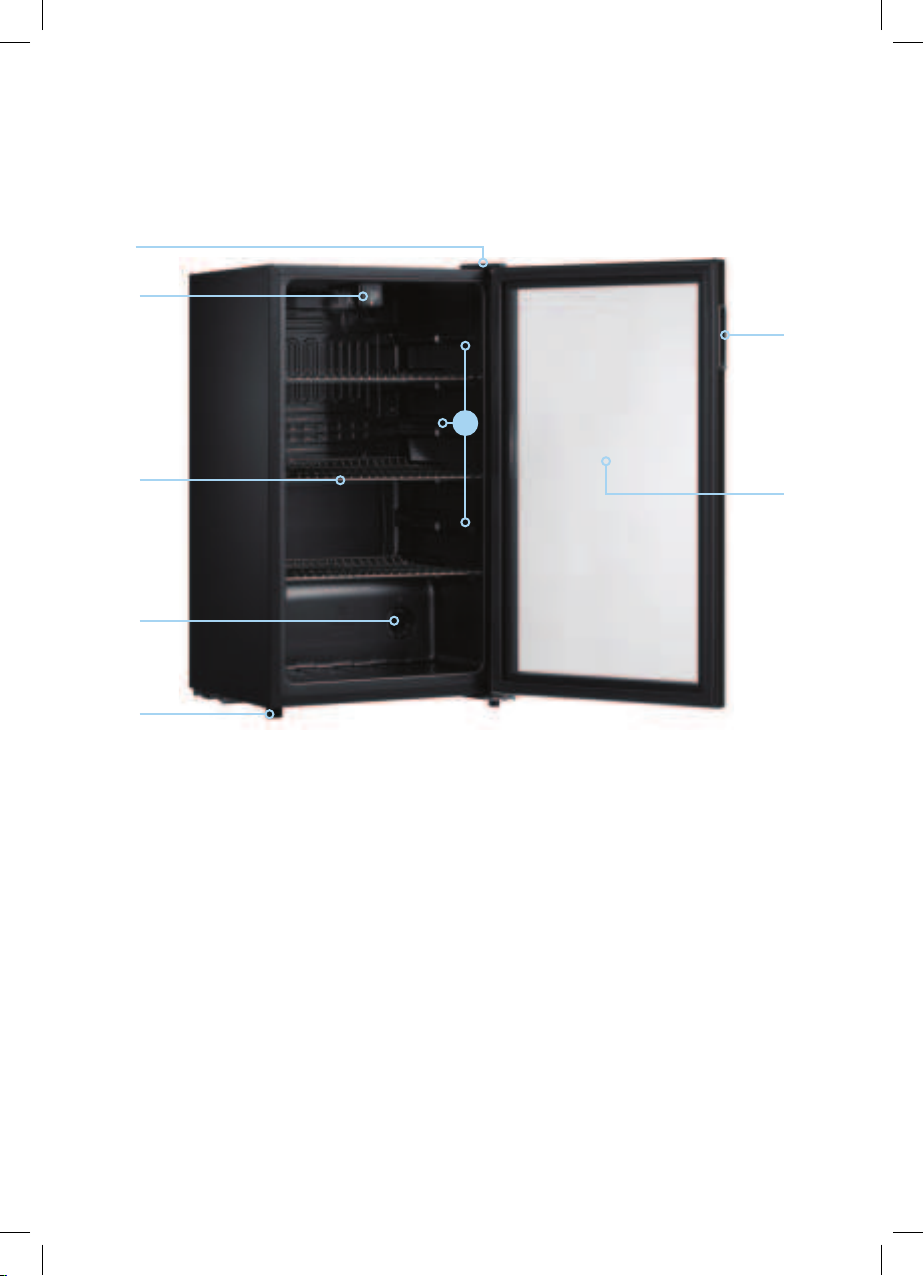

BEVERAGE CHILLER LAYOUT

1. Reversible door hinge

2. LED light switch

3. Door handle

4. Steel wire shelves (3)

5. Thermostat knob

6. Adjustable feet

7. Triple glazed UV treated glass door

8. Alternate shelf supports

Not shown but also included:

°1 × Instruction manual

°1 × Quick start guide

°1 × Warranty certificate

Key:

Note: The images in this user manual are for reference only. Your appliance may appear differently.

Getting Started

UNPACKING

• Packaging materials: This appliance has been packaged to protect it against transportation damage.

Remove all packaging materials from around and inside the appliance including the bottom cushions,

foam pads, tapes inside the chiller, tear off the protective film on the door and the chiller body. Keep

the original packaging carton and materials in a safe place. It will help prevent any damage if the

product needs to be transported in the future, and you can use it to store the appliance when it is not in

use. In the event the carton is to be disposed of, please recycle all packaging materials where possible.

• Check: to see if all items are present.

• Inspect: the equipment and accessories for transport damage. In case of complaints, the supplier is to

be informed immediately.

•

Suffocation: Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all

packaging materials are out of their reach and disposed of safely.

• Power cord: Unwind the power cord to its full length and inspect it for damage. Do not use the

appliance if it or its cord have been damaged or are not working properly. In case of damage, contact

our after sales support line for advice on examination, repair or return of the damaged product.

• Read the manual: Read this manual to familiarise yourself with the appliance. Pay particular attention

to the safety instructions on the previous pages.

• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces of the

appliance with lukewarm water and a soft cloth. Dry thoroughly. Important: do not use harsh or

abrasive detergents or powders as these will damage the finish.

FIRST USE

Before turning on your Beverage Chiller for the first time:

• The chiller must be rested for at least half an hour before connecting power.

• Clean up the inner chamber with lukewarm water and a soft cloth.

• Do not connect chiller to electronic energy saving plug and converter that can convert DC into AC

(E.g.: solar energy system. ship grid).

• Water drop or frost will be generated on back side of Beverage Chiller when compressor is running.

This is a normal function of chiller, wiping out frost or water drop is not required as they will evaporate

automatically. The defrosted water will be collected into drain tank and then inflow into water disposal

pan above the compressor and vaporized.

Altri manuali per HBRBC93B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Harbour Refrigeratore

Harbour

Harbour HBRBC93B Manuale utente

Manuali Refrigeratore popolari di altre marche

Aqua Optima

Aqua Optima Corona Manuale utente

York

York YGWH 115 Guida

Galletti

Galletti PERFORMA MPE Series Manuale utente

SMC Networks

SMC Networks HRR Series Manuale utente

Daikin

Daikin EWAQ016CAW Manuale utente

Trane

Trane CVHE Istruzioni operative

Moffat

Moffat Friginox TSR-11SC Manuale utente

Gree

Gree GWH07AGA-K6DNA1C Manuale utente

Denali

Denali M1 Manuale utente

MP Systems

MP Systems PURGE Series Manuale utente

AEC

AEC PCA SERIES Scheda tecnica

Carrier

Carrier AquaEdge 19XRV series Istruzioni operative

Telemark

Telemark TVP-2000 Manuale

TICA

TICA MINI VRF CHR Series Manuale utente

Penguin

Penguin COLD THERAPY CHILLER Manuale utente

MAXA

MAXA A68 Manuale utente

SABROE

SABROE ChillPAC Manuale utente

Daikin

Daikin EWWQ-AJYNN Manuale utente
