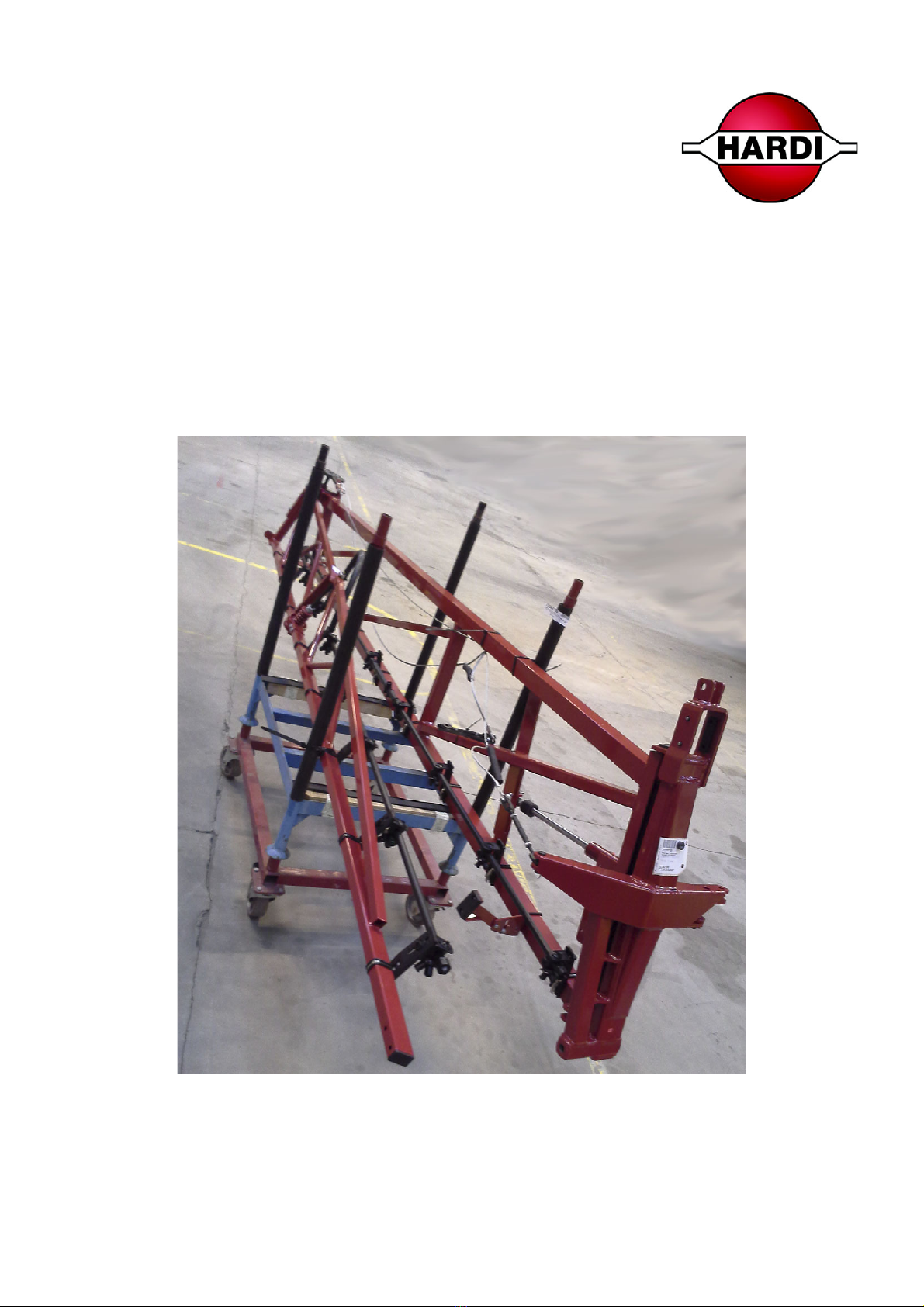

Hardi RANGER EAGLE Guida utente

RANGER EAGLE

Boom Wings

Original

Mounting Instruction

67217600-100, version 1.00

GB - 03.2018

www.hardi-international.com

We congratulate you for choosing a HARDI plant protection product. The reliability and

efficiency of this product depend upon your care. The first step is to carefully read and pay

attention to this mounting instruction. It contains essential information for the efficient use and

long life of this quality product.

Mounting Instruction Formalities

The original mounting instruction is approved and published in English. All other languages are translations of the

original mounting instruction. In the event of any conflicts, inaccuracies or deviations between the English

instruction and other languages, the English version shall prevail.

Illustrations, technical information and data in this book are assumed to be correct at the time of printing.

Published and printed by HARDI INTERNATIONAL A/S.

Instructions

Before Mounting

Mounting Kit

The delivered parts are to be mounted on your HARDI sprayer.

They represent the boom wings to be connected to the boom centre.

Where on the Sprayer

On the left and right sides of the boom centre.

Tools and Materials Needed

Crane or forklift truck Lifting strap, 500 kg Sizes: 19 - 24 - 30 - 46 mm

Multi-purpose grease,

e.g. Shell Gadus

Instructions

Preparations

The sprayer should be hitched to the tractor to prevent it from moving

or rolling during the mounting work.

Activate the handbrake for the tractor.

Connect the hydraulic hoses for boom folding functions to the tractor

during the mounting work. Release the oil pressure to start with.

Keep children and bystanders at a distance.

Lifting The Boom Wing Into Position

The following instructions and pictures show the right side boom wing to be mounted.

Lift up the boom wing from the delivery position using a suitable lifting

strap (A) connected to a crane or forklift truck.

Pay attention to the balance when lifting.

The boom wing weighs approximately 150 kg.

Instructions

Move the boom wing near to the boom centre on the sprayer.

Move the boom wing carefully to avoid damaging other parts on the

sprayer during the mounting work.

Open the boom wing by means of a wood piece - this makes room for

the mounting work.

Instructions

Mounting Instructions

Bearing Pins

On the boom centre, remove the black bearing pins and lock nuts at the

mounting points at the top and bottom, 4 sets in all.

Check that the bearing pins are greased, or apply extra grease now.

Instructions

Pivot Joints

Align the mounting holes at the bottom of the boom centre and boom

wing.

Insert the black bearing pin - use a rubber mallet if needed.

Knock the bearing pin fully through.

Mount the lock nut on the opposite side.

At the top, mount this red bracket inside the red square pipe.

Instructions

Fasten with bolt and nut in the bottom hole.

Note that the boom wing has been raised beyond this mounting point,

allowing the red bracket to be mounted as shown.

Prepare the mounting hole for the black steel bar connected to the

boom centre.

Raise or lower the boom wing to align the mounting holes.

Instructions

These parts are used to mount the black rod.

Tighten the locknut at the end of the steel bar.

Four thread turns must be visible when finished - this is close to the final

setting for the boom wing.

Instructions

Connect the other end of the steel bar as shown.

Lift the boom wing to a horizontal position, and place a support under

the boom wing.

Remove the lifting strap, and move over to mount the opposite boom

wing.

This will create a good balance in the boom for the coming mounting

work.

Opposite Boom Wing

Repeat the steps for mounting the opposite boom wing in the pivot joints.

When completed, lift the boom wing to a horizontal position, and place a support under the boom wing.

Now return to the first boom wing to complete the work here.

Hydraulic Hoses

Remove the dust caps from the hydraulic cylinder on the boom wing

and on the hydraulic block in the boom centre.

Check that the O-rings are mounted in the oil ports in the cylinders after

removing the dust caps. If not, you will have leaks during operation!
