Harley Benton HB-40B Manuale utente

User manual

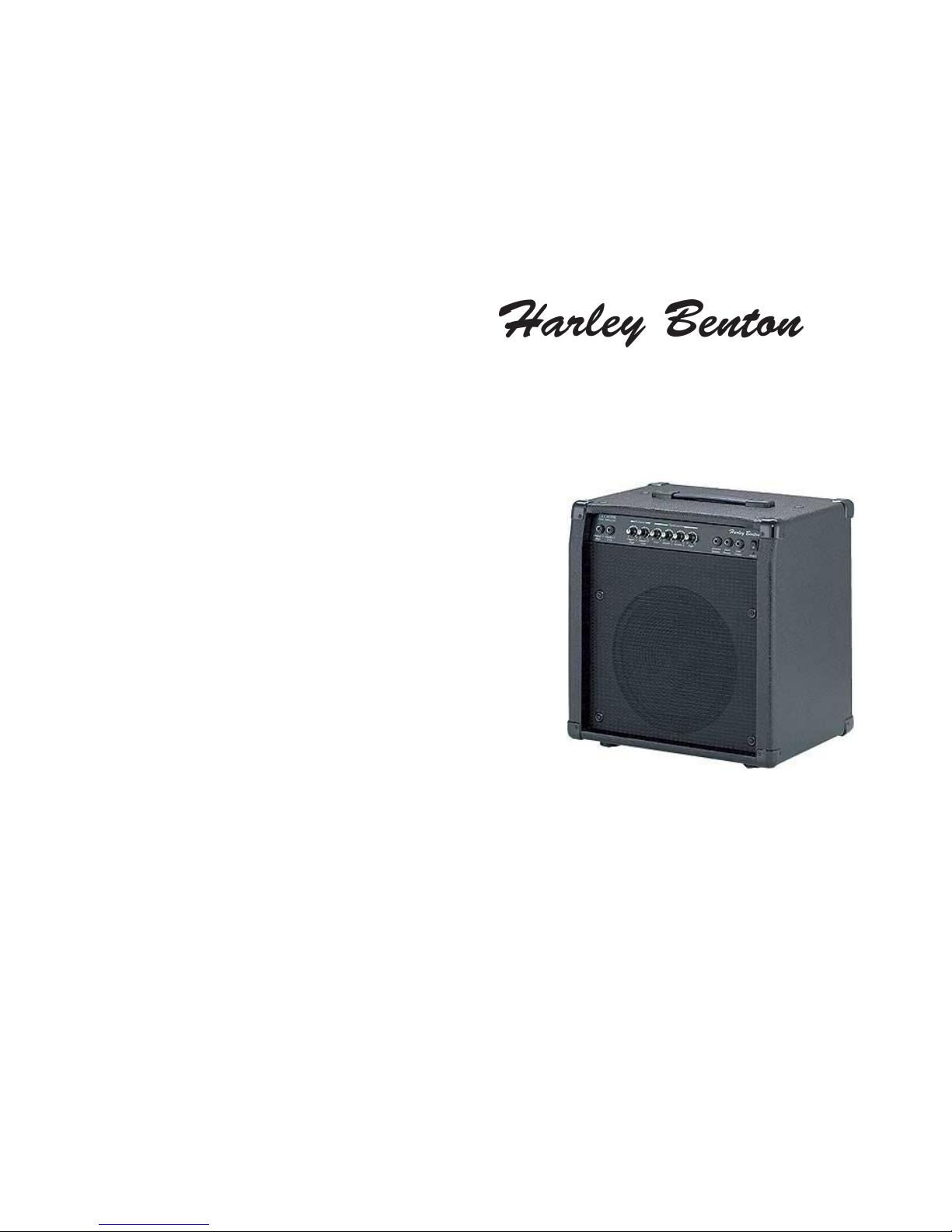

HB-40B Bass Amplifier

Contact:

Musikhaus Thomann

Treppendorf 30

96138 Burgebrach - Germany

Phone.: +49-(0)9546-9223-0

Fax: +49-(0)9546-6774

Web: www.thomann.de

E-mail: [email protected]

PRECAUTIONS

WARNING:

This appliance must be earthed. Please check that the supply

voltage details given on the rating label (located on the rear

panel) are in accordance with your electricity supply.

INSTRUCTIONS FOR USE:

- Plug the mains lead into a suitable power socket.

- Connect your guitar/bass to the input socket of the amplifier

- Turn the volume control to the left position and the EQ

controls to the middle.

- Power on the amplifier.

- Adjust the volume level with the equivalent volume control to

your desired level.

WARNINGS:

If, after you have followed the instructions outlined above, your

amplifier fails to function, please contact your local distributor.

Under no circumstances remove the rear panel of the amplifier.

Electrical appliances must never be used where there is a

danger of water splashing or dripping onto the unit.

Your attention is drawn to the instructions printed on the notice

attached to the back of the amplifier.

Exposure to extremely high noise level may cause a permanent

hear loss. Individuals vary considerably to noise induced hearing

loss but nearly everyone will lose some hearing if exposed to

sufficiently intense noise for a prolonged time.

R - 281204 KR

RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

C AU TIO N :

IN PU T PO W ER

40W MAX

230VAC~50Hz

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

CAUTION: Chassis surface hot.

WARNING: To reduce the risk of fire or electric shock,

do not expose this equipment to rain or moisture.

AVIS: Risque de choc electricque ne pas ouvrir.

ATTENTION: Superficie de chassis chaude.

1. AC Line Cord

Technical Specifications:

Back Panel:Front Panel:

Rated Power 40W RMS @ 4 ohms

Frequency Response 50Hz - 8kHz

THD 0,5%

S/N ratio 75dB

Input Impedance 50k ohms

Power Consumption 80VA (max.)

Maximum Input Level 5Vrms

Dimensions (HxWxD) 445mm x 425mm x 300mm

Weight 12kg

1. Input 1: This is an instrument input for plugging in

virtually anything. You may plug in a guitar

(bass or lead), keyboard, CD-Player or any

pre-amplified signal.

2. Input 2: Second instrument input. Same instructions

apply as for input 1.

3. Volume 1: This is the overall level control to input 1

4. Volume 2: This is the overall level control to input 2

5. Low: EQ control for low frequency range (100Hz)

6. Middle 1: EQ control for mid frequency range (600Hz)

7. Middle 2: EQ control for mid frequency range (2kHz)

8. High: EQ control for high frequency range (6kHz)

9. Ext. Speaker: This jack is for plugging in an external

speaker. The internal speaker will be

disconnected automatically.

10. Headphones:Inserting a headphone jack will disconnect

internal speaker for quiet private practicing.

11. Line Output: Line signal output, Impedance = 1k ohms

12. Power: Power switch
