Harman Kardon Citation Amp Manuale utente

CITATION AMP

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 1CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 1 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

1APP

Google Home

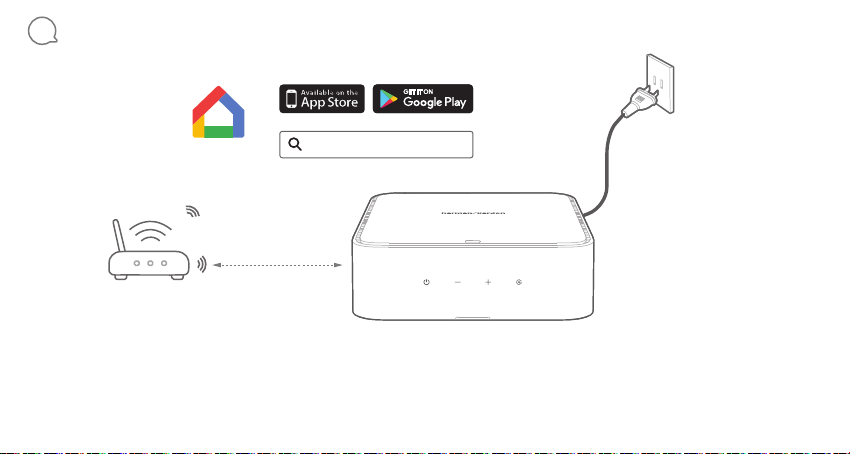

Download the Google Home app and set up your Citation Amp.

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 2CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 2 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

AirPlay setup

For AirPlay 2 only users, skip the Google Home app; on your iOS device, go to Settings > Wi-Fi and select “Citation Amp”

under SET UP NEW AIRPLAY SPEAKER ...

Follow the onscreen instructions to complete setup.

Chromecast built-in and Bluetooth will require additional setup with the Google Home app.

Plug in the power

Settings Wi-Fi

Wi-Fi

Citation Amp

XXX

SET UP NEW AIRPLAY SPEAKER…

(iOS)

> 5 m

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 3CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 3 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

2PRODUCT TOUR

Regional power cord

(varies depending on country)

IR extender

Remote control

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 4CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 4 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

Top & Front

Power

Volume

AUX

IR Receiver

Source

Status

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 5CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 5 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

Back

Audio In

Subwoofer Out

TV In

Trigger Out

Service

Speaker Out

Ethernet

Wireless Pairing

IR Extender In

Audio Line Out

Power

Reset >5s

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 6CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 6 8/11/2020 3:30:31 PM8/11/2020 3:30:31 PM

3CONNECT SPEAKERS

Option 1 Option 2

Banana plug (not provided)

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 7CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 7 8/11/2020 3:30:33 PM8/11/2020 3:30:33 PM

4CONNECT TO YOUR TV

Option 1 (Best): HDMI

Option 2: OPTICAL

HDMI (ARC)

OPTICAL OUT

Option 3: COAX

COAX OUT

When the HDMI cable and optical or coax cables are connected,

the HDMI signal is received ﬁrst.

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 8CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 8 8/11/2020 3:30:33 PM8/11/2020 3:30:33 PM

5CONNECT IR EXTENDER OPTIONAL

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 9CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 9 8/11/2020 3:30:33 PM8/11/2020 3:30:33 PM

6GET STARTED

Plug in the power

> 5 m

(Android™/iOS)

Google Home

Add Citation Amp to your home Wi-Fi network:

Download and run the Google Home app on a phone or tablet.

Follow the instructions on the Google Home app to ﬁnish the setup.

* Enable Bluetooth (iPhone / iPad)

CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 10CH_HK_Citation AMP_QSG_EMEA_SOP_V14.indd 10 8/11/2020 3:30:33 PM8/11/2020 3:30:33 PM
