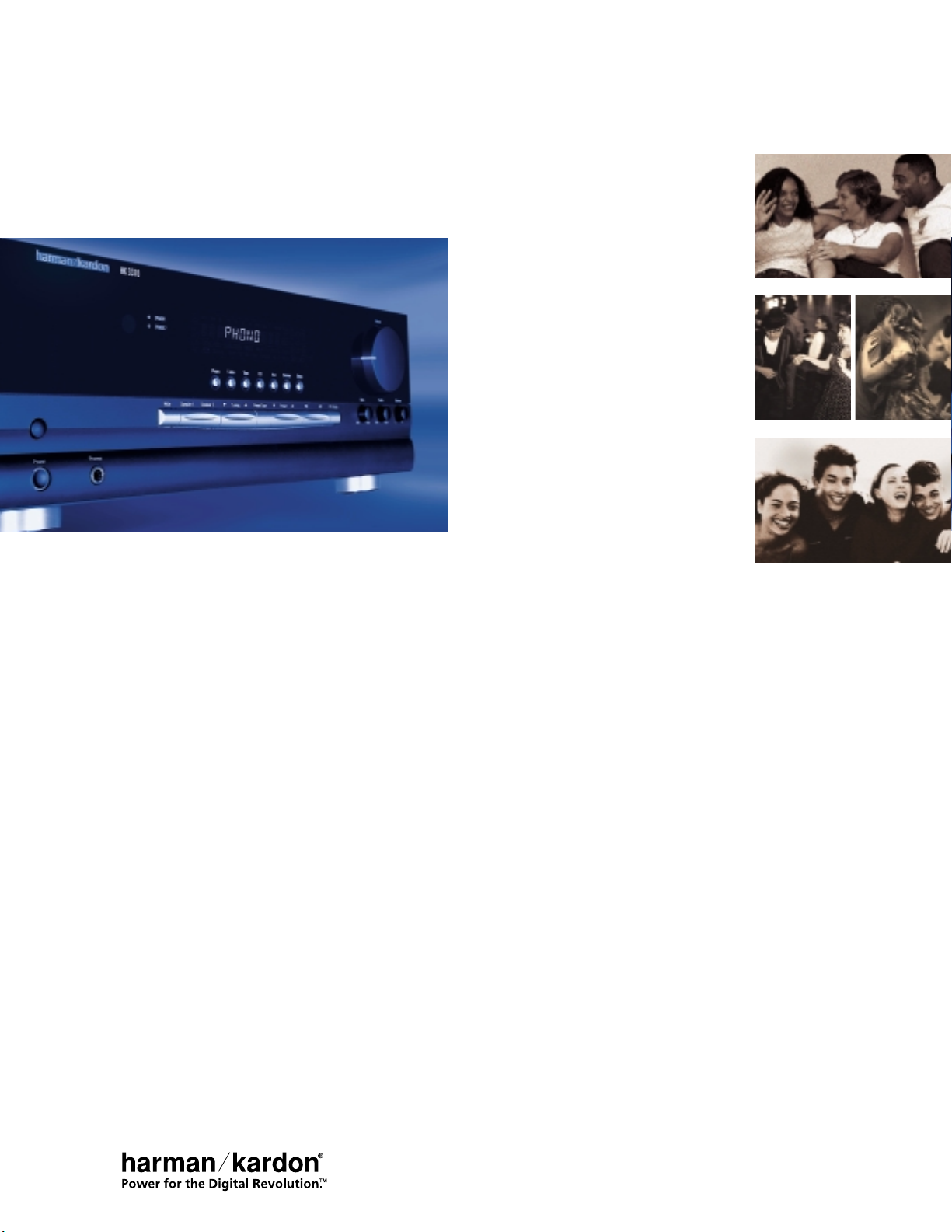

Harman Kardon HK 3370 Guida alla configurazione

HK 3370

STEREO RECEIVER

Sonic purity beyond compare.

Harman Kardon pioneered the high-

fidelity stereo receiver more than forty-five

years ago, and we’ve never abandoned

the faith. As evidenced by the HK 3370,

which understands that “dancing lights”

are no substitute for technical substance.

This receiver houses a 2 x 70-watt,

high-current, ultrawide-bandwidth

amplifier in an elegantly simple package.

And with remote A/B speaker selection

and a Harman Kardon system remote,

as well as infrared extension jacks,

it’s one of the easiest to use receivers

we’ve ever offered. The HK 3370.

Where pure sonic enjoyment lives on.

high-current capability

ultrawide bandwidth

phono input

tape monitor loop

A/B speaker selection

subwoofer output

Harman Kardon is a registered trademark, and Power for the Digital Revolution is a trademark, of Harman Kardon, Inc. Part No.: HK3370PI2/01

HK 3370

STEREO RECEIVER

Specifications

• Continuous Average Power

(FTC): 70 watts x 2 @ 8 ohms

(20Hz –20kHz, <0.07% THD,

both channels driven); High-

Current Capability: ±42 amps

•Tuner –Usable Sensitivity: IHF

1.12µV/13.5dBf; THD at 1kHz

with 100% Modulation: (Mono)

0.3%, (Stereo) 0.4%; FM Adjacent

Channel Selectivity: ±400kHz, 65dB;

Ultimate (Maximum) S/N Ratio

(measured at 1mV RF Input Level):

(Mono) 73dB, (Stereo) 72dB

•General –Dimensions (H x W x D):

6-1/8" x 17-3/8" x 16-5/16"

(156mm x 442mm x 415mm);

Weight: 24.6 lb (11.2kg)

[NOTE: Depth measurement includes

knobs, buttons and terminal connections;

height measurement includes feet and

chassis.] All features and specifications

are subject to change without notice.

Features

70W x 2 Into 8 Ohms,

20Hz –20kHz at <0.07%

THD, Both Channels Driven

Simultaneously •High-Current

(±42 Amps) Capability

Amplifier •Ultrawide-Bandwidth

Amplifier Design •Five Audio

Inputs •High-Quality Phono

Input •Tape Monitor Loop •

Preamp Out/Main Amp Input

Jacks for Use With Outboard

Equalizers •Subwoofer

Output •Remote A/B Speaker

Switching •FM Stereo/FM/AM

Tuner With 30 Station

Presets and Direct-Access

Tuning •IR Remote Extension

Jacks •Harman Kardon

System Remote

250 Crossways Park Drive

Woodbury, NY 11797

800-422-8027 FAX 516-682-3523

www.harmankardon.com
