Reference 6001A

Reference 10001A Ampliﬁers

ACCESSING CONNECTORS AND CONTROL

PANEL

1. Slide the panel cover down

INPUT

LEVEL X-OVER

FREQ FREQ

PHASE

320HZ

MAX

MIN

EXT

INT

32HZ

GAIN GAIN

X-OVER INPUT

FREQ

BOOST

GAIN

HI2

MIN

HPF

LPF

320Hz

MAX

MIN

HPF

320Hz

32Hz

LPF

FULL

32Hz

FULL

0dB

0°

180°

REM

HI1

TURN-ON

MODE

v505a

FRONT

REAR

2. Remove panel cover

MOUNTING THE AMP

Note: It is recommended that you make all wire connections

before permanently mounting the amp.

WHAT'S IN THE BOX

IMPORTANT: Disconnect the vehicle's negative (–) battery

terminal before beginning the installation.

• Always wear protective eyewear when using tools.

• Choose a safe mounting location, away from moisture. Check

clearances on both sides of a planned mounting surface. Be

sure that screws or wires will not puncture brake lines, fuel

lines, or wiring harnesses and that wire routing will not interfere

with the safe vehicle operation. Use caution when drilling or

cutting in the mounting area.

• Choose a location that provides enough air circulation.

• Do not mount the ampliﬁer with the heat sink facing downward,

as this interferes with cooling.

• Mount the ampliﬁer so that it will not be damaged by the feet of

backseat passengers or shifting cargo in the trunk.

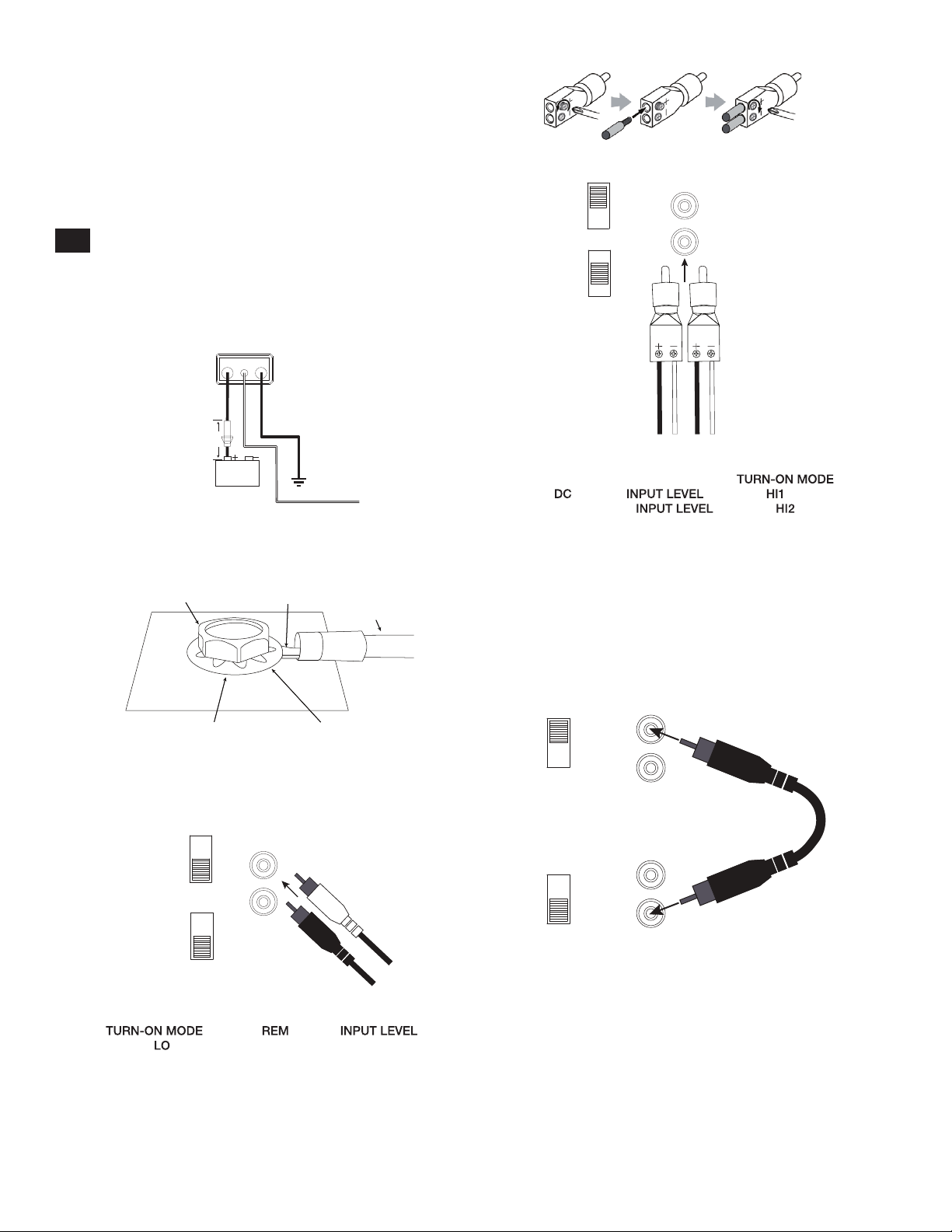

WIRING FOR POWER AND GROUND

At ampliﬁer:

+12V REM GND

Fuse holder, fuse

Chassis ground (–)

Remote turn-on to

aftermarket stereo REM out

(used only with low-level signal inputs)

Battery

18”(46cm)

At ground location:

Ring Connector

Ground Wire

Star Washer

Factory Bolt

Note: Remove any paint

below ring connector

WIRING FOR INPUT SIGNAL

Low-level signals

INPUT

From stereo subwoofer

low-level outputs

REM

TURN-ON

MODE

HI2

HI1

INPUT

LEVEL

Note: when using low-level signals and remote turn-on lead, set the

"" switch to " " and the " "

switch to " ".

High-level signals

INPUT

Stereo front or rear

speaker wires

REM

TURN -ON

MODE

HI2

HI1

INPUT

LEVEL

Loosen

Screws

Insert

Wires

Tignten

Screws

Note: when using high-level signals, set the " "

switch to " " and the " " switch to " ". If no

sound plays, change the " " switch to " ".

CONNECTING TWO REFERENCE 10001A

AMPLIFIERS FOR EXTRA POWER

To connect two Reference 10001a ampliﬁers, use an RCA patch

cable to connect the “PRIMARY OUT” of the primary ampliﬁer to

the “SECONDARY IN” of the secondary ampliﬁer. Set the Primary/

Secondary switch to “PRIMARY” on the primary ampliﬁer, and to

“SECONDARY” on the secondary ampliﬁer.

PRIMARY OUT

SECONDARY IN

PRIMARY OUT

SECONDARY IN

PRIMARY

SECONDARY

MODE

AMP 1:

AMP 2:

PRIMARY

SECONDARY

MODE

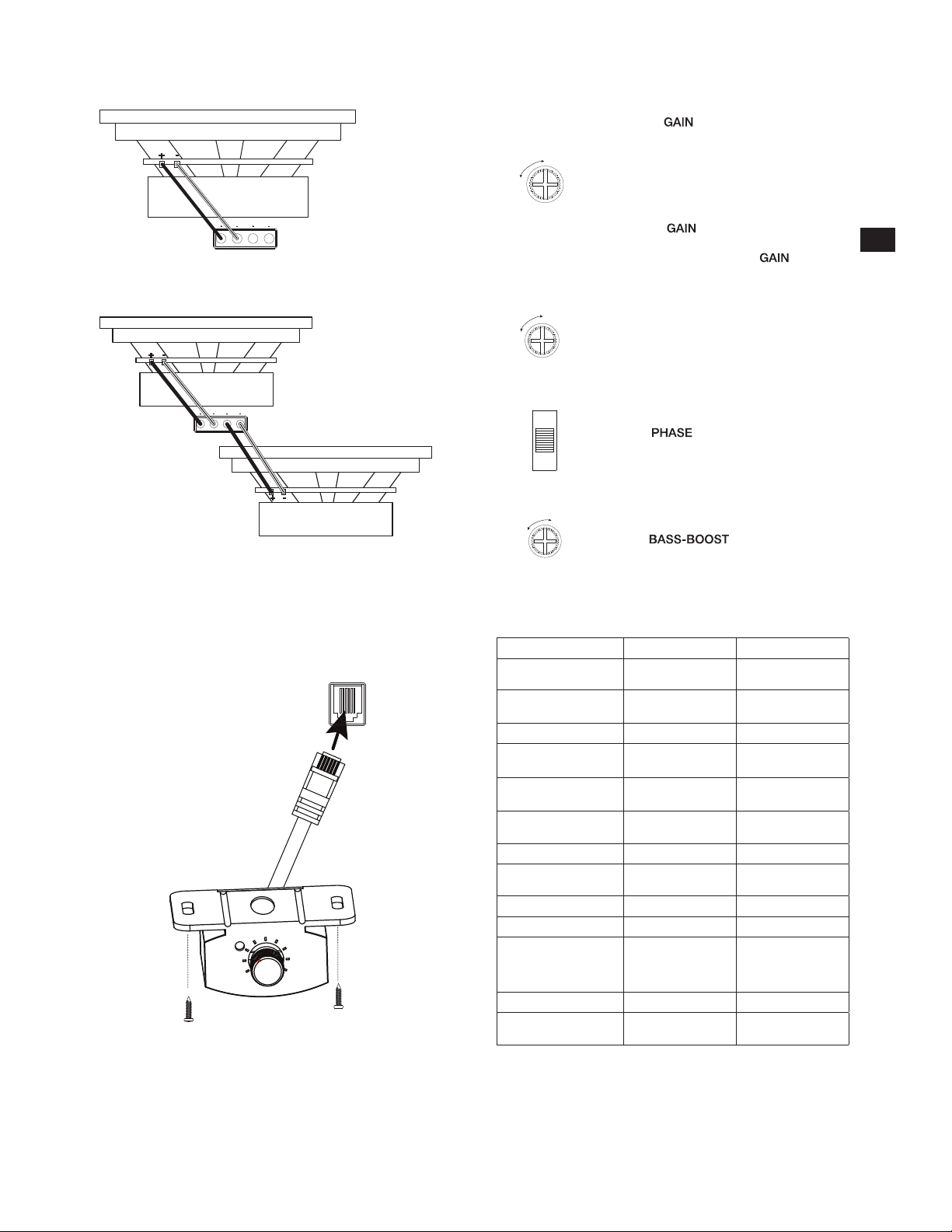

WIRING FOR AUDIO OUTPUT

One subwoofer (4ohm/2ohm)

Subwoofer

SUB

Two subwoofers (4ohm)

Subwoofer

+ -

SUB

CONNECTING THE REMOTE BASS

CONTROLLER

REMOTE

CONTROL

SETTING GAIN, CROSSOVERS, AND BASS

BOOST

MAX

MIN

GAIN

Setting the gain

1. Start with control set to minimum,

and the crossover control rotated midway.

2. Choose music with substantial bass

content.

3. Turn the volume control on your receiver to

¾ of its total output.

4. Adjust the control clockwise,

listening carefully to the bass output. If

you hear distortion, turn the control

counterclockwise to decrease the gain.

FREQ

320Hz

32Hz

Selecting the crossover frequency

Choose the crossover point to suit listening

preferences. Turn the dials to the left to lower

the crossover point and to the right to raise

the crossover point. Exact crossover settings

depend on your listening preferences.

PHASE

0°

180°

Selecting the subwoofer phase

Switch the back and forth to

determine which setting provides the most

clean bass output.

BASS

BOOST

0dB

12dB Selecting the bass boost

Adjust the control clockwise or

counterclockwise to suit your taste.

SPECIFICATIONS

Reference 6001A Reference 10001A

Power output @

4 ohms 350 watts RMS x 1 600 watts RMS x 1

Power output @

2 ohms 600 watts RMS x 1 1000 watts RMS

x 1

Frequency response 10-320 Hz 10-320 Hz

Crossover frequencies 32-320 Hz variable,

12 dB/ octave

32 - 320Hz Variable,

12 dB/ octave

Line-level input

sensitivity

200 mVrms -

2.0 V rms

200 mVrms -

2.0 V rms

High-level input

sensitivity 2 Vrms - 20V rms. 2 Vrms - 20V rms.

Signal-to-noise ratio >80 dB >80 dB

THD+N @ rated

power <1% <1%

Fuse rating 30 A x 2 35 A x 3

Operating voltage 9~16 V 9~16 V

Dimensions (W x H x D)

8-11/16" x 2-1/16"

x 7-1/8" (220 mm x

51.3 mm x 180 mm)

12-5/8" x 2-1/16"

x 7-1/8" (320 mm x

51.3 mm x 180 mm)

Weight 2.54 kg 3.58 kg

Recommended wire

gauge 84

TROUBLESHOOTING

No audio and POWER INDICATOR is off.

• No voltage at BATT+ and/or REM terminals, or bad or no

ground connection. Check voltages at ampliﬁer terminals with

VOM.

No audio and PROTECT INDICATOR ﬂashes every 4

seconds.

• DC voltage on ampliﬁer output. Ampliﬁer may need service; see

enclosed warranty card for service information.

No audio and PROTECT and POWER INDICATORS ﬂash.

• Voltage less than 9V on BATT+ connection. Check vehicle

charging system.

No audio and PROTECT INDICATOR is on.

• Ampliﬁer is overheated. Make sure ampliﬁer cooling is not

blocked at mounting location. Or, there may be voltage greater

than 16V (or less than 8.5V) on BATT+ connection. Check

vehicle charging system.

Ampliﬁer fuse keeps blowing.

• The wiring is connected incorrectly or there is a short circuit.

Check wiring connections.

Distorted audio.

• Gain is not set properly. Check setting. Check wires for shorts

or grounds. Ampliﬁer or source unit may be defective.

Distorted audio and PROTECT INDICATOR ﬂashes.

• Short circuit in speaker or wire. Remove speaker leads one at

a time to locate shorted speaker or wire, and repair.

Music lacks dynamics or "punch".

• Speakers are not connected properly. Check speaker

connections for proper polarity.

Engine noise—whining or clicking—in system when the

engine is on.

• Ampliﬁer is picking up alternator noise. First, check ground

connection on the ampliﬁer – a loose or improper ground is

one of the main causes for noise. Turn down gain. Move RCA

audio cables away from power wires. Installing an alternator

noise ﬁlter on power line between battery and alternator might

also be necessary.

HARMAN International Industries,

Incorporated 8500 Balboa Boulevard,

Northridge, CA 91329 USA

www.inﬁnityspeakers.com

Inﬁnity is a trademark of HARMAN International Industries, Incorporated,

registered in the United States and/or other countries. Features, speciﬁcations

and appearance are subject to change without notice.

Inﬁnity Reference 6001A_10001A_QSG_CR_V16
