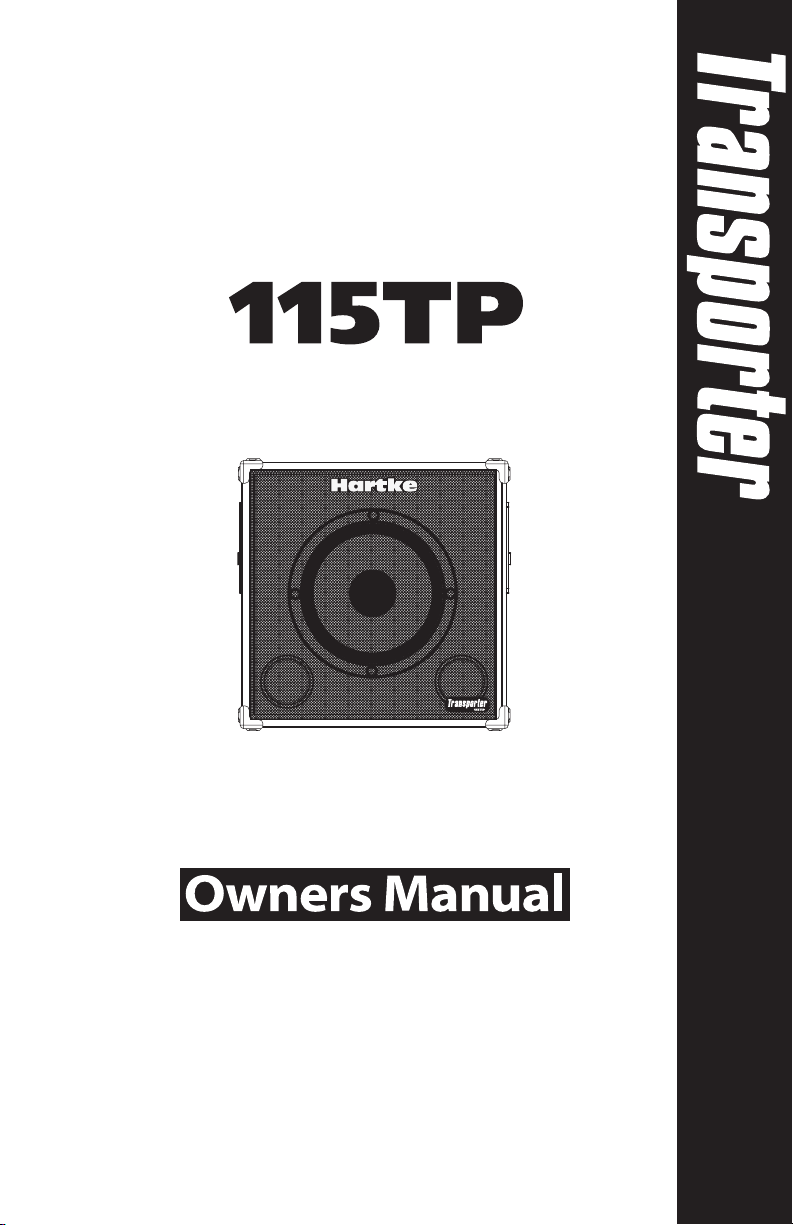

Hartke 115TP Manuale utente
1 x15″Stackable
Bass Enclosure
Hartke
SERIES
115TP Introduction and Features
Congratulations on purchasing the 115TP bass enclosure by Hartke! The
Transporter Series enclosures have been designed to provide excellent tone
with a fast attack, deep low-end and punchy output. The 115TP Features a 15”,
proprietary low frequency driver with specially designed aluminum cone, large
voice coil on Kapton former, impregnated fabric surround, and matched convex
dust cover all mounted in a heavy-duty steel frame. Using heavy-duty plywood
construction, covered in rugged carpet with recessed jack plate and ergonomic
handle, the 115TP will provide reliable performance from gig to gig and venue to
venue.
In these pages, you’ll find a detailed description of the features of the 115TP, as
well as a description of its front and rear panels, step-by-step instructions for its
setup and use and full specifications. You’ll also find a warranty card enclosed—
please don’t forget to fill it out and mail it in so that you can receive online tech-
nical support and so we can send you updated information about these and
other Samson products in the future.
We recommend you record your serial number in the space provided below for
future reference.
Serial number:
Date of purchase:
Should your unit ever require servicing, a Return Authorization number (RA)
must be obtained before shipping your unit to Samson. Without this number, the
unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-
6766) for a Return Authorization number prior to shipping your unit. Please
retain the original packing materials and if possible, return the unit in the origi-
nal carton and packing materials.
115TP Features
•1x 15 Inch heavy-duty aluminum
Low Frequency drivers
•3/4" Plywood construction
•Dual Tuned Front Ports
•Perforated metal speaker grill
•Recessed handles
•Stacking corners
•Dual, parallel wired 1/4" jacks
•Covered in durable carpet
About Impedance
Before you hook up your speaker cabinet, be sure that you understand a little about
impedance. Impedance is the electronic load that the speaker puts on the power amplifier
and is measured in Ohms.
Here is the tricky, yet simple rule of impedance: When two speakers, of equal impedance
are wired in "Parallel" the total imped-
ance is cut in half and when two speak-
ers are wire is “Series” the total imped-
ance is the sum of the speakers individ-
ual impedance.
The 115TP impedance is 8 Ohms. So,
when two 115TP’s are connected
together in parallel, the total impedance
is 4 Ohms. The impedance of your
speaker also has an effect on your
amplifier. In general, the lower the
impedance, the more power your ampli-
fier will put out.
IMPORTANT: There is a minimum safe
impedance so be sure to check the
manufacturer’s recommended imped-
ance for your amplifier to avoid any
damage to your amplifier or voiding
your warranty.
Connecting the 115TP to Your Amplifier
The 115TP connections are made via
1/4” phone jacks located on the rear
panel jack-plate. Be sure to make your
connection with un-shielded speaker
cable. Connect the Amplifier Output to
the speaker Input on the 115TP’s rear
jackplate.
Using the EXTENSION Output
The 115TP provides a convenient
Extension Output for connecting addi-
tional speaker cabinets in parallel. Be
sure to read the section above on
impedance to insure a proper hook up
with your amplifier. Follow the steps
below to connect two 115TP’s using the
Extension Output. Connect the
Amplifier Output to the Input of the first
115TP. Now, connect the Extension
Output to the Input of the second
115TP.
115TP BASS CABINET
150 WATTS
Hartke
8 EXTENSION
INPUTS
MADEINCHINA
SERIALNUMBER
HartkeSystems Distributed worldwide by SamsonTechnologies
www.hartke.com
Hartke Systems
Distributed Exclusively by
Samson Technologies Corp.
Hicksville, New York 11802
MODEL 2000
200 WATTS
8
= 120 WATTS
4
= 200 WATTS
CAUTION
TOPREVENT SHOCK, DO NOT OPEN. NO USER SERVICE-
ABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.TO PREVENT FIRE OR SHOCK
HAZARD,DO NOT EXPOSE TO RAIN OR MOISTURE.
ASSEMBLEDIN R.O.K.
SERIALNUMBER
115
~AC INPUT
115V/230V50/60Hz
FUSE
5A/250V,180W (115V)
2.5A/250V,450W (230V)
SPEAKER OUTPUTS
8
8
ONOFF
HPF
EFFECT
SEND
RETUIRN
8
Connecting the 115TP
115TP BASS CABINET
150 WATTS
Hartke
8 EXTENSION
INPUTS
MADEINCHINA
SERIALNUMBER
HartkeSystems Distributed worldwide by SamsonTechnologies
www.hartke.com
115TP BASS CABINET
150 WATTS
Hartke
8 EXTENSION
INPUTS
MADEINCHINA
SERIALNUMBER
HartkeSystems Distributed worldwide by SamsonTechnologies
wwwhartke com
Hartke Systems
Distributed Exclusively by
Samson Technologies Corp.
Hicksville, New York 11802
MODEL 2000
200 WATTS
8
= 120 WATTS
4
= 200 WATTS
CAUTION
TOPREVENT SHOCK, DO NOT OPEN. NO USER SERVICE-
ABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.TO PREVENT FIRE OR SHOCK
HAZARD,DO NOT EXPOSE TO RAIN OR MOISTURE.
ASSEMBLEDIN R.O.K.
SERIALNUMBER
115
~AC INPUT
115V/230V50/60Hz
FUSE
5A/250V,180W (115V)
2.5A/250V,450W (230V)
SPEAKER OUTPUTS
8
8
ONOFF
HPF
EFFECT
SEND
RETUIRN
Hartke 115TP Specifications
Type Tuned, Tube-Port Enclosure
Impedance (Ohms) 8 Ohms Impedance
Power Handling 150 Watts RMS Power Handling
Driver 1 Hartke 15TP8 Special Design,
Aluminum 15", 8 ohm, 200 watt
drive unit
SPL 96dB @ 1W/1M
Frequency Response 40Hz - 2.5kHz
Inputs 1/4-inch phone jack
Extension Output 1/4-inch phone jack
Weight 51 lbs . (23.13 kg)
Dimensions Height:24" (609.6 mm)
Width: 24" (609.6 mm)
Depth: 15" (381 mm)
Specifications
Distributed Worldwide Exclusively by:
Samson Technologies Corp.
575 Underhill Blvd.
P.O. Box 9031
Syosset, NY 11791-9031
Phone: 1-800-3-SAMSON (1-800-372-6766)
Fax: 516-364-3888
www.samsontech.com
