Hatco HYDRO-HEATER FR2-3 Guida all'applicazione

Food Rethermalizer/

Bain-Marie Heater

REPLACEMENT

PARTS LIST

FR2-3

FR2-4

FR2-6

FR2-9

FR2-3B

FR2-4B

FR2-6B

FR2-9B

FR-2 Series

Form No. FR-2RP-0801 2 Printed in U.S.A.

CAUTION - Use of replacement parts

other than those supplied by Hatco

Corporation may result in damage to the

unit or injury to personnel.

40 9

42 34

17 21

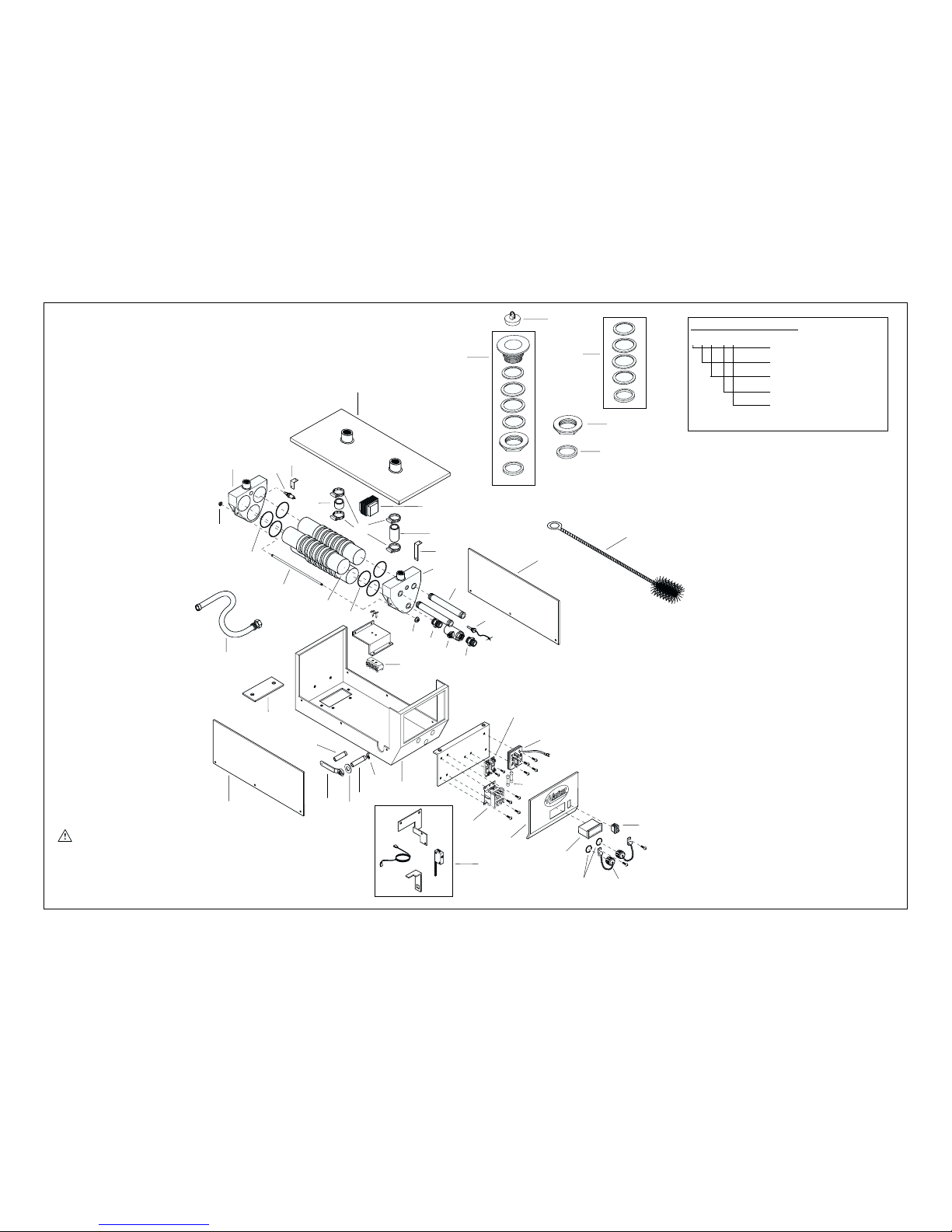

HATCO FR-2 SERIES

Food Rethermalizer/Bain Marie Heater

Model Designation

FR2-XB F = Food

R = Rethermalizer

2 = 2nd Generation

X = Kilowatts

B = Balanced

Three-Phase

Form No. FR-2RP-0801 3 Printed in U.S.A.

1 Temperature Probe 02.01.166.00 1

2 Probe, Low Water Cut Off 02.40.015.00 1

3 Ball Valve, Threaded 03.02.001.00 1

4 Ball Valve Handle 03.02.001B.00 1

5 Ball Valve, Hex Extension 03.02.029.00 1

6 Ball Valve, Stop Plate 03.02.030.00 1

7 3" (8 cm) Valve Extension 03.02.031.00 1

8 3/4" x 3/4" Brass Hex Nipple 03.05.057.00 1

9 O-Ring 03.40.059.00 2-6

10 Hose Clamp, S.S. 03.40.061.00 4

11 Inlet Hose 03.40.062F.00 1

12 Outlet Hose 03.40.062R.00 1

13 Rubber Gasket 05.06.006.00 1

14 Keps Nut 05.04.205.00 4

15 Rod, Threaded 05.04.419.00 2

16 Low Water Cut Off, 24 Volt 02.01.148.00 1

17 Contactor - 3 Pole 02.01.167.00 1

18 Fuse, 2 Amp (2 per pack) R02.03.014.02 1

19 Fuse Block 02.03.022.00 1

20 Transformer, 208/240 - 24 Volt 02.17.044.00 1

21 On/Off Switch 02.19.081.00 1

PARTS COMMON TO ALL FR-2 MODELS

22 Electronic Temperature

Controller 02.01.165R.00 1

23 Strainer Assembly with

Gaskets R05.30.009.00 2

24 Terminal Block with Pins R02.15.035.00 1

25 Brass Hose Connector

with Shoulder 03.05.058.00 1

26 Cleaning Brush 03.40.060.00 1

27 Flush Hose Assembly 05.06.010.00 1

28 1-3/8" (4 cm) Rubber Stopper 05.06.026.00 1

29 Union Gasket 05.06.009.00 1

30 Strainer Gasket Kit!R00.05.0002.00 1

31 Brass Locknut 05.30.009A.00 2

32 Jacket, Black 04.06.220.00 1

33 Front Head Strap 04.06.223.00 2

34 Rear Head Strap 04.06.224.00 2

35 Side Panel, Black 04.06.222.00 2

36 Bottom Access Panel, Black 04.06.228.00 1

37 Front Control Panel 04.06.221.00 1

38 Top Assembly, S.S. 04.06.225.00 1

39 Drain Switch Kit R02.19.162.00 1

ITEM DESCRIPTION PART NO. QTY. ITEM DESCRIPTION PART NO. QTY.

Note: S.S. is an abbreviation for stainless steel.

!Includes all gaskets for both strainers.

40 Heating Element (Qty. 1-3)

41 Front Head

42 Rear Head

43 Cap, Clean Out (Qty. 2)

44 Gasket, Clean Out Cap (Qty. 2)

45 Pipe, Clean Out (Qty. 2)

Electrical Drawing

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5376

R02.06.003F.00

03.17.001.00

03.17.002.00

---

HS1-5375

PARTS SPECIFIC TO MODEL FR2-3 & FR2-3B

240V

Balanced

Three-Phase

240V

Single Phase

208V

Balanced

Three-Phase

208V

Single Phase

480V

Three-Phase

ITEM DESCRIPTION

Form No. FR-2RP-0801 4 Printed in U.S.A.

R02.06.003F.00

03.17.001.00

03.17.002.00

---

HS1-5375

---

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5376

40 Heating Element (Qty. 1-3)

41 Front Head

42 Rear Head

43 Cap, Clean Out (Qty. 2)

44 Gasket, Clean Out Cap (Qty. 2)

45 Pipe, Clean Out (Qty. 2)

Electrical Drawing

R02.06.004F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5518

R02.06.003F.00

03.17.001.00

03.17.002.00

---

HS1-5375

PARTS SPECIFIC TO MODEL FR2-4 & FR2-4B

240V

Balanced

Three-Phase

240V

Single Phase

208V

Balanced

Three-Phase

208V

Single Phase

480V

Three-Phase

ITEM DESCRIPTION

R02.06.003F.00

03.17.001.00

03.17.002.00

---

HS1-5375

---

R02.06.004F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5518

Note: S.S. is an abbreviation for stainless steel.

Note: “B” in model indicates balanced 3 phase only.

Form No. FR-2RP-0801 5 Printed in U.S.A.

40 Heating Element (Qty. 1-3)

41 Front Head

42 Rear Head

43 Cap, Clean Out (Qty. 2)

44 Gasket, Clean Out Cap (Qty. 2)

45 Pipe, Clean Out (Qty. 2)

Electrical Drawing

R02.06.004F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5378

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5377

PARTS SPECIFIC TO MODEL FR2-6 & FR2-6B

240V

Balanced

Three-Phase

240V

Single Phase

208V

Balanced

Three-Phase

208V

Single Phase

480V

Three-Phase

ITEM DESCRIPTION

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5377

---

R02.06.004F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5378

40 Heating Element (Qty. 3)

41 Front Head

42 Rear Head

43 Cap, Clean Out (Qty. 2)

44 Gasket, Clean Out Cap (Qty. 2)

45 Pipe, Clean Out (Qty. 2)

Electrical Drawing

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5379

---

PARTS SPECIFIC TO MODEL FR2-9 & FR2-9B

240V

Balanced

Three-Phase

240V

Single Phase

208V

Balanced

Three-Phase

208V

Single Phase

480V

Three-Phase

ITEM DESCRIPTION

---

R02.06.003F.00

03.17.003.00

03.17.004.00

03.40.063.00

05.06.066.00

03.11.012.00

HS1-5379

Note: “B” in model indicates balanced 3 phase only.

Note: S.S. is an abbreviation for stainless steel.

Form No. FR-2RP-0801 6 Printed in U.S.A.

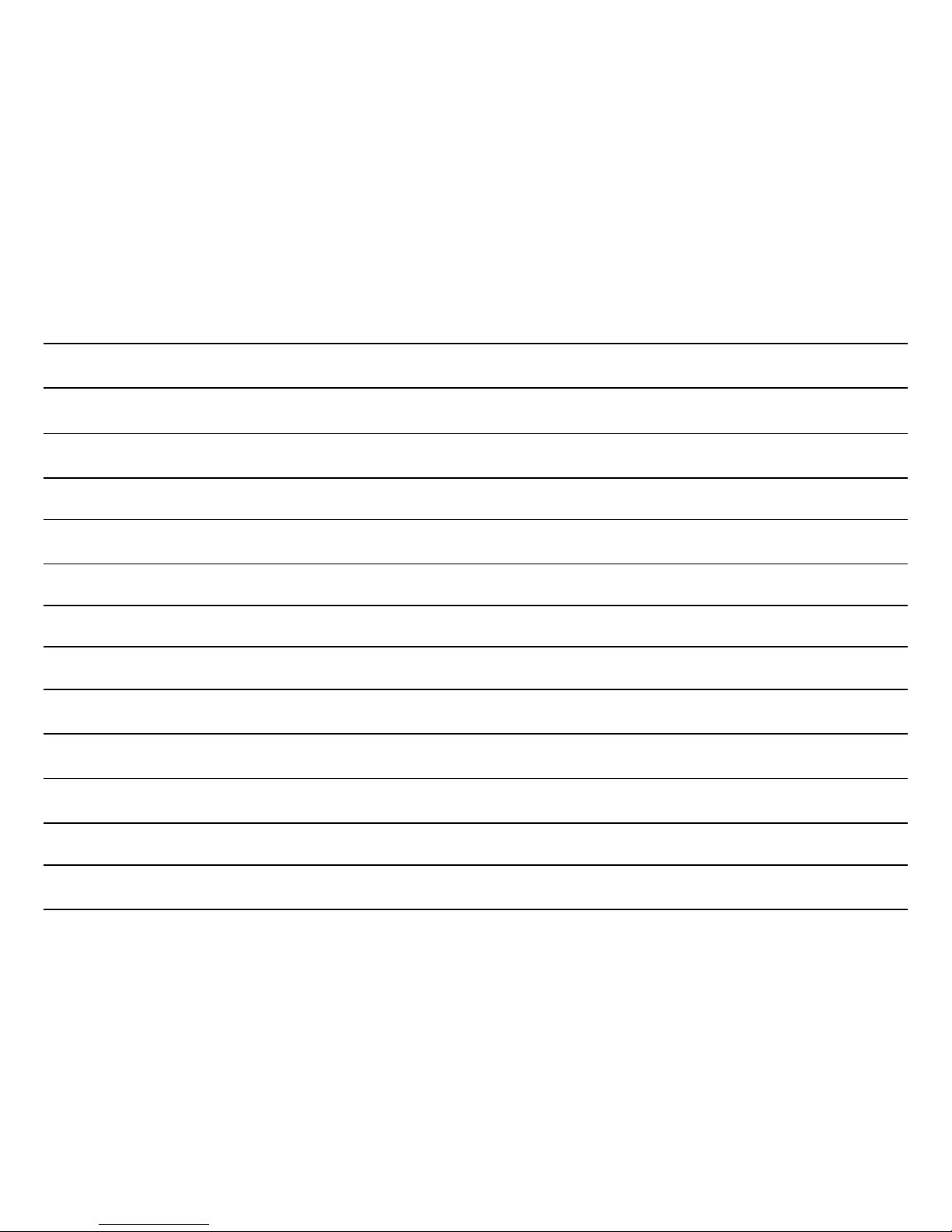

NOTES

Form No. FR-2RP-0801 7 Printed in U.S.A.

HATCO CORPORATION

P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A.

(800) 558-0607 (414) 671-6350

Parts & Service Fax (800) 690-2966 Int’l. Fax (414) 671-3976

www.hatcocorp.com

Printed in U.S.A.

Form No. FR-2RP-0801 August 2001
