c. Position the flange cups in the appropriate locations, and
mark the screw hole locations. IMPORTANT! Measure
carefully, and make sure the cups remain square to each
other as well as the installation location.
d. Pre-drill the screw holes in the mounting surface.

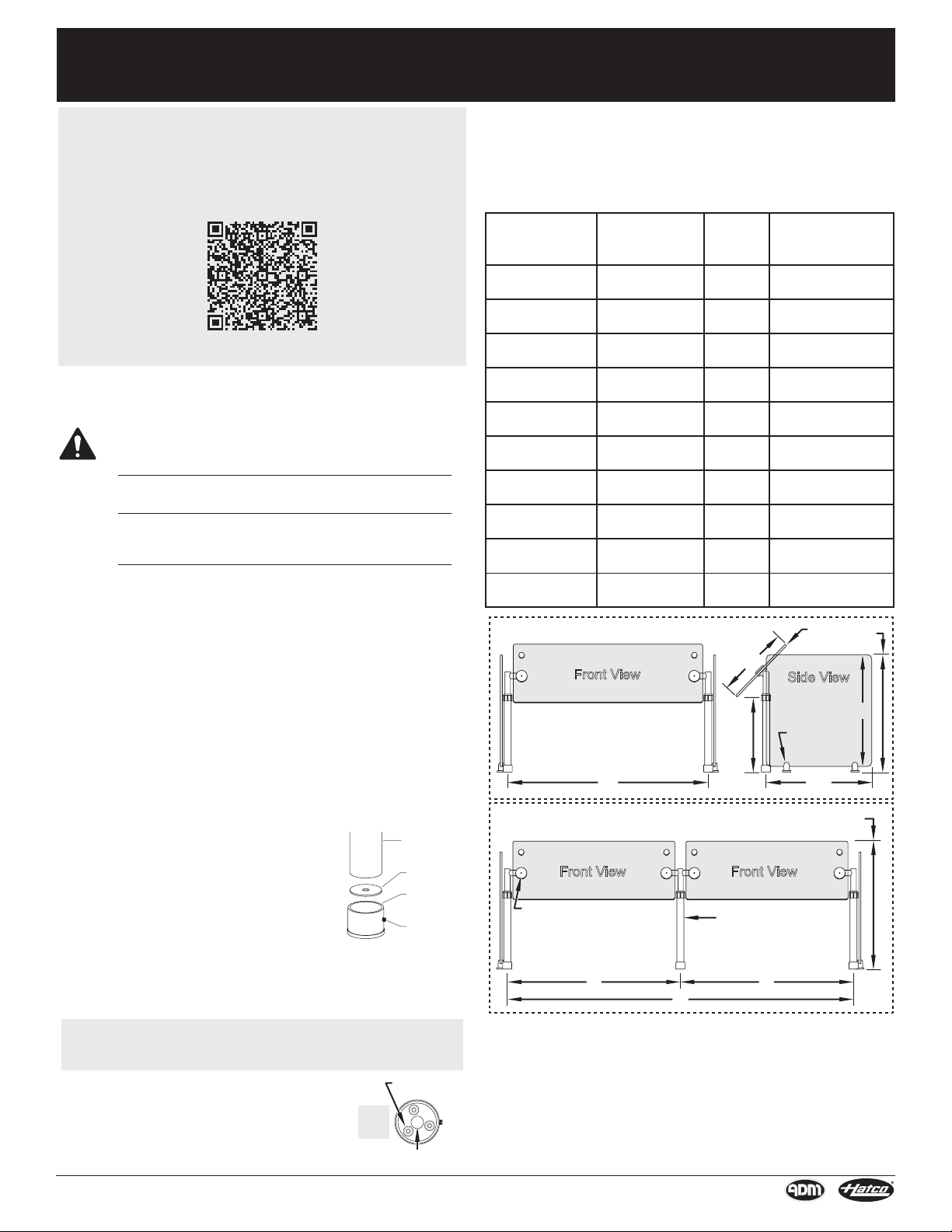

Model B950 Standard Sizes
Item Number
Total Width (A)
(post center to
center)
Number
of
Bays
Width per Bay (B)
(post center to
center)
B950-36 36″
(914 mm) 136″
(914 mm)
B950-48 48″
(1219 mm) 224″
(610 mm)
B950-60 60″
(1524 mm) 230″
(762 mm)
B950-72 72″
(1829 mm) 236″
(914 mm)
B950-084 84″
(2134 mm) 242″
(1067 mm)
B950-096 96″
(2438 mm) 332″
(813 mm)
B950-108 108″
(2743 mm) 336″
(914 mm)
B950-120 120″
(3048 mm) 340″
(1016 mm)
B950-132 132″
(3353 mm) 433″
(838 mm)
B950-144 144″
(3658 mm) 436″
(914 mm)
Up to 23″
End Panel
Clip
End Panel
Clip
A
A
18″
9″
to
19″
14″
Adjustable
Center Post
Assembly
Orbit
Bracket
B
B950-60 (2 Bay)
B950-36 (1 Bay)
B
19″
19″
20″
45º
Angle
4. Insert each post assembly into its corresponding flange cup.
Make sure the posts are fully seated in the cups.
5. Tighten the set screw on each flange cup securely.
...continued
P/N 07.14.011.00-0423 [B950_IG]
INSTALLATION GUIDE
Hatco / ADM Sneezeguards
Self-Service Sneeze Guards
Model B950
Model B950 Self-Service Sneeze Guards are available in ten
widths ranging from 36″–144″ (914–3658 mm), with a common
depth of 18″ (457 mm). All of the available widths are height
adjustable from 9″–19″ (229–483 mm) to the bottom edge of the
rotating glass face panel (with the glass set at 45° angle).
For additional information regarding Model B950, scan the QR
Code below:
https://www.hatcocorp.com/en/equipment/sneeze-guard-equipment/
self-service/flav-r-shield-adjustable-self-service-sneeze-guard-b950
Important Safety Information
To avoid injury and damage to equipment or property, read the
following safety information before installing this equipment.
Do not attempt to assemble and install sneeze guards
alone. Installation of sneeze guards requires two or
more people, dependent upon unit.
Always wear proper protective eye wear when handling
glass sneeze guards.
Never spray cleaners directly onto sneeze guard
surfaces. Spray cleaner into non-abrasive cloth, and then
wipe down surfaces.
Use non-abrasive cleaners and cloths only. Abrasive
cleaners and cloths could scratch finish of unit,
marring its appearance and making it susceptible to
soil accumulation. Use of abrasive materials will void
warranty.
Assembly and Installation
1. Unpack all components. Verify that the appropriate number of
the items below are present.
• Face Panel, 3/8″ Tempered Glass
• End Panel, 3/8″ Tempered Glass (optional)
• Adjustable Post Assembly w/Bracket
(1-1/2″ Base Tube w/1″ Adjustable Tube)
• Adjustable Center Post Assembly w/Brackets
(1-1/2″ Base Tube w/1″ Adjustable Tube—multiple bay only)
• Hardware Packet (includes hex wrenches for set screws)
Set
Screw
Post
Assembly
Flange
Cup
Washer
2. Remove the flange cup and washer
from each post assembly.
a. Using the included hex wrench,
loosen the set screw on the cup.
b. Slide the cup off of the post assembly.
The washer is inside the cup.
3. Install the flange cups to the mounting
surface.
a. Refer to the “Model B950 Standard Sizes” chart and illustration
to determine the location of the flange cups. For multiple bay
installations, refer to “Width per Bay” column in the chart.
IMPORTANT NOTE
Sneeze guards that consist of multiple bays require careful
measurement before installation of the flange cups.
Center Hole
Countersunk
Hole
Cup
Top
View
b. Determine how to install the flange cups.
They can be installed using a single lag
bolt with the included washer through
the center hole, or three #8 or #10
countersunk-style fasteners appropriate
for the mounting surface.
© 2023 Hatco Corporation2
Nylon
Washer
Orbit
Bracket
Top Plate
Machine
Screw
Hex Cap
Screw
Glass Panel
installed onto
post using
Orbit bracket.
Lip
3. Adjust the angle of the glass panel, if necessary. NOTICE: Two
people are required for this step.
• The angle of the glass panel can be adjusted in 15°
increments.
• Simultaneously loosen the thumb screw/hex cap screw on
each Orbit bracket, carefully rotate the glass panel to the
desired position, and re-tighten the thumb screws/hex cap
screws securely.
Safety
Set Screw
Safety
Set Screw
Twist-
Lock
Nut
4. Adjust the height of the glass panel,
if necessary. This step will require
two people.
a. On each post, loosen the safety
set screw on the twist-lock
nut, and turn the twist-lock nut
counterclockwise to loosen.
b. Carefully move the glass panel to
the desired height.
c. On each post, turn the twist-lock
nut clockwise to secure its position, and tighten the safety
set screw on the twist-lock nut.
Glass Clips
Use the following procedure for glass end panels that attach to
surface-mounted glass clips. A nylon set screw on each glass clip
secures the glass panel in the clip.
Post Assembly
Glass
Clip
Nylon
Set Screw
Glass
Panel
Scuffed
Area
Scuffed
Area
NOTE: During installation of all vertical
and angled glass panels, Hatco
strongly recommends that an
abraded surface be created
where the nylon set screw
contacts the glass. This will
create a strong bond between
the set screw and the glass.
Use 320-grit sandpaper to scuff
the glass where each nylon set
screw will contact the glass.
Turn Nylon set
screw 1/4-turn
clockwise after
contact.
Post Assembly
1. Abrade the surface of the glass
panel where each nylon set screw
will contact the glass.
2. Insert the glass panel into the
glass clips.
3. Carefully turn the nylon set screw
clockwise just until the screw
contacts the glass. Then, turn the
screw an additional 1/4-turn to
secure the glass.
6. For units with end panels, install the end panel clips to the
mounting surface. Each end panel clip consists of a separate
clip base and glass clip.
To install an end panel clip:
a. Locate the center of each clip base approximately 3″
(76 mm) from the front and rear edge of the end panel.
b. Position the clip base in the appropriate location, and mark
the screw hole through the base. IMPORTANT! Measure
carefully, and make sure each clip base remains square to
each other as well as each post assembly.
c. Pre-drill the screw hole in the mounting surface.
d. Assemble the glass clip onto the clip base, and insert an
appropriate fastener through the glass clip, the clip base,
and into the pre-drilled hole in the mounting surface.
3″3″
Glass
Clip
Nylon Set Screw
Clip
Base
End Panel
Clip
End
Panel
Fastener

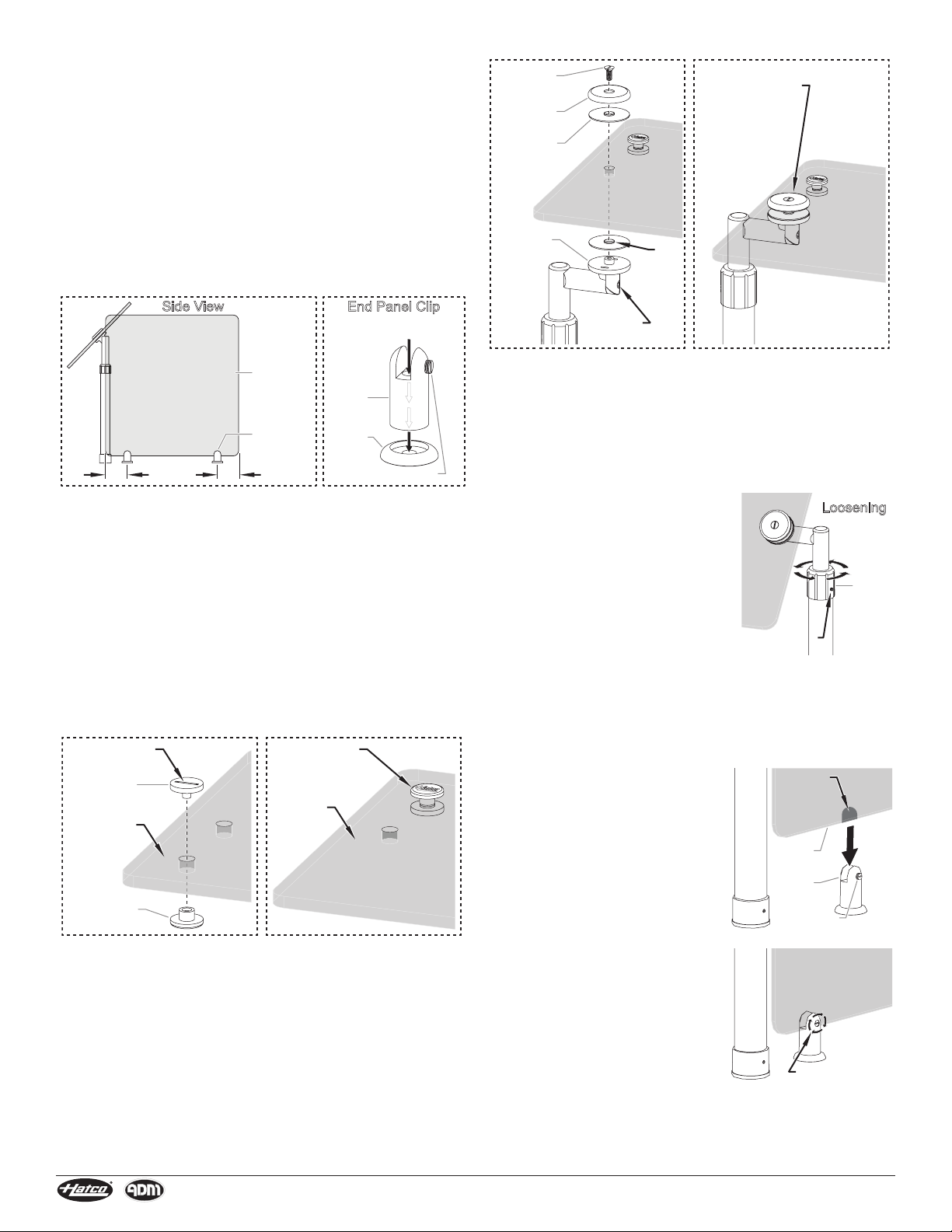

Securing the Glass
Glass face panels are attached to post assemblies using adjustable
Orbit brackets. Glass end panels are secured to the countertop
using surface-mounted glass clips. CAUTION! Always wear
proper protective eye wear when handling glass.
Orbit Brackets
Use the following procedure for glass panels that attach to the post
assemblies using adjustable Orbit brackets.
1. Prepare to install the glass panel.
• There are two mounting holes provided on each side of the
glass panel. Choose the hole position that will work for the
installation. Install the provided filler cap assembly in the
unused holes using a coin to hand-tighten.
Filler Cap
Cover
Filler Cap
Cover
Use coin
here.
Underside
of glass
panel.
Filler Cap
Assembly
installed.
Top side
of glass
panel.
2. Install the glass panel.
a. Loosen the thumb screw/hex cap screw on each Orbit
bracket, and adjust the brackets so that the glass panel will
be in the horizontal position during installation.
b. Install a nylon washer on top of each Orbit bracket.
NOTE: Always position nylon washers with the raised lip facing the
glass.
c. Position the glass panel on top of the nylon washers.
d. Place a nylon washer followed by a top plate on top of the
glass panel aligned with each Orbit bracket, and secure in
position using an included machine screw. Tighten the screw
until it holds the glass securely—do not over-tighten.
© 2023 Hatco Corporation 3
Cleaning/Maintenance
Clean the unit daily using non-abrasive cloths and cleaners.
• The glass panels can be cleaned using a standard glass
cleaner.
Options and Accessories
End Panels
Additional end panels depths are available for all B950 self-service
sneeze guards.
Custom Units
Scan this QR code or click the link
below to access information regarding
custom units including sizes, glass,
hardware, and lighting.
www.hatcosneezeguards.com

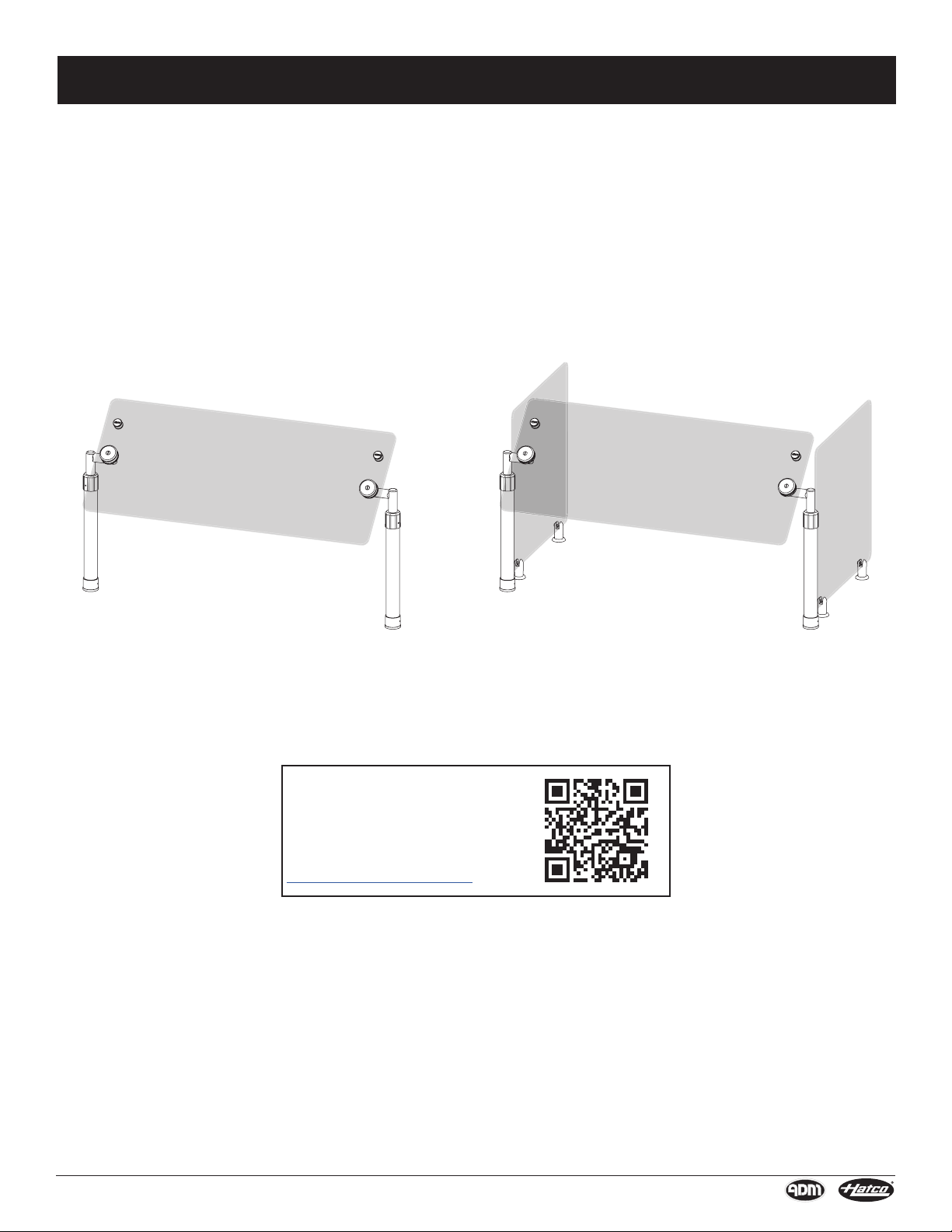

INSTALLATION GUIDE
Self-Service Sneeze Guards—Model B950
(continued)
Model B950 Model B950
w/End Panels
4
HATCO CORPORATION
P.O. Box 340500
Milwaukee, WI 53234-0500 U.S.A.
414-671-6350
www.hatcocorp.com
B950_IG © 2023 Hatco Corporation
24 Hour 7 Day Parts and Service
Assistance available in the United States
and Canada by calling 414-671-6350.
