INSTALL INSTRUCTIONS P-MID-1 w/P-MFK-5

MIDDLE PARTITION w/MOUNTING FILLER PANEL KIT

1997-2008 CHEVROLET/GMC FULL SIZE PASSENGER VANS

TOOLS REQUIRED:

Power drill

Drill bit set

Ratcheting wrench

Standard & Metric socket set

HARDWARE:

QTY DESCRIPTION PART #

5 ¼” x 1 ½” Hex head Lag Bolt GSM33062

6 ¼” x 1” Hex head Lag Bolt GSM33060

20 ¼-20 x ¾” Carriage Bolt GSM32000

12 ¼-20 Serrated Nut GSM30023

8 ¼-20 Nylock Nut GSM30016

1 5/16-18 Nylock Nut GSM30017

1 5/16-18 x 2” Hex Head Bolt GSM33015

2 5/16 Flat Washer GSM31006

8 ¼” x 1” Fender Washer GSM31014

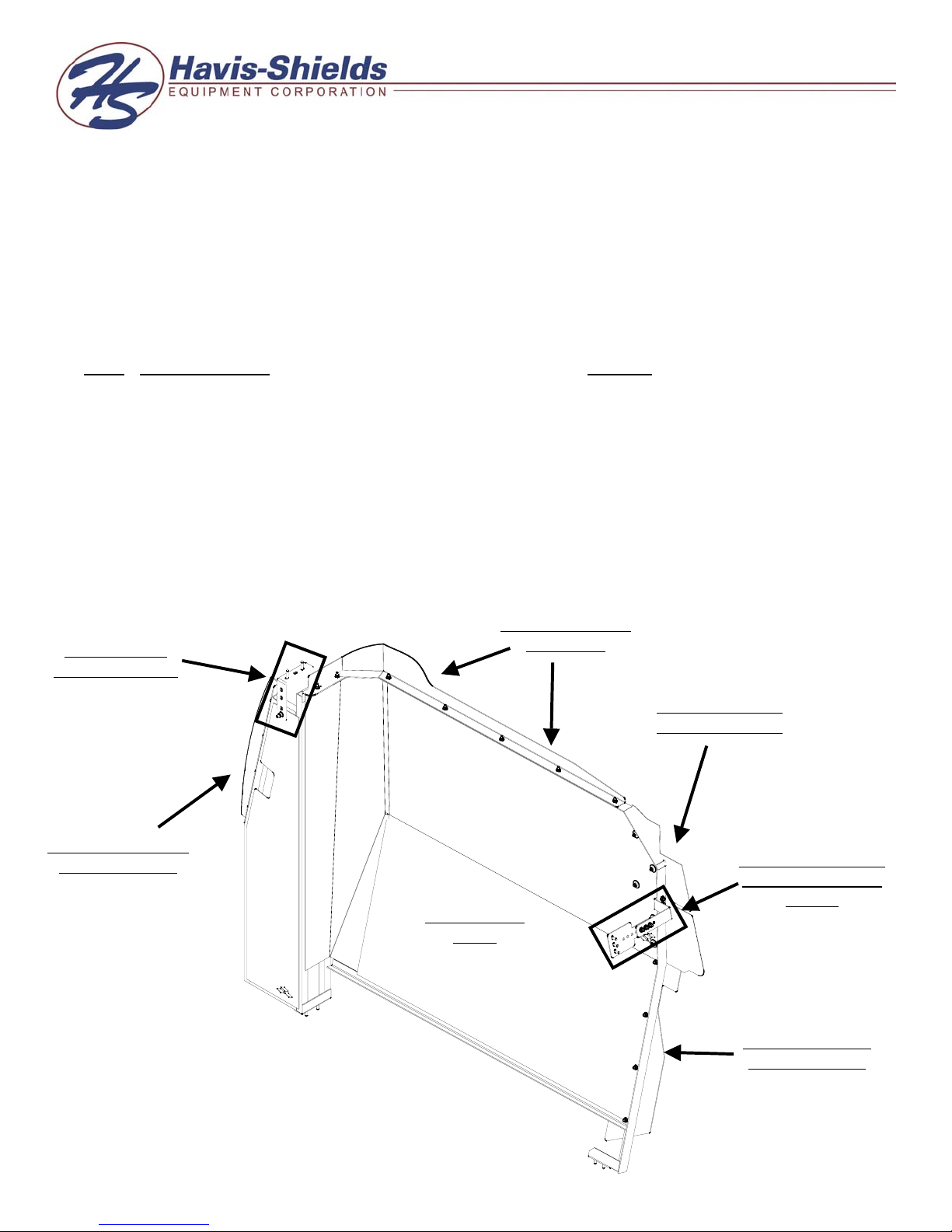

Main Partition

Frame

Driver Side Upper

Lexan Filler Panel

Upper Center Steel

Filler Panel

Driver Side Lower

Steel Filler Panel

Passenger Side Steel

Door Filler Panel

Passenger Side

Mounting Bracket

(2-Piece) Driver Side

“B” Pillar Mounting

Bracket

P-MID-1^MFK-5_INST_9-07

SUB ASSEMBLY:

1. Remove “C” pillar trim panel. This is necessary for driver side mounting bracket.

2. Position upper center filler to partition and mark mounting holes.

3. Drill 5/16” holes on marks.

Always!

 Read all instructions before installing any Havis-Shields Equipment Corp products.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use hardware provided with install kit

INSTALLATION:

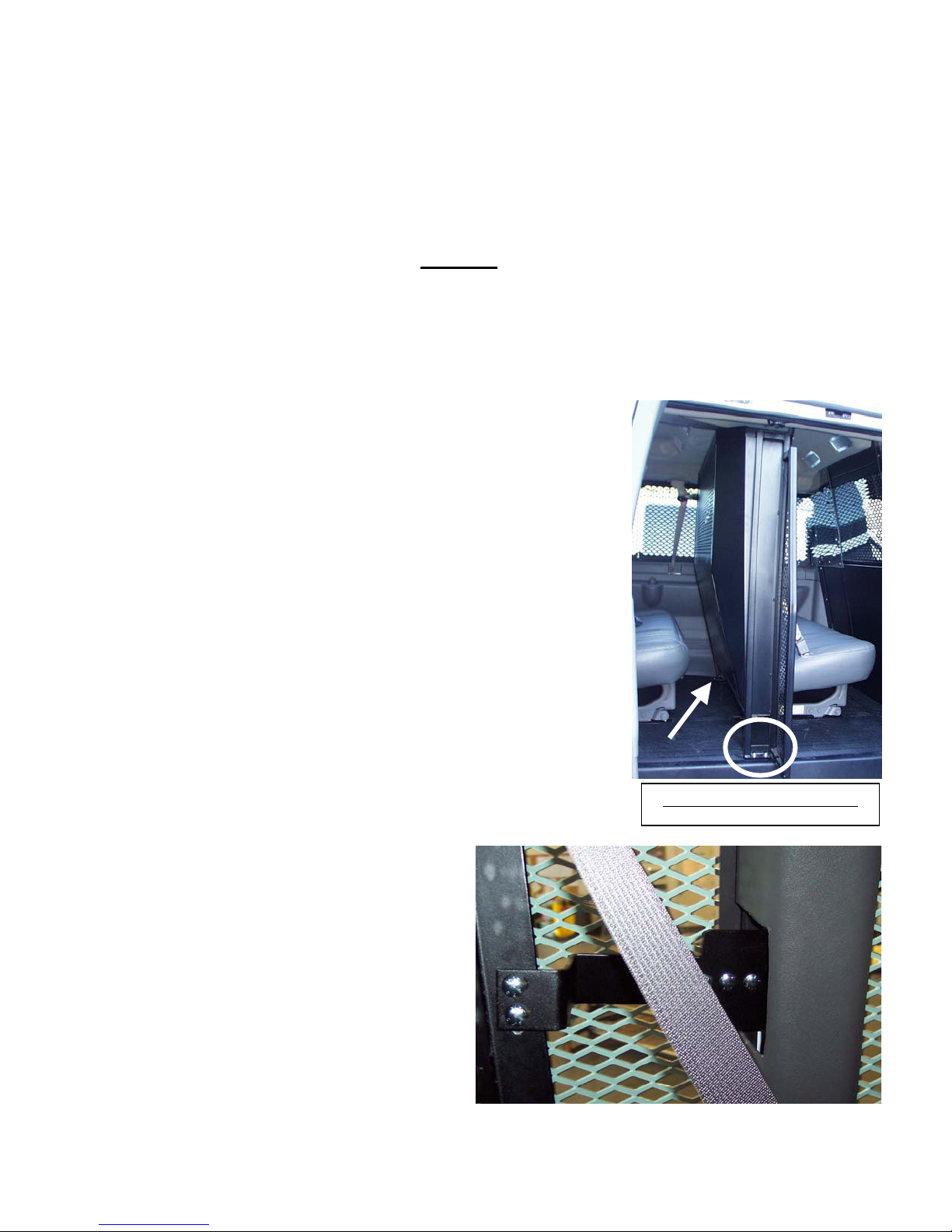

1. ATTACH PARTITION TO FLOOR:

• Place partition carefully into vehicle behind the first

row bench.

• Move bottom of partition forward to the back of seat

base on first row bench.

Note: Driver side mounting leg on partition will be forward of seat belt

hold down on floor of van.

• Pre-drill the (3) driver side mounting leg holes with

3/16” drill bit. Be sure to check for obstructions.

• Attach partition to van floor at driver side mounting leg

using (3) ¼” x 1 ½” Hex head lag bolts.

• Proceed to partitions passenger side mounting leg. Be

sure to check that partition is square with the bench seat.

• Pre-drill the (2) passenger side mounting leg holes with

3/16” drill bit. Be sure to check for obstructions.

• Attach partition to van floor at passenger side mounting

leg using (2) ¼” x 1 ½” Hex head lag bolts. Partition is

now self-supporting.

2. ATTACH (2- PIECE) DRIVER SIDE

“B” PILLAR MOUNTING BRACKET:

• Hold 2-piece driver side mounting

bracket to partition and “C-pillar”

of van.

• Determine proper location to

mount 2-piece bracket to partition.

• Drill (2) 5/16” holes where

mounting bracket and partition

meet.

• Attach bracket to partition using

¼-20 x ¾” Carriage bolts and

¼” x 1 ½” Hex Head Lag Bolts

P-MID-1^MFK-5_INST_9-07

serrated nuts.

• Press partition as far forward and mark mounting holes where driver side mounting

bracket and “C-pillar” come in contact.

• Pre-drill 3/16” holes into “C-pillar”.

• Attach bracket to C-pillar using (3) ¼” x 1” Hex head lag bolts.

• Plastic trim panel must be notched around bracket to mount.

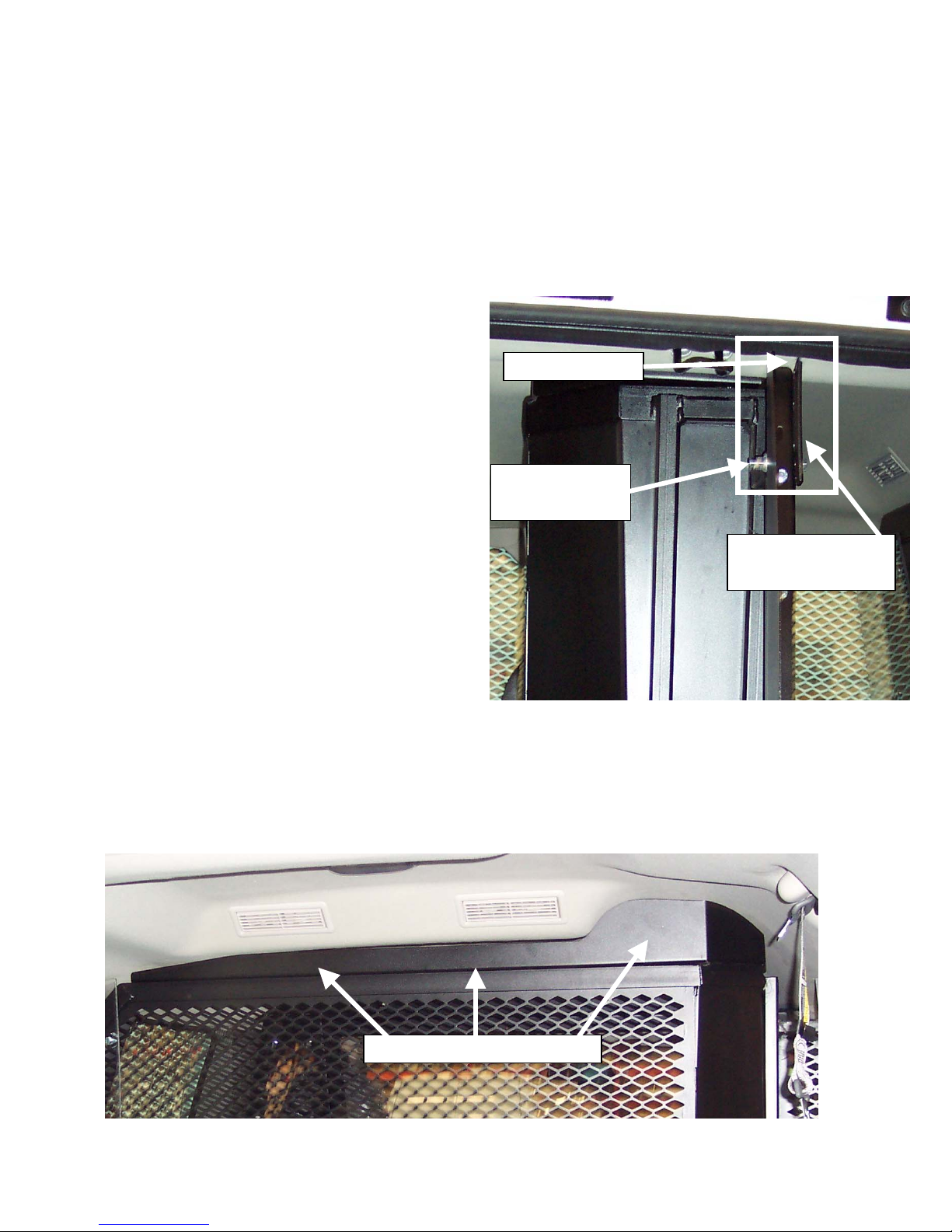

3. ATTACH PASSENGER SIDE MOUNTING BRACEKT:

• Press partition as far forward as

possible and holding bracket to

partition (square tubing section)

determine where to slot headliner to

accept mounting bracket.

• Slot headliner and position mounting

bracket to be flush with vehicle inner

roof support.

• Mark (3) mounting holes and pre-

drill using 3/16” drill bit.

• Attach bracket to vehicle using (3)

¼” x 1” Hex head lag bolts.

• Press partition up to bracket and

mark holes where bracket and

partition come together.

• Drill 5/16” holes on these marks and

bolt partition to bracket using 5/16-

18 x 2” Hex head bolt, washer, and

nylock nut.

4. ATTACH UPPER STEEL CENTER FILLER PANEL:

• Attach upper center filler to partition through the holes pre-drilled at subassembly

using ¼-20 x ¾” Carriage bolts and serrated nuts.

• Tighten all hardware.

Passenger side upper

mounting bracket

5/16-18 x 2”

Hex head bolt

Slot in headliner

Upper Center Filler Panel

P-MID-1^MFK-5_INST_9-07

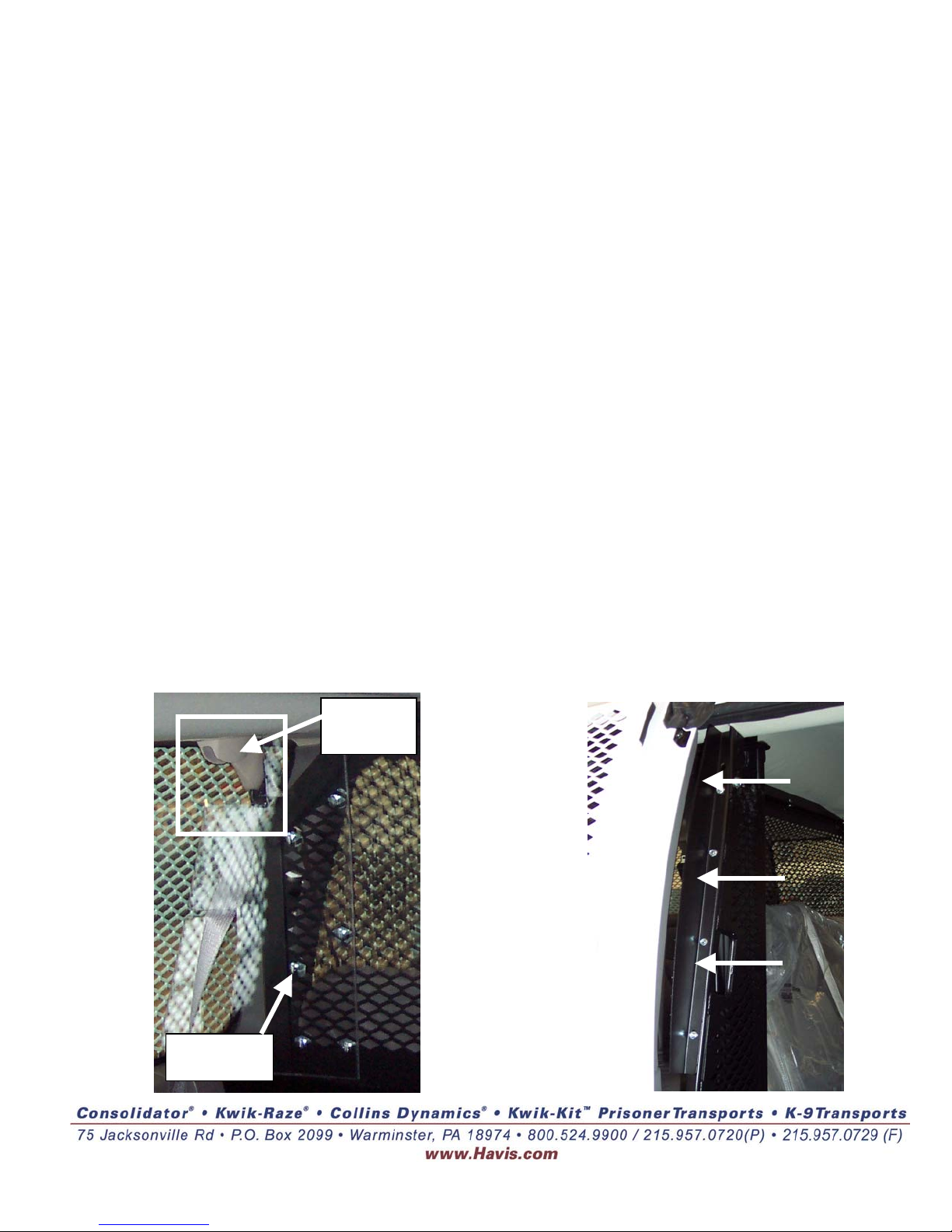

5. ATTACH DRIVER SIDE UPPER LEXAN FILLER PANEL:

• Position driver side ¼” lexan filler panel to partition so that minimal space is between

the vehicles window, (or window guard) and the lexan filler.

NOTE: It is necessary to keep a 1/8” gap between the window or guard and the filler to allow for

expansion and contraction of the lexan during temperature fluctuations.

• Drill (6) 5/16” holes evenly spaced through both the ¼” lexan filler panel and the

partition frame. Attaching to the frame directly will help to avoid filler rattling.

• Bolt lexan filler to partition using ¼-20 x ¾” carriage bolts and nylock nuts.

6. ATTACH DRIVER SIDE LOWER STEEL FILLER PANEL:

• Position driver side lower aluminum filler panel tight to vehicles interior trim and

floor.

• Using slots in filler panel as a drill guide mark and drill partition using 5/16” drill bit.

• Attach filler panel to partition using ¼-20 x ¾” carriage bolts and serrated nuts.

7. ATTACH PASSENGER SIDE DOOR STEEL FILLER PANEL:

• Position on front row bench in van close side doors.

• Hold filler panel to partition so that it does not interfere door mechanisms.

• Mark and drill 3/16” holes through partition tubing.

• Attach filler to partition using ¼-20 x ¾” Hex head thread cutting bolts.

• Vacuum out all metal shaving and double check door operation.

Driver side upper lexan filler

Lexan

Notched

¼-20 x ¾”

Carriage

Passenger Side Upper Steel Filler Panel
