Havis-Shields Telescoping Computer Base C-TCB-21 Guida alla configurazione

C-TCB-21-INST-12-04

INSTALL INSTRUCTIONS C-TCB-21

TELESCOPING COMPUTER BASE

1998-2003 DODGE DURANGO

TOOLS REQUIRED:

3/16” Allen wrench

3/8” Standard socket set

3/8” Metric socket set

Ratcheting wrench (3/8” drive)

Powered drill w/ 3/16” drill bit

Open-end wrench set

HARDWARE & COMPONENTS:

QTY DESCRIPTION PART #

1 Pole support assembly CM93071-21

1 Telescoping pole assembly CM93072-3

1 Side support brace CM93146

1 5/16-18 Nylock nut GSM30017

1 5/16” Flat washer GSM31006

2 ¼” x 1” Hex head lag bolts GSM33060

Always!

 Read all instructions before installing any Havis-Shields Equipment Corp products.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use hardware provided with install kit

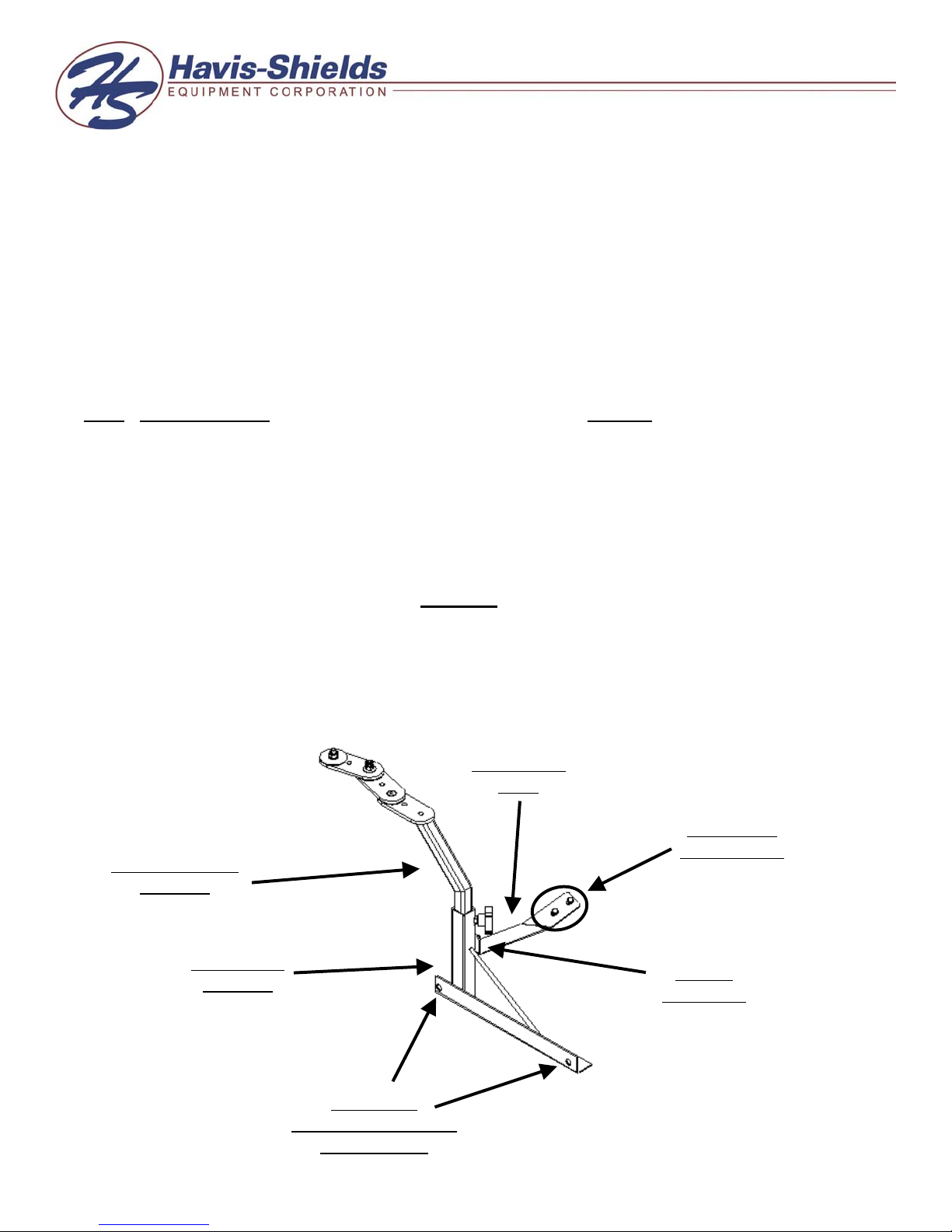

¼” x 1”Hex

head lag bolts

5/16-18

Nylock nut

Side support

brace

Telescoping pole

assembly

Pole support

assembly

Location of

passenger side factory

seat base bolts

C-TCB-21-INST-12-04

SUB ASSEMBLY:

1. Confirm receipt of all hardware and components.

2. Remove front inner and outer passenger seat bolts on vehicle.

INSTALLATION:

1. Mount C-TCB-21 into vehicle:

• Position pole support assembly between seat base mount and floor of vehicle

• Align holes in pole support assembly with holes in seat base.

• Loosely attached factory seat bolts that were removed during subassembly.

• Mount side support brace to threaded rod located on pole support assembly using a

5/16-18 Nylock nut

• Mount side support brace to vehicle using ¼” x 1” Hex head lag bolts. A 3/16” pilot

is required.

Note: When mounting side support brace to floor of vehicle, be sure to check for obstructions prior to

drilling or lag bolting to floor.

• Tighten down passenger side factory seat bolts and 5/16-18-nylock nut holding side

support brace to pole support assembly.

• Mount optional C-3090, computer-mounting platform, to telescoping pole assembly

using hardware and instructions provided with C-3090.
