INSTALL INSTRUCTIONS C-PED SERIES
(C-PED1612-W2 or C-PED1612-W4)
SILVER BILLET™ TELESCOPING COMPUTER MOUNTS
C-PED1612-W2 Silver Billet Telescoping Computer Pedestal with 2” Offset Bracket
C-PED1612-W4 Silver Billet Telescoping Computer Pedestal with 4” Offset Bracket
TOOLS REQUIRED:
Ratcheting wrench
Socket set
Powered drill
Drill bit set
Screwdriver set
Standard Allen key set
HARDWARE:
QTY DESCRIPTION PART #
1 White Teflon washer CM93081
7 ¼-20 x ¾” Phillips machine screw GSM33124
3 ¼-20 Thin Nylock nut GSM30016-1
7 ¼” Flat washer GSM31005
4 ¼” Lock washer GSM31026
4 5/16” x 1” Hex head lag bolt GSM34203
Always!
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
C-PED-SERIES-INST-9-06
1. SUBASSEMBLY:
• Determine location in vehicle where you can obtain a side and floor mount.
• Be sure that determined locations would accept mounting bolts and screws without
interference to other controls, wires, etc.
2. INSTALLATION
• The C-PED Series mounts to a horizontal flat surface as well as a vertical flat surface.
Determine location to obtain both.
• With offset bracket positioned against flat surface, (i.e., console, divider wall, etc.),
mark and drill 5/16” hole at location of bolt on offset bracket.
• Bolt offset bracket to “flat surface” using a fender washer and 5/16” nut.
• Bolt C-PED1612 to floor of vehicle using ¼” x 1” –1 ½” hex head lag bolts,
depending on particular vehicle application.
• Mount optional laptop mounts (C-3090 series), monitor mounts (C-3522), keyboard
mounts (C-3329) or tilt swivels (C-3075 series) (optional - order separately) using ¼-
20 x ¾” bolts, washers, and nylock nuts.

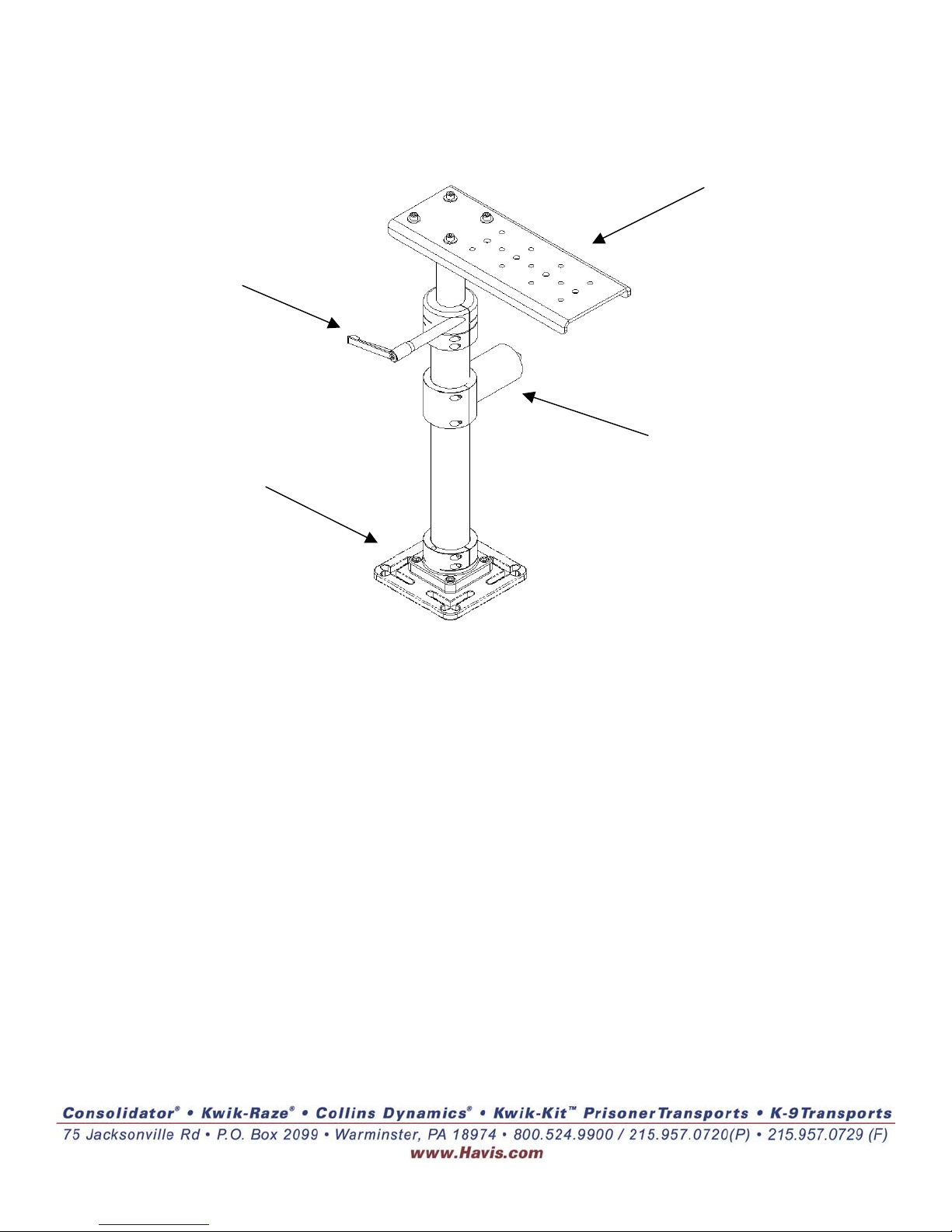

Optional Mounting Base
C-PED-PLT shown
(Mounts to floor)
Computer mount
platform
Adjust lever
Offset bracket
C-PED1612-W4 shown
(S
i
de
m
ou
n
t
suppo
r
t)
