Hawking HWUN3 Manuale utente
Windows Vista Windows XP Mac OS
Part No. HWUN3
START HERE
HI-Gain Wireless-N USB Adapter
QUICK INSTALLATION GUIDE
Untitled-1 1 9/15/2008 4:46:53 PM
Step 1: Check Package Contents
- One Hi-Gain Wireless-N USB Adapter with Cap
- One External Dipole Antenna
- CD (Drivers and User’s Manual)
- QIG (Quick Installation Guide)
Step 2: Installation Instructions are divided into
three sections: (Windows Vista, Windows XP,
and Mac OS)
For Windows• Vista, go to page 2
For Windows• XP, go to page 8
For• Mac OS, go to page 13
This document only contains quick setup instructions. For more
settings, please refer to the User’s Manual located on the CD.
Support is available via website, email, and telephone:
Website: www.hawkingtech.com/support
E-mail: [email protected]
Tel (Toll Free US & Canada): 888-202-3344
Tel (International): 949-790-0810
- page 1 - - page 2 - Setup Instructions: Windows Vista
Untitled-1 2 9/15/2008 4:46:53 PM
Windows Vista
Step 3: Instructions for Windows Vista
Important: Do not connect the Wireless-N USB Adapter into the USB
port until you have installed the driver from the CD and are instructed to
do so. Otherwise, the Adapter may not operate properly.
1. Driver & Utility Setup:
a. Insert the Setup CD. Select
Open Folder to view files option.
b. Select autorun.exe
2. The Setup Wizard
will load up. Select
Driver and Utility
Setup (Windows
Vista)
- page 1 - - page 2 - Setup Instructions: Windows Vista
Untitled-1 3 9/15/2008 4:46:54 PM
Windows Vista
3. User Account Control: Select Allow to continue. Then, wait
for the InstallShield Wizard to guide you through the setup.
4. Read through the
License Agreement.
Select “I accept the
terms of the license
agreement” and
“Next”.
5. Now, you are ready
to install the program.
Select Install.
Setup Instructions: Windows Vista - page 3 -
- page 4 - Setup Instructions: Windows Vista
Untitled-1 4 9/15/2008 4:46:56 PM
Windows Vista
6. Please wait until the Install
Wizard completes. Then
select Finish to exit the
wizard.
7. Now, Plug-in your HWUN3 Wireless-N Adapter into an
open USB port on your desktop or notebook.
a. After plugging in the Adapter,
Windows Vista will automatically
search for new updates.
b. A Found New Hardware
screen may pop up at this
point. If so, select Locate
and Install Driver
software (recommended).
Setup Instructions: Windows Vista - page 3 -
- page 4 - Setup Instructions: Windows Vista
n
Untitled-1 5 9/15/2008 4:46:57 PM
Windows Vista
8. Connect to a Wireless Network:
a. Double click on the bottom
“network icon” or
b. Right click on the Start
menu and select “Connect
To”.
9. Select a Network and click Connect. Please wait until the
adapter connects.
Setup Instructions: Windows Vista - page 5 -
- page 6 - Setup Instructions: Windows Vista
Untitled-1 6 9/15/2008 4:46:57 PM
Windows Vista
If you are connecting to an unsecured network, go to Step 10.
If you are connecting to a Security-enabled Network, go to
Step 11.
10. Unsecured Network: Select Connect Anyway to
continue on with an unsecured network. Then, go to Step 12.
11. Security-enabled Network: Type in the network security
key or passphrase. If you do not have the security key or
passphrase, please obtain it from your network administrator.
Setup Instructions: Windows Vista - page 5 -
- page 6 - Setup Instructions: Windows Vista
Untitled-1 7 9/15/2008 4:46:58 PM
Windows Vista
12. You are now connected
to a wireless network.
To start using your
wireless network, select
Close. To save this
specific network for
future access, select
Save this network.
Save this network:
Select a location or
you may customize the
name and location type,
etc.
Close the Set
Network Location
when you are done.
Congratulations!
You have
completed the
Windows Vista
Installation.
- page 8 - Setup Instructions: Windows XPSetup Instructions: Windows Vista - page 7 -
Untitled-1 8 9/15/2008 4:46:59 PM
Windows XP
Step 3: Instructions for Windows XP
Important: Do not connect the Wireless-N USB Adapter into the
USB port until you have installed the driver from the CD and are instruct-
ed to do so. Otherwise, the Adapter may not operate correctly.
1. Driver & Utility Setup:
Insert the Setup CD.
The Setup Wizard will
load up automatically,
select START HERE
(Windows 98SE, 2000,
ME, XP)
InstallShield Wizard will initialize automatically
2. Setup will prompt
you to accept
the Licensing
Agreement. Select
Yes to continue.
- page 8 - Setup Instructions: Windows XPSetup Instructions: Windows Vista - page 7 -
Untitled-1 9 9/15/2008 4:47:00 PM
Windows XP

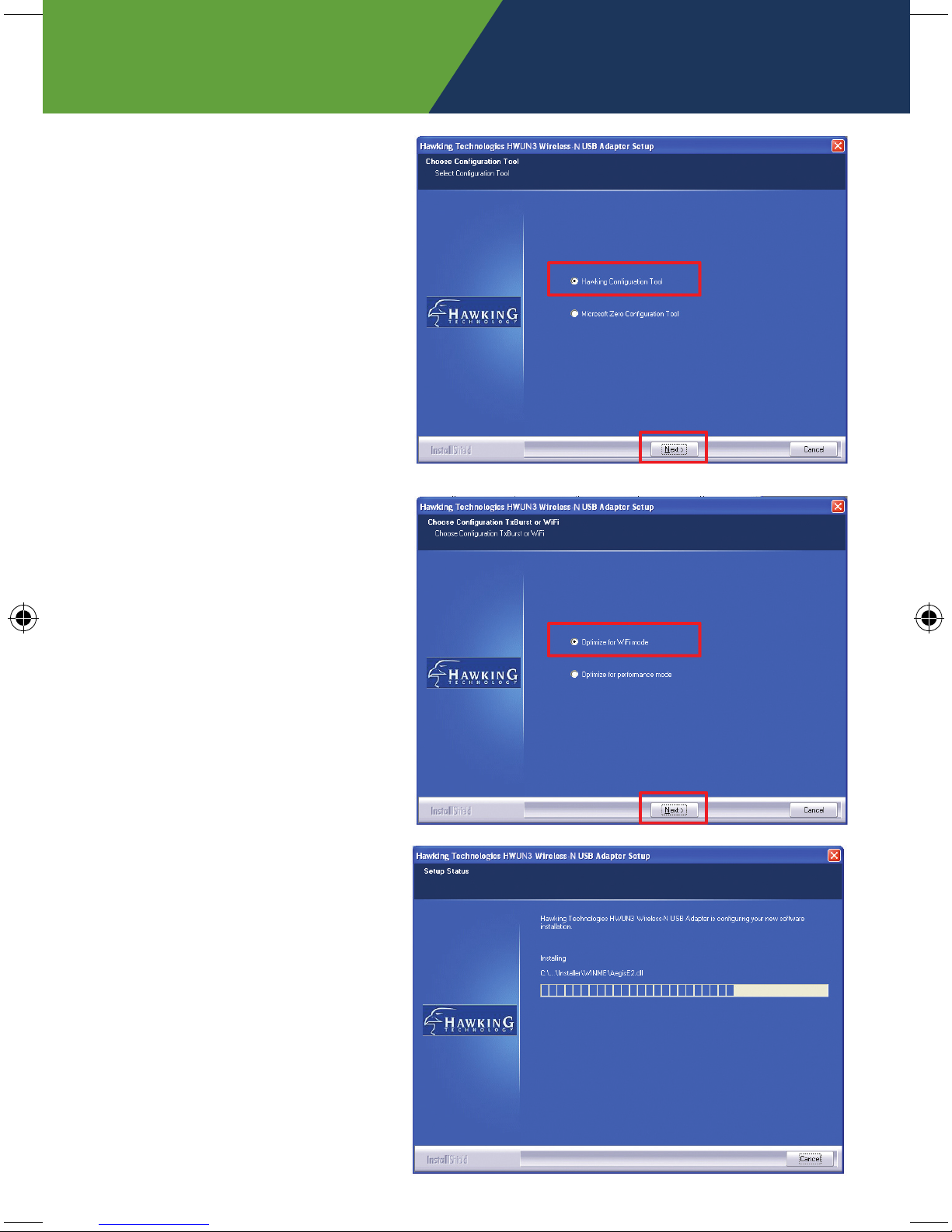

3. Select Hawking
Configuration
Tool” to continue
with setup
4. Select “Optimize for
WiFi.” Click “Next” to
continue.
5. Please wait a
moment, your system
is installing the
software.
Setup Instructions: Windows XP - page 9 -
- page 10 - Setup Instructions: Windows XP
