Tools Required
Three Sided Screen
Installation Instructions
BELONG®
FULL WRAP SCREEN
No Scale
Reference 7029-9712 for standard attachment and connection details.

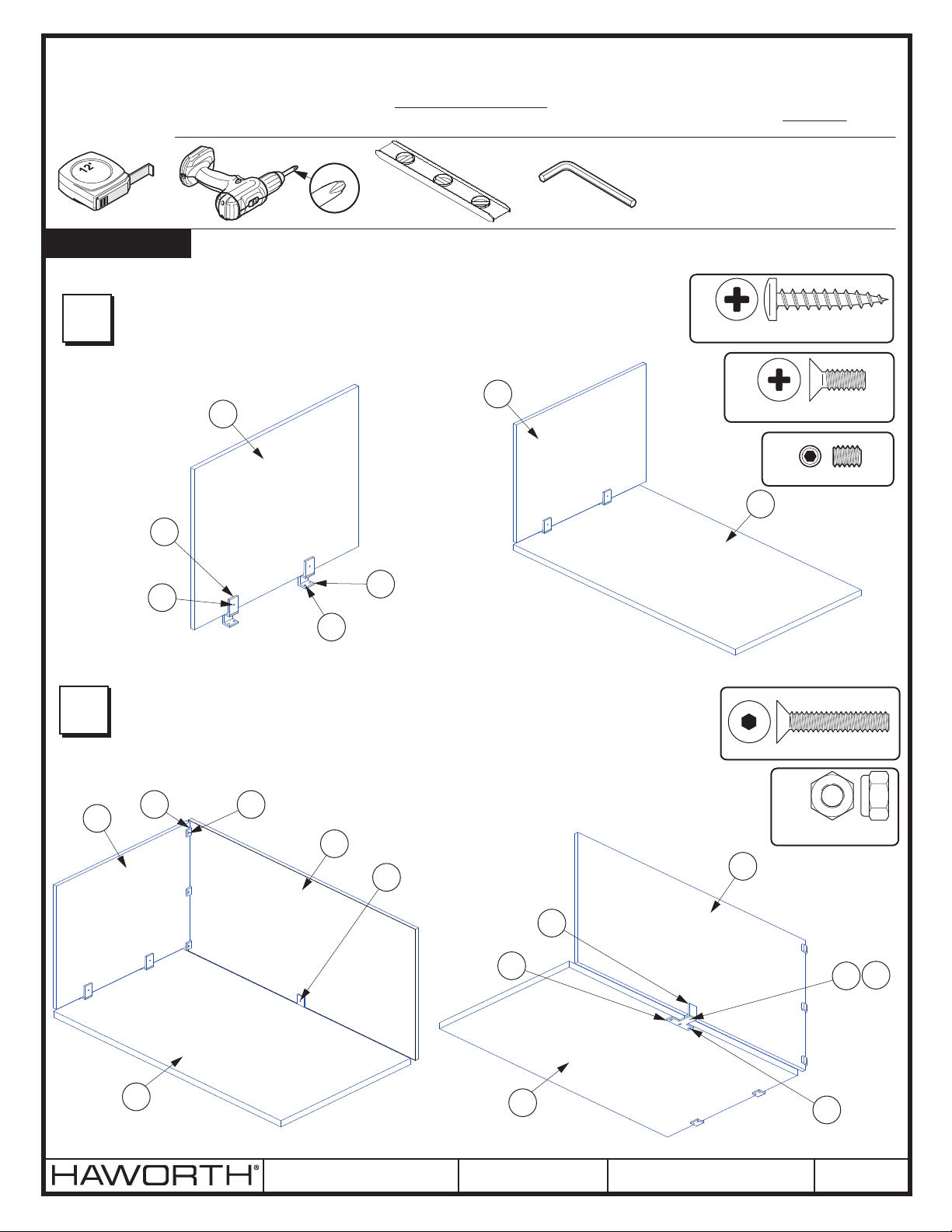

1Attach Side Screen (A) to Surface (B) using U-Bracket (C) and Clamp Bracket (D).
Line up the front edge of Side Screen (A) with the front edge of Surface (B).
Attach Clamp (D) to U-Bracket (C) using Flat Head Screw (E). Screw U-Bracket (C)
to Screen (A) using Set Screw (S168).
A
B
2Attach Rear Screen (F) to Side Screen (A) using Corner Bracket (G) and attach to
Surface (B) using U-Bracket (C) and T-Bracket (H). Center and screw T-Bracket to
bottom of Surface (B).
GS168
B
A
#10-24 x 1/2" Flat Head Screw
(E)
(S168)
#10-24 x 1/4" Set Screw
A
C
S168
S-1
D
F
#10 x 1" Pan Head Screw
(S-1)
#10-24 x 1" Flat Head Screw
(S133)
S168
#10-24 Self Locking
Hex Nut
(S150)
S133 S150
Bottom
Top
S-1
F
C
B
H
Top
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: 1-800-426-8562
B2 of 2819-192 7428-2960

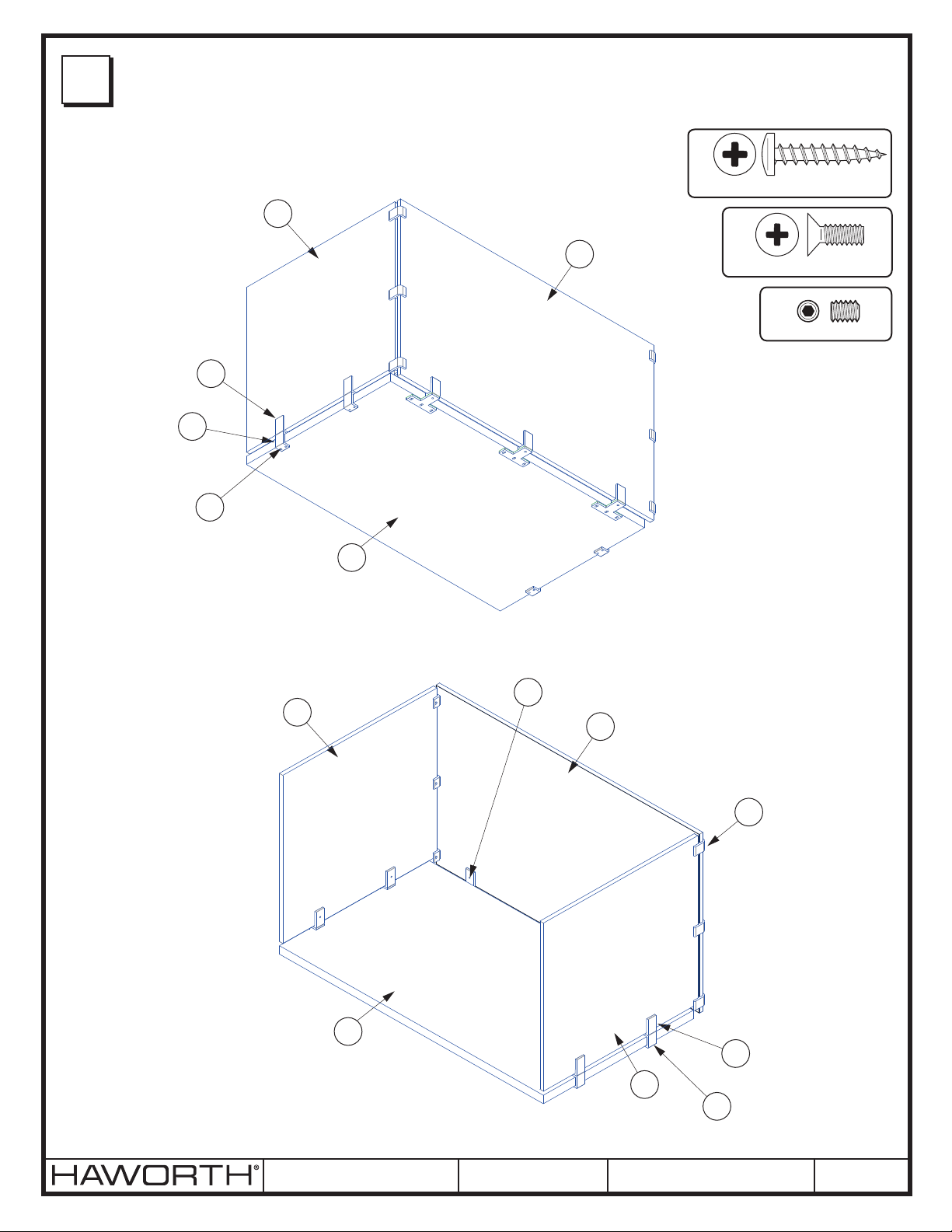

3Attach Side Screen (J) to Surface (B) and to Rear Screen (F). Use Corner Brackets (G) with Set Screws (S168) to
attach to Rear Screen (F). Use U-Bracket (C), Screw(E), Clamp (D), and Screw ((S-1) to attach to Surface (B).
Bottom
Top
#10-24 x 1/2" Flat Head Screw
(E)
(S168)
#10-24 x 1/4" Set Screw
#10 x 1" Pan Head Screw
(S-1)
J
F
AF
J
B
B
C
D
S-1
C
D
G
S168
