Hay COMMON LAMP BASE Manuale utente
– INSTRUCTION MANUAL –
DESIGN BY HAY
COMMON LAMP
BASE COLLECTION
GENERAL INFORMATION
TECHNICAL DATA
This product is fitted with an E27 (EU) or an E26
(US) bulb fitting. HAY recommends using this
product with LED bulbs.
FITTING TYPE | E27 (EU) or E26 (US)
POWER W | 815 W
COLOUR TEMPERATURE | 3000K. Warm White.
HAY will not accept any responsibility for any
accidents, injuries or damages that occur due to
the use of incorrect bulbs.
ATTENTION
Ensure that the power supply to the circuit has
clearly been turned OFF before installing the
product. In some countries, electrical installation
must be carried out by authorised electricians/
contractors; please check with your local
authority for guidance.
The product must not be modified in any way.
HAY accepts no responsibility for any products
that have been modified or tampered with. The
external flexible cable or cord of this luminaire
cannot be replaced. If the cord is damaged,
the luminaire should be destroyed. This lamp is
designed for indoor use only.
CARE AND MAINTENANCE
The product can be cleaned with a soft damp
cloth and mild detergent, or a dry microfibre
cloth. Do not use alcohol or any other solvents
to clean the product and avoid using abrasive or
rough sponges. Ensure that the power supply has
been turned OFF before cleaning the product.

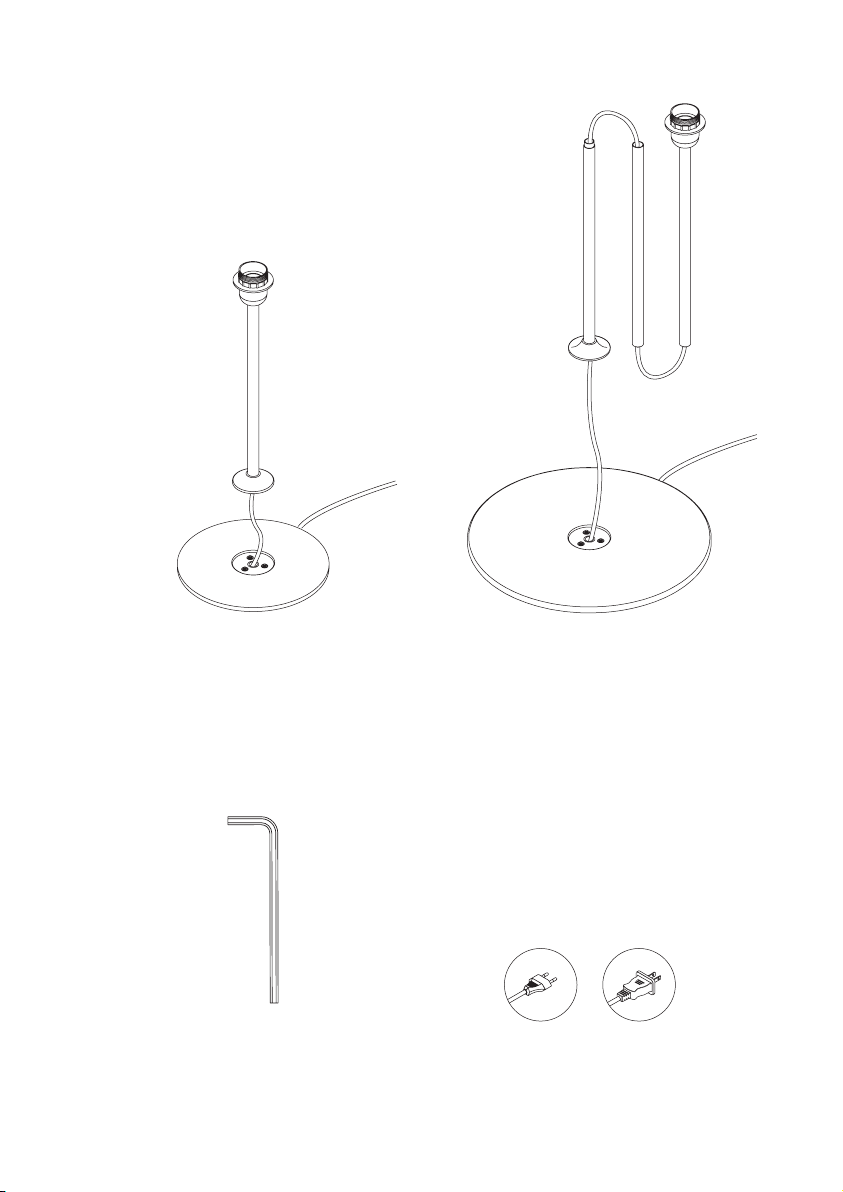

PARTS
Table version Floor version
Allen key for assembly
PARTS
EU Plug US Plug
Lamp Stem
Lamp Stem
Base Base
1.
Unpack all the parts and check that you have received all the parts listed.
Carefully unpack the lamp stem and base with the cable inside.

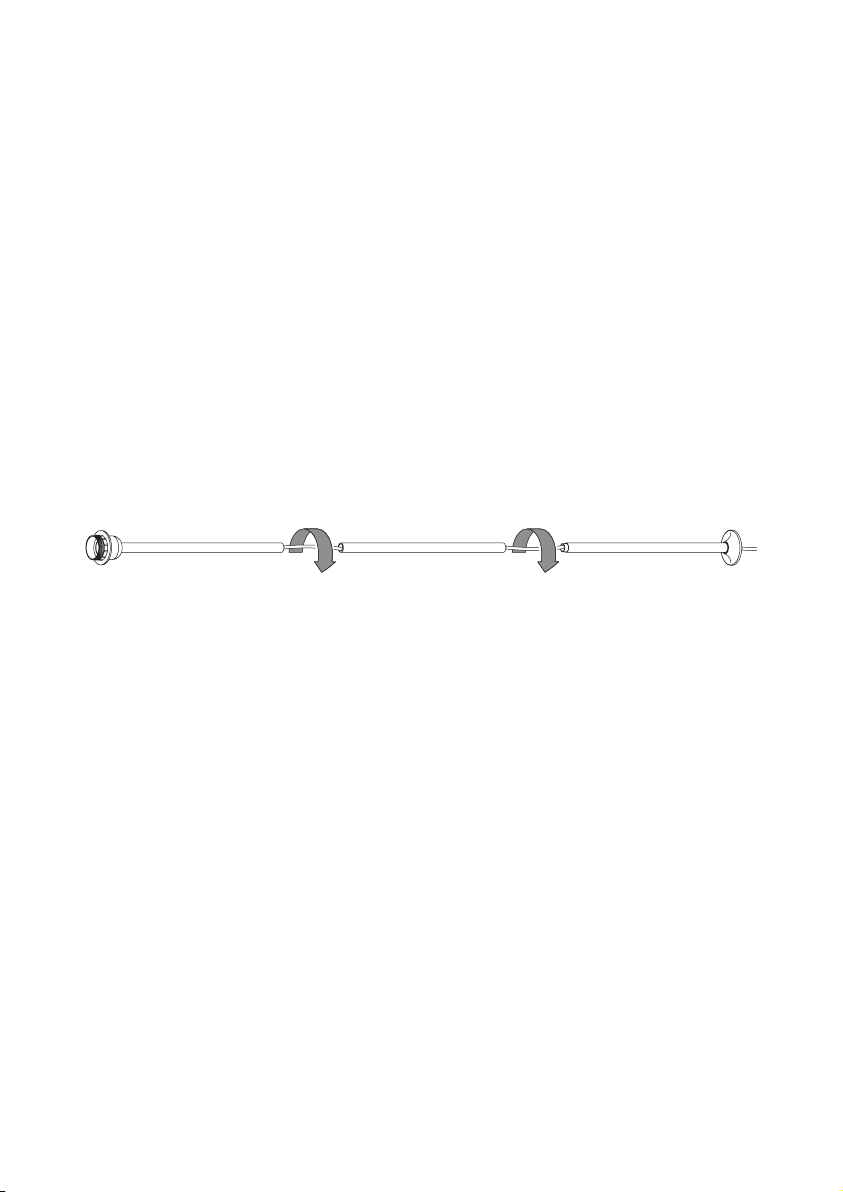

For the floor version, place the three stem parts on a flat surface and align them
so you can assemble the stem. Begin with the top part and turn it clockwise until
it is screwed tight. Repeat with the next part until stem is fully assembled.
2.
For both versions place the stem on the base taking care to align the three
guides underneath the stem with the corresponding holes on the base.
Floor versionTable version
3.
Fasten the lamp stem to the base with the three included screws, using the
Allen key. Make sure to tighten the screws properly to prevent the lamp stem
from rattling.
4.
Flip the lamp over and make sure the cable exits through the opening.
Please visit the HAY website to see our selection of accompanying shades.
If you choose to use another shade, please make sure it stays within:
Min. weight: 0.5 kg | Dimensions: D300 x H220 mm | D12” x H8.5”
Max. weight: 1.5 kg | Dimensions: D500 x H500 mm | D19.5” x H19.5”
Floor versionTable version
UK CUSTOMERS ONLY
For UK customers, a plug converter will be supplied. If not included, please contact
the HAY retailer from where the lamp was purchased.

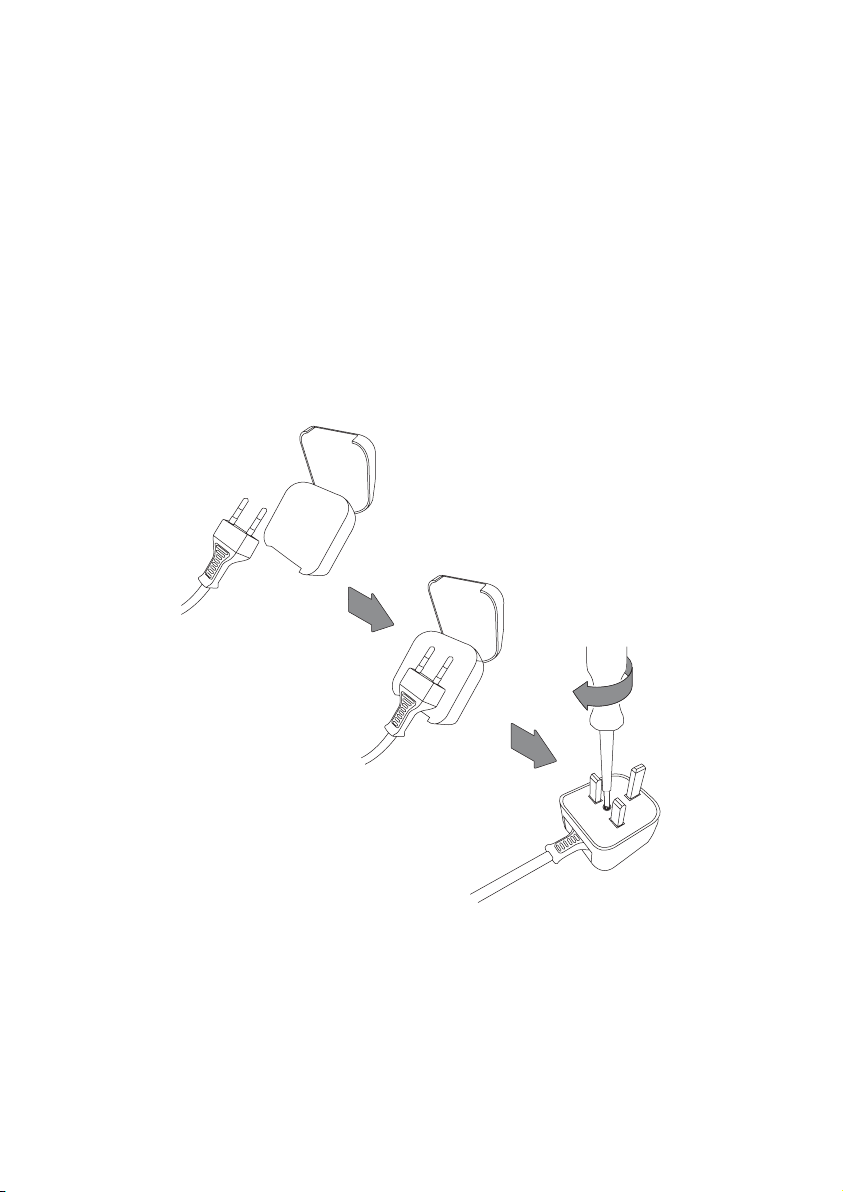

Insert the EU plug into the converter provided. Close the converter over the EU
plug with the pins secured in the internal spring clip contacts. Screw the converter
together to ensure the UK plug is secure.
UK CUSTOMERS ONLY
Our Care & Maintenance offers guidance for optimal
maintenance of your HAY product. It includes advice
and instructions on cleaning and caring for specific
materials to prolong the life of your lighting.
Please find our Care & Maintenance
guide by scanning the QR code
You can find more relevant information on
Common Lamp Base Collection by scanning
the QR code
You can also find the same information here
hay.dk/downloads
CARE & MAINTENANCE
