OmniLogic®
Consumer Network Troubleshooting Guide
CTSG-OLN150a Copyright 2016 Hayward Industries Inc.
Safety Precautions
!
Warning
2
High Voltage Electrocution Hazard
Hazardous voltage can shock, burn, cause serious injury
and or death. To reduce the risk of electrocution and or
electric shock hazards:
•Only qualified technicians should remove the dead front
•Qualified technicians should: replace damaged
wiring immediately
•Qualified technicians should: Insure panel is properly
grounded and bonded
Table of Contents
OmniLogic®
Overview & Terminology
Pg.
4-
5
MSP Layout & OmniLogic Wi
-Fi Bridge (HLWLAN)
Pg.
6-
7
How To:
Pg.
8-
16
Download Firmware
9
Connect Via Wi
-Fi
10
Create a Web Account
11
Register
OmniLogic
12
-
13
Check for IP Address
14
Safely Reboot MSP
15
Connect MSP
to a Hotspot
16
Troubleshooting:
Pg.
17
-
32
1. Wired
Ethernet: “MSP Not Found”
18
-
23
2. Wi
-Fi Connection: “MSP Not Found”
24
-
32
3
OmniLogic: Overview
•The OmniLogic is an internet and App ready,
intuitive, modular automation system.
•This elite automation system features a USB
backup and upgrade option. The USB feature
allows servicers to back up existing
configurations as well as upgrade the system
with the latest revision in minutes.
•With touch screen technology the MSP or
display allows users to navigate through screens
and commands in virtually any lighting
condition.
•Each OmniLogic base unit supports up to 10
relays, 8 valves, 8 heaters, and 8 sensors. It also
supports up to 25 themes (groups) and 50
favorites.
4
OmniLogic: Terminology
5
Term
Description
MSP
Main System Processor (display
)
MPP
Main
Panel Processor (main board)
MP
Main Panel (enclosure)
PSU
Power Supply Unit (PWR Supply)
I/O
Input
/ Output Expansion Card
HVR
High
Voltage Relay
LVR
Low Voltage Relay
LVA
Low Voltage Actuator
RB
Relay Bank

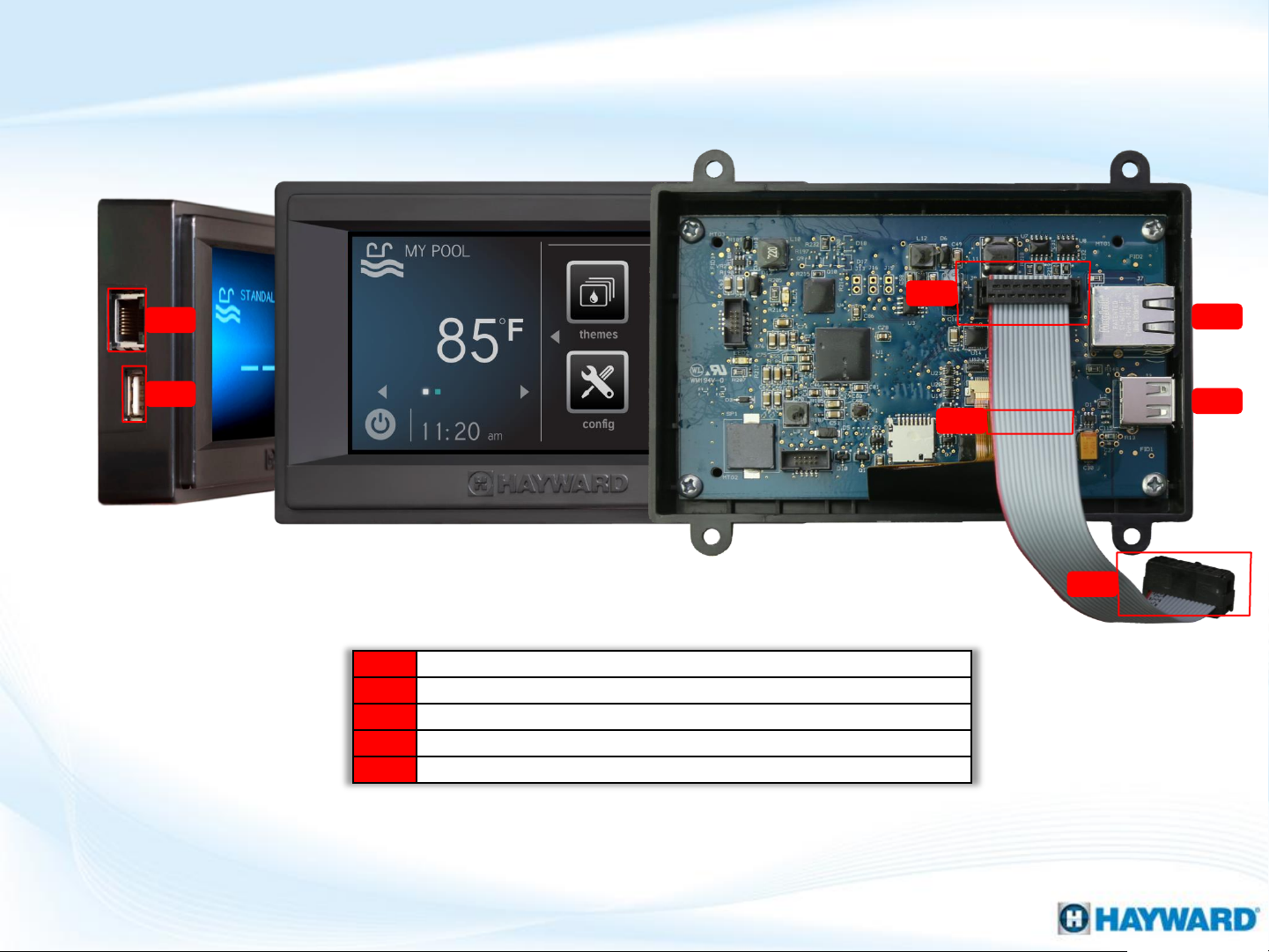

OmniLogic: Main System Processor (MSP)
6
A1
Ethernet Port (used for both Wired
& Wi-Fi network operation)
B1 USB Port (uploading firmware & backing up/loading configuration)
C1
MSP Connection (Input/Output)
D1
MSP Ribbon Cable
E1
MPP Connection (Input/Output)
A1
B1
C1
D1
E1
A1
B1
HLX-LOC-DSP

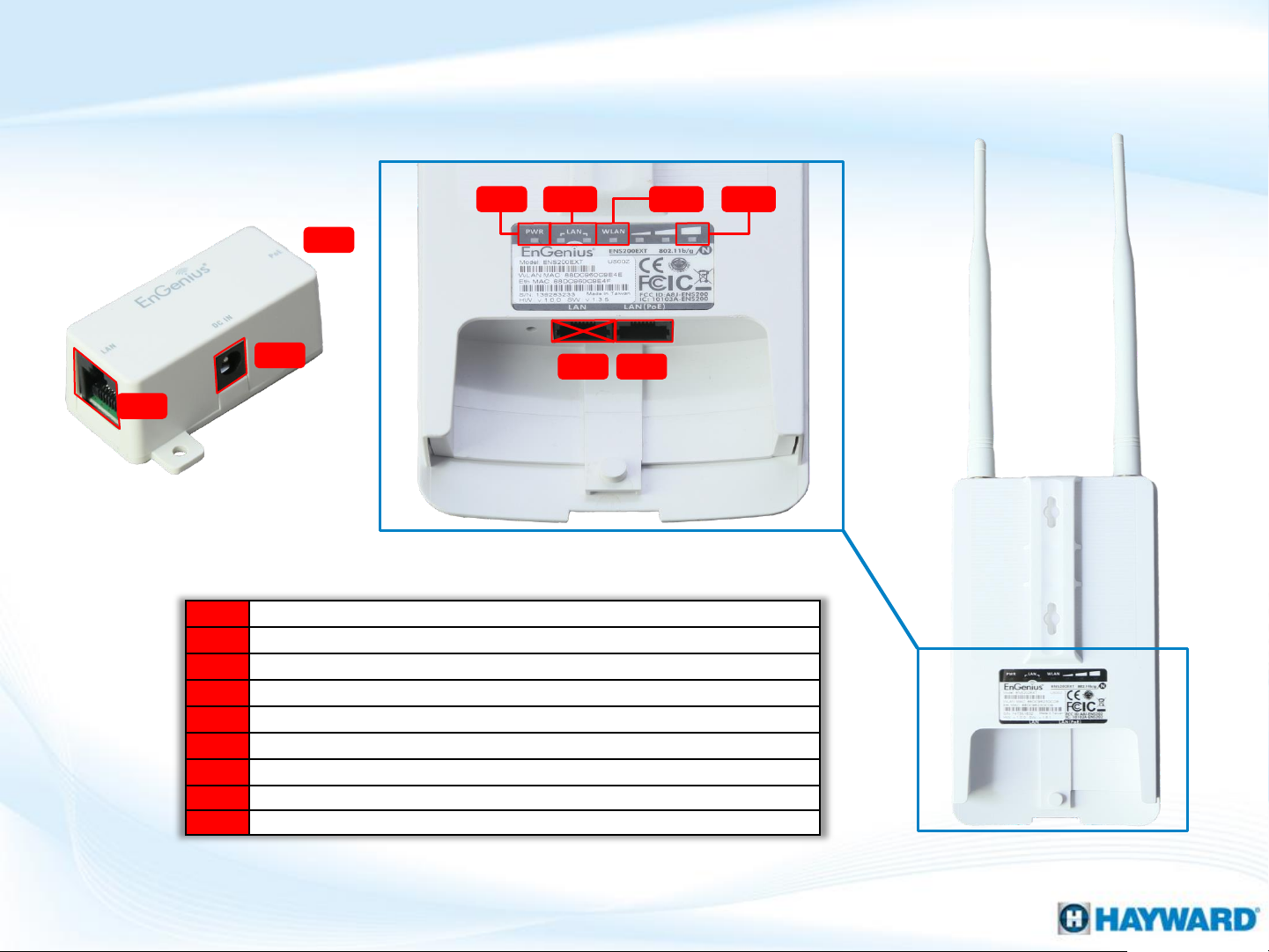

OmniLogic: Wi-Fi Bridge (HLWLAN)
7
C2
A2
B2 E2
F2
D2
Injector
HLWLAN
G2 H2 I2
A3 LAN Port (Ethernet cable from LAN port to MSP)
B3 Power to Injector (power cable plugs into the MPP)
C3 PoE Port (Ethernet cable from PoE to LAN (PoE) of the HLWLAN)
D3 UNUSED
E3 LAN (PoE) Port (Ethernet cable from the LAN (PoE) to PoE of the injector)
F3 PWR LED (indicates HLWLAN has Power over Ethernet from injector)
G3 LAN LEDs (indicate connection with local area network)
H3 WLAN (should only appear when SSIDs are available)
I 3 Signal LED (should only appear when connected to Wi-Fi network)
OmniLogic®
How To:

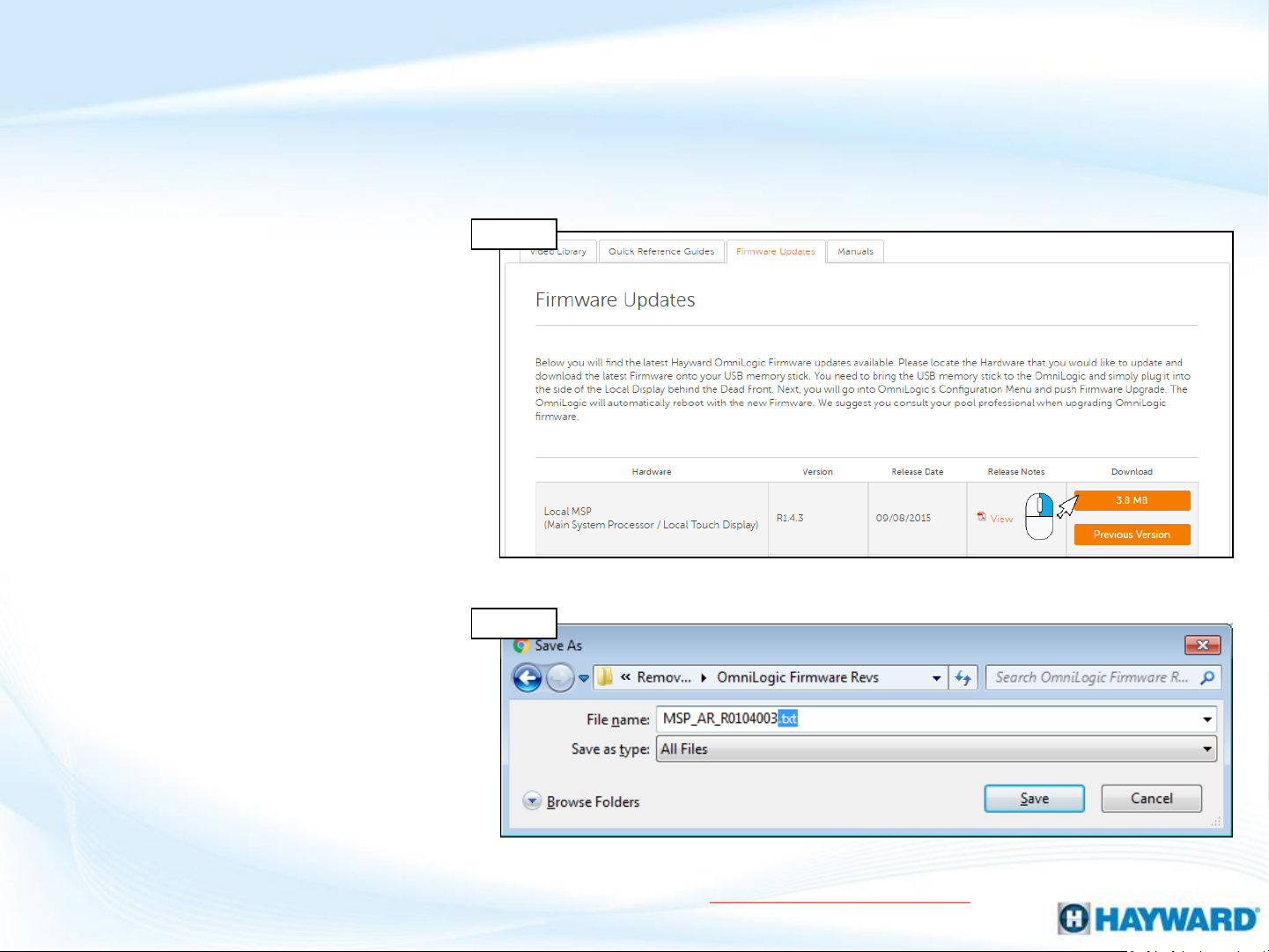

How To: Download Firmware
9
To download the latest firmware to a USB drive go to www.hayward.com
Support Center> Automation > OmniLogic > Firmware Updates
Step 1: Right click on the link of the file
you wish to download.
Step 2: Within the options menu select
"Save link as..."
(Note: USB drive must already be
connected to your computer).
Step 3: From the "Save As" window
navigate to the desired USB drive.
(Note: please make sure to select the
root directory of the USB drive).
Step 4: Before saving, change the
“Save as type” to “All Files” AND
remove the “.txt” file extension that
automatically appears. Then click on
"Save" button.
(Note: failing to remove the .txt file
extension will result in an unreadable
firmware upgrade file).
Step 4
Step 1-3
This process was accomplished through Google’s Chrome Browser.
10

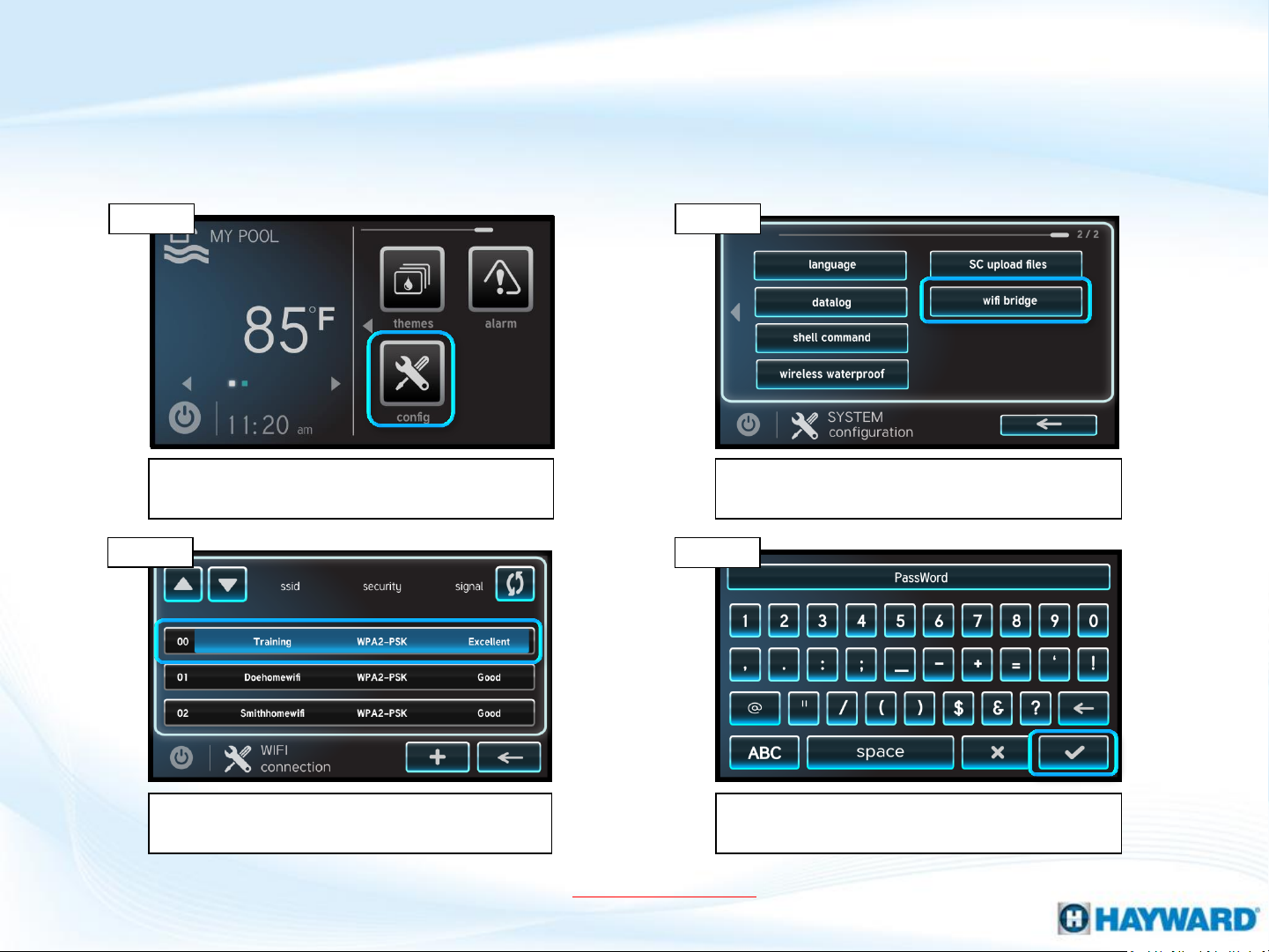

On the right of the dashboard locate and tap
the “config” icon.
Press the “wifi bridge” option on the right side
of the screen.
Select the desired network name (SSID) to
attempt connection.
*Enter the network password, followed by the
check mark to complete.
Step 2
Step 3 Step 4
For best results, make sure the MSP firmware is updated to the latest revision:
www.hayward.com Support Center> Automation > OmniLogic > Firmware Updates
Step 1
*NOTE: The network password IS CASE SENSITIVE. To confirm connection, go
to Config>Network and verify an IP address appears under the dynamic tab.
How To: Connect to a Wi-Fi Network
