Hayward VS Omni Guida per l'amministratore

VS Omni®

Consumer How-To Guide

Safety Precautions

Warning

High Voltage Electrocution Hazard

Hazardous voltage can shock, burn, cause serious injury

and or death. To reduce the risk of electrocution and or

electric shock hazards:

•Only qualified technicians should remove service and

install equipment

•Replace damaged wiring immediately

•Ensure applicable equipment is properly grounded and

bonded

Table of Contents

VS Omni®

Overview

Pg.

Smart

Relay Interface

Pg.

How To:

Pg.

Download

Upgrade Firmware

Back

-Up Config.

Connect to Wi

-Fi

Enter/Exit

Service Mode

Create a Theme

Create a Schedule

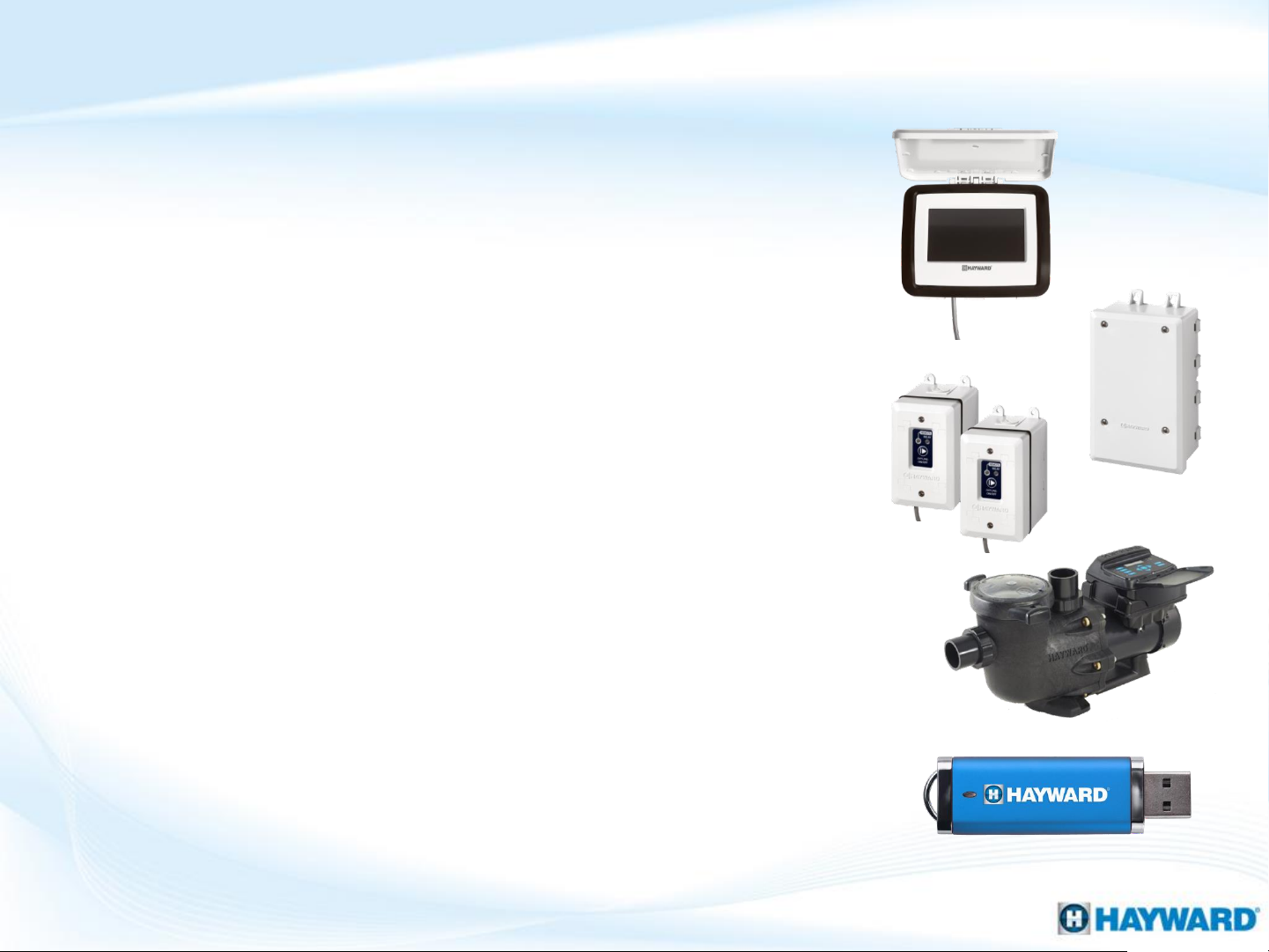

VS Omni: Overview

•The Hayward VS Omni is a pump based

automation solution that is ideal for both

retrofit as well as new pool installations.

•The VS Omni features an internal WiFi chip,

capable of connecting to a home network

broadcasting 2.4ghz Wi-Fi signals.

•The VS Omni features a touch screen display

that provides easy navigation in virtually any

lighting condition.

•Each VS Omni unit supports up to 2 smart relays,

up to 2 VSPs, 1 valve, 1 heater, and 3 sensors.

•Its USB port supports the ability to upgrade the

system firmware as well as backup and restore

configuration files.

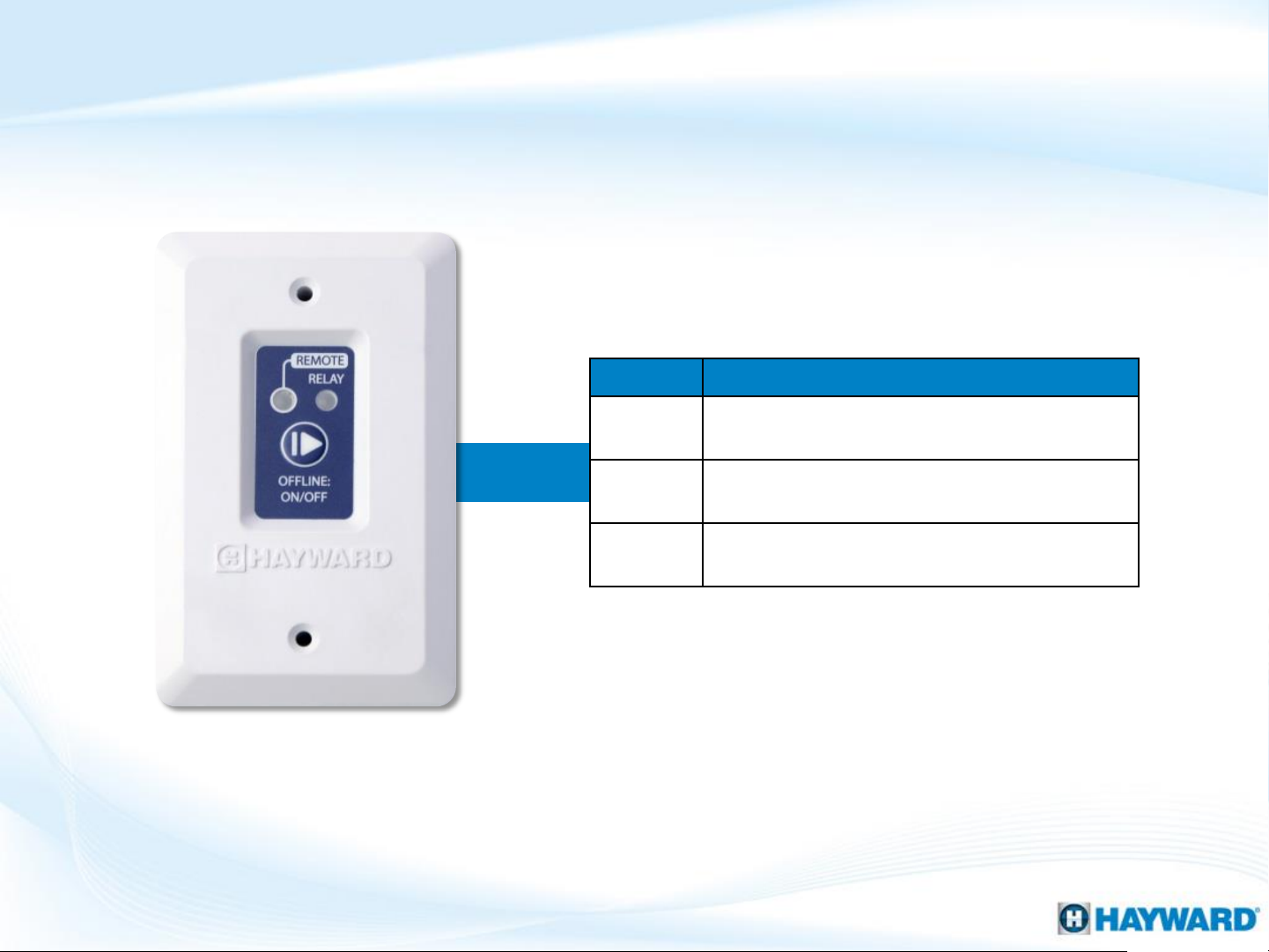

VS Omni: Smart Relay

Front

Label Function

Remote Green = communicating with wiring hub

Red = not communicating with wiring hub

Relay Green = Relay is ON (Load power)

RED = Relay is OFF (No Load power)

ON/OFF Provides manual override only when the wiring

hub comm is down / unassigned

VS Omni®

How To:

How To: Download Firmware

To download the latest firmware to a USB drive go to www.hayward.com

Support Center> Automation > VS Omni > Support

Step 1: Right click on the link of the file

you wish to download.

Step 2: Within the options menu select

"Save link as..."

(Note: USB drive must already be

connected to your computer).

Step 3: From the "Save As" window

navigate to the desired USB drive.

(Note: please make sure to select the

root directory of the USB drive).

Step 4: Before saving, change the

“Save as type” to “All Files” AND

remove the “.txt” file extension that

automatically appears. Then click on

"Save" button.

(Note: failing to remove the .txt file

extension will result in an unreadable

firmware upgrade file).

Step 4

Step 1-3

This process was accomplished through Google’s Chrome Browser.

Tap the “upgrade” icon.Select either “Yes” or “Timed” to continue.

How To: Upgrade Firmware

Press the power button. Select “service mode”.

Step 4

Step 2

Step 3

Step 1

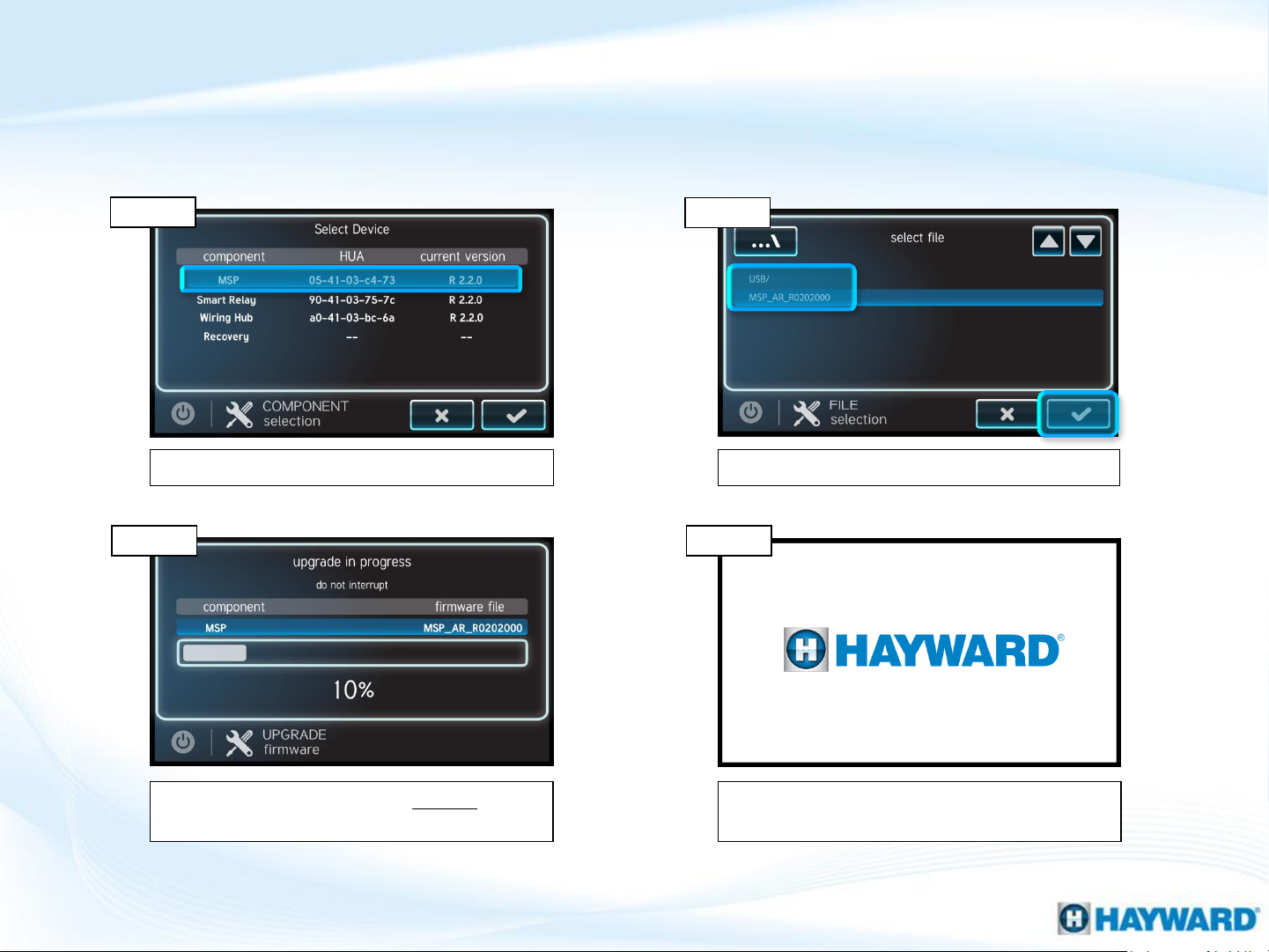

Insert USB drive into the bottom of the controller & follow the steps provided below:

How To: Upgrade Firmware (cont.)

Select the “MSP” to upgrade the controller. Select USB, latest file, and then check mark.

Once the upgrade has started DO NOT power

off while in process.

Once the firmware upgrade has completed,

press the check mark to power cycle the unit.

Step 8

Step 6

Step 7

Step 5

NOTE: Make sure all devices are up to the latest firmware revision.

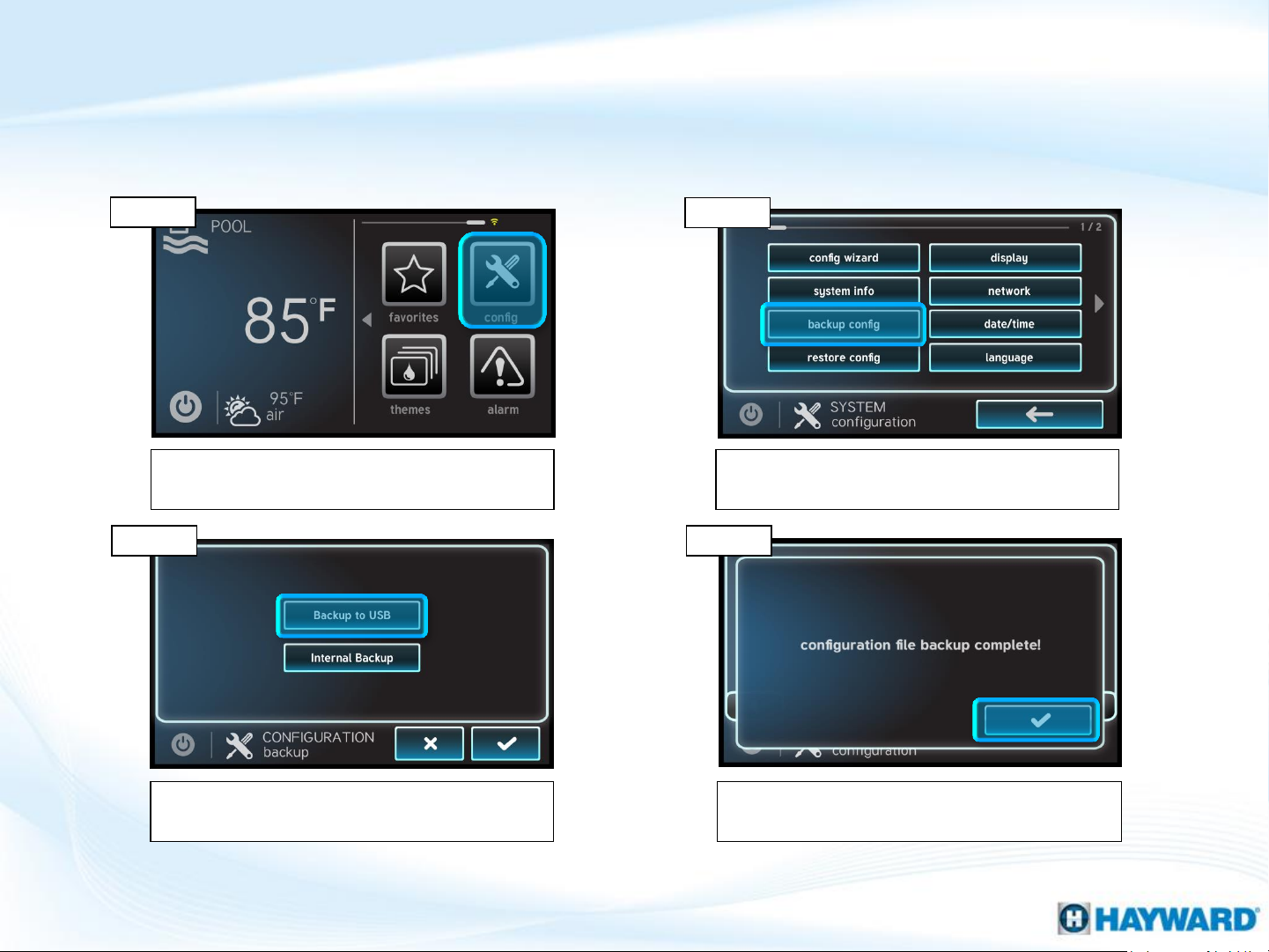

How To: Back-Up Configuration

Use the steps provided to Backup a configuration. These steps aid firmware upgrades,

controller changes, and corrupted configurations.

On the right of the dashboard locate and tap

the “config” icon.

Select the “Backup config” option (third down

on the left most column).

Select “Backup to USB”, after inserting a USB

drive, then press the check mark.

Once the backup is confirmed press the check

mark to finalize.

Step 4

Step 2

Step 3

Step 1
