Out the box
The package contains all of the necessary components for a full install.
Package Contents
Matrix unit
Matrix IR remote control
User Manual (pdf) downloadable from hdconnectivity.co.uk
5VDC power supply
2 x IR TX cables (IR emitter/blaster)
2 x IR over HDMI Receiver dongles
3 x IR RX ‘magic eye’ cables (from 30KHz to 56KHz IR receiver) 1 for Matrix unit IR extension

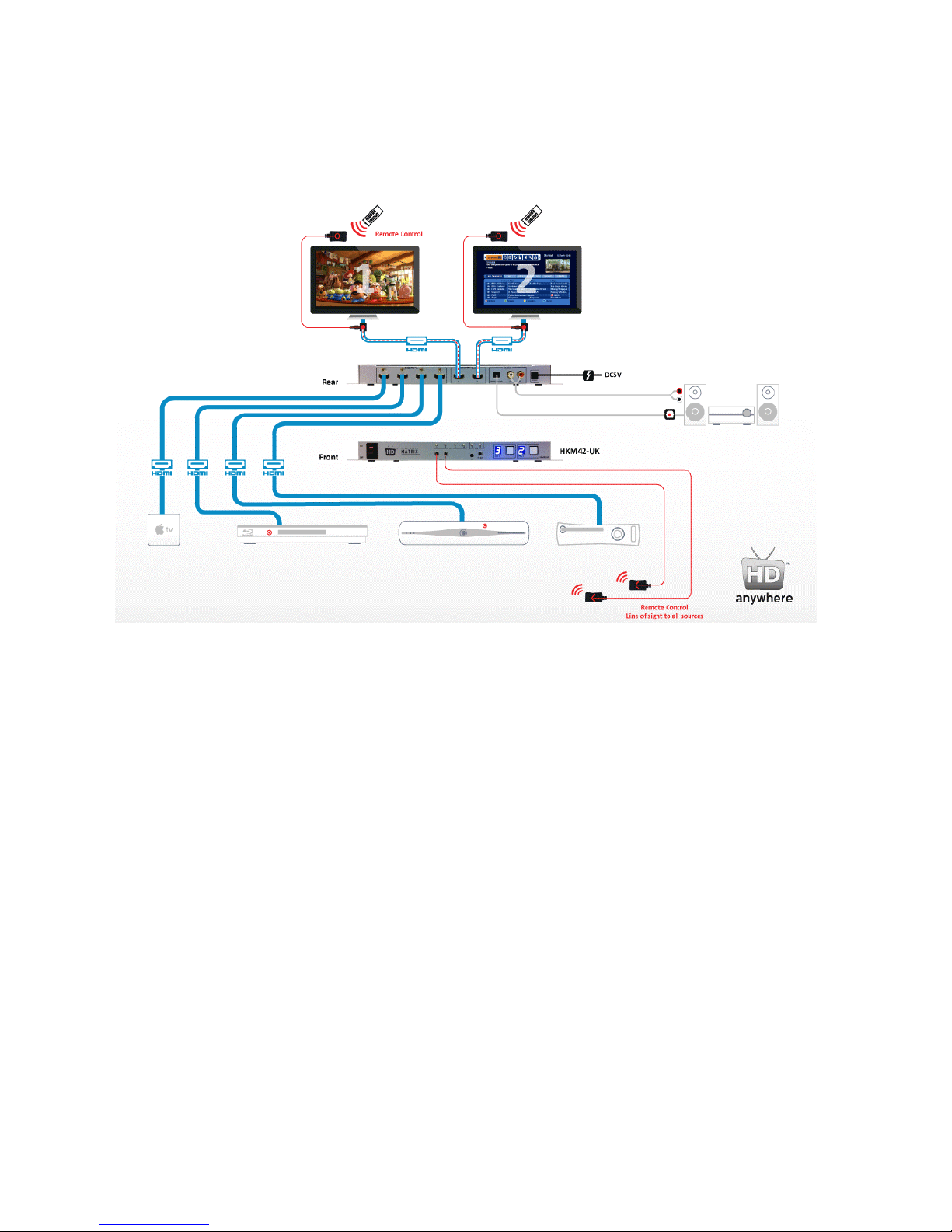

System Features
●4 HDTV location multiroom HD system
●4 HDMI inputs x 2 HDMI outputs
●RS232 control (automation drivers included)
●High Speed 3D eyefix (ASI) Processor
●HDMI 1.4 video features supported inc. 3D & future-ready for 4K
●Full HD 1080p with Deep Colour
●All uncompressed audio inc. Dolby TrueHD and DTS-HD Master Audio
●Unique IR control over HDMI kit included
●QuickSwitch + SmartJump supported
●EDID discovery & HDCP pass through
●Numerical LED channel indicators
●Electrostatic discharge (ESD) protection
●1145g WDH 31.7 x 15.5 x 2.7 (cm)
●In-line power supply pack: 300cm
* HDMI cables not included
Before you set-up your HDMI Matrix, please ensure that you complete the following:
●Ensure that any manufacturer HDMI link or CEC protocols such as Samsung Anynet Link, Sony Bravia
Link, Panasonic Viera Link etc are switched to “off” on both the source devices and HDTVs that are to
be connected to the Matrix.
●Switch off all intended HDMI source devices and HDTVs and unplug them from the mains.
