Overview
Wireless Curtain Control Motor (See Figure 1) enables controls of opening, closing, stopping or opening to
a specified percentage position after configuration with the wireless gateway. The Wireless Curtain Con-
trol Motor can be manually pulled no matter it is power-on or power-off. The motor also supports overheat
protection.
Functions
■Curtain distance measurement.
■Working mode: long pull mode, short pull mode, free mode.
■Percentage control.
■Communication: wireless.
■Supports online upgrading.
■Supports easy programming.
■With clutches of new generation and precise planetary deceleration structure, the operating noise is
down to around 40dB.
■Dry contact switch to open, close and stop the curtain.
■Strong power provided by AC motor.
■Medium straight line and curved opening and closing curtain appropriate for all occasions.
Important Notes
■Horizontal pull is 8kg with up to 50kg load.
■The motor should work in conjunction with the wireless gateway.
Product Information
Dimensions - See Figure 2
Components - See Figure 3 - 4
1. Latch
2. Dry contact switch to open, close, and stop the curtain. (COM+FROW is on, COM+REV is off,
COM+STP is stop) through the electronic switch.
3. RJ11 6P network port, connect to the master and slave. It supplies the working voltage for slave.
4. AC220V power input (brown: L, blue: N, yellow green: G. A power cord of about 1m provided by de-
fault.)
5. Antenna
6. LED indicator
7. Programming button
8. 6P network interface
9. Unlock sign
10. Locked sign
11. Motor terminal
Pull the latch to unlock direction, and then insert the motor terminal into the C-Driver Unit. Then, push the
latch into the locked hole.
Safety Precautions
■The installation and commissioning of the device must be carried out by HDL or the organization
designated by HDL. For planning and construction of electric installations, the relevant guidelines,
regulations and standards of the respective country are to be considered.
■HDL does not take responsibility for all the consequences caused by installation and wire connection
that are not in accordance with this document.
■Please do not privately disassemble the device or change components, otherwise it may cause me-
chanical failure, electric shock, fire or body injury.
■Please resort to our customer service department or designated agencies for maintenance service.
The warranty is not applicable for the product fault caused by private disassembly.
HDL-MWM70-RF.12
Wireless Curtain Control Motor
Datasheet
Issued: August 18, 2020
File Edition: V1.0.1
1/2
Package Contents
HDL-MWM70-RF.12*1 / Buspro connector*1 / Network cable*1 / Datasheet*1

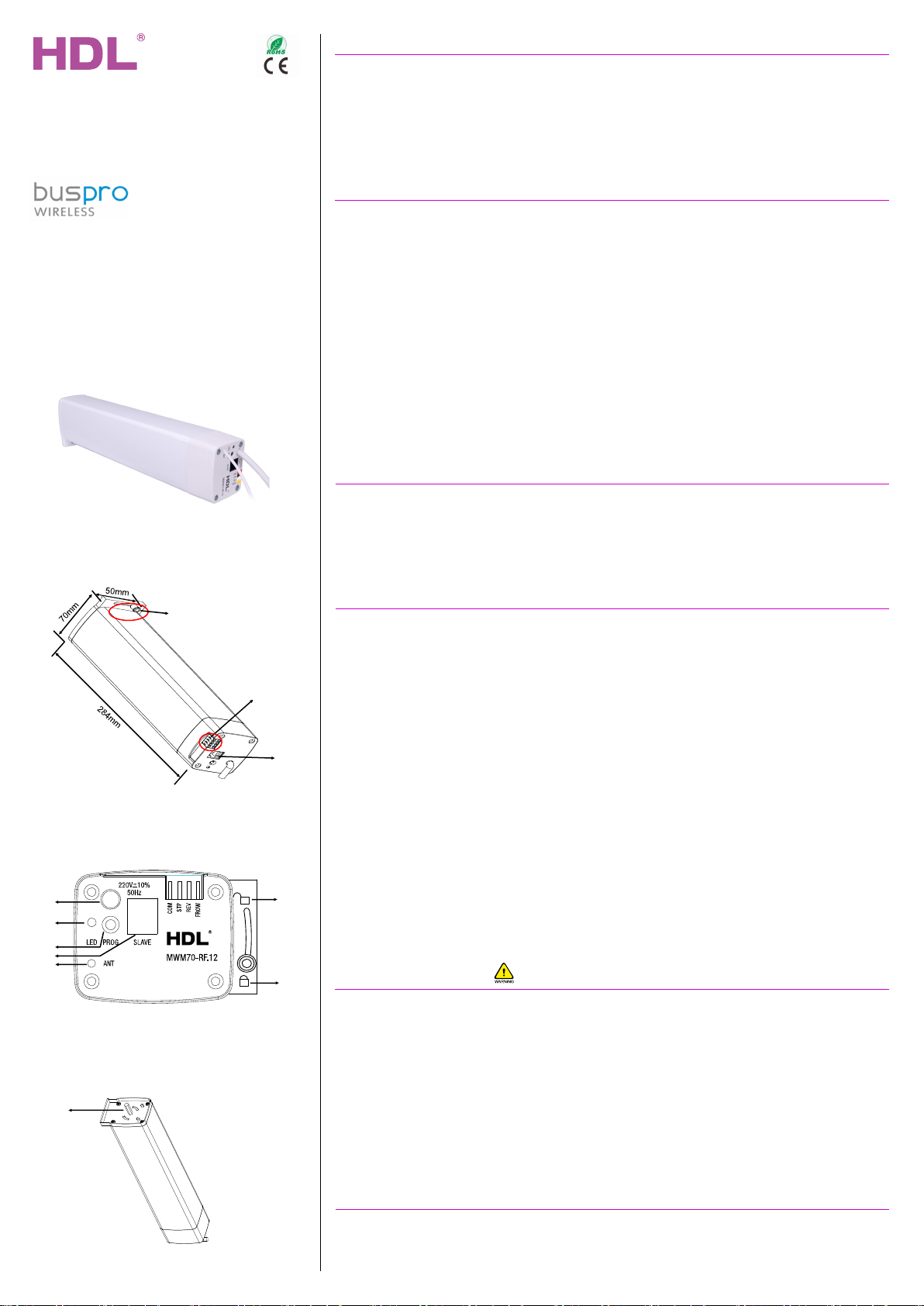

Figure 1. Wireless Curtain Control Motor
11
1
3
2
Figure 2. Dimensions
Figure 4. Components - Side View
Figure 3. Components - Side View
4
5
6
7
8
9
10
Basic Parameters
Rated voltage AC220V 50Hz
Input voltage AC180-240V 50Hz
Slave interface 6P internet port
Rated power 70W
Rated torque 1.0N.m
Rated speed 112rpm
Rail belt speed 16cm/s
Communication Buspro Wireless
Wireless transmission power +10dbm
Wireless sensitivity -90dbm
Indoor communication distance (No barrier) ≤30m
RSSI (Received Signal Strength Indication) >-80dbm
Factory frequency Band, PSK (It is suggested that your setting should not be
same as the factory setting.)
Frequency Allocation
(China) WPAN 780MHz to 786MHz
(Europe) SRD 864MHz to 870MHz
(North America) 904MHz to 928MHz
Default PSK HDL-SecurityKey0
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 284x70x50 (mm)
Net weight 1352g
Housing material ABS, aluminum
Installation Wall hanging
Protection rating (Compliant with EN60529) IP41
Technical Data
2/2
