HDX VSP0000201.HDX1 Manuale utente

USE AND CARE GUIDE

2-GALLON PORTABLE AIR COMPRESSOR

Item #947 282

Model #VSP0000201.HDX1

THANK YOU

We appreciate the trust and confidence you have placed in HDX through the purchase of this air compressor. We

strive to continually create quality products designed to enhance your home. Visit us online to see our full line of

products available for your home improvement needs. Thank you for choosing HDX!

3062705

Questions, problems, missing parts? Before returning to the store,

call HDX Customer Service

8 a.m. - 6 p.m., EST, Monday - Friday

1-800-514-6729

HomeDepot.Com

Safety Information

Table of Contents

Safety Information....................................2

Work Area Safety ...................................2

Personal Safety .....................................3

Moving the Compressor.........................3

Air Compressor and

Pneumatic Tool Safety ...........................4

Electrical Safety.....................................5

Warranty ...................................................7

Pre-Operation ...........................................8

Specifications ........................................8

Duty Cycle..............................................8

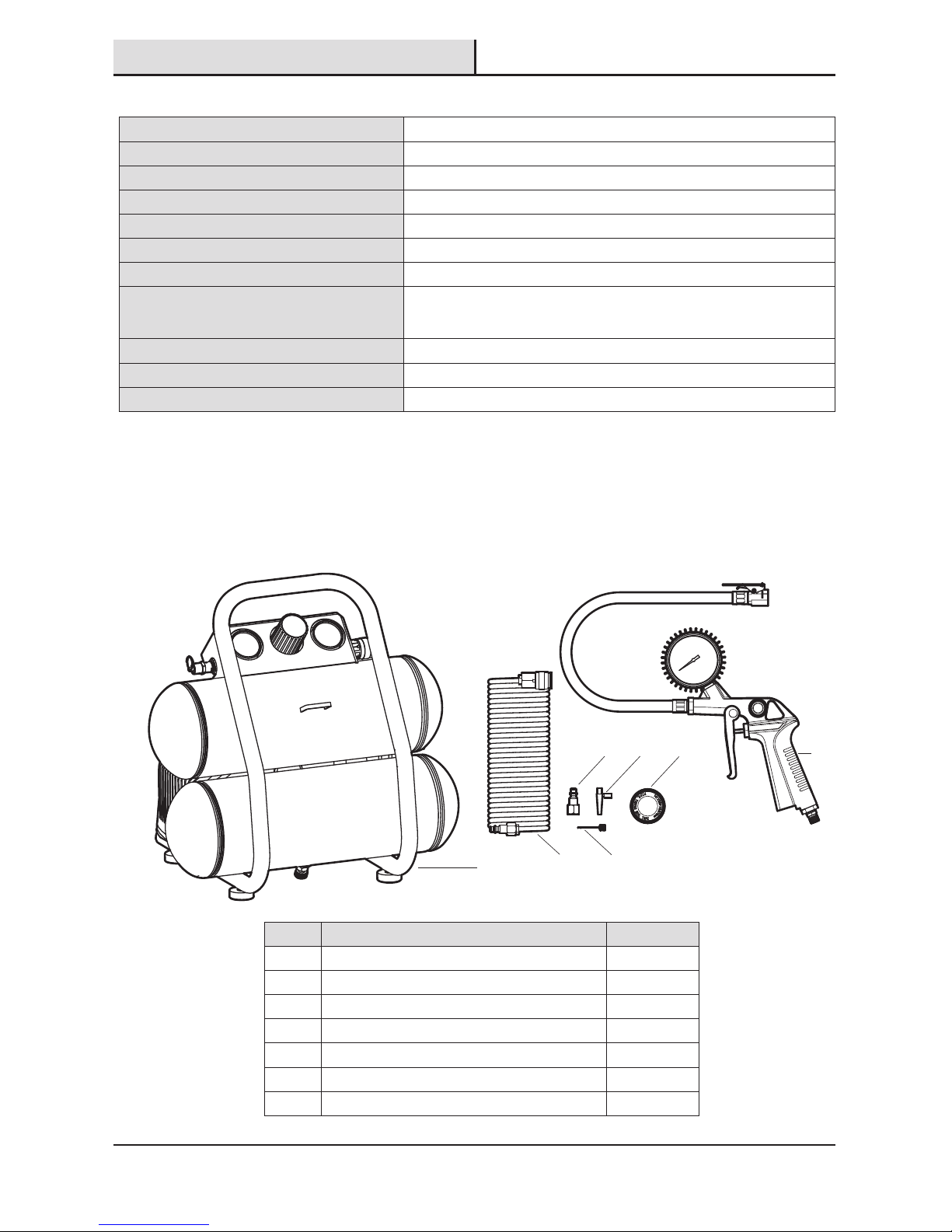

Package Contents..................................8

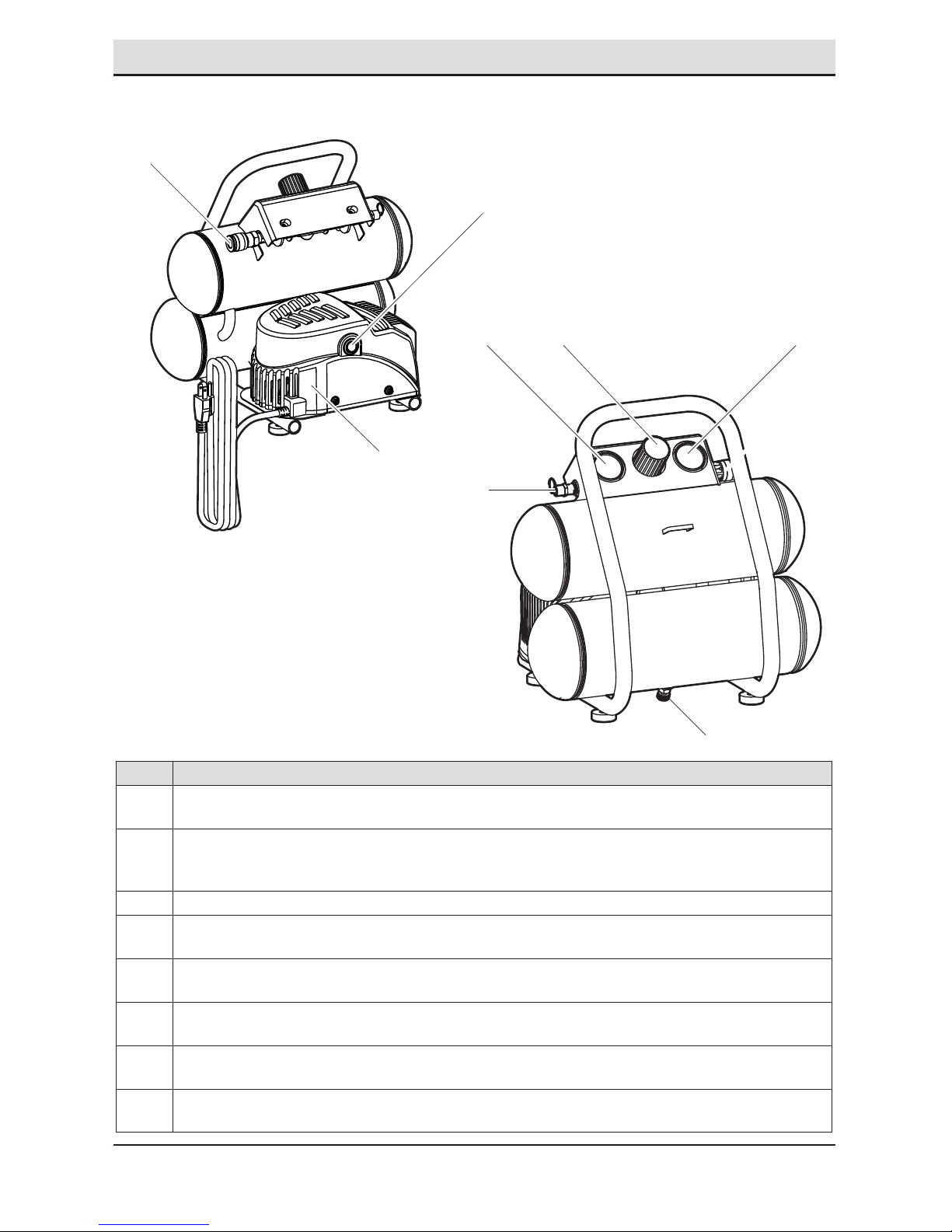

System Components..............................9

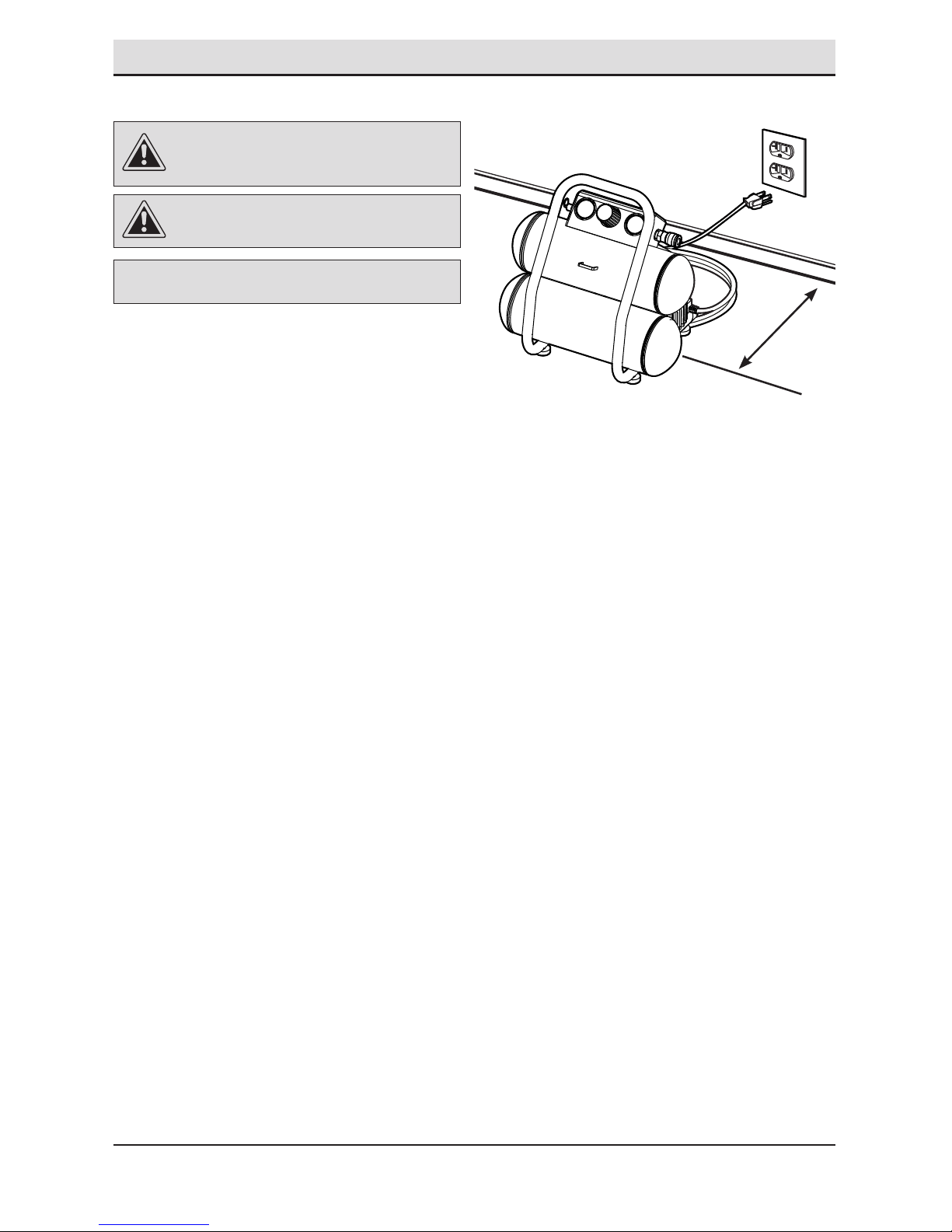

Placement of the Air Compressor ........10

Attaching the Hose ..............................11

Tool Usage............................................12

Operation.................................................13

Maintenance ...........................................18

General Maintenance...........................18

Lubrication...........................................18

Care and Cleaning ..................................18

Troubleshooting......................................19

Service Parts ..........................................21

This manual contains information that is important for

you to know and understand. This information relates

to protecting your safety and preventing equipment

problems. To help you recognize this information, we

use the symbols below. Please read the manual and pay

attention to these symbols.

WORK AREA SAFETY

□Keep your work area clean and well lit. Ensure

floors are not slippery from wax or dust.

□Operate the air compressor in an open area at least

18 in. (0.5 m) away from any wall or object that

could restrict the flow of fresh air to ventilation

openings.

WARNING:Do not operate power tools in explosive

atmospheres, such as in the presence of flammable

liquids, gases, or dust. Power tools create sparks which

may ignite the dust or fumes. Keep bystanders, children,

and visitors away while operating tools. Distractions can

cause you to lose control.

DANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING:Indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

injury.

CAUTION:Indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

injury.

NOTICE:Indicates a practice not related to personal injury which, if

not avoided, may result in property damage.

WARNING:This compressor is not equipped for, and

should not be used to supply breathing air. Additional

equipment would be necessary to properly filter and

purify the air to meet minimal specifications for Grade D

breathing, as described in Compressed Gas Association

Commodity, Specification G 7.1 - 1966, OSHA 29 CF9

1910.134. Compressed Gas Association, 4221 Walney

Road, Fifth Floor, Chantilly, VA 20151-2923, (703) 788-2700,

www.cganet.com. Any such additional equipment has

not been examined and no implication of proper use for

breathing air is intended or implied.

CAUTION:Always disconnect the air supply and power

supply before making adjustments, servicing a tool, or

when a tool is not in use.

3 HOMEDEPOT.com

Please contact 1-800-514-6729 for further assistance.

Safety Information (continued)

PERSONAL SAFETY

□Keep proper footing and balance at all times.

Proper footing and balance enables better control

of the tool in unexpected situations

□Do not use on a ladder or unstable support.

WARNING:Operating any power tool can result in foreign

objects being thrown into your eyes, which can result in

severe eye damage. Before beginning operation, always

wear safety goggles, safety glasses with side shields, or

a full face shield when needed. Always use eye protection

marked to comply with ANSI Z87.1.

WARNING:This product contains chemicals known to

the State of California to cause cancer and birth defects or

other reproductive harm. Wash hands after handling.

WARNING:Use safety equipment. Always wear eye

protection with side shields when operating power tools.

A dusk mask, non-skid safety shoes, hard hat, or hearing

protection must be used for appropriate conditions.

WARNING:Stay alert when operating a power tool. Do

not use the tool while tired or under the influence of drugs,

alcohol, or medication.

WARNING:Do not wear loose clothing or jewelry.

Contain long hair. Keep your hair, clothing, and gloves away

from moving parts. Loose clothes, jewelry, or long hair can

be caught in moving parts.

WARNING:Never touch any exposed metal parts on

compressor during or immediately after operation. The

compressor will remain hot for several minutes after

operation. Do not reach around protective shrouds or

attempt maintenance until the unit has been allowed to

cool.

MOVING THE AIR COMPRESSOR

□Grasp the handle.

□When the location is reached, slowly lower the

compressor to the ground. Always store the

compressor in a horizontal position resting on the

rubber bumpers.

□When transporting the compressor in a vehicle,

trailer, etc., make sure the tank is drained and the

unit is secured with straps to prevent tipping. Use

care when driving to prevent tipping the unit over in

the vehicle. Damage can occur to the compressor

or surrounding items if the compressor is tipped.

Do not lift by the shroud.

WARNING:Risk of unsafe operation. Ensure proper

footing and use caution when carrying the compressor so

that the unit does not cause loss of balance.

Safety Information (continued)

AIR COMPRESSOR AND

PNEUMATIC TOOL SAFETY

□Keep compressors as far from the spraying area as

possible: at least 15 ft. (0.4 m) from the spraying

area and all explosive vapors.

□If connected to a circuit protected by fuses, use time-

delay fuses with this product.

□Ensure the hose is free of obstructions or snags.

Entangled or snarled hoses can cause loss of

balance or footing, and may become damaged.

□Use the air compressor only for its intended use. Do

not alter or modify the unit from the original design

or function. Never weld or drill holes in the air tank.

□Never leave a tool unattended with the air hose

attached.

□Do not operate this tool if it does not contain a

legible warning label.

□Do not continue to use a tool or hose that leaks air or

does not function properly.

□Do not attempt to pull or carry the air compressor

by the hose.

□Your tool may require more air consumption than

this air compressor is capable of providing.

□Never direct a jet of compressed air toward people

or animals.

□Protect your lungs. Wear a face or dust mask if the

operation is dusty.

□Do not use this air compressor to spray chemicals.

Your lungs can be damaged by inhaling toxic

fumes. A respirator may be necessary in dusty

environments or when spraying paint.

□This compressor is equipped with a thermal

overload protector which will shut off the motor if it

becomes overheated.

WARNING:Do not attempt to modify this tool or create

accessories not recommended for use with this tool.

Any such alteration or modification is misuse and could

result in a hazardous condition leading to possible serious

personal injury.

CAUTION:Do not use the compressor in an environment

that is dusty or otherwise contaminated. Using the air

compressor in this type of environment may cause damage

to the unit.

CAUTION:Risk of bursting. Do not adjust the regulator

to result in output pressure greater than the marked

maximum pressure of the attachment. Do not use at

pressure greater than the rated maximum pressure of this

compressor.

CAUTION:To reduce the risk of electric shock, do not

expose the compressor to rain. Store indoors.

5 HOMEDEPOT.com

Please contact 1-800-514-6729 for further assistance.

Safety Information (continued)

ELECTRICAL SAFETY (EXTENSION CORDS)

□Use only 3-wire extension cords that have 3-prong

grounding plugs and 3-pole receptacles that accept

the product’s plug. When using a power tool at

a considerable distance from the power source,

use an extension cord heavy enough to carry the

current that the product will draw. An undersized

extension cord will cause a drop in line voltage,

resulting in a loss of power and causing the motor

to overheat.

□Use the chart provided below to determine the

minimum wire size required in an extension cord.

Only round jacketed cords listed by Underwriter’s

Laboratories (UL) should be used.

□Only use 50 feet or less, round jacketed cords listed

by Underwriter’s Laboratories (UL).

□When operating a power tool outside, use an

outdoor extension cord marked “W-A” or “W”.

These cords are rated for outdoor use and reduce

the risk of electric shock.

Ampere rating

(on air compressor data plate)

2-3

Cord

Length Wire Size (AWG)

25 ft. 18

50 ft. 18

Used on 12 gauge - 20 amp circuit.

NOTE: AWG=American Wire Gauge

WARNING:When using an extension cord, keep it clear

of the working area. Position the cord so that it will not get

caught on lumber, tools, or other obstructions while you

are working with a power tool. Failure to do so can result

in serious personal injury.

WARNING:Check extension cords before each use.

If damaged, replace immediately. Never use the air

compressor with a damaged cord since touching the

damaged area could cause electrical shock resulting in

serious personal injury.

WARNING:Improperly connecting the equipment-

grounding conductor can result in a risk of electrical

shock.

CAUTION:Avoid body contact with grounded surfaces

such as pipes, radiators, ranges, and refrigerators. There

is an increased risk of electric shock if your body is

grounded.

CAUTION:Do not expose power tools to rain or wet

conditions. Water entering a power tool will increase the

risk of electric shock.

CAUTION:Replace damaged cords/wiring immediately.

Damaged cords/wiring increase the risk of electric shock.

NOTICE:Use longer air hoses instead of long extension cords. Your

air compressor will run better and last longer.

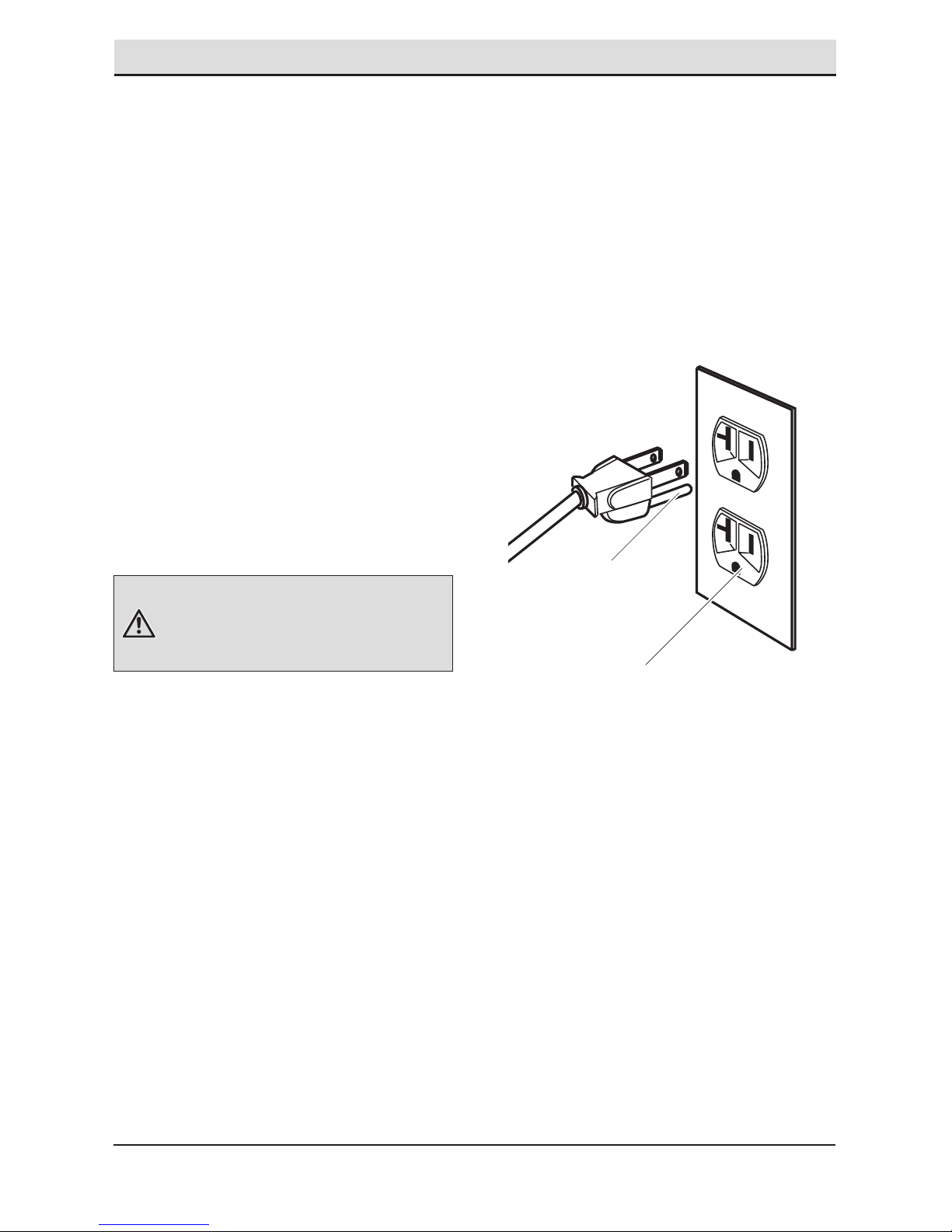

ELECTRICAL SAFETY (ELECTRICAL

CONNECTION)

□This air compressor is powered by a precision built

electric motor. It should be connected to a power

supply that is 120 volts, 60 Hz, AC only (normal

household current).

□Do not operate this tool on direct current (DC). A

substantial voltage drop will cause a loss of power

and the motor will overheat. If the air compressor

does not operate when plugged into an outlet,

double check the power supply.

Safety Information (continued)

ELECTRICAL SAFETY (SPEED AND WIRING)

□The no-load speed of this product is approximately

1,700 rpm. This speed is not constant and

decreases under a load or with lower voltage.

□For voltage, the wiring in a shop is as important as

the motor’s horsepower rating. A line intended only

for lights cannot properly carry a power tool motor.

Wire that is heavy enough for a short distance will

be too light for a greater distance. A line that can

support one power tool may not be able to support

two or three products.

ELECTRICAL SAFETY (GROUNDING

INSTRUCTIONS)

□This product must be grounded. In the event of an

electrical short circuit, grounding reduces the risk

of electric shock by providing an escape wire for

the electric current. This product is equipped with

a cord having a grounding wire with an appropriate

grounding plug. The plug must be plugged into an

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

WARNING:Improper installation of the grounding plug

may result in a risk of electric shock. When repair or

replacement of the cord or plug is required, do not connect

the grounding wire to either flat blade terminal. The wire

with insulation having an outer surface that is green with

or without yellow stripes is the grounding wire.

□Check with a qualified electrician or service

personnel if these instructions are not completely

understood or if in doubt as to whether the tool is

properly grounded.

□Do not modify the plug provided; if it will not fit

the outlet, have the proper outlet installed by a

qualified electrician.

□This product is for use on a nominal 120-Volt

circuit and has a grounding plug similar to the

plug shown. Only connect the product to an outlet

having the same configuration as the plug. Do not

use an adapter with this product.

GROUNDING PIN

120-Volt GROUNDED OUTLET

7 HOMEDEPOT.com

Please contact 1-800-514-6729 for further assistance.

LIMITED WARRANTY

WHAT IS COVERED

The manufacturer warrants to the original retail purchaser that this product is free from defect in material and

workmanship and agrees to repair or replace, at the manufacturer’s discretion, any defective product free of charge

within these time periods from the date of purchase.

This warranty is valid for one (1) year if the product is used for personal, family, or household use, and ninety (90)

days if used for any other purpose, such as commercial or rental use.

This warranty extends to the original retail purchaser only and commences on the date of the original retail purchase.

Any part of the product manufactured or supplied by the manufacturer and found in the reasonable judgment of

the manufacturer to be defective in material or workmanship will be repaired or replaced by an authorized service

dealer without charge for parts and labor.

The product, including any defective part, must be returned to an authorized service dealer within the warranty

period. The expense of delivering the manufacturer’s product to the dealer for warranty work and the expense

of returning it back to the owner after repair or replacement will be paid by the owner. The manufacturer’s

responsibility in respect to claims is limited to making the required repairs or replacements and no claim of breach

of warranty shall be cause for cancellation or rescission of the contract of sale of any of the manufacturer’s product.

Proof of purchase will be required by the dealer to substantiate any warranty claim. All warranty work must be

performed by an authorized service dealer.

WHAT IS NOT COVERED

This warranty does not cover any of the manufacturer’s product that has been subject to misuse, neglect,

negligence, accident, or that has been operated in any way contrary to the operating instructions as specified in this

manual. This warranty does not apply to any damage to the manufacturer’s product that is the result of improper

maintenance or to any manufacturer’s product that has been altered or modified. The warranty does not extend to

repairs made necessary by normal wear or by the use of parts or accessories which are either incompatible with

the manufacturer’s product or adversely affect its operation, performance, or durability.

The manufacturer reserves the right to change or improve the design of any product without assuming any

obligation to modify any product previously manufactured. All implied warranties are limited in duration to the

stated warranty period. Accordingly, any such implied warranties including merchantability, fitness for a particular

purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate two-year or ninety day

warranty period. The manufacturer’s obligation under this warranty is strictly and exclusively limited to the repair

or replacement of defective parts and the manufacturer does not assume or authorize anyone to assume for it any

other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation

may not apply to you. The manufacturer assumes no responsibility for incidental, consequential, or other damages

including, but not limited to, expense of returning the manufacturer’s product to an authorized service dealer and

expense of delivering it back to the owner, mechanic’s travel time, telephone or telegram charges, rental of a like

product during the time warranty service is being performed, travel, loss or damage to personal property, loss

of revenue, loss of use of the product, loss of time, or inconvenience. Some states do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Contact the Customer Service Team at 1-800-514-6729 or visit www.HOMEDEPOT.com.

Warranty

SPECIFICATIONS

Running horsepower 0.5 HP

Air tank capacity 2 gal.

Air pressure 100 PSI max.

Air delivery 0.5 SCFM at 40 PSI

0.4 SCFM at 90 PSI

Tank Fill Time 3 minutes 5 seconds

Lubrication Oil free

Input 120V, 60 Hz, Single phase

AC only, 2.9 Amps.

Minimum branch circuit requirement 15A

Fuse type Time delay

Net weight 20 lbs.

DUTY CYCLE

This air compressor pump is capable of running continuously. However, to prolong the life of your air compressor,

it is recommended that a 50% average duty cycle be maintained; that is, the air compressor pump should not run

more than 30 minutes in any given hour.

PACKAGE CONTENTS

Pre-Operation

Part Description Quantity

A Air Compressor Unit (fully assembled) 1

B 25 ft. hose with plug and QC attached 1

C Inflation Gun 1

D 1/4 in. Female Quick Connect Plug 1

E Inflation Needle 1

F Raft/Mattress Nozzle 1

G Sealant Tape 1

A B E

9 HOMEDEPOT.com

Please contact 1-800-514-6729 for further assistance.

Part Description

AON ( I )/OFF ( 0 ) Switch: Turn this switch in the “ON ( I )” position to provide automatic power to the

pressure switch and “OFF ( O )” to remove power at the end of each use.

Safety Valve: If the pressure switch does not shut off the air compressor at its “cut-out” pressure

setting, the safety valve will protect against high pressure by “popping out” at its factory set pressure

(slightly higher than the pressure switch “cut-out” setting).

CTank Pressure Gauge: The tank pressure gauge indicates the reserve air pressure in the tank.

DAir Compressor Pump: Compresses air into the air tank. Working air is not available until the

compressor has raised the air tank pressure above that required at the air outlet.

EDrain Valve: The drain valve is located at the base of the air tank and is used to drain condensation at

the end of each use.

FRegulator: Valve used to ensure that the tank pressure never reaches unsafe levels. It also allows the

user to adjust the pressure coming out of the tank to match what is needed for the task.

GPressure Regulator Gauge: The gauge that indicates the amount of pressure that the regulator is

providing to the tool.

HQuick Connect: Fitting that is designed to accept a hose that allows pressure to be released for tool

usage.

SYSTEM COMPONENTS

Pre-Operation (continued)

C F G

Pre-Operation (continued)

PLACEMENT OF THE AIR COMPRESSOR

WARNING:If any parts are damaged or missing do

not operate this product until the parts are replaced.

Failure to heed this warning could result in serious

personal injury.

CAUTION:Do not use in an environment that is dusty

or otherwise contaminated. Using the air compressor in

this type of environment may cause damage to the unit.

NOTICE:Long lengths of electrical wiring could cause power loss

to the motor.

□Place the air compressor in a clean, dry, and well

ventilated area.

□The air compressor must be positioned at least

18 in. (0.5 m) away from the wall or other

obstructions that will interfere with the flow of air.

□Locate the air compressor as close to the main

power supply as possible to avoid using long

lengths of electrical wiring.

18 in.

0.5 m

Indice

Lingue:

Altri manuali HDX compressore d'aria

HDX

HDX TAW-0412P Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
