The BlockHead Owner’s Manual 1

The BlockHead is the world’s first and only commer-

cially available fully balanced, double dual-mono,

mono-block headphone amplifier. While it’s finesse

and depth of imaging are a significant improvement

over anything we’ve previously experienced with

dynamic headphones, it’s the BlockHead’s Adam’s

apple wobbling bass reproduction and eye blinking

impact that have us re-thinking everything we

thought we knew about headphones.

obsessed headphone geeks at your service.

www.headphone.com

Headphone Amplifier

HeadRoom Corporation

The BlockHead Owner’s Manual

2800.828.8184 www.headphone.com

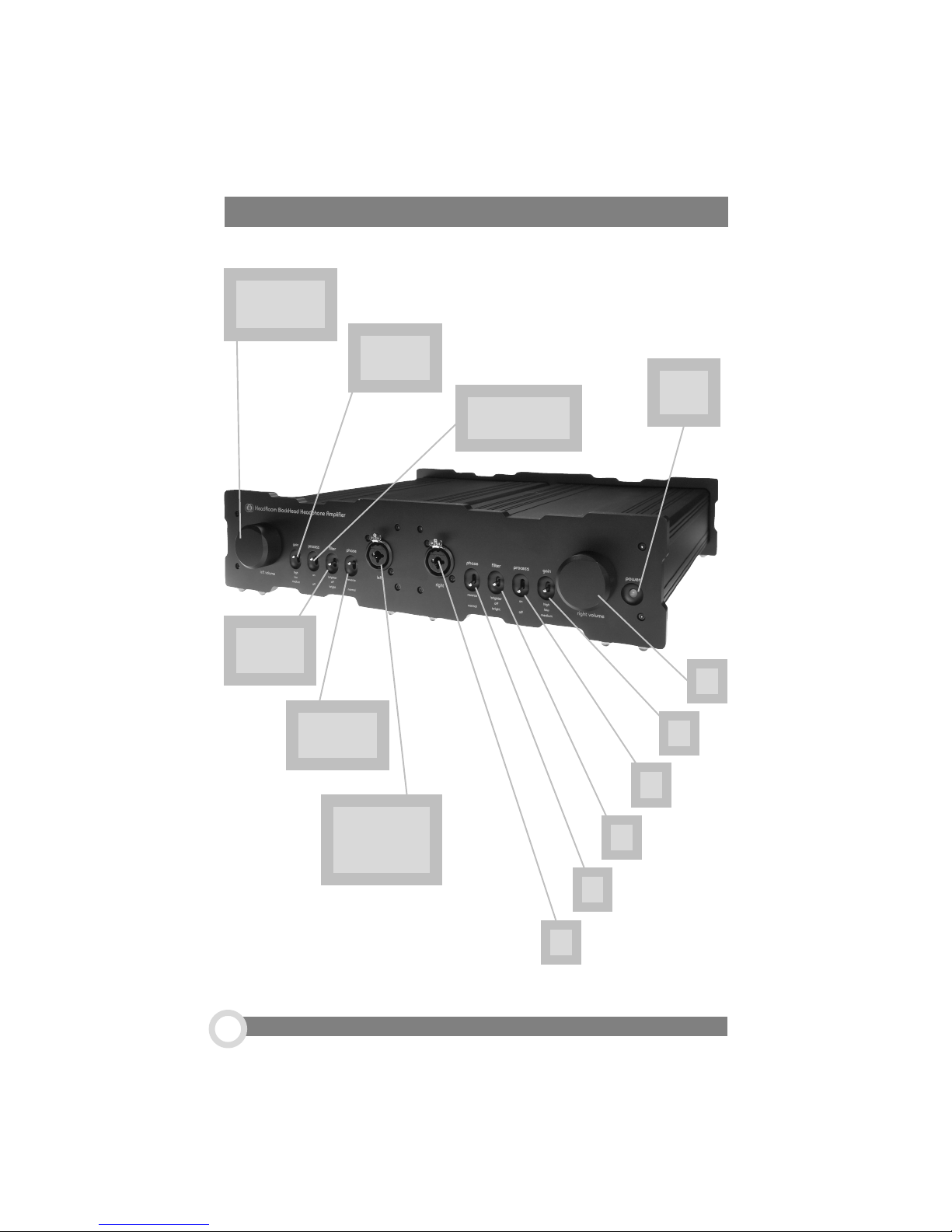

A Tour of Your HeadRoom BlockHead Amp

2. Gain

Switch

3. Processor

Switch

1. Volume

Control

LED

4. Filter

Switch

6. The

Headphone

Jack

5. Phase

Switch

The BlockHead Owner’s Manual 3

1. The Volume Controls. Big, beautiful, anodized, and aluminum. They feel and

sound as good as they look! Increase the volume for each channel by turning the

knobs clockwise.

2. The Gain Switches. The 3-position Gain Switch accomodates various head-

phones’ power needs. For instance, the Low Gain setting would be used for

Grado headphones, allowing a larger range on the volume control pot.

Experiementing with your headphones and the gain switch may help you to deter-

mine which setting you prefer. If have any questions regarding your headphones,

feel free to call and ask us.

3. The Processor Switches. When switched toward PROCESS, the Audio Image

Processor is engaged for normal stereo headphone listening. In the OFF position,

the Processor is bypassed for listening to mono or binaural recordings. (These

switches should be in the OFF position when using the headphone amp as a

preamp.)

4. The Filter Switches. The filter switch is used to compensate for the warming

action of the processor. In the center position there is no filter in the circuit;

generally this is preferred. But if the processor is causing too much bass or

blurring of the central image, a mild high frequence boost filter can be turned on.

The “bright” setting accentuates the highs at about 3 kHz; with the “brighter”

setting the filter starts an octave earlier and catches some of the upper mids.

Basically, set it to what ever sounds best to you.

5. The Phase Switches. Audio sources will commonly invert the phase on a

recording. Use this switch to correct the problem.

6. The Headphone Jacks. The Neutrik headphone jacks on The BlockHead

clamp down tightly for optimum signal transfer. They will accomodate both a

1/4” and well as XLR connectors- although the XLR connectors are certainly the

recommended jack for use with the BlockHead.

7. The LED. The LED simply indicates if your unit is on or off.

About your Blockhead amp...

4800.828.8184 www.headphone.com

1. Power

Switch/ DC

Input 3. Line In

4. Ground

Lift Switch

Crossfeed

Out

2. Voltage

Indicator

Crossfeed In

BlockHead Rear Panel

The BlockHead Owner’s Manual 5

1. The Power Switch & DC Input. 1 is on, 0 is off. When the amp is on, the

glowing red LED on the front of the unit tells you so.

2. Voltage Indicator. In most cases, the voltage indicator should read ‘115

volts’ for use in the U.S. However, your voltage can be easily adjusted to 230 v. for

foreign use; call us for details on how to do this yourself.

3. Line In. Plug your source into these left and right channel inputs.

4. Ground Lift Switch. For normal use, the Ground Lift Switch should be on

‘float’.

5. Crossfeed Out.

6. Crossfeed In.

Sennheiser 600’s

with Custom XLR

Cables

The crossfeeds ennable the audio image processor to

work with the BlockHead. Use the supplied 1ft.

Dimarzio cables to loop one block to the other.

}

Rear Panel...

Since the BlockHead is a fully

balanced amplifier, you must have balanced

outputs on your headphones. Currently,

Sennheiser 600’s and Grado RS1’s are

availabe with fully balanced cables. You

also have a choice of what kind of cables

you would like to use; both Clou Cable of

Germany and Cardas Cables of USA

manufacture fully balanced headphone

cables. Just give us a call, 800.828.8184,

for more information!

6800.828.8184 www.headphone.com

Headphones share a common connection on the non-driven side of the driver

elements. You can see this by looking at a headphone plug; the left channel

connection is at the tip, the right channel connection is the ring, and the common

connection were talking about is the remainder of the plug shaft, called the sleeve.

The problem is that the summed left and right channel return current will develop a

signal across the series resistance of the common return path, which muddies the

stereo presentation on headphones with cross-talk. (When evaluating headphones,

one thing you can look for is having the join of the left and right common return at the

plug rather than within the headphones.) It is this headphone connector found on all

headphones that makes it impossible to drive the return side of the headphone

coils with the separate left and right inverted signals of a fully balanced amplifier.

What’s so special about a fully-balanced headphone amp?

The BlockHead Owner’s Manual 7

HeadRoom has managed to overcome this problem by convincing Clou Cables and

Grado Labs to build custom headphone cables. The BlockHead’s machined aluminum

front and rear panels hold together two enclosures which house the completely

separate left and right audio channel electronics (hence mono-block). Each non-

inverted and inverted audio channel has completely separate electronics and power

supplies all the way back to separate Avel-Lindburg toroidal transformers (hence

double dual-mono). Yes, this amp has four transformer, four power supplies, and

four audio channels. The amp comes standard with all sorts of sweet stuff like: high

performance Burr-Brown 627 audio op-amps (see the June ’01 Stereophile for a

very intelligent discussion about high performance audio op-amps), very low

temperature coefficient .1% metal film resistors and matched polyphenoline-sulphide

film capacitors in the signal path; Nobel potentiometer, Neutrik connectors, three

step gain control for volume control optimization of various efficiency headphones,

three step filter control, HeadRoom psychoacoustic processor circuit, and much

more. And optionally available stepped attenuators and further audio electronic

component upgrades are available, call us for details.

about the Blockhead...

How about another helpful feature: The BlockHead can double as a very good

sounding, fully balanced preamp. Make sure the Processor and Filter switches are

in the OFF position when listening through speakers to avoid goofing up your imag-

ing and frequency response. Because the BlockHead is a fully balanced unit, it is a

good idea to call us on the details of how to hook up the BlockHead to your source.

Using Your Amp as a Preamp

8800.828.8184 www.headphone.com

Despite this lack of

acoustic data, you

mind attempts to

laterally locate

sounds. The result

is a troubling

blobs-in-the-head

sonic image. Your

brain ends up frus-

trated and fa-

tigued.

Your amp has a processor because it makes headphone listening much more natu-

ral. When listening to speakers, you hear both the left and the right signals in both

ears. Not so with headphones. When you stick a pair of speakers directly to your

ears (i.e., headphones), you lose the spatial/acoustic cues your mind needs to

locate sounds in space.

Why Does Your Headphone Amp Have a Processor?

without HeadRoom with HeadRoom

The BlockHead Owner’s Manual 9

more about the processor...

The Audio Image Processor solves this problem. Analog filters are used to take an

attenuated signal from each channel, slightly delay it(about 300 microseconds,

depending on the frequency), and feed it to the opposite ear. This is the acoustic

information your mind needs to create a believable audio image in you head. This

added information eases the burden on your brain by spreading out the clumped

image in your head. Ahh, sweet relief.

How can the processor be tested?

If you have already tried out the Processor, you have probably noticed that there

isn’t a huge difference in the sound when switching the Processor on and off. If you

would like a more obvious demonstration of the effect of the Processor, just unplug

one of the line inputs to The BlockHead and listen for a few moments with the

Processor off. Now switch the Processor on and hear the difference. [

pause for

experimentation

] See, it really

doing something dramatic.

Upgrading your BlockHead

The stepped attenuator is an available upgrade for our high-end

headphone amplifiers. We use the Nobel potientiometer

on our high-end amps, and its performance is very

good—but not perfect. In order to elevate the per-

formance of our reference products to as near

perfection as possible, we use a stepped at-

tenuator. The stepped attenuator uses a range

of discrete resistors switched into the circuit to

attenuate the signal. We start with a Swiss made

Elma 24-position switch. Then we disassemble it

and remove the stock circuit boards and replace

them with our custom made boards which allows

us to mount the precision thin film resistor right on the contact

boards. The gold plating on the contacts on these boards is about 4 times thicker

than on normal contact boards. The result is, what we believe to be, the finest

stepped attenuator in the audio world today.

10 800.828.8184 www.headphone.com

How to Hook Up Your BlockHead Amp

On the back of your BlockHead amp you will find 6 inputs. Two inputs are from your

source, one for the left channel and one for the right.

The other 4 connectors are for wiring the crossfeed circuit, ennabling the HeadRoom

processor. the two 1-foot Dimarzio Interconnects included with the amp are for this

purpose. It doesn’t matter which interconnect is used for either side. For more

information about hooking up your BlockHead amp to other sources, please consult

www.headphone.com in the ‘Reading’ area, or give us a call at 800-828-8184. We’re

happy to help!

The BlockHead amplifier carries a five-year parts and labor product warranty. If you

have any problems with your headphone listening system, please first call us at 1-

800-828-8184. We will try to diagnose the problem over the phone, which can save

both of us considerable time, effort and money. If the equipment must be returned

for repair, we will authorize a return for you. HeadRoom is the only authorized

service center for HeadRoom products, either in or out of warranty. If a unit is under

warranty, there is no cost for the repair labor, parts, or shipping from HeadRoom

back to you (i.e., You’re responsible for paying the shipping charges to get the

product to us). For units out of warranty, repairs are billed on a time and parts

basis, plus shipping costs. When we receive the equipment, we will initiate repairs

quickly (usually within three working days) and return the unit to you, or call you with

an assessment of the problem.

Crossfeed

Source Inputs

Five-Year Product Warranty

Indice

Altri manuali HeadRoom Amplificatore

HeadRoom

HeadRoom Desktop & Ultra Desktop Amp Manuale utente

HeadRoom

HeadRoom Portable Desktop Amp Manuale utente

HeadRoom

HeadRoom headphone amplifier Manuale utente

HeadRoom

HeadRoom Headphone Amplifier & Digital-Analog... Manuale utente

HeadRoom

HeadRoom Balanced Ultra Desktop Amp Manuale utente

HeadRoom

HeadRoom Max Balanced Amp Manuale utente

HeadRoom

HeadRoom The Portable Micro Amp Manuale utente

HeadRoom

HeadRoom AirHead Manuale utente

HeadRoom

HeadRoom The Portable Micro Amp Manuale utente

HeadRoom

HeadRoom Wheatlield HA-1 Manuale utente

HeadRoom

HeadRoom Balanced Home Amp Manuale utente

HeadRoom

HeadRoom Max Amp Manuale utente

HeadRoom

HeadRoom Maxed Out Home HeadRoom Manuale utente

HeadRoom

HeadRoom Desktop & Ultra Desktop Amp Manuale utente

HeadRoom

HeadRoom Home Amp Manuale utente

HeadRoom

HeadRoom Desktop Portable Amp Manuale utente

HeadRoom

HeadRoom Max Manuale utente

HeadRoom

HeadRoom Max Balanced Amp Manuale utente

HeadRoom

HeadRoom Supreme Headphone Amplifier Manuale utente

HeadRoom

HeadRoom Total AirHead Manuale utente

HeadRoom

HeadRoom BitHead Manuale utente

HeadRoom

HeadRoom AirHead Manuale utente

HeadRoom

HeadRoom The Portable Micro Amp Manuale utente

HeadRoom

HeadRoom The Portable Micro Amp Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
