healing HDC6IRL HDMI Extender - 50m (164ft) single CATx UTP HDMI
Extender with Transmitter loop through and wideband IR control.
User manual VER:1.4l
Thank you for purchasing. For optimum performance and safety
please read these instructions carefully before connecting, operating
or adjusting this product. Keep this manual for future reference.
1. Introduction
This HDMI Single Cat5e/6 Extender with IR extends High Definition
video, audio and IR control to a distance of up to 50metres (or 164ft)
over a single Cat5e or Cat6 cable. Features include EDID
management, which facilitates source and display 'handshake' for
seamless integration. With only one cost effective Cat5e/6 cable,
devices with HDMI outputs can be connected to High Definition
displays over long distances, without signal processing delays or
latency. Deep Colour video, DTS-HD or Dolby TrueHD audio are
compatible with the extender. HD6IRL is also equipped with a
wideband Infra Red control extender, which allows the source device
to be controlled from the remote display, up to 50m away. One

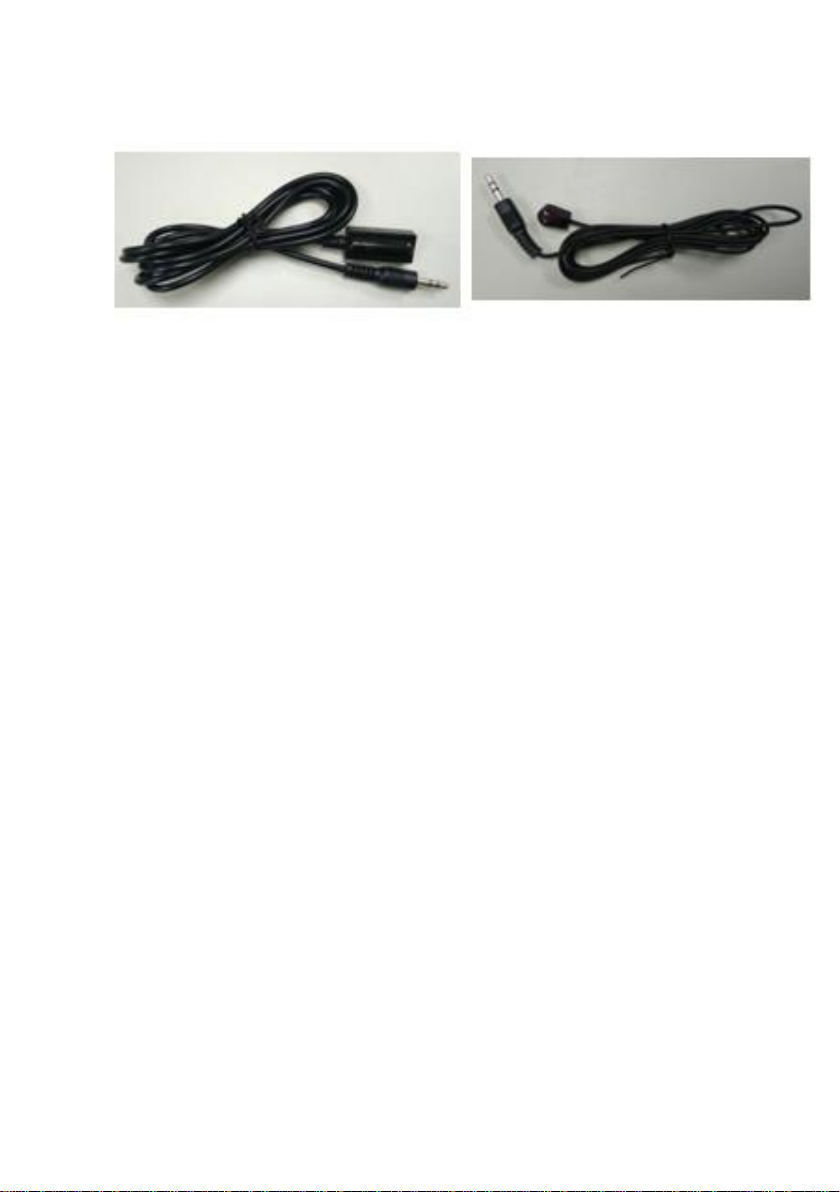

extender set includes Transmitter, Receiver IR Receiver, IR Blaster
and Power Supply. The transmitter processes the HDMI signal,
balancing it across the 4 pairs of the single CATx cable. IR commands
are simultaneously passed over the same cable from the Receiver to
the Transmitter. The Receiver reconstructs the HDMI signal from the
CATx cable, equalizes the level for cable length and makes the signal
ready for connection by HDMI to the remote display. The extender
provides a convenient long distance solution for HDMI extension over
a single Cat5e/6 cable, a perfect solution for PayTV or any HDMI
signal.
