MODEL 2500KL / MODEL 2600KL

DIGITAL WHEELCHAIR PATIENT SCALES

2500KL 2600KL

USER INSTRUCTIONS

P/N UM2500KL / 2600KL Revision 1

2500KL / 2600KL

Thank you for your purchase of this Health o meter® Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

CAUTION AND WARNING................................................................................................. 3

SPECIFICATIONS FOR THESE SCALES.......................................................................... 4

CERTIFICATIONS / CONNECTIVITY / DISPOSAL ............................................................ 5

ASSEMBLY INSTRUCTIONS 2500KL SCALE................................................................... 6

ASSEMBLY INSTRUCTIONS 2600KL SCALE................................................................... 12

SET UP / BATTERIES........................................................................................................ 16

QUICK START INSTRUCTIONS ........................................................................................ 18

MAINTENANCE.................................................................................................................. 22

CALIBRATION.................................................................................................................... 23

TROUBLESHOOTING........................................................................................................ 24

WARRANTY ....................................................................................................................... 25

Note: These scales have been factory calibrated, and do not

require calibration prior to use.

PLEASE REGISTER YOUR SCALE FOR WARRANTY COVERAGE AT:

http://www.homscales.com/customers/registration.aspx

FOR USER INSTRUCTIONS UPDATES AND REVISIONS, PLEASE GO TO :

http://www.homscales.com

CAUTION AND WARNING

•To prevent injury and damage to your scale, please follow these instructions very

carefully.

•Assemble and operate the scale per the enclosed User Instructions.

•Prior to using the scale, inspect the AC adapter cord for cracking/fraying,

or for broken/bent plug prongs.

•Prior to using the scale, ensure that the AC adapter is plugged into an

outlet with the rated voltage appropriate for operation.

•Ensure that the AC adapter outlet is wired to a circuit breaker or other

protected power source.

•Unplug the AC adapter, and store both the adapter and adapter cord on

the adapter holder before moving the scale.

•Ensure that the AC adapter and scale do not come in contact with

liquids, excessive temperature, or excessive humidity.

•Operating these scales at voltages and frequencies other than specified

can damage the equipment and will void the warranty.

•Do not transport the scale with any weight on the platform.

•For accurate weighing, the scale must be placed on a flat, stable

surface.

•For accurate weighing, verify before each use the proper operation

according to the procedure described in this manual.

•Do not use in the presence of flammable or explosive materials.

•For accurate weighing, if the “Lo bAtt” indicator activates, replace the

batteries or switch to the AC adapter as soon as possible.

SPECIFICATIONS FOR THESE SCALES

General

The Model 2500KL and 2600KL Digital Wheelchair Patient Scales use highly sophisticated

microprocessor technology. Each precision scale is designed to provide accurate, reliable, and

repeatable weight measurements. In addition, each scale is designed to provide the user with

features that make the weighing process simple, fast, and convenient.

These scales are set up to use motion-sensing weighing technology in order to determine the

actual weight of a moving patient.

Weight can be displayed in pounds or in kilograms. The scale features a 180°swivel display

head for privacy and for easy operator reading from either side of the scale. For easy mobility,

the 2500KL Scale has 2 built-in wheels, along with the 2600KL Scale with 4 built-in wheels.

Both scales can be powered using an AC Adapter (included), or by 6-AA batteries (not

included).

2500KL / 2600KL Specifications

Capacity and

Resolution 2500KL / 2600KL: 1000 lb x 0.2 lb (454 kg x 0.1 kg)

Power Requirements 120V-240V AC, 50-60Hz - 9V DC adapter or 6- AA batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Maximum Humidity: 85% rH, non-condensing

Physical Dimensions

2500KL

Platform - 2500 Series

Length: 29-¼” (74.3 cm)

Width: 28-¼” (71.8 cm)

Height: 2¼” (5.7 cm)

Assembled Size and Weight

Length: 36-¾” (93.3 cm)

Width: 40-¼” (102 cm)

Height: 49-7/16” (125.5 cm)

Weight: 79 lb (36 kg)

Physical Dimensions

2600KL

Platform - 2600 Series

Length: 36-¼” (92 cm)

Width: 32-3/8” (82.2 cm)

Height: 2¼” (5.7 cm)

Assembled with Handrail and Ramp

Length: 42-¾ ” (108.5 cm)

Width: 46-7/16” (118 cm)

Height: 49-7/16” (125.5 cm)

Weight: 110 lb (50 kg)

CERTIFICATIONS / CONNECTIVITY / DISPOSAL

Certification Descriptions

2500KL / 2600KL Scale Connectivity Information

To enable reliable transmission of weight, height, and BMI data, these scales are designed to

connect to a computer, monitor, or other electronic device via a built-in USB port. This

connectivity helps minimize a source of potential medical errors caused by incorrectly

copying and then recording patient data.

These scales are EMR-EHR compatible. For more information regarding how to connect

these scales to other electronic devices, please contact Health o meter® Professional Scale

Technical Support, available during normal business hours at (+1) 800-815-6615 or (+1) 708-

377-0600.

2500KL / 2600KL Scale Disposal

These Health o meter® Professional Scales must be disposed of properly as electronic

waste. Follow the national, regional or local regulations which apply to you for disposal of

electronic waste or batteries. Do not dispose of this device in the domestic waste stream.

Pelstar, LLC has been officially certified as the manufacture of

Health o meter® Professional medical devices. The Pelstar, LLC

quality assurance system covers the development, production,

sales and service of medical scales and measuring systems.

This product is tested to and meets the requirements of:

1. UL60601-1 First Edition: Safety for Medical Electrical Equipment

2. CSA C22.2 No. 601-1 M90: Medical Electrical Equipment

2500KL ASSEMBLY INSTRUCTIONS

Before Assembly (2500KL Scale)

The 2500KL Wheelchair Patient Digital Scale is shipped disassembled in one carton. Carefully

inspect the carton for shipping damage before unpacking. If damage is found, contact your

shipper or Health o meter® Professional representative immediately. Claims must be filed with

the shipper as soon as possible after receipt of the package. The following information details

what you will find inside the main carton as you unpack the parts for assembly.

To prevent scratching any components, carefully remove each assembly from the carton and

unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale

parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open

the protective inner packaging.

Parts List

(1) Base (Platform) Assembly The Small, Long Box Contains:

(1) Handrail (1) Box Containing the AC Adapter

(1) User Instructions (4) Feet

(1) Box Containing: (1) Adapter Holder

(1) Display Assembly (1) 5mm Allen Wrench

(1) Small, Long Box (1) Plastic Bag Containing:

(2) Covers for Display Support (Front & Back)

(2) Pivot Bracket Screw Covers (Left & Right)

Hardware for Assembly (see Figure 1)

Tools required: Phillips head screwdrivers (not included), Allen wrench (included).

Figure 1

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Assembling the 2500KL Scale (see Figures 2-5)

Caution: It is recommended that the assembly be performed by two persons.

1. Place scale base assembly on a flat, level, and dry floor.

2. Locate and pick up the handrail, and then find the load cell cable tucked inside.

3. Untie the load cell cable, and carefully pull the load cell cable end out the handrail bottom.

4. Position the handrail over the handrail mounting holes, located at the edge of the scale

base assembly (see Figure 2).

5. Feed the cable through the large center hole of the handrail mounting holes (located on the

right side of the “Health o meter” logo). Be sure not to pinch the cable.

6. Fasten the handrail to the base assembly using the eight (8) M8 1.25 x ¾ screws (Screw

“A” from Figure 1), eight (8) M8 washers (D), and the included 5mm Allen wrench.

Caution: Do not over-tighten the screws.

7. Pull forward on the handrail to tip the scale over, and gently place it face down on the floor.

Caution: Take care to hold the ramp down when moving the scale-the ramp can flip

open when the scale is tipped forward.

8. Grasp the load cell cable protruding from the bottom of the base assembly and feed it

through the protective metal shield. Plug the cable end into the load cell port (see Figure 3).

9. Pull the excess cable through the top of the handrail.

10. Thread the 4 feet into the underside of the base assembly. Each foot should initially be

completely hand tightened, and then backed out 1-½ full turns. This will allow for proper load

cell operation and scale accuracy (see Figure 4).

11. Carefully tilt the scale back to an upright position on the floor.

Caution: Take care to hold the ramp down when moving the scale-the ramp can flip

open when the scale is tipped back.

Warning: Do not drop the scale on its feet. This can result in permanent load cell

damage.

12. Adjust the feet to level the scale. Be certain that the feet are not completely tightened

into the base assembly (refer to the scale base-feet assembly instruction above).

13. Rotate the display support so that it is perpendicular to the handrail (see Figure 5). Then

position the display assembly close to the display support. Plug the load cell cable connector

into the load cell port on the rear of the display assembly. The port is labeled “LOAD CELL”.

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Note: Do not attach the AC adapter power cord into the back of the display assembly at this

point.

14. Align the four mounting holes on the back of the display assembly with the four mounting

holes in the display support, and fasten the display assembly onto the metal display support.

Use the (4) Phillips pan head M4 screws (Screw “C” in Figure 1).

15. Place the pivot bracket screw covers over the pivot screws, and fasten the covers to the

back of the display assembly using the (4) Phillips pan head M4 screws (Screw “C”, Fig. 1).

16. Attach the adapter holder to the left side of the handrail using the two (2) #8 x ½ sheet

metal screws (Screw “B” in Figure 1).

17. Connect the AC adapter to the power port, located on the back of the display assembly.

Caution: Do not plug the scale into a power source until the scale is fully assembled.

18. Rotate the display to align it parallel to the handrail. Attach the front and rear display

support covers by applying light pressure while snapping the covers into place.

19. The scale is now assembled. Plug the AC adapter into a power source and/or insert the

batteries.

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Ramp Assembly Instructions

1. Follow these instructions for moving the ramp to the opposite side of the scale, or for

adding a second ramp to the scale (B2500RAMP option):

2. On the side of the platform opposite to the ramp, remove the guardrail mounted to the

end of the platform by unscrewing and then removing the 4 guardrail assembly screws.

3. Fold the ramp onto the platform surface.

4. Remove the screws attaching the 2 rubber bumpers, located on the side of the platform

(see Ramp Assembly Figure below).

5. Remove the bumpers, and re-install them on the opposite side of the platform. Use the

appropriate mounting holes (see Ramp Assembly Figure below).

6. Loosen the screws holding each ramp holder to the platform.

7. Remove the ramp from the ramp holders, and then remove the ramp holders by pulling

out on them slightly.

8. Install the ramp holders at the opposite side of the platform, but do not tighten the

screws.

9. Insert the ramp between the ramp holders, and tighten the assembly screws.

10. Install the guardrail on the opposite side of the platform.

Note: It is necessary to make small clearance holes in the mat in order to re-install the

guardrail assembly screws (the mounting holes are located beneath the mat). Use an awl

or small Phillips screwdriver to make the holes. Use the guardrail as a guide to locate the

two holes beneath the mat.

Note: A second ramp is available separately as B2500RAMP.

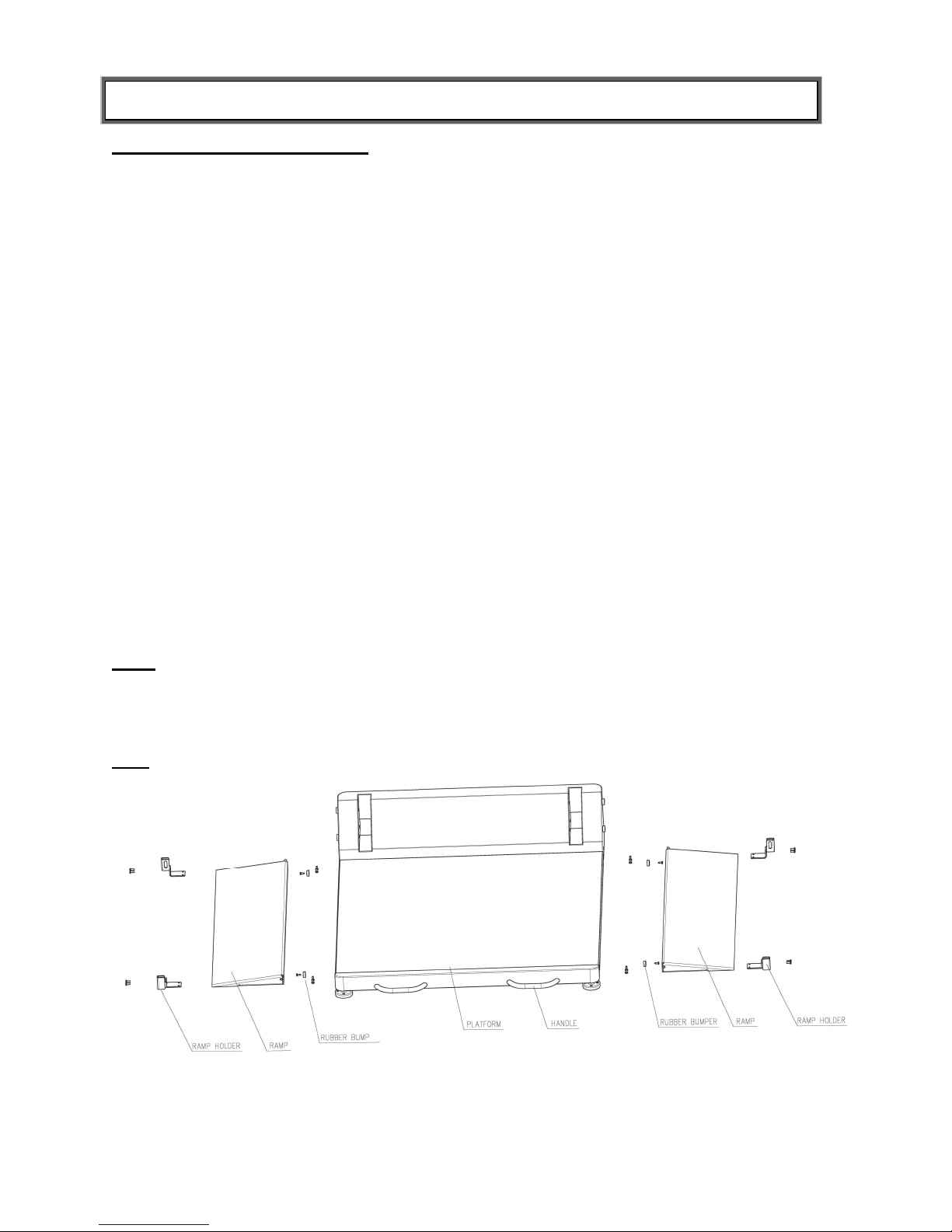

Ramp Assembly Figure

2500KL ASSEMBLY INSTRUCTIONS (CONTINUED)

Figure 2

Figure 3

Handrail Mounting Holes

Left

Right

d cell port

Shield

Altri manuali per 2500KL

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Health O Meter Scala

Health O Meter

Health O Meter 500KL Manuale utente

Health O Meter

Health O Meter PROPLUS 1100KL Manuale utente

Health O Meter

Health O Meter Digital Scale Manuale utente

Health O Meter

Health O Meter 3001KL-AM Manuale utente

Health O Meter

Health O Meter 553KL Manuale utente

Health O Meter

Health O Meter 499KLHR Manuale utente

Health O Meter

Health O Meter 8320KL Manuale utente

Health O Meter

Health O Meter PROPLUS 4024 Manuale utente

Health O Meter

Health O Meter Healthometer BFM980 Manuale utente

Health O Meter

Health O Meter Professional Digital Scale Wireless USB... Manuale utente

Health O Meter

Health O Meter 2595KL Guida all'installazione

Health O Meter

Health O Meter BFM147-01 Manuale utente

Health O Meter

Health O Meter PROPLUS 1100KL Manuale utente

Health O Meter

Health O Meter 499KL Manuale utente

Health O Meter

Health O Meter RV-522KL Manuale utente

Health O Meter

Health O Meter 2595KL Manuale utente

Health O Meter

Health O Meter 1101KL Manuale utente

Health O Meter

Health O Meter HAB917 Manuale utente

Health O Meter

Health O Meter 600KL-BT Manuale utente

Health O Meter

Health O Meter BFM580 Manuale utente

Health O Meter

Health O Meter 2500CKL Manuale utente

Health O Meter

Health O Meter 2210CART Manuale utente

Health O Meter

Health O Meter HAB981 Manuale utente

Health O Meter

Health O Meter HDM169-60 Manuale utente

Manuali Scala popolari di altre marche

AWS

AWS ZEO-50 Manuale utente

Gima

Gima Glass Body Fat Analyzer Manuale elenco delle parti

Seca

Seca 374 Manuale utente

TEC

TEC TEC SL59 SERIES Manuale utente

Axis

Axis B/E Series Manuale utente

Alecto

Alecto ACW-40 Manuale utente

Rice Lake

Rice Lake MSI-4260 IS Manuale utente

IKA

IKA RCT basic safety control Manuale utente

ADE

ADE M20011 Manuale utente

Duronic

Duronic KS3000 Manuale utente

Digi

Digi SM-720 Manuale utente

Cardinal

Cardinal CS Series Manuale utente

Korona

Korona Kastella Manuale utente

A&D

A&D FC-50Ki Manuale utente

BDA

BDA CAMARGUE Manuale utente

Tanita

Tanita HD-357 Manuale utente

Leifheit

Leifheit 03173 Manuale utente

Lumme

Lumme LU-1340 Manuale utente
