Hearth Sense ADI10 Manuale utente

CAUTION FORYOUR SAFETY

VENT-FREE FIREPLACE INSERT

MODEL: ADI10

HS-ADI10-600-0805

WARNING: This appliance is

equipped for(Natural and Propane)

gas. Field conversionis not

permitted other than betweennatural

orpropane gases.

Questions about installation, operation,or troubleshooting?Before returning toyour retailer, contact our customer

service department at 1-877-886-5989, 8:00 a.m.- 4:30p.m., EST, Monday-Friday or e-mail

customerservice@usaprocom.com

Do not store or usegasolineor otherflammable vapors and liquids in vicinity of

this orany other appliance.

WHAT TO DO IF YOUSMELL GAS

·Donottry tolight any appliance.

·Donottouch any electrical switch; do notuse any phone inyourbuilding.

·Immediately call your gas supplier from a neighbor’s phone. Follow thegas

supplier’sinstructions.

·Ifyou cannotreach yourgas supplier, call the fire department.

Installation andservicemust be performed by a qualified installer,service agency

orthe gassupplier.

INSTALLER: DO NO DISCARD THIS MANUAL LEAVE FOR HOMEOWNER’S FUTURE

REFERENCE

WARNING: IFTHE INFORMATION IN THIS MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL

INJURY, OR LOSS OF LIFE.

This is an unventedgas-fired heater.Ituses air (oxygen)from the room in whichit is

installed. Provisions for adequate combustion andventilation air must be provided.

Referto Air ForCombustion andVentilation section on page 7 ofthis manual.

This appliance may be installed inan aftermarket, permanently locatedmanufactured

(mobile)home, where notprohibitedby local codes. This appliance is for use withthe

type of gas indicated on the rating plate only. This appliance isnotconvertible for use

withother gases.

TABLE OF CONTENTS

Important Safety Information..........................................................................................................................3

Air ForCombustion and Ventilation...............................................................................................................7

Installation....................................................................................................................................................10

Operating.....................................................................................................................................................17

Cleaning &Maintenance..............................................................................................................................19

Troubleshooting...........................................................................................................................................20

ReplacementParts......................................................................................................................................23

WARNING: READTHE INSTALLATION& OPERATION INSTRUCTIONS

BEFORE USING THIS APPLIANCE

IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow

these instructions may result in a possible fire hazard and will void the warranty.

PRODUCTSPECIFICATIONS

MODEL NO. ADI10

Input Rating 10,000 BTU/Hr 10,000 BTU/Hr

Gas Type NaturalLP/Propane

IgnitionElectronic Piezo ElectronicPiezo

Manifold Pressure4 in. W.C. 9in. W.C.

Inlet Gas Pressure(*For purposes of input adjustment)

Maximum 10.5 in. 14 in.

Minimum*5 in. 11 in.

Dimensions, inches (H x W x D)

Heater27.7 in. x 16 in.x 11.7in.

Carton29.6 in. X 18.3 in. X13.5 in.

Weight, lbs

Stove 77

Shipping86

IMPORTANTSAFETY INFORMATION

IMPORTANT: Read this owner’s manual carefully andcompletely before trying to assemble, operate,

or service this heater.Improperuse ofthis heater can cause serious injuryor death from burns,fire,

explosion, electrical shock, and carbon monoxide poisoning.

Onlya qualified installer, service agent, or local gas supplier may installand service andservice this

product.

WARNING: Do not store or use gasoline or other flammable vapors or liquids in the vicinity ofthis

or any other appliance.

CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning resemble the flu with

headaches, dizziness, ornausea. If you have these signs, the heater maynot be working properly. Get fresh

air immediately!Have heaterserviced. Some people are more affected by carbon monoxide than

others.These include pregnant women,people withheart,orlung disease,people who are anemic, those

under the influence of alcohol, and those living in high altitudes.

NATURAL AND PROPANE/LP GAS: Naturaland Propane/LP gases are odorless. An odor-making agentis

added to the gas.The odorhelps you detect a gas leak. However, the odor added to the gas can fade.Gas

may be present even though no odor exists. Make certain you read and understand all warnings. Keep this

manual forreference. It is your guide to operation of this heater.

Make certain you read and understand allwarnings. Keep thismanualfor reference. It is your guide to safe

and proper operation of this heater safely.

WARNING: Any change to thisfireplace or its controls can be dangerous.

WARNING: Do notallowfans to blow directly into the heater.Avoid any drafts that alter burner flame

patterns including ceiling fans.Altered burnerpatterns can cause sooting.

WARNING: Do notuse a blower insert, heat exchanger insert, orother accessory notapproved foruse

with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects in the

heater. Heater becomes very hot when running. Keep children and adults away from hotsurfaces to avoid

burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surfaces to cool before

touching. Carefully supervise young childrenwhentheyare in the roomwith heater.

You must operate this heater with the heater screen in place. Make sure heaterscreen is in place before

runningheater.

Keep the heater area clear and free from combustible materials,gasoline,and other flammable vaporsand

liquids.

1.Do not place Propane/LPsupply tank(s) inside anystructure.Place Propane/LP supply tank(s)outdoors.

2.Thisheater should not be installed ina bedroom or bathroom.

3.Do not use this heater as awood-burning heater. Use only the logs provided with the heater.

4.Do not add extra logs or ornaments such as pine cones,vermiculite, orrock wool. Using these added items

can cause sooting. Do not add lava rock around base. Rock and debris couldfall into the control area of

heater. After servicing, always replace screen before operating heater.

5.Make sure the heater screen is in place before running the heater.

6.Thisheater is designed to be smokeless. If logs everappear to smoke, turn offheaterand callaqualified

serviceperson. Note: During initial operation,slight smoking could occur due to log curing and the heater

burning manufacturing residues.

7.To prevent the creation ofsoot,follow the instructions in Cleaningand Maintenance (page 19).

8.Before using furniturepolish,wax, carpet cleaner,or similar products, turn heater off. Ifheated,the vapors

fromthese products maycreate a white powderresidue within burner box or on adjacent wallsor furniture.

9.Thisheater needs fresh air ventilation to run properly. This heaterhas an Oxygen Depletion Sensing (ODS)

safetyshutoff system.The ODSshuts down the heater if not enough fresh air is available.See Airfor

Combustion and Ventilation,pages 7 through 9.If heater keeps shutting off, see Troubleshooting, pages20

through 22.

10. Do not run heater:

lWhereflammable liquids orvapors are used orstored.

lUnder dusty conditions.

11. Do not use this heater to cook food or burn paper or otherobjects.

12. Do not use this heater if any parthas been underwater.Immediately calla qualified service technician to

inspect the room heaterand replace anypart of the control system and any gascontrol which has been

underwater.

13. Turnoff and unplug heater and let coolbefore servicing. Only a qualifiedservice person should service and

repair heater.

14. Operating heater above elevations of 4,500 feetcould cause pilotoutage.

15. Do not operate heater if any log is broken. Do notoperate heater if any log is chipped (dime-sized or larger).

16. To prevent performance problems,do notuse a propane/LP fuel tank of less than 100 lbs capacity.

QUALIFIED INSTALLING AGENCY

Installation and replacement ofgas piping, gas utilization equipment oraccessories and repair and

servicing of equipment shall be performed only by a qualified agency.The term “qualified agency”means

any individual, firm, corporation,or company that either in person or through a representative is engaged

in and is responsible for:

a) installing, testing, or replacing gaspiping or

b) Connection, installing,testing, repairing, or servicing equipment; thatis experienced in such work;that is

familiar with all precautions required; and thathas complied with all the requirement ofthe authority

having jurisdiction.

PRODUCTFEATURES

SAFETY PILOT

This heaterhas a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilotis

arequired feature for vent-free room heaters. The ODS/pilotshuts offthe heater if there is not enough

fresh air.

DUALFUEL CAPABLE

Your Fireplaceis equipped to operate on eitherPropane or Natural gas. The fireplace is shipped fromthe

factory ready for Propane connection. The fireplace can easily be changed to Natural gasby having your

qualified installerfollowthe instructions on page 14 and the markings on the fireplace.

State of Massachusetts: The installationmustbe made by a licensed plumber orgas fitter inthe

Commonwealth of Massachusetts. Sellers of unvented propane ornatural gas-fired supplemental room

heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

In the State ofMassachusetts, unvented propane ornatural gas-fired space heaters shall be prohibited in

bedrooms and bathrooms.

LOCAL CODES

Install and use heater withcare.Follow all local codes. Inthe absenceof local codes, use the latest

edition of the nation al fuel gas code, ANSI Z 223.1, also known as NFPA 54*.

*Available from:

American National Standardslnstitute, lnc.

1430 Broadway

New York, NY10018

National Fire Protection Association, lnc.

1Batterymarch Park

Quincy, MA02269

This heater is designed for vent-free operation. State and localcodes insome areas prohibitthe use of

vent-free heaters.

In the State ofMassachusetts the gas cock must be a T-handle type. The State of Massachusetts

requires that a flexible appliance connector cannot exceed three feet in length.

UNPACKING

1.Removetop innerpack.

2.Tilt carton so that heater is upright.

3.Removeprotective side packaging.

4.Slide heaterout of carton.

5.Removeprotective plastic wrap.

6.Hold the screen lift and pull forward.

7.Removelog setby cutting plastic ties.

8.Carefully unwrap log.

9.Check for any shipping damage.If heater or logs are damaged, promptly inform dealer where you bought

heater.

PRODUCT IDENTIFICATION

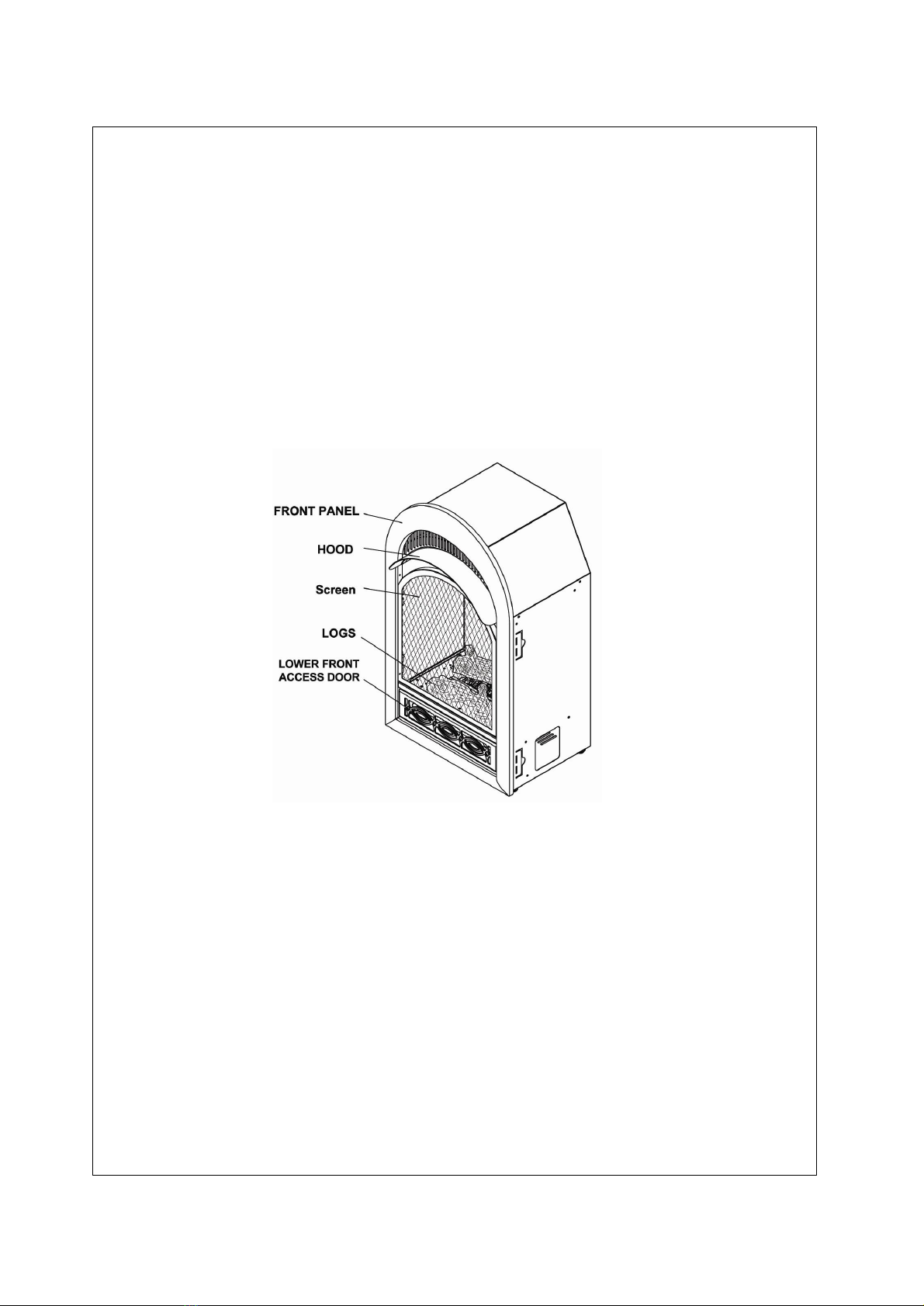

Figure 1 Vent Free LP/NG Gas Fireplace

WATERVAPOR: A BY-PRODUCT OFUNVENTEDROOM HEATERS

Water vaporisa by-product of gas combustion. An unvented room heater produces approximately one (1)

ounce (30ml)of water forevery1,000 BTU’s(.3KW’s) of gas input per hour.

Unvented room heaters are recommended as a supplementalheater (for a room),rather than a primary

heat source (for an entire house). In most supplemental heat applications, the water vapor does not create

aproblem. In most applications,the watervapor enhances the lowhumidity atmosphere experienced during

cold weather. The following steps will help insure that water vapor does notbecome a problem.

1.Be sure the heater is sized properly for the application,including adequate combustion airand

circulation air.

2.Ifthere is high humidity, the dehumidifier may be used to help lowerthe water vaporcontent ofthe air.

3. Do not use an unvented room heater as the primaryheat source.

AIR FORCOMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction

unless provisions are provided foradequate combustion and ventilation air.Read the following

instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

PRODUCING ADEQUATEVENTILATION

The following are excerpts from National FuelGas Code, NFPA54/ ANSI Z 223.1,Section 5.3, Airfor

Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1.Unusually Tight Construction

2.Unconfined Space

3.Confined Space

The informationon pages 7 through 9 will help youclassify your space and provide adequate ventilation.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1 defines a confined space as a space whose volume is less than 50

cubic feetper 1,000 BTU per hour(4.8 cubic meters per kw) ofthe aggregate input rating ofall appliances

installed in that space and an unconfining space as a space whose volume is not less than 50 cubic feet per

1,000 BTU per hour (4.8 cubic meters per kw) ofthe aggregate input rating ofall appliances installed in that

space. Roomscommunicating directly with the space in which the appliances are installed*,through openings

not furnished with doors, are considered a part of the unconfined space.

This heatershallnot be installed ina confined space or unusually tight construction unless provisions are

provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorlesspassageways or ventilation grills

between them.

Unusually Tight Construction

The air that leaks around doorsand windowsmay provide enough fresh air for combustion and ventilation.

However, in buildingsof unusually tight construction,you must provide additional fresh air.

Unusually tightconstruction is defined as constructionwhere:

a) walls and ceilings exposed to the outside atmosphere have a continuous water vaporretarder with a

rating of one perm (6×10-11kg perpa-sec-m2) or less with openings gasketed orsealed and

b) weather stripping has been added on windows that can be opened and on doors and

c) caulking orsealants are applied to areas such as jointsaround window and door frames, between sole

plates and floors, between wall-ceiling joints, between wall panels, atpenetrations for plumbing,electrical,

and gas lines, and at other openings.

If yourhome meets all of the three criteria above, you mustprovide additional fresh air.See Ventilation Air

From Outdoors(page 9).Ifyour home does not meet all of the three criteria above, proceed to Determining

Fresh-AirFlow For Heater Location:

DETERMININGFRESH-AIR FLOW FOR HEATERLOCATION

Determining ifYou Have aConfined or Unconfined Space

Use this worksheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heaterplus any adjoining rooms with doorless

passageways or ventilation grillsbetween the rooms.

1.Determine the volumeofthe space Length ×Width ×Height=cu.ft. (volume of space)

Example: Space size 20 ft.(length) ×16 ft.(width) ×8 ft. (ceiling height)= 2560 cu.ft.(volumeof

space)

If additionalventilation to adjoining room is suppliedwith grills oropenings, add the volume of these rooms

to the total volume of the space.

2.Divide the space volume by 50 cubic feet to determine the maximum BTU/hr the space can support.

(volume of space) ÷50 cu. ft. = (Maximum BTU/hr the space can support)

Example: 2560 cu.ft. (volume of space) ÷50 cu.ft.= 51.2 or51,200(maximum BTU/hrthe space can support)

Add the BTU/hr of allfuel burning appliances in the space.

Vent-free heater BTU/hr

Gas water heater*BTU/hr

Gas furnace BTU/hr Example:

Vented gas heaterBTU/hr Gas water heater 30,000 BTU/hr

Gas heaterlogs BTU/hr Vent-free heater + 26,000 BTU/hr

Othergas appliances* + BTU/hr Total = 56,000 BTU/hr

Total =________________BTU/hr

*Do not include direct-vent gas appliances. Direct-vent draws combustion airfrom the outdoorsand vents to

the outdoors.

4.Compare the maximum BTU/hr that the space can supportwiththe actual amount of BTU/hr used.

BTU/hr (maximumthe space can support)

BTU/hr (actual amount of Btu/Hrused)

Example: 51,200 BTU/hr(maximumthe space can support)

56,000 BTU/hr(actual amount of Btu/Hr used)

The space in the above example is a confined space because the actual BTU/hr used ismore than the

maximum BTU/hr the space can support. You must provide additionalfresh air. Your options are as follows:

a) Reworkworksheet, adding the space of an adjoining room. Ifthe extra space provides an unconfined

space, remove door to adjoining roomor add ventilation grills between rooms.See “Ventilation Airfrom

Outdoors,”page 9.

b) Vent room directlyto the outdoors. See “Ventilation Air from Outdoors,”page 9.

c) Installa lowerBTU/hr heater, iflowerBTU/hrsize makes room unconfined. Ifthe actual BTU/hr used is

lessthan the maximum BTU/hr the space can support, the space is an unconfined space. You willneed

no additional fresh air ventilation.

WARNING: If the area in which the heater may be operated is smallerthan that defined as an unconfined

space or if the building is of unusually tightconstruction, provide adequate combustionand ventilationair by

one of the methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54,Air forCombustion and

Ventilation, or applicable localcodes.”

Ventilation Air From lnsideBuilding

This fresh air would come from an adjoining

Unconfined space. When ventilating to an

adjoining unconfined space,you mustprovide

two permanentopenings: one within 12" of the

ceiling and one within12" ofthe flooron the

wall connectingthe two spaces (see options 1

and 2, Figure 2). You can also remove door

into adjoining room (see option 3, Figure 2).

Follow the National Fuel Gas Code. NFPA54/

ANSI Z223.1. Air for Combustion and

Ventilation for requiredsize of ventilation

grills orducts.

Ventilation Air From Outdoors

Provide extra fresh airby using ventilation grills

or ducts. You must provide two permanent

openings: one within 12" of the ceiling and one

within 12" ofthe floor.Connect these items

directlyto the outdoors or spacesopen to the

outdoors.These spaces include attics and

crawl spaces. Follow the NationalFuelGas

Code,NFPA 54/ ANSI Z223.1, Section 5.3, Air

forCombustion and Ventilation for required

size of ventilation grills or ducts.

IMPORTANT: Do not provide openings for

inlet oroutlet air into attic if attic has a

thermostat-controlled power vent. Heated

air entering the attic will activate the power

vent. Rework worksheet, adding the space

ofthe Adjoining unconfinedspace. The

combined spaces must have enough fresh

air to supply all appliances in both spaces.

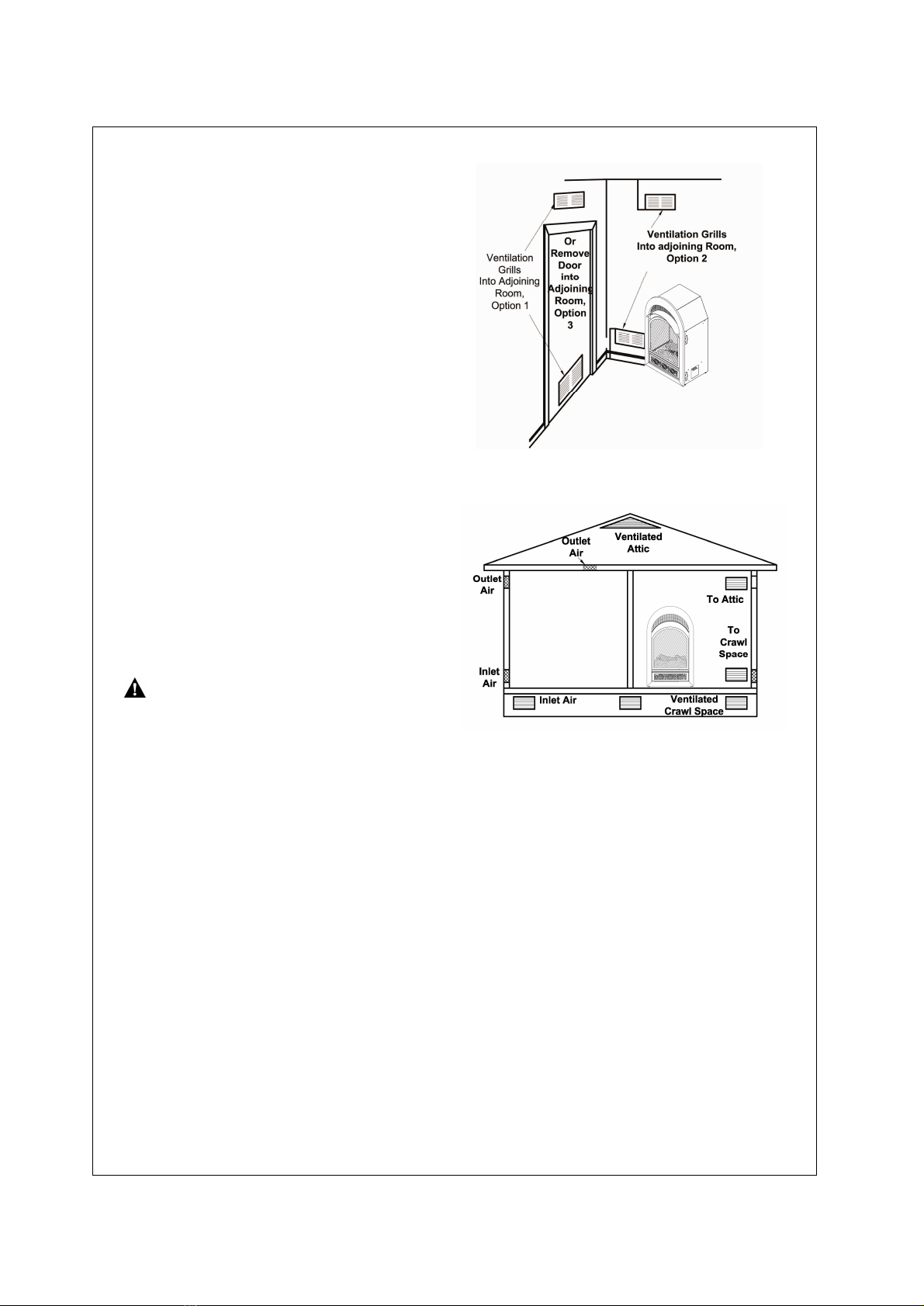

Figure 3 Ventilation Air from Outdoors

Figure 2 Ventilation Air from inside

INSTALLATION

NOTICE: This heaterisintended for use as supplementalheat.Use this heater along with your primary

heatingsystem. Do not install thisheater asyour primary heat source. Ifyou have a centralheating

system, you may run system's circulating blower while using the heater. This willhelp circulate the heat

throughout the house.

WARNING: A qualified technician person must installthe heater.Follow all local codes.

WARNING: Neverinstallthe heater.

·in a bedroom or bathroom

·in a recreational vehicle

·where curtains, furniture,clothing, or otherflammable objects are less than 42 inches

fromthe front,top,or sides of the heater

·in high traffic areas

·in windy or drafty areas

CAUTION: Thisheater creates warm air currents. These currents move heatto wall surfaces next to

heater. Installing heater nextto vinyl or cloth wallcoverings or operating heaterwhere impurities(such as

tobacco smoke, aromaticcandles, cleaningfluids, oilor kerosene lamps,etc.) in the air exist, may discolor

walls.

WARNING: Maintainthe minimum clearances. Ifyou can, provide greater clearances from floor, ceiling,and

adjoining side and back walls.

IMPORTANT: Vent-free heaters add moisture to the air. Although thisis beneficial, installing heater in rooms

withoutenough ventilation air may cause mildew to form from too much moisture.See Air forCombustion and

Ventilation, pages 7 through 9.

CHECK GASTYPE

Use only the type ofgas indicated on the plate.Ifyour gas supply cannot meetthat requirement, do not install

heater.

CLEARANCESTO COMBUSTIBLES

Carefully follow the instructions below.This fireplace is a freestanding unit designed to setdirectly on the floor

or on a mantel base.

NOTE: When heater is installed directly on carpeting, tile orother combustible material, other than wood

flooring,the heater must be installed on a metal or wood panelextendingthe full width and depth ofthe heater.

IMPORTANT: You must maintain minimumwall and ceiling clearancesduring installation. The minimum

clearances are shown in Figure 4, page 10.Measure fromoutermostpointoffireplace.

Minimum Wall and Ceiling Clearances

(see Figure 4)

A.Clearances from outermost point of fireplace

to any combustible side wallshould not be less

than 8 inches.

B.Clearances from the fireplace to the ceiling

should notbe less than 28 inches.

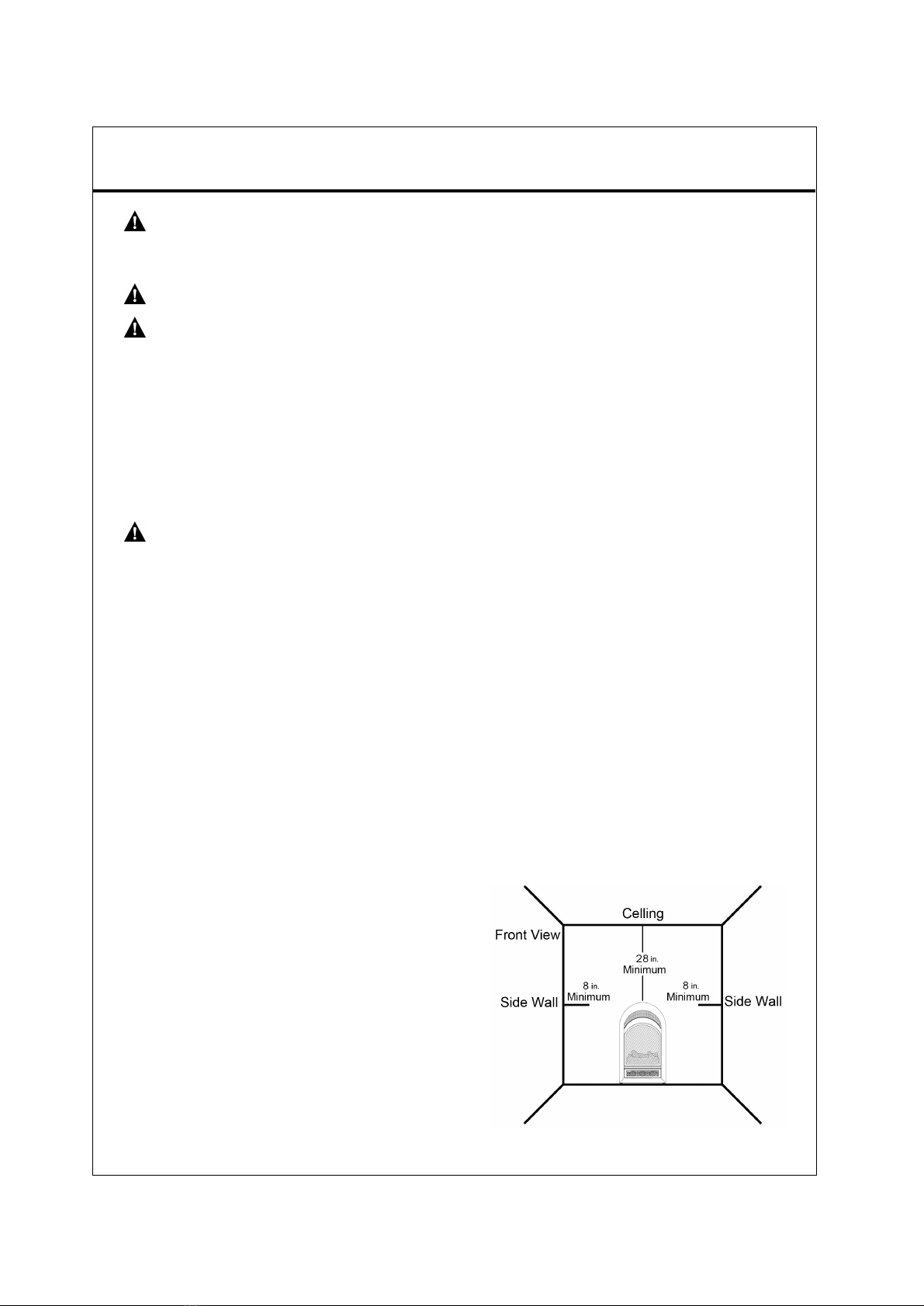

Figure 4 Minimum Clearance to Wall and Ceiling

Indice

Altri manuali Hearth Sense Accessori per caminetti

Hearth Sense

Hearth Sense AMF-CC/LM Manuale utente

Manuali Accessori per caminetti popolari di altre marche

Valor

Valor L2 1700K Manuale utente

Exodraft

Exodraft Xzense Manuale utente

Whalen

Whalen Ruso MNFP62BF23-6 Manuale utente

Lopi

Lopi Hearthview 864 Manuale utente

Woodstock Soapstone

Woodstock Soapstone Fireview 201 Manuale utente

EdilKamin

EdilKamin SERBATOIO 250 Guida rapida

Bronpi

Bronpi KIT-1 Manuale utente

Town & Country Fireplaces

Town & Country Fireplaces 22150051 Manuale utente

Travis Industries

Travis Industries 33 DVI Manuale utente

Superior

Superior ASD3628-TI Manuale utente

pleasant hearth

pleasant hearth OFP28WG Manuale utente

IHP

IHP Astria Series Manuale utente

Firegear

Firegear FG-H-2110SS Manuale utente

Nibe

Nibe Contura C i31 Manuale utente

kozy heat

kozy heat KZK-052 Manuale utente

SimpliFire

SimpliFire SF-WM36 Manuale utente

Bluegrass Living

Bluegrass Living BC18NR Guida rapida

pleasant hearth

pleasant hearth IRIS SCROLL Manuale utente
