HHeat & Glo • FS, IA, CHAF Decorative Front Installation Instructions • 2558-968 • 11/20

Firescreen, Iron Age, Chateau Forge Decorative Fronts for CERONA-IFT

Models: FS-C36, FS-C42, IA-C36, IA-C42, CHAF-C36, CHAF-C42

Installation Instructions

Leave this manual with party responsible for use

and operation.

CAUTION! Risk of Cuts, Abrasions or Flying Debris.

Wear protective gloves and safety glasses during instal-

lation. Sheet metal edges are sharp.

DANGER

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

A barrier designed to reduce the risk of

burns from the hot viewing glass is provided

with this appliance and shall be installed for

the protection of children and other at-risk

individuals.

CAUTION! Do not install damaged components.

Installation

1. Remove decorative front from packaging.

2. The J-hooks are bent inward for protection during

shipping. Bend the J-hooks outward 90° so they

are positioned parallel to the sides of the front. See

Figure 1. Figure 1 Bending J-Hooks

3 Remove the Finishing Templates (if installed) from

the appliance. The nishing templates are included

with the appliance to ensure nishing material does

not prevent proper tment of the front.

4. Locate the two vertical slots in the left and right

columns of the appliance. Grasp the top left and right

side of the front and engage the J-hooks into the

slots. See Figure 2.

2Heat & Glo • FS, IA, CHAF Decorative Front Installation Instructions • 2558-968 • 11/20

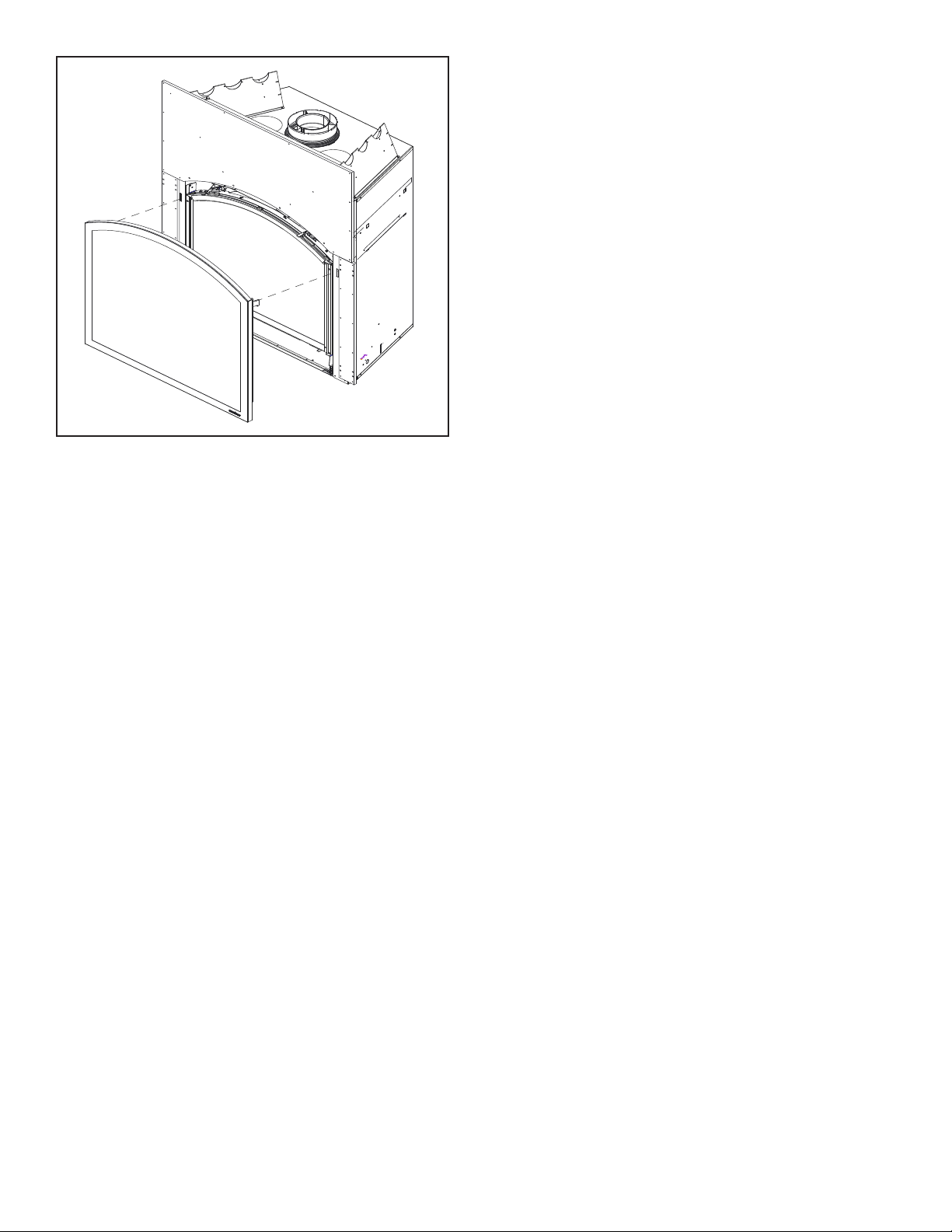

Figure 2 Front Installation

Use a microber cloth and Windex®Original Glass Clean-

er or 36M003 Stove Bright® Glass Cleaner to clean the

door immediately after installation to remove acids de-

posited by the installer or technician. Spray the cleaner

onto the microber cloth and carefully wipe the entire

surface. The door should be cleaned in this manner an-

nually by the homeowner to remove ngerprints or other

contaminants. Once oxidations of the paint pigment has

occurred, cleaning will not restore the original color.

Cleaning Instructions for Doors

Please contact your Heat & Glo dealer with any

questions or concerns.

For the location of your nearest Hearth & Home

Technologies dealer,

please visit www.heatnglo.com.

Hearth & Home Technologies

7571 215th Street West, Lakeville, MN 55044

www.heatnglo.com
