INSTALLATION AND OPERATION INSTRUCTIONS

THIS PRODUCT MAY BE COVERED BY ONE OR MORE OF THE FOLLOWING PATENTS:

(United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495,

5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165,

6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940,

6748942, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408; (Australia) 543790;586383; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and

foreign patents pending.

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06

IMPORTANT: Read all instructions carefully before starting installation.

Failure to follow these installation instructions may result in a possible

fire hazard and will void the warranty. Save this manual for future refer-

ence.

MODEL 6000TRSI-AUC

IS AUSTRALIAN GAS ASSOCIATION

APPROVED FOR NATURAL GAS OR

PROPANE AS A BALANCED FLUE HEATER.

Refer to the appliance data plates for gas con-

sumptions and pressures.

Installation of this appliance should only be car-

ried out by an authorized person in accordance

with the manufacturers instructions. All relevant

codes and regulations laid down by the gas fitting

authorities, municipal building regulations, electri-

cal wiring regulations, and the requirements of the

AGA Gas Installation Code must be observed.

This appliance and its components are tested and

safe when installed in accordance with this Instal-

lationManual.Reporttoyourdealeranypartsdam-

aged in shipment, specifically check glass condi-

tion. The gas logs and flue system components

arein separate packages.Readall instructions be-

PLEASE READ THIS MANUAL BEFORE INSTALLINGAND

USING THISAPPLIANCE.

fore starting installation and follow these instruc-

tions carefully during installation to ensure maxi-

mum benefit and safety. Failure to follow them will

void your warranty and may present a fire hazard.

The Heat & Glo warranty will be voided by, and

Heat & Glo disclaims any responsibility for the fol-

lowing actions:

• Installationofanydamagedheaterorfluesys-

tem component

• Modification of the heater or balanced flue

system installation other than as instructed by

Heat & Glo.

• Improper positioning of the gas logs or the

glass door

• Installation and/or use of any component part

not manufactured or approved by Heat & Glo,

not withstanding any independent testing

laboratory or other party approval of such

component part or accessory.

Heat & Glo, a brand of Hearth & Home Technologies, Inc.

20802 Kensington Blvd., Lakeville, MN 55044, USA

Heat & Glo Quality Systems

registered by SGS ICS

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06

TABLE OF CONTENTS

1.0 INSTALLATION INSTRUCTIONS. .................................................................... 4

A. Locating the Heater .................................................................................... 5

B. Framing the Heater..................................................................................... 6

C. Flue System Approvals and Installations.................................................... 8

D. Connecting the Gas Supply........................................................................ 18

E. Ignition System Wiring................................................................................ 19

F. Mantel Clearances...................................................................................... 21

G. Log Placement ........................................................................................... 22

H. Installer Testing........................................................................................... 24

2.0 OPERATING INSTRUCTIONS.......................................................................... 24

A. Safety and Lighting Information.................................................................. 26

B. Fan Operation ............................................................................................ 27

3.0 SERVICINGAND MAINTENANCE. .................................................................. 27

A. Removal of Covers for Servicing ................................................................ 28

B. Removal of Components for Service.......................................................... 28

C. Parts Replacement..................................................................................... 28

D. Adjustments and Replacement Parts ......................................................... 28

E. Troubleshooting.......................................................................................... 29

4.0 REPLACEMENT PARTS. ................................................................................. 32

Limited Warranty ............................................................................................... 34

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06

FIGURE 1.1 Diagram of the 6000 Series

1.0 INSTALLATION INSTRUCTIONS

When planning a heater installation, it’s

necessary to determine:

•Where the unit is to be installed.

•The flue system configuration to be used.

•Gas supply piping.

•Electrical wiring.

•Framing and finishing details.

If the heater is to be installed on carpeting or tile, or

onanycombustible material other than wood flooring,

the heater should be installed on a metal or wood

panel that extends the full width and depth of the

heater.

2-1/2

[]

126.9

[]

686

[]

6-7/8

174

[]

2-3/8

[]

Ø8203[]

9-7/8

250[]

28-3/8 722[]

14-1/4 362

[]

21-1/2

547[]

18-3/4

476[]

31-5/8

803[]

41 1043[]

36-1/8

917[]

965[]

ELECTRICAL

ACCESS

GAS LINE

ACCESS

TOP

STANDOFFS

GLASS

DOOR

DATA BADGE & LABELS

ELECTRICAL

ACCESS

GAS CONTROLS

AND SWITCHES

GAS LINE

ACCESS

(BEHIND ACCESS DOOR)

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06

Clearance Requirements

The top, back, and sides of the heater are defined by standoffs.

The minimum clearance to a perpendicular wall extending past the face of the heater

is one inch (25 mm).

For 6000 Series Models, the back of the heater may be recessed 21-1/2 inches (546

mm) into combustible construction.

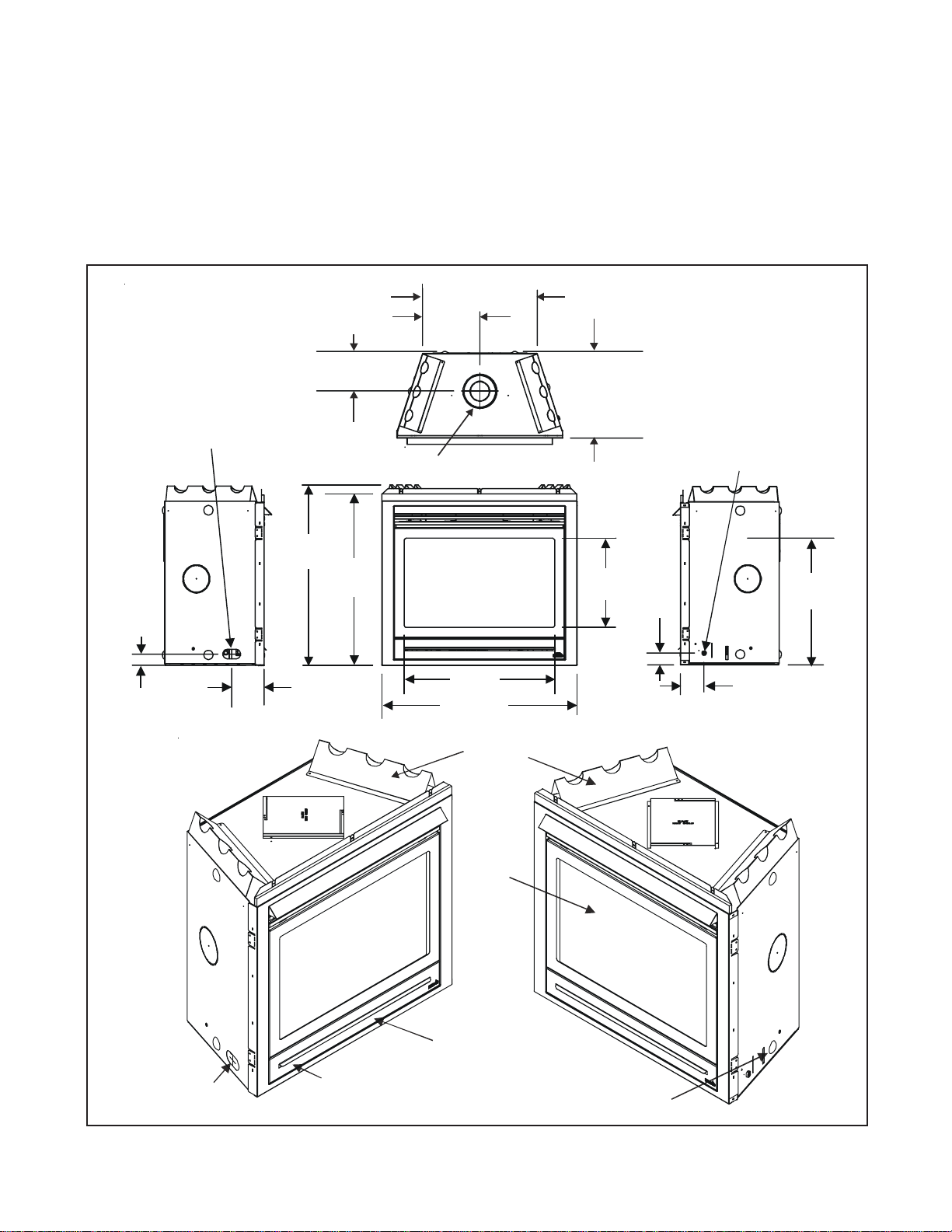

FIGURE 1.2 Heater Dimensions, Locations and Space Requirements

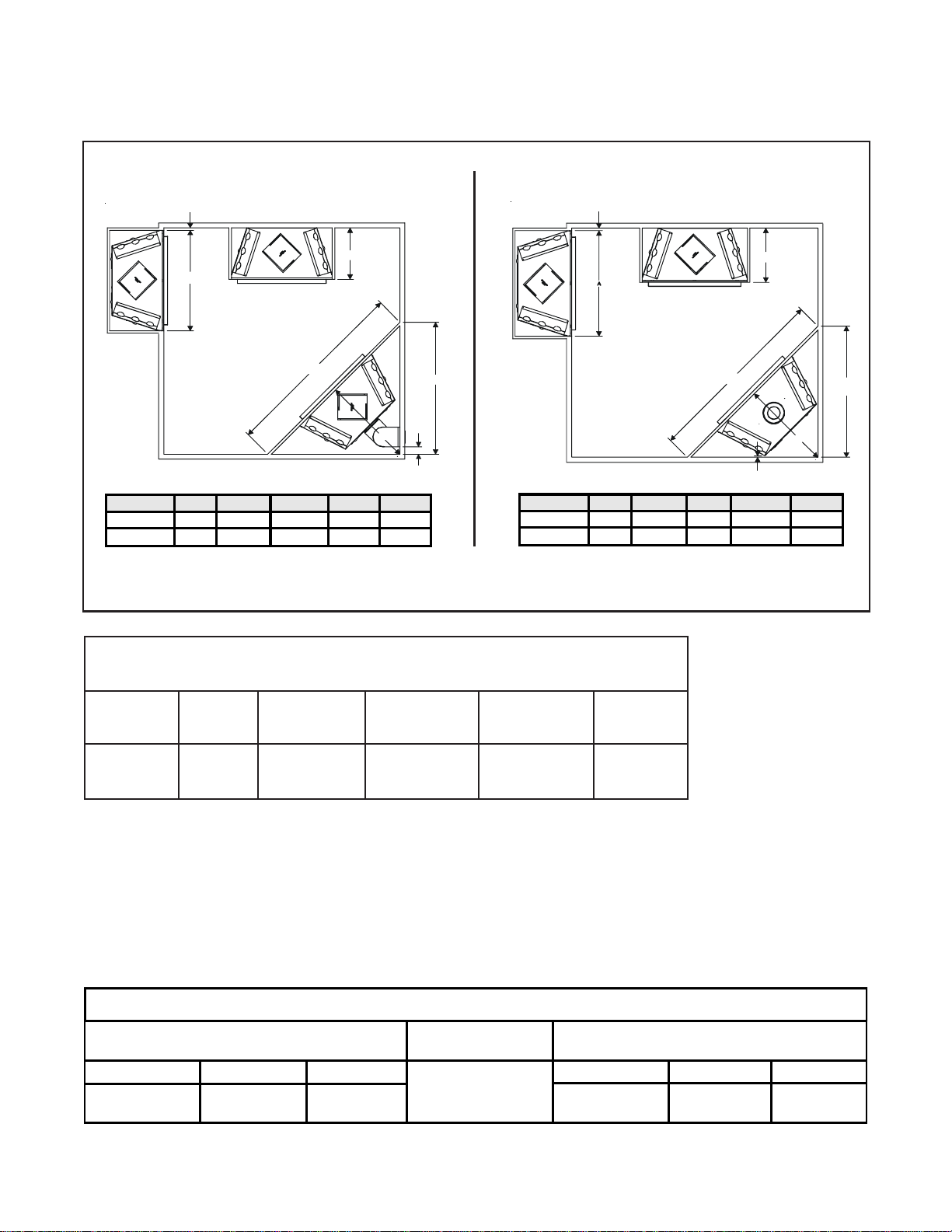

A. Locating the Heater

The diagram (see Figure 1.2) shows space and clearance requirements for locating a heater within a room.

Minimum Clearances from the Heater to

Combustible Materials

Glass Back of Sides of Top of

Front Floor Heater Heater Heater Ceiling

36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches

(914 mm) (13 mm) (13 mm) (89 mm) (787 mm)

1”MIN. (25mm)

3” (76.2mm)

A B C D E

Inches 42 22 38 53-3/4 76

Millimeters 1066 559 965 1365 1930

Rear Flue

A B C D E

Inches 42 22 36 50-15/16 72

Millimeters 1066 559 914 1294 1829

1” MIN. (25mm)

1/2” MIN. (12.5mm)

Top Flue

For minimum clearances, see the direct flue termination clearance diagrams on page 7.

Minimum Clearances from the Flue Pipe to Combustible Materials

For Horizontal Sections For Vertical

Sections At Wall Firestops

Top Bottom Sides 1 inch

(25mm)

Top Bottom Sides

3 inches

(75mm) 1 inch

(25mm) 1 inch

(25mm) 2-1/2 inches

(63.7mm) 1/2 inch

(13mm) 1 inch

(25mm)

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06

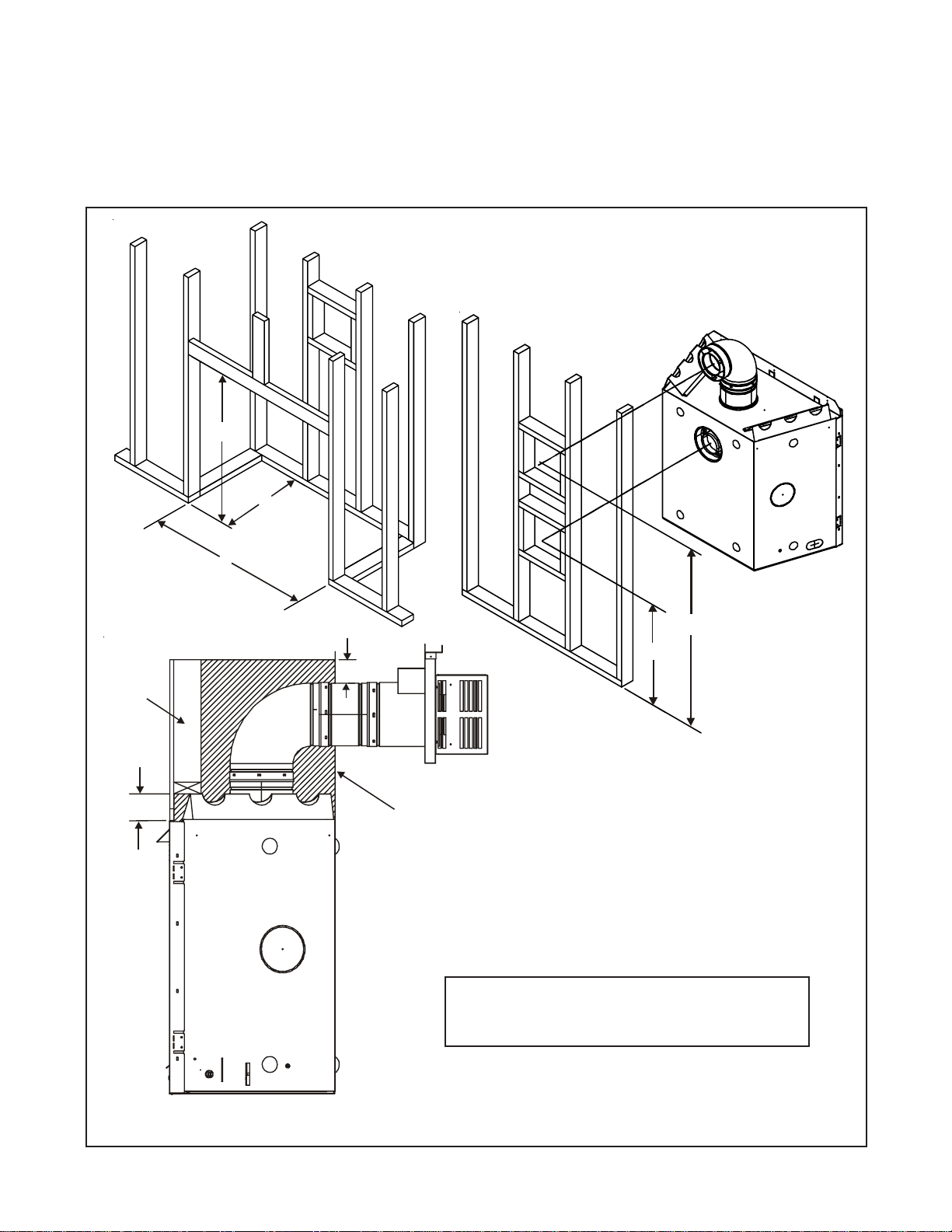

Framing should be constructed of

2 X 4 lumber or heavier.

AB C DE

42-1/8 in. 38-19/32 in. 22-1/16 in. 26-7/8 in. 47-3/4 in.

(1070mm) (980mm) (560mm) (684mm) (1060mm)

FIGURE 1.3 Framing Dimensions

B. Framing the Heater

Framing can be built before or after the heater is set

in place. Framing should be positioned to

accommodate wall coverings and heater facing

material.The diagram below shows framing reference

dimensions.

The framing

headers may rest

on the heater

standoffs.

CAUTION: MEASURE HEATER DIMENSIONSAND

VERIFY FRAMING METHODS AND WALL COVER-

ING DETAILS, BEFORE FRAMING CONSTRUC-

TION BEGINS.

* NOTE: Dimension Btaken from finished

hearthframe.Dimensions DandEtaken

from bottom of unit.

86 mm

76 mm

NON-COMBUSTIBLE ZONE

IS DEFINED BY 76MM ABOVE

THE ELBOW FOR THE ENTIRE

WIDTH AND DEPTH (BEHIND

THE FRONT HEADER) OF

THE FIREBOX.

WALL

STUD

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06

NOTES: 1. All distances are measured vertically or horizontally along the wall to a point

in line with the nearest part of the terminal.

2. Prohibited area below electricity meter or fuse box extends to ground level.

3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.

4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue

terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.

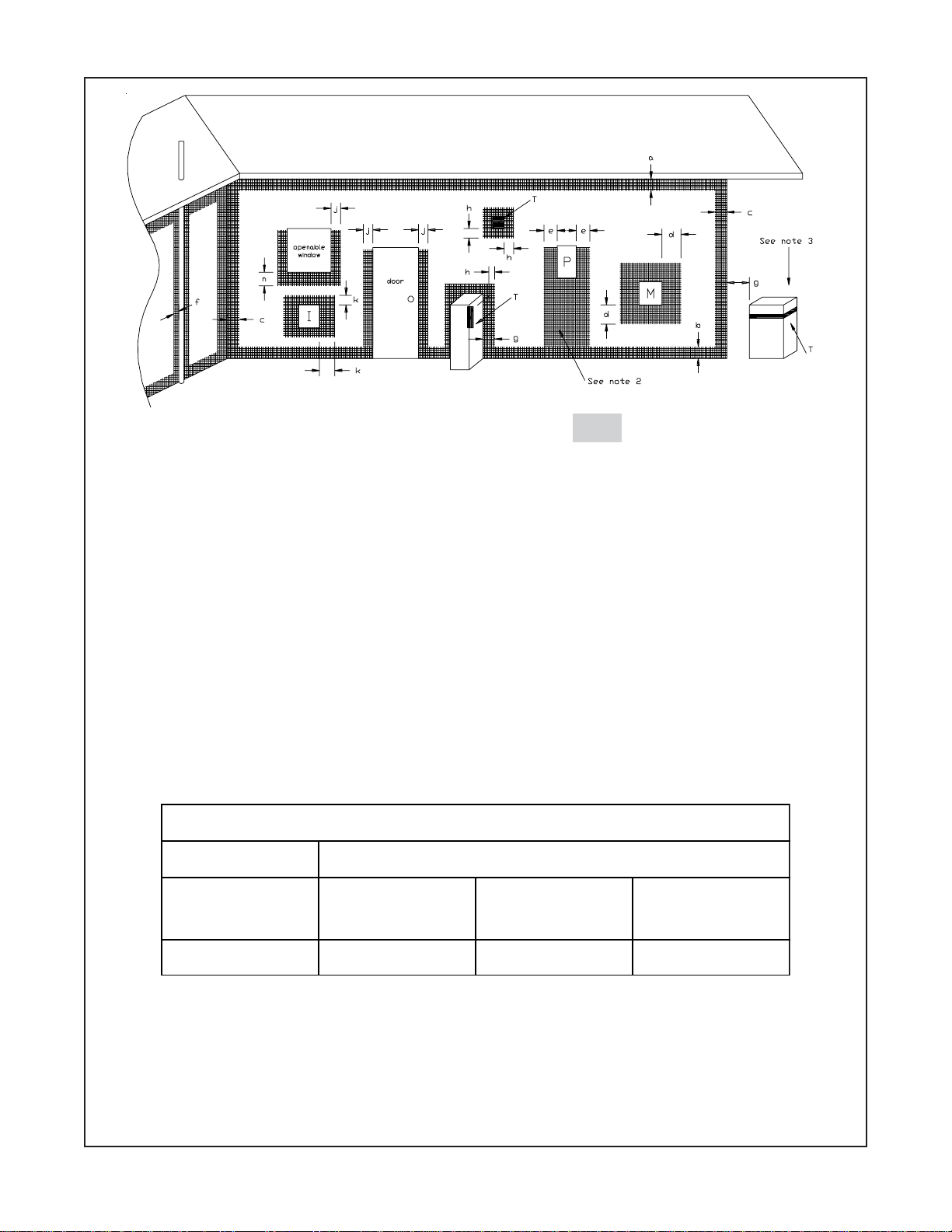

MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS

OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES

FIGURE 1.4

CLEARANCES 'n' (mm)

Space heaters All other appliances

Up to 50 MJ/h

input UP to 50 MJ/h

input Over 50 MJ/h &

to 150 MJ/h

Over 150 MJ/h

input

150 500 1000 1500

a - Below eaves, balconies or other projections: MIN. CLEARANCE

(mm) Appliances up to 50 MJ/h input ........................................................................................... 300

Appliances over 50 MJ/h input............................................................................................. 500

b - From the ground or above a balcony ...................................................................................... 300

c - From a return wall or external corner ...................................................................................... 500

d - From a gas meter (M) ............................................................................................................ 1000

e - From an electricity meter or fuse box (P)................................................................................ 500

f - From a drain or soil pipe.......................................................................................................... 150

g - Horizontally from any building structure (unless appliance approved

for closer installation) or obstruction facing a terminal........................................................... 500

h - From any other flue terminal, cowl, or combustion air intake................................................. 500

j - Horizontally from an openable window, door, non-mechanical air

inlet, or any other opening into a building, with the exception of

sub-floor ventilation:

Appliances up to 150 MJ/h input ......................................................................................... 500

Appliances over 150 MJ/h input ........................................................................................ 1500

k - From a mechanical air inlet, including a spa blower............................................................ 1500

n - Vertically below an openable window, non-mechanical air

inlet or any other opening into a building, with the exception of ...................................See table

sub-floor ventilation ..............................................................................................................below

T = Flue terminal M = Gas meter Shading indicates prohibited

I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06

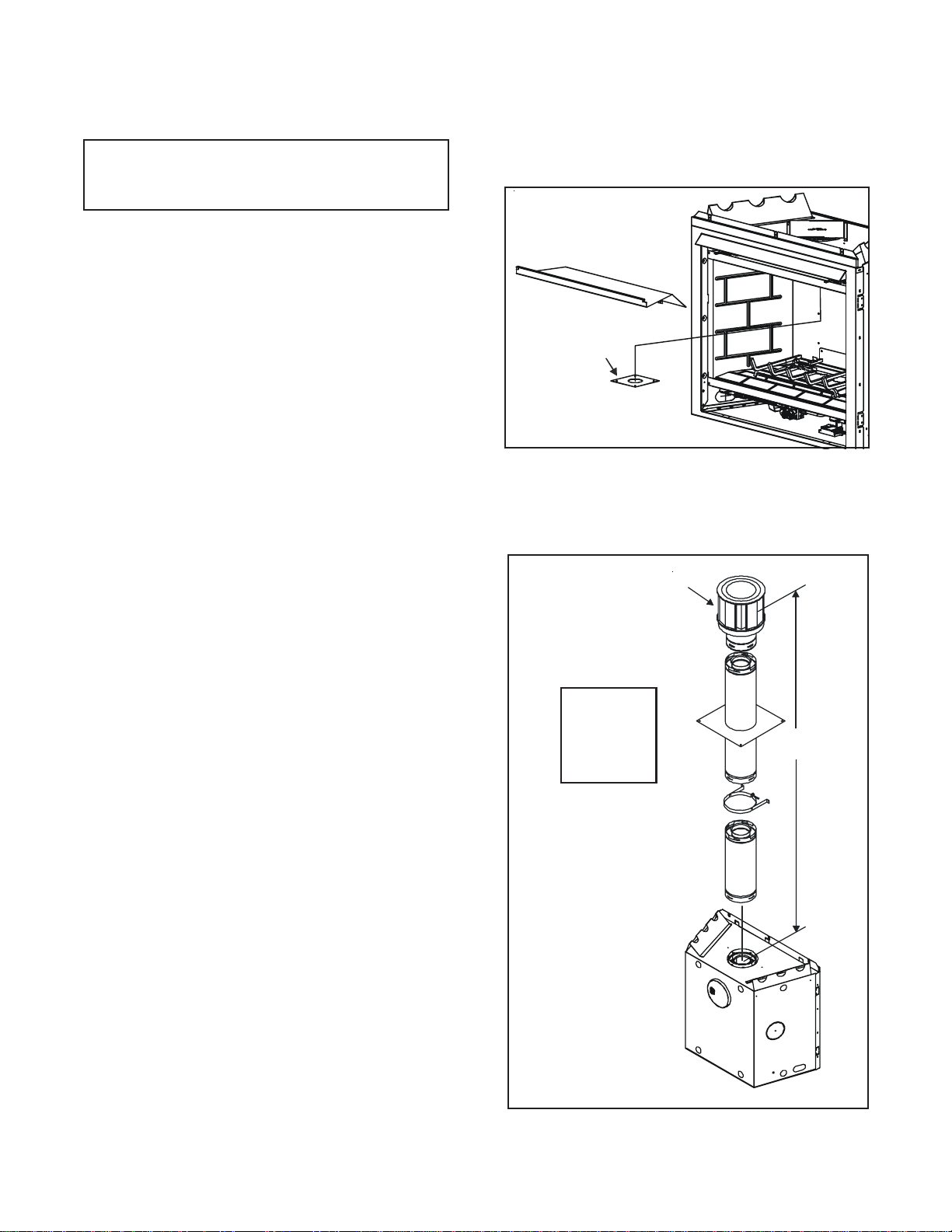

This model is approved to use DVP-Series flue pipe

components. A DVP-TRAP2 Termination Cap must

be used to terminate flue systems in a horizontal

position.ADVP-TVHW verticalTerminationCapmust

be used to terminate flue systems in a vertical posi-

tion.

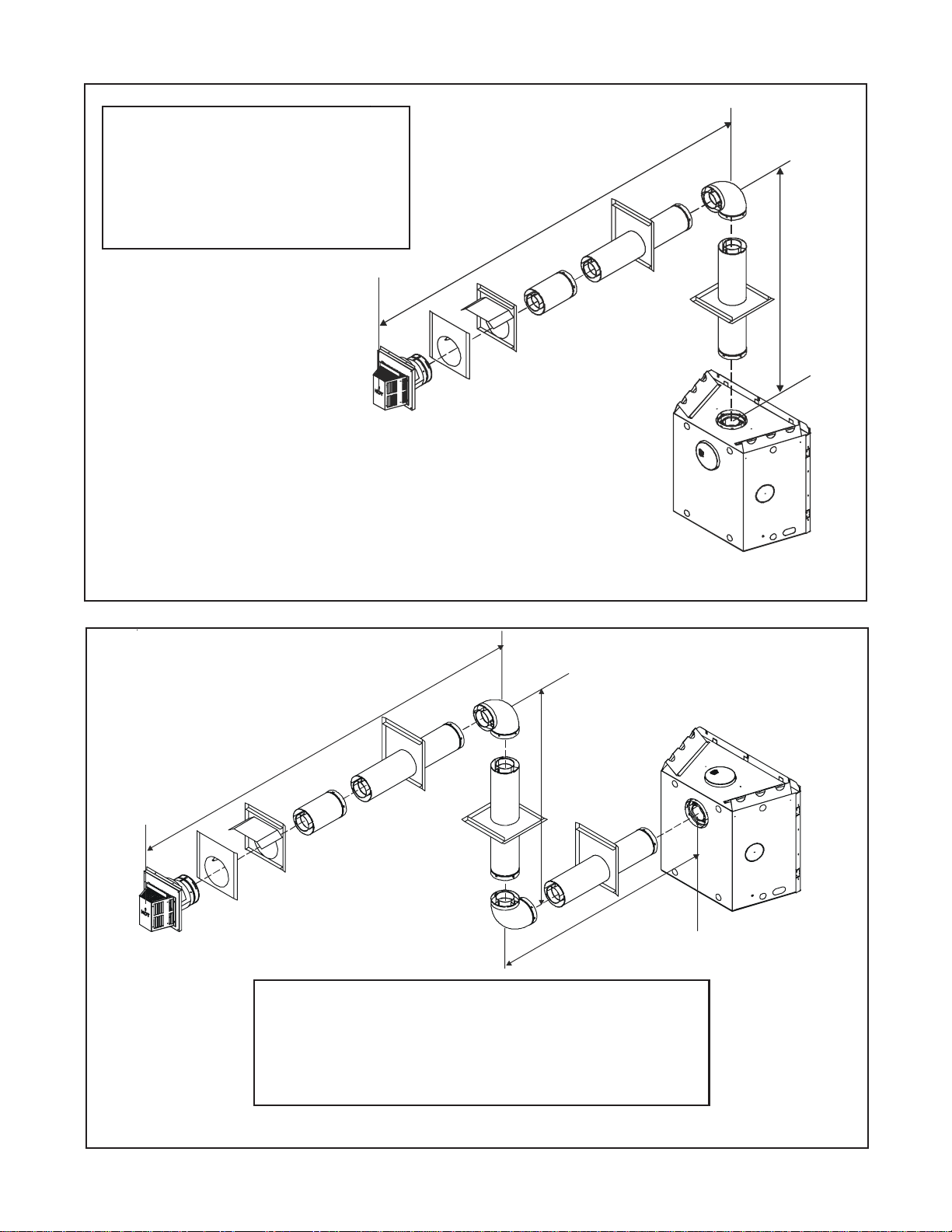

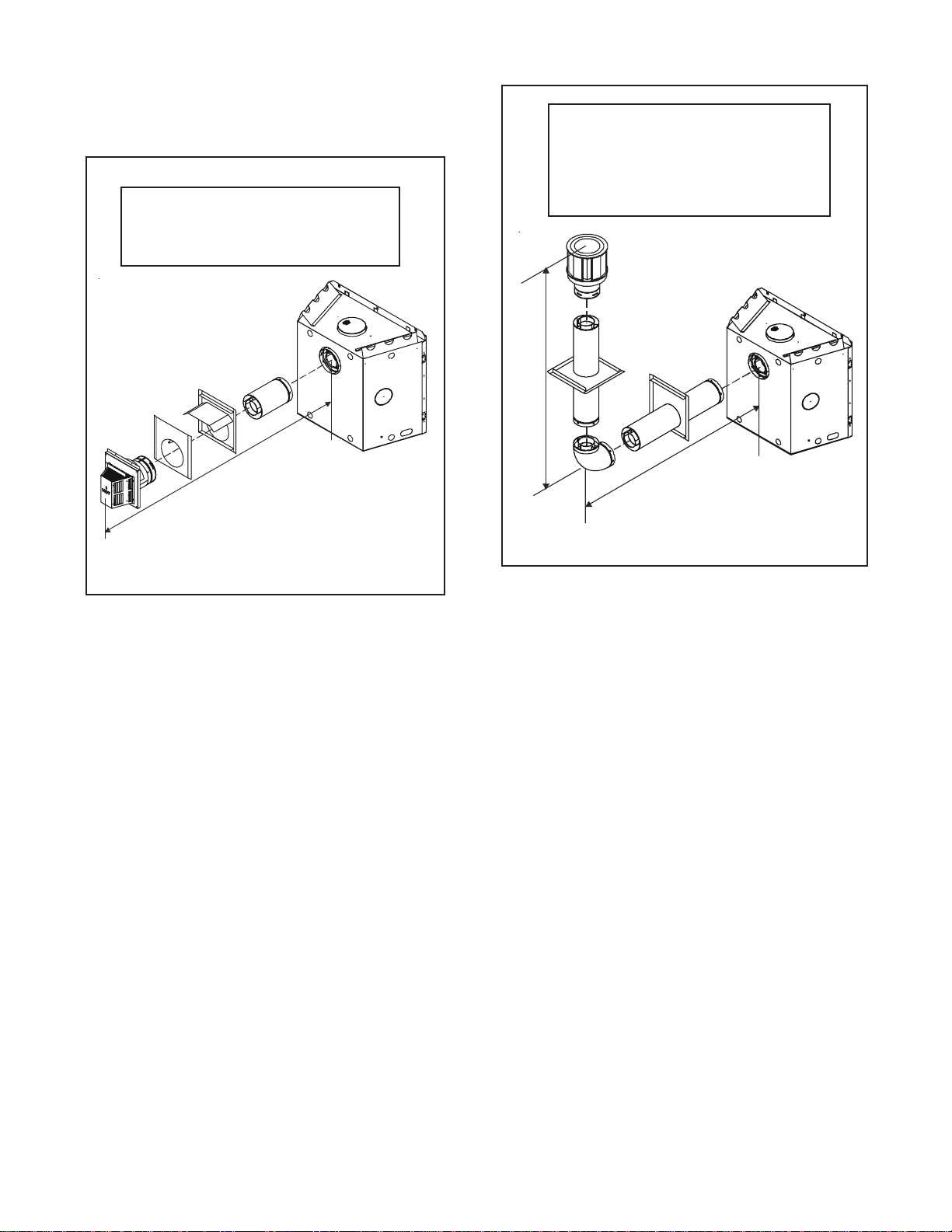

Figures 1.7 through 1.14 show the flue systems ap-

proved for these models. Approved flue system com-

ponents are labeled for identification. NO OTHER

FLUE SYSTEMS OR COMPONENTS MAY BE

USED. Detailed installation instructions are included

with each flue termination kit and should be used in

conjunction with this manual.

WARNING: THIS GAS APPLIANCE AND FLUE AS-

SEMBLY MUST BE FLUED DIRECTLY TO THE

OUTSIDE AND MUST NEVER BE ATTACHED TO A

CHIMNEY SERVING A SEPARATE SOLID FUEL

BURNING APPLIANCE. EACH GAS APPLIANCE

MUST USEA SEPARATE FLUE SYSTEM-COMMON

FLUE SYSTEMS ARE PROHIBITED.

CAUTION: UNDER NO CONDITION SHOULD COM-

BUSTIBLE MATERIAL BE CLOSER THAN 3

INCHES (2 1/2 INCHES AT WALL FIRESTOPS)

FROM THE TOP OF THE 8 INCH PIPE OR 1- INCH

TO THE SIDESAND THE BOTTOM FOR HORIZON-

TAL SECTIONS OF THIS FLUE SYSTEM. VERTI-

CAL SECTIONS OF THIS SYSTEM REQUIRE A

MINIMUM OF 1 INCH CLEARANCE TO COMBUS-

TIBLE MATERIALS ALL AROUND THE 8 INCH

PIPE.

For alternative installations, other than depicted, con-

tact your dealer for further information.

Refer to Figure 1.4 for required clearances to flue

terminals.

MODEL FLUE TERMINATION APPROV-

ALS

6000TRSI-AUC DVP-TRAP2, DVP-TVHW

TABLE 1

FIGURE 1.5

VERTICAL FLUE RESTRICTOR

If the heater installation requires a vertical flue ex-

ceeding 4.5m above the unit with no horizontal flue

or elbows a vertical flue restrictor must be installed

(see Figure 1.5).

FIGURE 1.6

CAP

MAX. RUN

36 FT.

(10.97m)

STRAIGHT UP VERTICAL FLUE SYSTEM

Figure 1.6 shows straight up vertical flue system ap-

proved for use on this model.

C. FLUE SYSTEM APPROVALS AND

INSTALLATIONS

RESTRICTOR

PLATE

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev. C • 7/06

FIGURE 1.7 Straight Out Horizontal Flueing

MIN. RUN MAX. RUN

13.1" (331mm) 24" (610mm)

FIGURE 1.8 Flueing with One 90° Elbow

V H

1´ MIN. (0.30 M) 2´ MAX. (0.61 M)

2´ MIN. (0.61 M) 4´ MAX. (1.22 M)

3´ MIN. (0.91 M) 6´ MAX. (1.83 M)

4´ MIN. (1.22 M) 8´ MAX. (2.44 M)

24´ MAX. (7.32 M) 8´ MAX. (2.44 M)

STRAIGHT OUT HORIZONTAL FLUE SYSTEM

Figure 1.7 shows straight out horizontal flue systems

approved for use on this model.

ONE (1) 90-DEGREE ELBOW

Figures 1.8 and 1.9 show an installation using one

(1) 90-degree elbow. Dimension V is listed as MINI-

MUM vertical dimensions and dimension H is listed

as corresponding MAXIMUM horizontal dimensions.

TWO (2) 90-DEGREE ELBOWS

Figures 1.10 and 1.11 show examples of possible in-

stallations using two (2) 90-degree elbows. Dimen-

sion V is listed as MINIMUM vertical dimensions, di-

mension H is listed as MAXIMUM beginning horizon-

tal dimensions, and dimension H+H1is listed as cor-

responding TOTALMAXIMUM horizontaldimensions.

THREE (3) 90-DEGREE ELBOWS

Figures 1.12 through 1.14 show examples of possible

installationsusing three (3) 90-degree elbows. Dimen-

sions V are listed MINIMUM first vertical dimensions

and dimensions H are listed as beginning MAXIMUM

horizontaldimensions. Dimensions H+H1 andH+H1+H2

are listed as TOTAL MAXIMUM horizontal dimen-

sions. Dimensions V+V1 are listed as TOTAL MAXI-

MUM vertical dimensions.

ELBOWS

The flue systems installed on this gas heater may

also include one (1), two (2), or three (3) 90 - degree

elbow assemblies.

Figures 1.8 through 1.14 and their corresponding

tables show examples of flue configurations using

elbows. The relationships of vertical rise to hori-

zontal run in flue configurations using elbows MUST

be strictly adhered to.

Heat & Glo • 6000TRSI-AUC • 2078-900 Rev.C • 7/06

FIGURE 1.10 Flueing with Two 90° Elbows

V FT.) H (FT.) H+H1 (FT.)

1' MIN. (0.30 M) 2' MAX. (0.61 M) 4' MAX. (1.22 M)

2' MIN. (0.61 M) 2' MAX. (0.61 M) 8' MAX. (2.44

3' MIN. (0.91 M) 4' MAX. (1.22 M) 12'MAX. (3.66 M)

4' MIN. (1.22 M) 6' MAX. (1.83 M) 16' MAX. (4.88

20' MAX. (6.10 M) 6' MAX. (1.83 M) 16' MAX. (4.88

V (FT.) H (FT.)

1' MIN. (0.30 M) 4' MAX. (1.22 M)

2' MIN. (0.61 M) 8' MAX. (2.44 M)

3' MIN. (0.91 M) 12' MAX. (3.66 M)

4' MIN. (1.22 M) 16' MAX. (4.88 M)

V+H= 24’ MAX. (7.32 M)

FIGURE 1.9 Flueing with One 90° Elbow

NOTE: A 6-inch (152mm) section of straight pipe must

need to be attached to the fireplace before a 90o

elbow.

Altri manuali per 6000TRSI-AUC

Indice

Altri manuali Heat & Glo Camino da interno

Heat & Glo

Heat & Glo RH-36 Series Manuale utente

Heat & Glo

Heat & Glo 8000TR-OAK Manuale utente

Heat & Glo

Heat & Glo CERONA-36 Manuale utente

Heat & Glo

Heat & Glo Heat & Glo RED40 Manuale utente

Heat & Glo

Heat & Glo Everest Manuale utente

Heat & Glo

Heat & Glo Pier-HVB-IPI Manuale utente

Heat & Glo

Heat & Glo I25X-N-AU Manuale utente

Heat & Glo

Heat & Glo SLR32 Manuale utente

Heat & Glo

Heat & Glo EXCLAIM-36H-C Manuale utente

Heat & Glo

Heat & Glo CFX-IN Istruzioni per il montaggio

Heat & Glo

Heat & Glo Escape-42DV Manuale utente

Heat & Glo

Heat & Glo 8000TRD Istruzioni per il montaggio

Heat & Glo

Heat & Glo 6X-AU Manuale utente

Heat & Glo

Heat & Glo SL-7 Manuale utente

Heat & Glo

Heat & Glo RUTHERFORD-50 Manuale utente

Heat & Glo

Heat & Glo XLR-N-CE Manuale utente

Heat & Glo

Heat & Glo CERONA-36 Manuale utente

Heat & Glo

Heat & Glo REVO-V12 Manuale utente

Heat & Glo

Heat & Glo MONTANA MONTANA-36 Manuale utente

Heat & Glo

Heat & Glo FOUNDATION FDN-4-PIER Manuale utente

Heat & Glo

Heat & Glo PHOENIX42-IFT Manuale utente

Heat & Glo

Heat & Glo Heat & Glo RED40 Manuale utente

Heat & Glo

Heat & Glo 6000CLX-IPI-T Manuale utente

Heat & Glo

Heat & Glo 6000CBV-IPI Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
