Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com

SERVICE MANUAL

Packaged Terminal

Air Conditioners & Heat Pumps

7,000-15,000 BTUH

Cooling with Electric Heat

Heat Pump with Electric Heat

EKTC07-2G

EKTC09-2G

EKTC12-2G

EKTC15-2G

EKTC07-1G

EKTC09-1G

EKTC12-1G

EKTC15-1G

EKTH07-1G

EKTH09-1G

EKTH12-1G

EKTH15-1G

EKTH07-2G

EKTH09-2G

EKTH12-2G

EKTH15-2G

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

E K T C 0 7 - 1 G

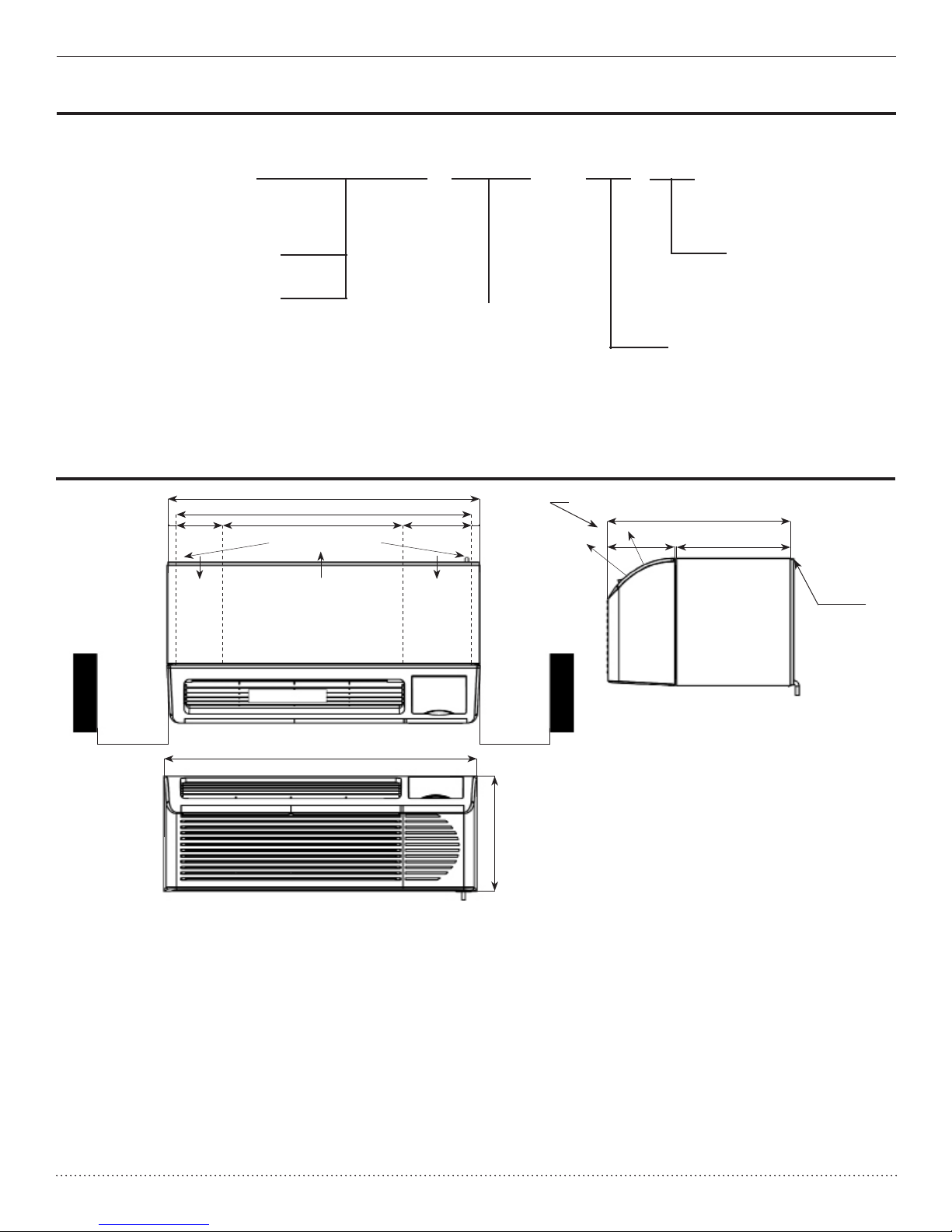

UNIT NOMENCLATURE

EKTC—Cooling only with Electric Heat

EKTH—Heat Pump with Electric Heat

BTU/H

07K

09K

12K

15K

VOLTAGE CODE

1=208/230V-60Hz

2=265V-60Hz (consult factory)

MODEL REVISION

G=Green R-410A

Refrigerant Gas

ARCHITECTURAL

OR STAMPED

GRILLE

22”

8” 13.75”

40°

80°

AIR DISCHARGE GRILLE IS REVERSIBLE TO

PROVIDE EITHER 40° OR 80°DISCHARGE ANGLE

42”

RIGHT

LEFT

16”

42”

40”

24”6” 10” 1”

1”

Location of external drain holes

on bottom ange of wall sleeve

AIR OUTLETAIR INLET AIR INLET

AIR DISCHARGE GRILLE CONTROL DOOR

2”min Clearance

to side walls

2”min Clearance

to side walls

Top View

Front View

DIMENSIONAL DATA

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

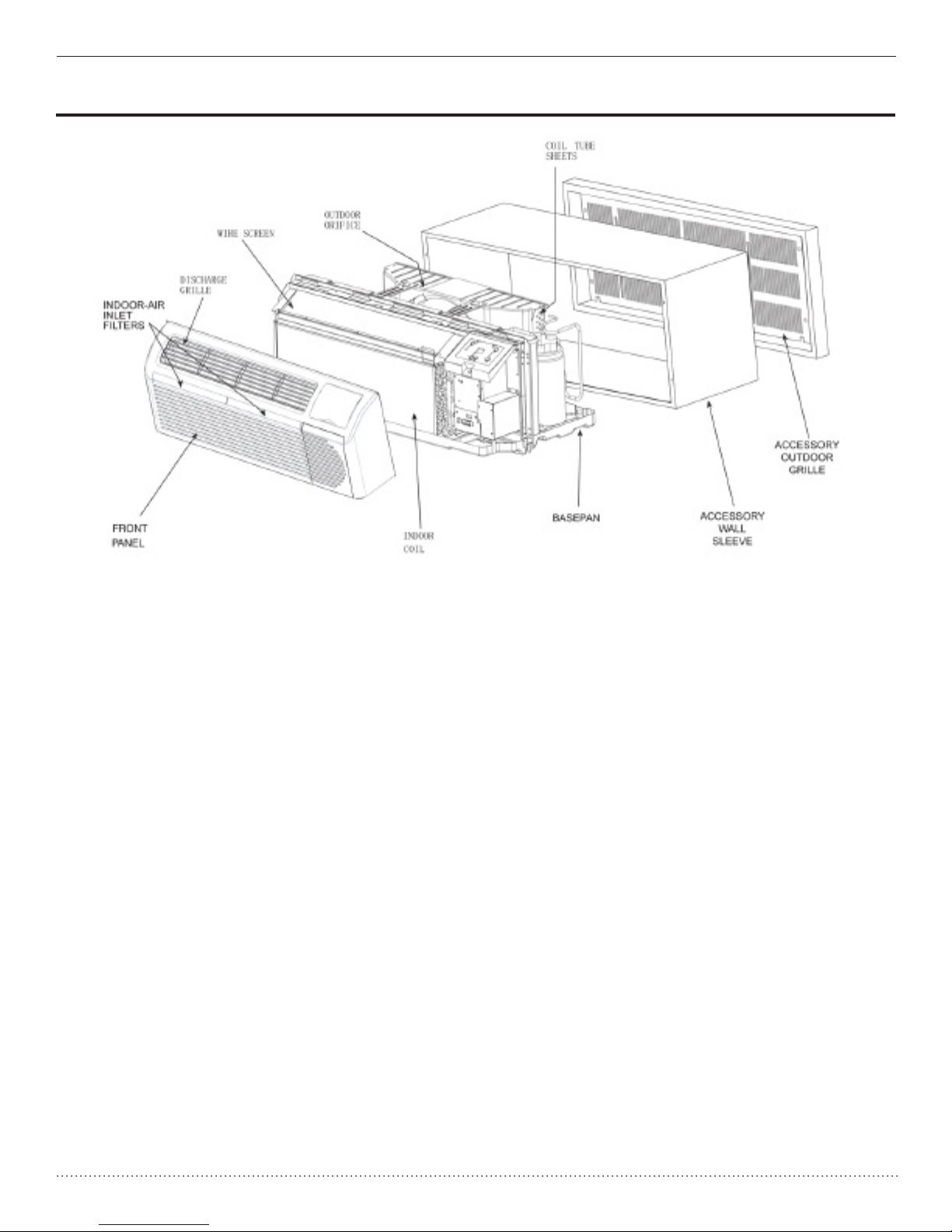

UNIT COMPONENTS

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC07-1G EKTH07-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum n - Aluminum tube Aluminum n - Aluminum tube

Pipe Diameter in. (mm) 1/32” (7.94) 1/32” (7.94)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 48/46/44 48/46/44

Sound Power Level dB (A) (H/M/L) 58/56/54 58/56/54

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5RS062FAA21 5RS062FAA21

Compressor Type Rotary Rotary

L.R.A (A) 19 19

Compressor RLA (A) 2.85 2.85

Compressor Power Input (W) 640 640

Overload Protector B130-140-241E B130-140-241E

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.89°F (13-46°C) 55.4-114.89°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 2-0.05” (2-1.3) 2-0.05” (2-1.3)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 40 40

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 2 2

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 304.58 (2.1) 304.58 (2.1)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 99.2/19.05 (45/54) 99.2/19.05 (45/54)

Refrigerant Charge oz. (kg) R-410A 23.63 oz. (0.67) R-410A 23.63 oz. (0.67)

Specication and Technical Parameters

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC07-2G EKTH07-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.295 (121 x 706) 4.75 x 27.295 (121 x 706)

Evaporator Aluminum n - Aluminum tube Aluminum n - Aluminum tube

Pipe Diameter in. (mm) 5/16” (7.94) 5/16” (7.94)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 48/46/44 48/46/44

Sound Power Level dB (A) (H/M/L) 58/56/54 58/56/54

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5RS062LAA1 5RS062LAA1

Compressor Type Rotary Rotary

L.R.A (A) 12 12

Compressor RLA (A) 2.45 2.45

Compressor Power Input (W) 645 645

Overload Protector B90-150-24E B90-150-24E

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.8°F (13-46°C) 55.4-114.8°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (2-1.3) 0.05” (2-1.3)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1380 1380

Output of Fan Motor (W) 40 40

Fan Motor RLA (A) 0.3 0.3

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 304.58 (2.1) 304.58 (2.1)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.89 (45/54) 119.05/138.89 (45/54)

Refrigerant Charge oz. (kg) R-410A 24.69 oz. (0.67) R-410A 24.69 oz. (0.67)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC09-1G EKTH09-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 50/48/46 50/48/46

Sound Power Level dB (A) (H/M/L) 60/58/56 60/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Mitsubish Samsung

Compressor Model KN073NGFMC G4C085IUBJP

Compressor Type Rotary Rotary

L.R.A (A) 17 18.5

Compressor RLA (A) 3.7 3.6

Compressor Power Input (W) 740 740

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 2 2

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.85 (54/63) 119.05/138.85 (54/63)

Refrigerant Charge oz. (kg) R-410A 33.5 oz. (0.95) R-410A 33.5 oz. (0.95)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC09-2G EKTH09-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 0.05” (2-1.4) 0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 50/48/46 50/48/46

Sound Power Level dB (A) (H/M/L) 60/58/56 60/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Samsung

Compressor Model 5RS072LAA21 G4C085YUAJP

Compressor Type Rotary Rotary

L.R.A (A) 15 19

Compressor RLA (A) 2.9 3.2

Compressor Power Input (W) 750 795

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1540 1540

Output of Fan Motor (W) 45 45

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 110.23/131.8 (50.5/59.5) 113.54/133/38 (51.5/60.5)

Refrigerant Charge oz. (kg) R-410A 33.5 oz. (0.95) R-410A 35.27 oz. (1.0)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC12-1G EKTH12-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/50/48 52/50/48

Sound Power Level dB (A) (H/M/L) 62/60/58 62/60/58

Outdoor

Side

Compressor Manufacturer/Trademark Samsung Samsung

Compressor Model G4A110IUBJP G4A110IUBJP

Compressor Type Rotary Rotary

L.R.A (A) 27 27

Compressor RLA (A) 5 5

Compressor Power Input (W) 1095 1095

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1.5” (635 x 343 x 25.4) 25 x 13.5 x 1.5” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 63/61/59 63/61/59

Sound Power Level dB (A) (H/M/L) 73/71/69 73/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.89 (54/63) 119.05/138.89 (54/63)

Refrigerant Charge oz. (kg) R-410A 35.27 oz. (1.0) R-410A 35.27 oz. (1.0)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC12-2G EKTH12-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/50/48 52/50/48

Sound Power Level dB (A) (H/M/L) 62/60/58 62/60/58

Outdoor

Side

Compressor Manufacturer/Trademark Samsung Samsung

Compressor Model G4A110YUAJP G4A110YUAJP

Compressor Type Rotary Rotary

L.R.A (A) 23 23

Compressor RLA (A) 4.3 4.3

Compressor Power Input (W) 1090 1090

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1.5” (635 x 343 x 25.4) 25 x 13.5 x 1.5” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 63/61/59 63/61/59

Sound Power Level dB (A) (H/M/L) 73/71/69 73/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1540 1540

Output of Fan Motor (W) 45 45

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.13 (4) 580.13 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.84 (54/63) 119.05/138.84 (54/63)

Refrigerant Charge oz. (kg) R-410A 35.98 oz. (1.02) R-410A 35.98 oz. (1.02)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC15-1G EKTH15-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/48/46 52/48/46

Sound Power Level dB (A) (H/M/L) 62/58/56 62/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5PS146FAA21 5PS146FAA21

Compressor Type Rotary Rotary

L.R.A (A) 32.6 32.6

Compressor RLA (A) 6.6 6.6

Compressor Power Input (W) 1485 1485

Overload Protector B205-150-141C B205-150-141C

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.8°F (13-46°C) 55.4-114.8°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.31” (8) 0.31” (8)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.85 x 2.25” (635 x 352 x 57.2) 25 x 13.85 x 2.25” (635 x 352 x 57.2)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 65/61/59 65/61/59

Sound Power Level dB (A) (H/M/L) 75/71/69 75/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1600

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 2.5 2.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.15 (1.3) 188.15 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.84 (54/63) 119.05/138.84 (54/63)

Refrigerant Charge oz. (kg) R-410A 38.01 oz. (1.08) R-410A 38.01 oz. (1.08)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Altri manuali per EKTC07-1G

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Heat Controller Condizionatore d'aria

Heat Controller

Heat Controller Comfort-Aire RG-51B Manuale utente

Heat Controller

Heat Controller RG-51J Manuale utente

Heat Controller

Heat Controller REG-183A Manuale utente

Heat Controller

Heat Controller BGE H-Series Guida all'applicazione

Heat Controller

Heat Controller DMH36TB-1 Manuale utente

Heat Controller

Heat Controller Comfort-Aire BGE-123A Manuale utente

Heat Controller

Heat Controller BG-81J Manuale utente

Heat Controller

Heat Controller REG-183JREG-253JRADS-151JRADS-183J Manuale utente

Heat Controller

Heat Controller RADS-101M Manuale utente

Heat Controller

Heat Controller COMFORT-AIRE BG-81H Manuale utente

Heat Controller

Heat Controller AS-Q1835JZ0 Manuale utente

Heat Controller

Heat Controller COMFORT-AIRE RG-51-5 Manuale utente

Heat Controller

Heat Controller Comfort-Aire BGE-103A Manuale utente

Heat Controller

Heat Controller CD-101G Manuale utente

Heat Controller

Heat Controller REG-81G Manuale utente

Heat Controller

Heat Controller DMC09SB-0 Manuale utente

Heat Controller

Heat Controller Comfort-Cire RAD-243A Guida utente

Heat Controller

Heat Controller GeoLogix HTS Series Manuale utente

Heat Controller

Heat Controller M series Istruzioni per l'installazione e il funzionamento

Heat Controller

Heat Controller PE-121A Manuale utente

Heat Controller

Heat Controller SMA 09 Manuale

Heat Controller

Heat Controller Comfort-Cire Guida all'installazione

Heat Controller

Heat Controller DMC24DB-1 Manuale utente

Heat Controller

Heat Controller REG-253H Guida all'applicazione

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
