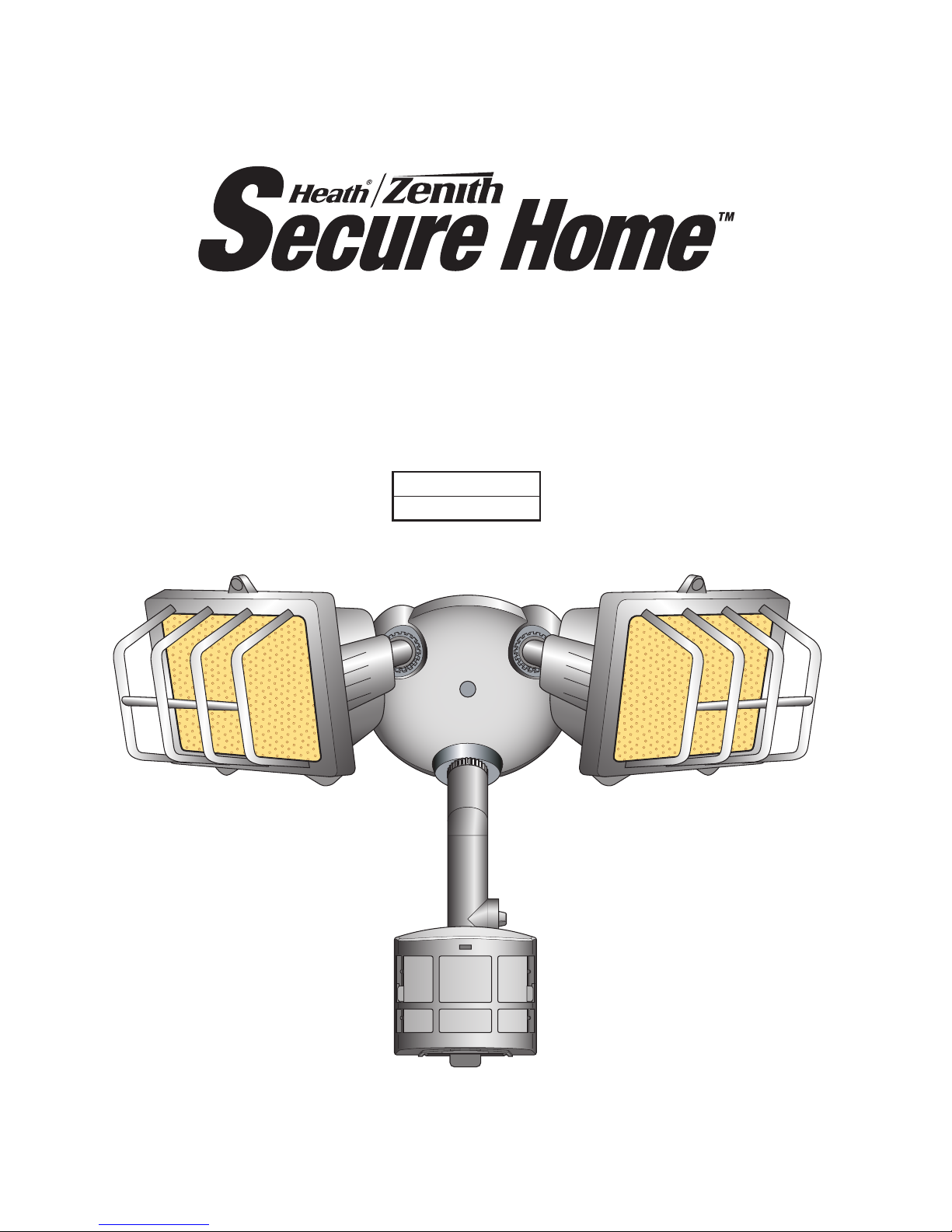

Heath Zenith Secure Home UT-9260-BZ Manuale utente

Mo t i o n Se n S i n g

Ha l o g e n Se c u r i t y li g H t

Model

UT-9260-BZ

-2- 598-1342-01

Contents

Introduction................................................................................................... 3

Package Contents...................................................................................... 4

Installation ..................................................................................................... 5

Wall Mount................................................................................................ 5

Eave Mount ............................................................................................... 5

Crossbar Mounting Bracket..................................................................... 6

Standard Wiring ....................................................................................... 6

Controlling Non-Motion Sensing Fixtures.............................................. 7

Finish Mounting ....................................................................................... 8

Specications ............................................................................................ 8

Test and Adjustment..................................................................................... 9

Expected Coverage .................................................................................10

Operation .....................................................................................................12

Troubleshooting Guide...............................................................................13

Lifetime Warranty .......................................................................................14

-3-

598-1342-01

Introduction

Enhanced Performance Features

☞Rugged gripping teeth and ﬁnger screw provide full three-dimension adjustment of sensor head.

☞Five silicon rubber gaskets seal internal components and controls from severe environmental

conditions.

☞Stainless steel screws to prevent rust and corrosion.

☞Built in 1.25 Mega Watt surge protection.

☞A.S.I.C. (Application Speciﬁc Integrated Circuit) design allows more reliable performance.

☞Range Boost option to extend range for those hard to cover areas.

☞Extremely wide angle coverage (up to 270°). Adjustable with built-in lens shields.

☞Easy to control other lights with your ﬁxture (up to 1000 Watts total load).

☞Expanded lens area receives more infrared light improving detection sensitivity.

☞Pulse count technology reduces false sensing from wind and rain for professional reliability.

☞Automatic photocell deactivates unit in daylight to save energy.

☞Power outage reset. Turns light off automatically if turned on by power interruption or electrical storm.

☞Selectable light timer to set the time lights stay on after motion has been detected.

☞Range control allows adjustment of coverage range.

☞Manual override to turn lights on/off at your convenience with existing indoor wall switch.

Dear Consumer:

We would like to thank you for purchasing this product. You have purchased the most durable

motion sensing security light available today. This product will give you many years of reliable service.

We are so conﬁdent with the durability of this product that it is backed with a lifetime warranty.

-4- 598-1342-01

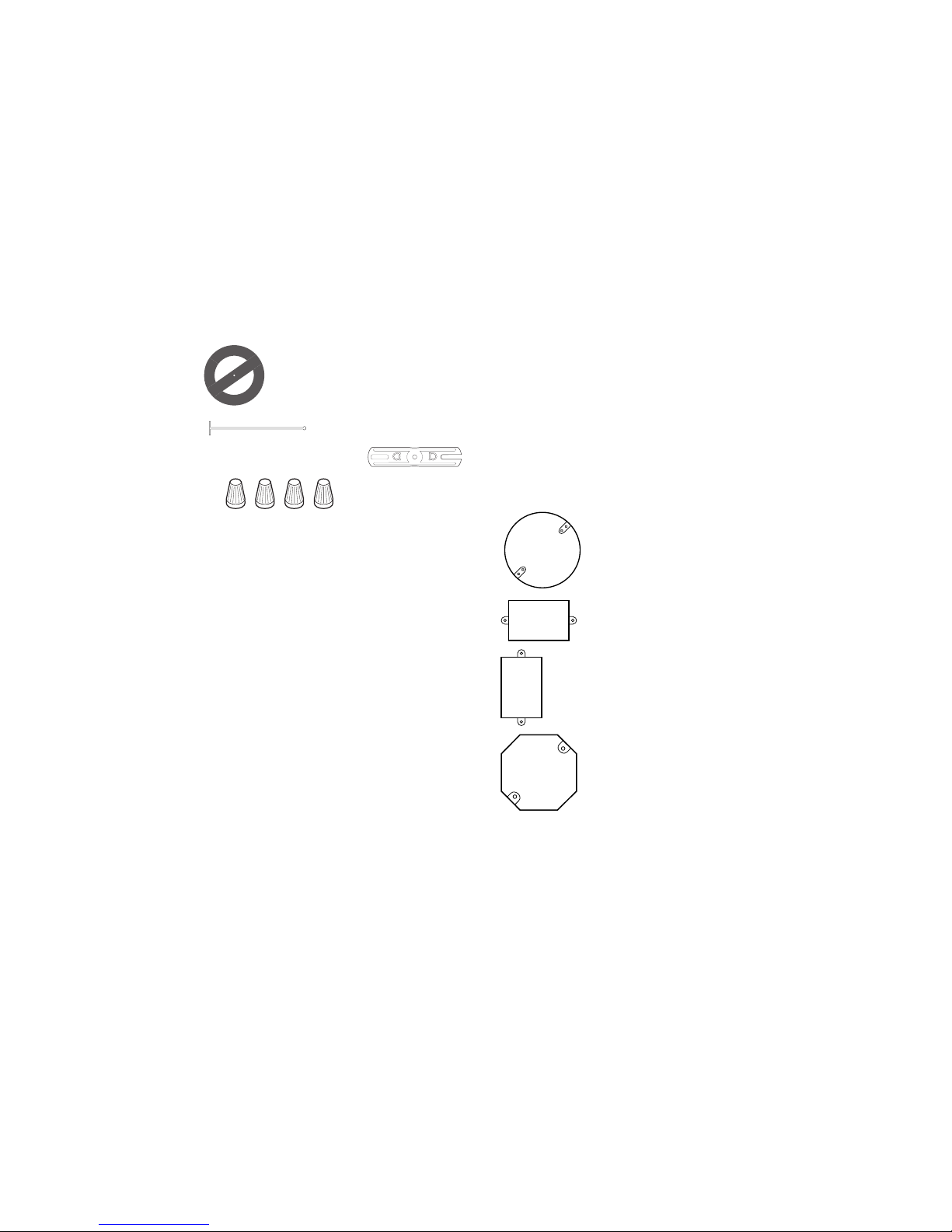

Package Contents

• MotionSensorLightFixture

• Two250watthalogenlamps

• Manual

• HardwarePack

1 Gasket

 1 Hanger

1 Crossbar Mounting Bracket

4 Wire nuts

2 #6-32 X 3/4" screws

(for small rectangular boxes)

2 #8-32 X 3/8" screws

(for circular or octagon boxes)

2 #10-24 X 1/2" screws

(for water tight boxes)

1 M5 X 0.8 X 40 mm screw

(ﬁxture to mounting bracket)

1 Rubber Plug

Estimated Installation Time: 30 minutes

Items needed for installation (not included):

• Phillipsandatheadscrewdrivers

• Pliers

• Wirestrippers/cutters

• Ladder

• Safetyglasses

• Siliconecaulk

Fits All Junction Box Conﬁgurations

Circular

Horizontalrectangular

Vertical rectangular

Octagon

-5-

598-1342-01

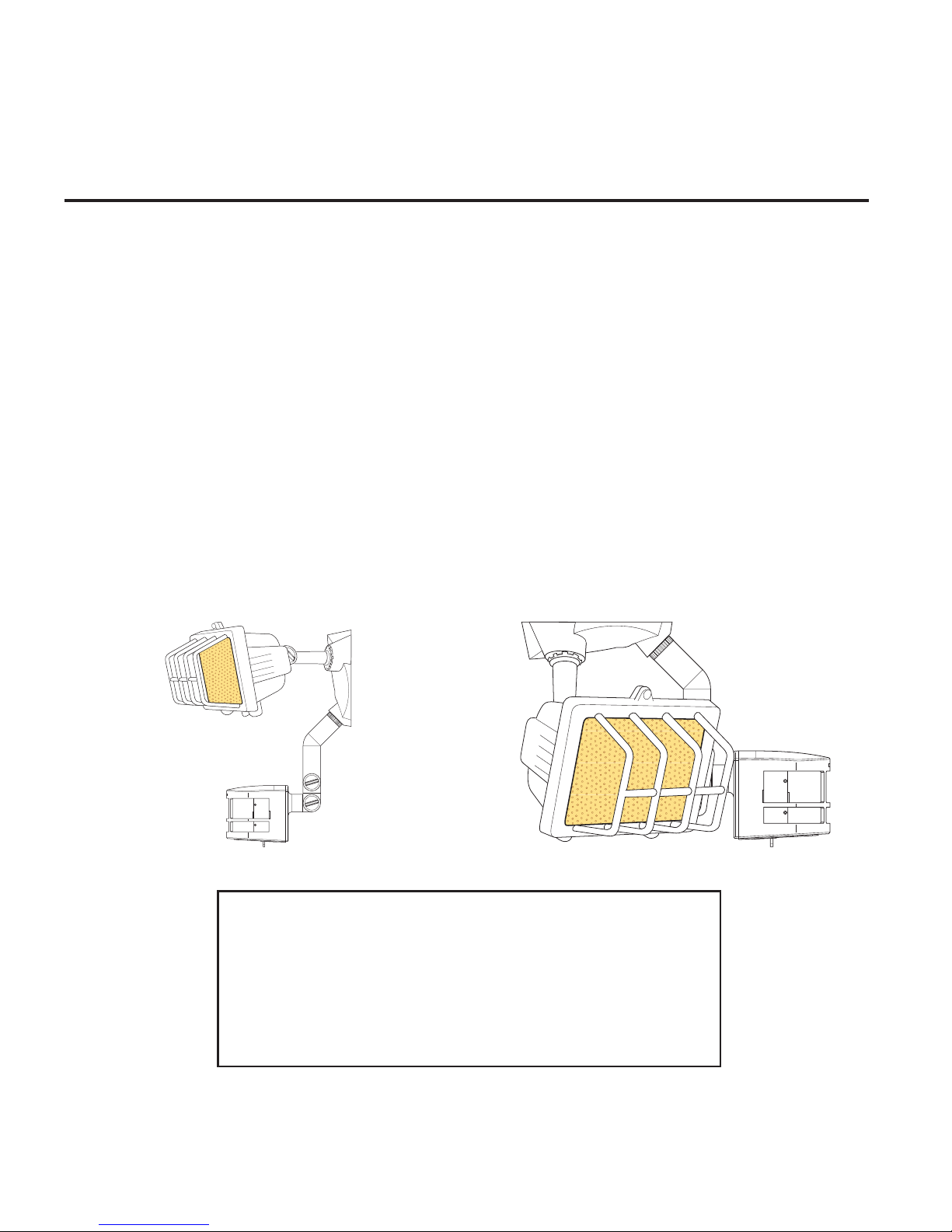

Installation

• IfyouwanttousetheManualOverridefeatureyouwillneedtoinstallthextureonacircuitcon-

trolled by a switch.

• The lamps are packed in boxes, inside the lampheads. Open the lampheads by removing the screws

at the top. Use a clean cloth or the foam packing around the lamps to keep your ﬁngers off the lamps.

Install the lamps in the right side of the sockets ﬁrst, then the left. Close the lampheads and continue

the installation as shown below.

❒ Loosenthethumbscrewsholdingthesensor

head and lampheads.

❒Adjust the various parts so that the ﬁxture

looks similar to this illustration.

❒Finger tighten the thumbscrews at this time.

Wall Mount Eave Mount

❒ Loosenthethumbscrewsholdingthesensor

head and lampheads.

❒ Adjust the various parts so that the ﬁxture

looks similar to this illustration.

❒ Finger tighten the thumbscrews at this time.

CAUTION: To Avoid Fire Or Burn Hazards:

•Allowxturetocoolbeforetouching.Thebulbandthexture

operate at high temperatures.

•Keepxtureatleast3"(76mm)fromcombustiblematerials.

Do not aim at objects closer than 3' (1 m).

•UseonlytypeT250W(max.)tungstenhalogen120VAC

lamps.

WARNING: BefoRe stARtING the INstAllAtIoN, tuRN the poWeR off At the

cIRcuIt BReAkeR.

-6- 598-1342-01

CAUTION: If you have not already turned the

power off at the breaker or fuse, do so now.

Connect the junction box wires to the ﬁxture wires.

Twist together and secure with wire connectors.

CAUTION: If you are not controlling additional

ﬁxtures from your security light ﬁxture, DO NOT

connect the RED wire or remove wire connector.

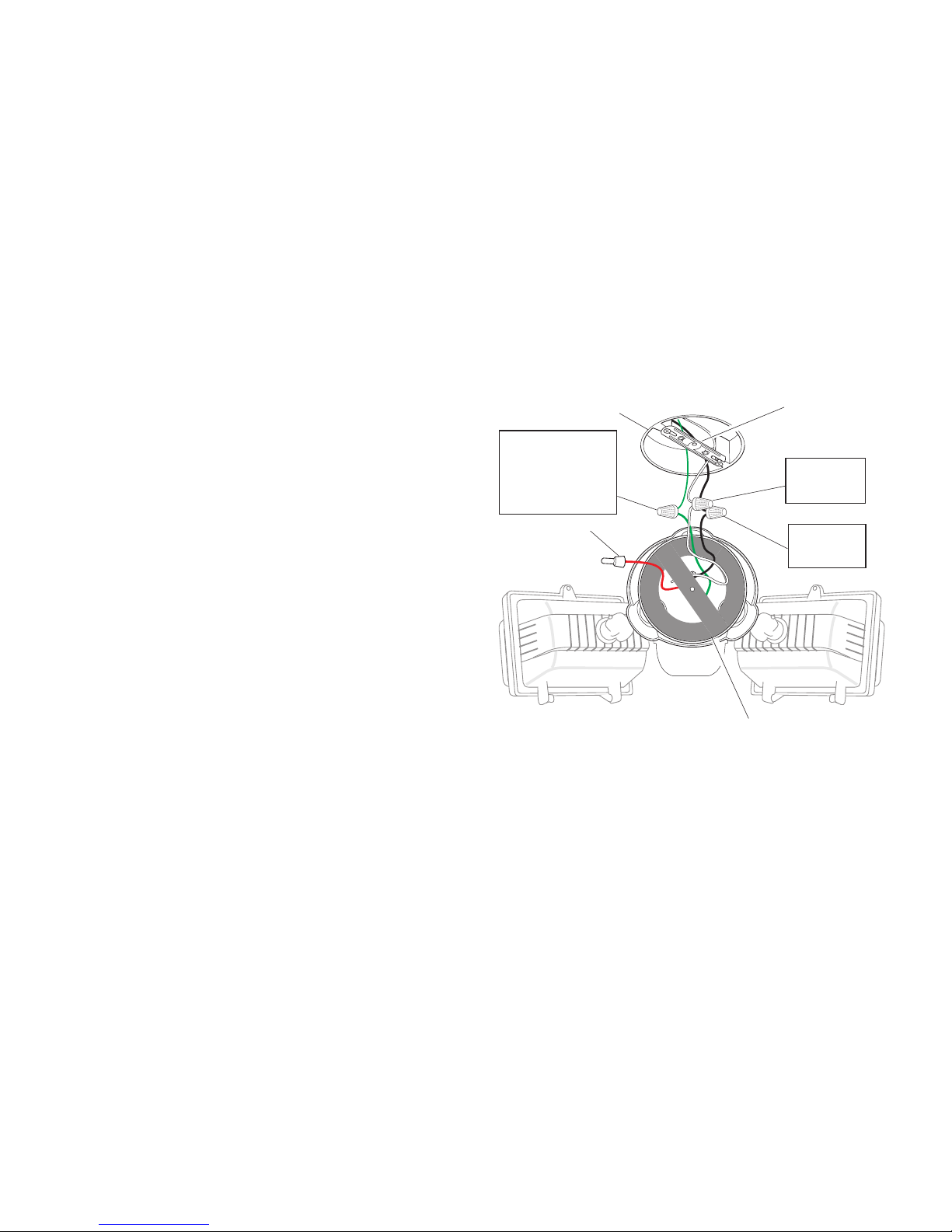

Standard Wiring

Black to

Black

White to

White

Mounting

Bracket

Green ground

wire to junc-

tion box

ground wire

RED, not

used in most

applications

Gasket

Mount Fixture with Crossbar

Mounting Bracket

❒

Turn power off at the fuse or circuit breaker.

❒Remove the existing light ﬁxture (if appli-

cable).

❒Install the mounting bracket as shown using

two screws supplied in hardware pack that ﬁt

your junction box:

Rectangular Junction Box - Use two #6-32

x 3/4" screws.

Circular or Octagonal Junction Box - Use

two #8-32 x 3/8" screws.

Watertight Junction Box - Use two #10-24

x 1/2" screws.

❒The plastic hanger can be used to hold the ﬁx-

ture while wiring. The small end of the plastic

hanger can be threaded through the hole in the

center of the cover plate. The small end then

goes into one of the slots on the mounting

bracket.

❒ RoutetheLightControl’swiresthroughthe

large gasket holes.

Junction Box

-7-

598-1342-01

Controlling Non-Motion Sensing Fixtures

❒When wiring to additional standard ﬁxture

only: Strip the motion sensor's red wire and

connect to the standard ﬁxture's black wire.

Connect all white wires together. Total ﬁxture

ratings must not exceed 1000 Watts (8.3 A).

NOTE: All wiring between ﬁxtures should be run

in accordance with the National Electrical

Code (Canadian Electrical Code in Canada)

through conduit or another acceptable means.

Contact a qualiﬁed electrician if there is any

question as to the suitability of the system.

❒This ﬁxture is provided with a sensor rated

for 1000 Watts. Since the ﬁxture is only rated

500 Watts, 500 Watts of additional load may

be controlled by this sensor.

❒When determining what a ﬁxture is rated for,

do not simply look at the rating on the lamp in

thexture.Lookatthemarkingwhichspeci-

ﬁes the maximum lamp wattage for which the

ﬁxture is suitable.

❒

Once you have selected the ﬁxtures to be con-

nected and determined their maximum ratings,

add these ratings up. For instance, if you have 3

ﬁxtures rated 100 Watts, 150 Watts, and 75 Watts

respectively, you have a total load of 325 Watts.

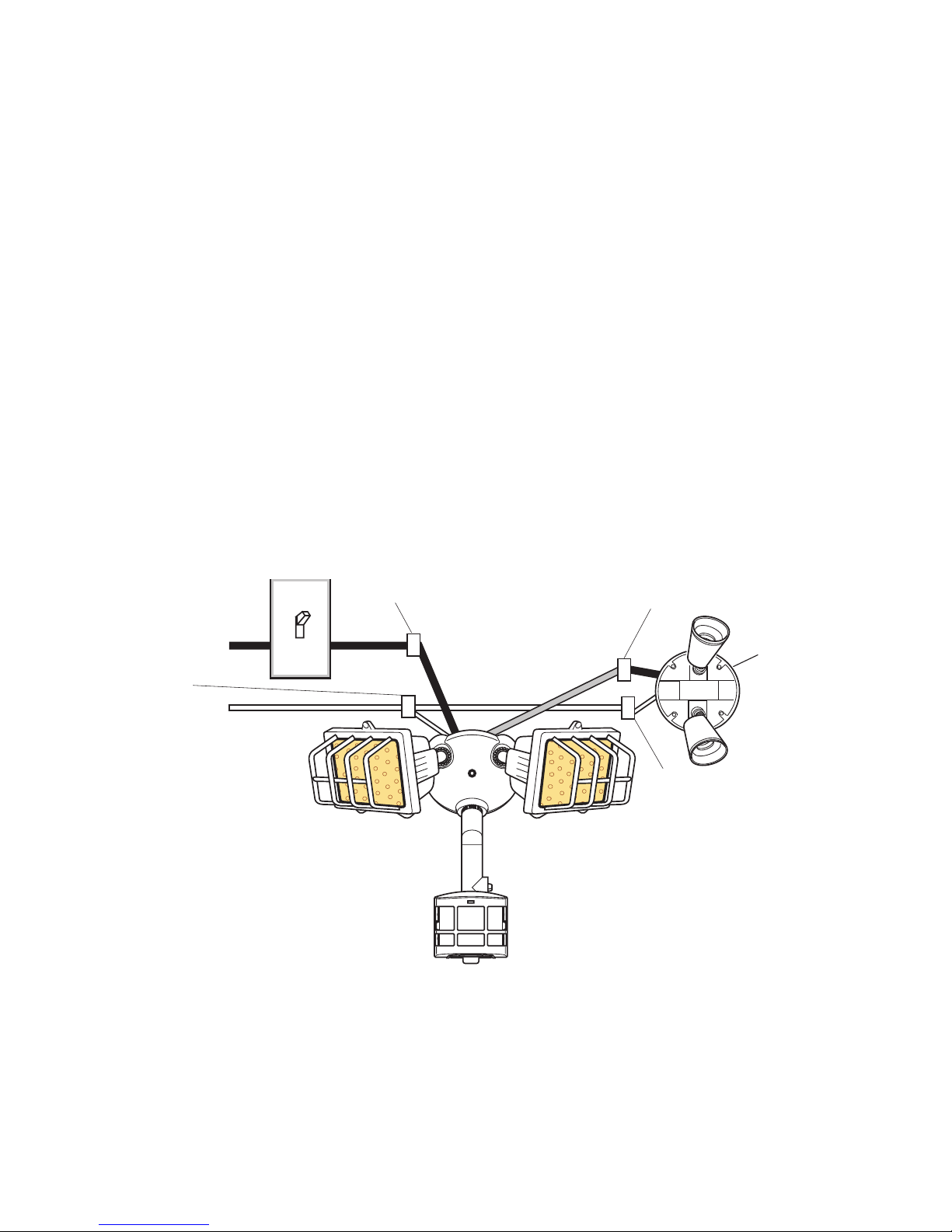

Wiring to a Motion Light & Standard Fixture

Standard

Fixture

RED from Security Light to

BLACK from Fixture

BLACK from Switch to

BLACK from Security Light

WHITE from Line

to WHITE from

Security Light

WHITE from Line to

WHITE from Fixture

-8- 598-1342-01

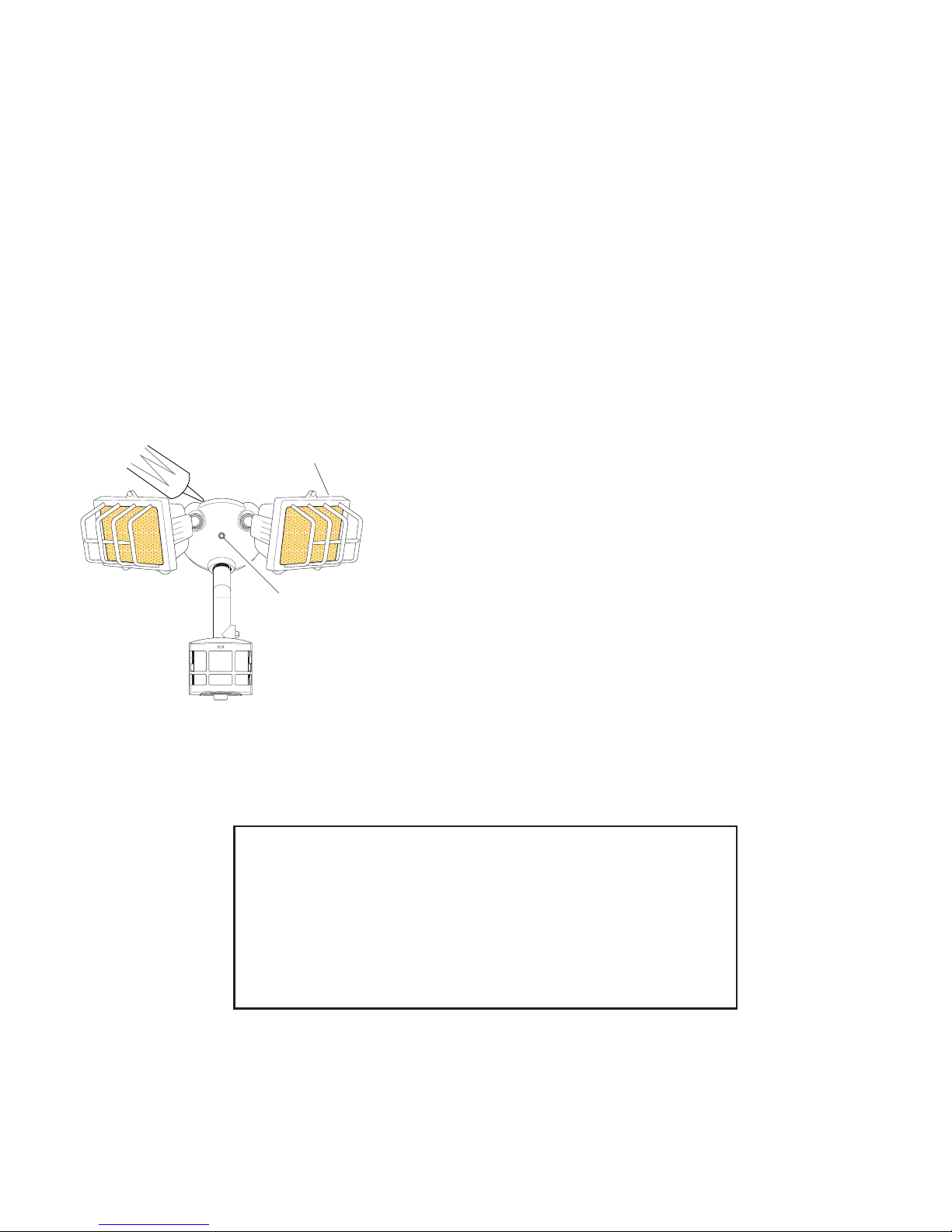

Finish Mounting

❒Align the cover plate, gasket, and the mounting

bracket hole. Secure with M5 x 0.8 x 40 mm

mounting screw supplied.

❒Push the rubber plug ﬁrmly into place.

❒If not installed on a weatherproof box, caulk

between the cover plate and mounting sur-

face with silicone weather sealant.

To obtain maximum lamp

life, keep the tubular

lamps horizontal.

Speciﬁcations

Range .............................. 70 feet (21.0 m); 100 feet

(30.5 m) with Range Boost.

Varies with surrounding tem-

perature.

Sensing Angle ................. Up to 270° (Adjustable)

FixtureLoad.................... Up to 500 Watts Maximum

Tungsten

Incandescent [Up

to 250 Watts Maximum each

lamp holder.]

SensorLoadCapacity ..... Up to 1000 Watts (8.3 amps)

Maximum

Tungsten

Incan-

descent

Power Requirements ....... 120VAC,60Hz

Operating Modes............. TEST,AUTOandMANUAL

MODE

Time Delay...................... 1, 5, 20 minutes

CAUTION:To Avoid Fire Or Burn Hazards:

•Allowxturetocoolbeforetouching.Thebulbandthexture

operate at high temperatures.

•Keepxtureatleast3"(76mm)fromcombustiblematerials.

Do not aim at objects closer than 3' (1 m).

•UseonlytypeT250W(max.)tungstenhalogen120VAC

lamps.

HeathCo LLC reservestheright todiscontinue

products and to change speciﬁcations at any time

without incurring any obligation to incorporate new

features in products previously sold.

Rubber Plug

-9-

598-1342-01

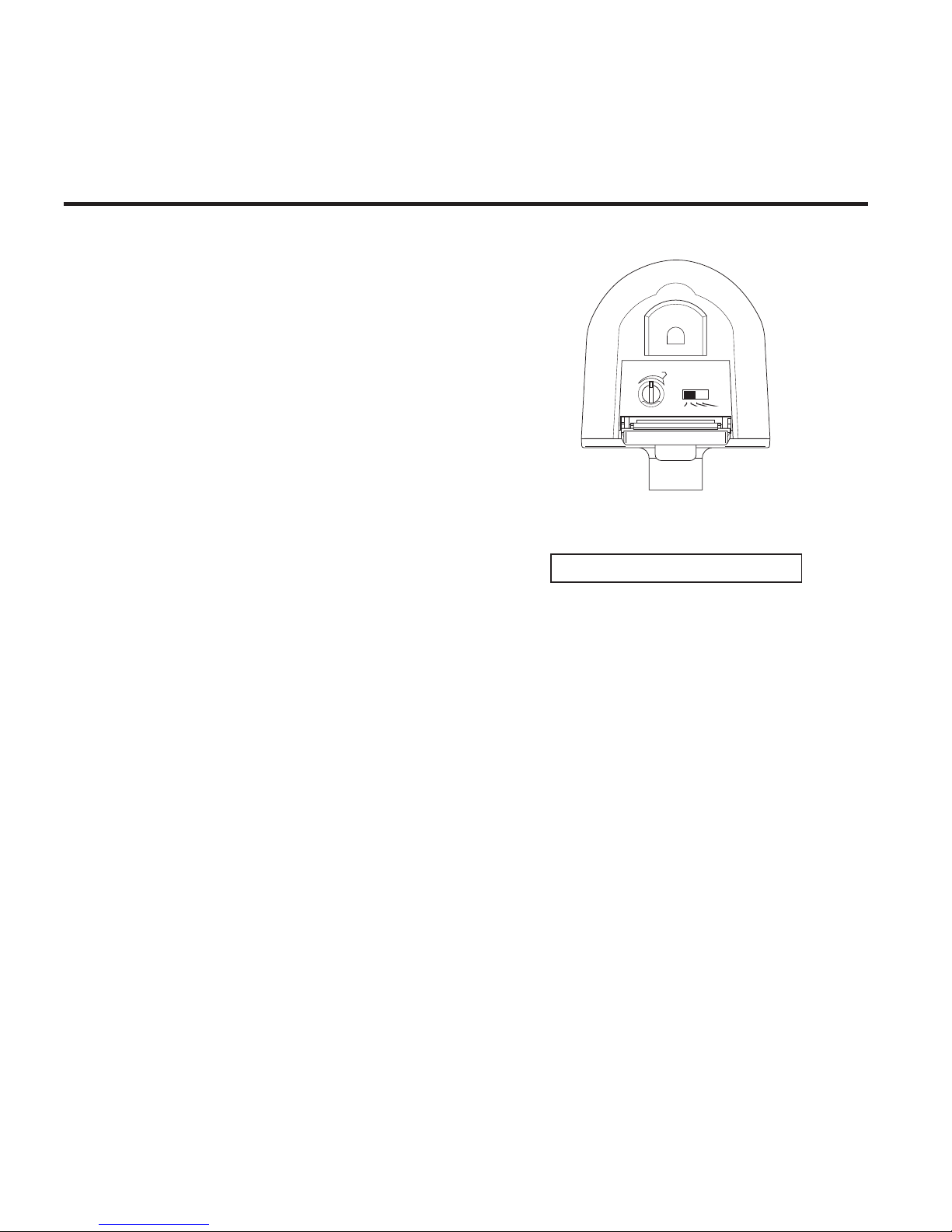

Test and Adjustment

NOTES: When ﬁrst turned on or when switching

from Manual to Auto mode wait 1 1/2

minutes for the unit to calibrate.

Testing with Range Boost on during day-

light may result in abnormal operation.

❒Turn on the circuit breaker and light

switch.

❒Open the control access cover(onbottomofunit)

by pulling down on the tab of the metal door.

❒

Turn the Range control to the center of its adjust-

ment and the ON-TIME to TEST position.

Sensor Bottom

Do not aim the sensor at:

• Objectsthatchangetemperaturerapidly,such

as heating vents and air conditioners, to help

avoid false triggering.

• Wherepets or trafﬁc may trigger the control.

• Nearby large, light-colored objectsreecting

light may trigger the shut-off feature. Do not

point other lights at the sensor.

MIN

TEST 1 5 20

RANGE

MAX

ON-TIME

-10- 598-1342-01

Adjustments Continued . . .

Aim Sensor Down

for Short Coverage

❒ Loosenthetwothumbscrews.Estimatethedirectiontoaimthesensor

and tighten the thumbscrews just enough to hold the sensor in place.

NOTE: The top screw allows the sensor to rotate side to side. The bot-

tom screw allows the sensor to rotate up and down.

❒Walk through the coverage area noting where you are when the lights

turnon(also,theLEDwillashseveraltimeswhenmotionisdetected).

Loosenthethumbscrewsandreadjustthesensorasnecessary.Tighten

the thumbscrews (ﬁnger tight) when you are satisﬁed with the coverage

direction. Keep the sensor at least 1 inch (25 mm) from lamps and

keep the controls facing downward.

❒Adjust RANGE as needed to increase or decrease the range. Too much

sensitivity may cause false triggering in some environments.

❒For maximum range, the sensor must be aiming straight out.

❒Set the amount of TIME (1, 5, or 20 minutes) you want the lights to stay

on after motion is detected at night.

❒Release the tab on metal door to allow door to close.

Aim Sensor Out for

Long Coverage

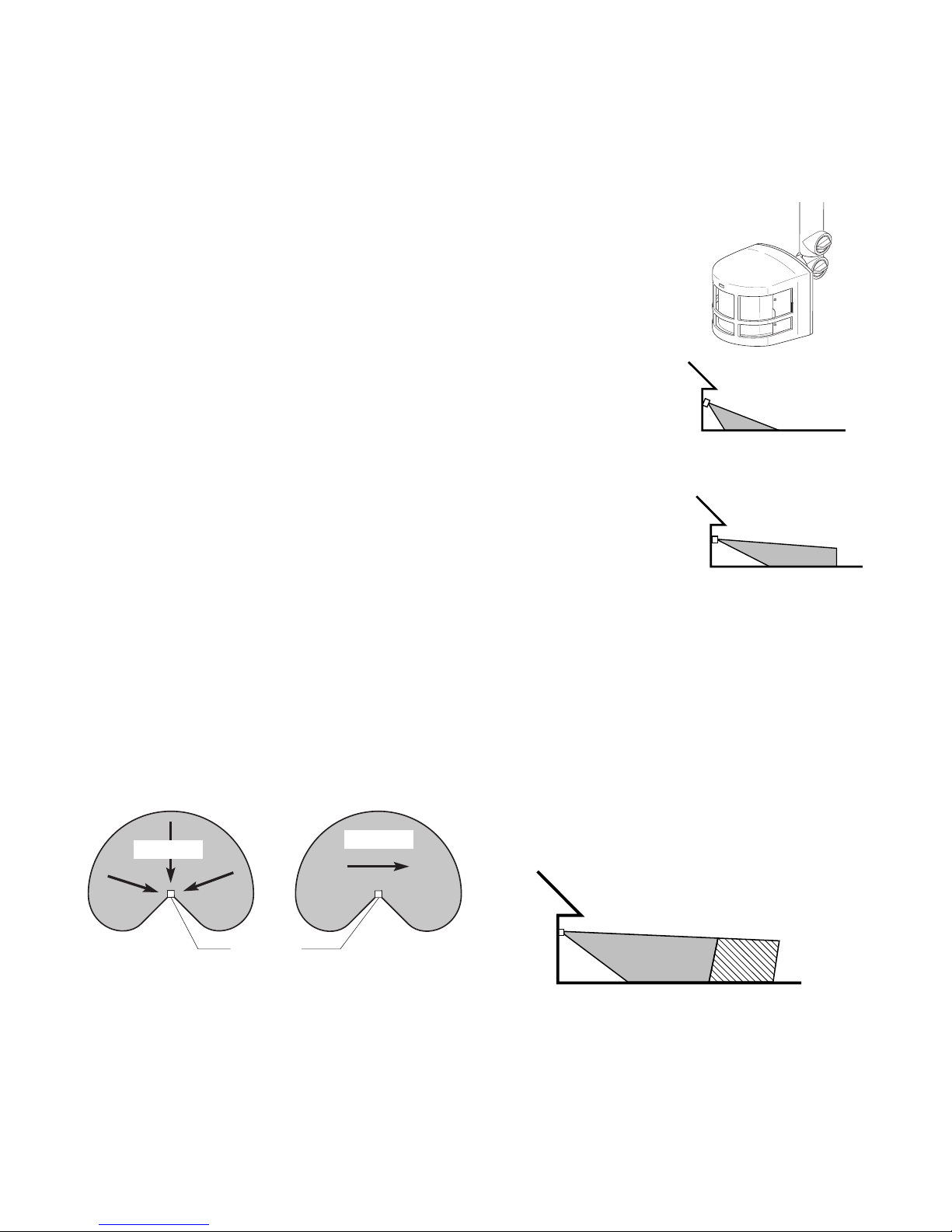

Expected Coverage

The sensor is less sensitive to motion directly

towards it, most sensitive to motion across its

ﬁeld of view.

Motion

Sensor

Least Sensitive Most Sensitive

When mounted 8 feet (2.4 m) from the ground, you

may expect the range shown below. If mounted

much higher the sensor may miss objects near the

ground. If mounted much lower the sensor range

may be reduced.

Motion Maximum Range

(Sensor aiming straight out)

8 ft.

(2.4 m)

70 ft. (21.0 m) 100 ft. (30.5 m)

With RANGE With RANGE

Set to MAX Boosted

Indice

Lingue:

Altri manuali Heath Zenith Proiettore

Heath Zenith

Heath Zenith High Pressure Sodium Dusk-to-Dawn Security Light... Manuale utente

Heath Zenith

Heath Zenith SL-5571 Manuale utente

Heath Zenith

Heath Zenith SL-5675 Manuale utente

Heath Zenith

Heath Zenith SL-5511 Manuale utente

Heath Zenith

Heath Zenith HZ connect 9304 Manuale utente

Heath Zenith

Heath Zenith 7138 Manuale utente

Heath Zenith

Heath Zenith SL-5309 Manuale utente

Heath Zenith

Heath Zenith 8421 Manuale utente

Heath Zenith

Heath Zenith SL-5503 Manuale utente

Heath Zenith

Heath Zenith 8805 Manuale utente

Heath Zenith

Heath Zenith Secure Home 7103 Manuale utente

Heath Zenith

Heath Zenith Energy Star SL-5666 Manuale utente

Heath Zenith

Heath Zenith SECUR360 9305 Manuale utente

Heath Zenith

Heath Zenith SL-5505 Manuale utente

Heath Zenith

Heath Zenith SECUR360 9309 Manuale utente

Heath Zenith

Heath Zenith Solar Powered Motion Sensor Light SL-7210 Manuale utente

Heath Zenith

Heath Zenith Secure Home SH-9250-BZ Manuale utente

Heath Zenith

Heath Zenith Dual Brite SL-5512 Manuale utente

Heath Zenith

Heath Zenith SL-5676 Manuale utente

Heath Zenith

Heath Zenith DualBrite Security Light 5630 Manuale utente

Heath Zenith

Heath Zenith SECUR360 9301 Manuale utente

Heath Zenith

Heath Zenith SL-5514-BZ-B Manuale utente

Heath Zenith

Heath Zenith SL-9272 Manuale utente

Heath Zenith

Heath Zenith SECUR360 9302 Manuale utente

Manuali Proiettore popolari di altre marche

VIZULO

VIZULO Micro Martin Guida utente

EuroLite

EuroLite LED IP FL-100 SMD Manuale utente

Cooper Wheelock

Cooper Wheelock XB12 Manuale utente

Allen + Roth

Allen + Roth 17624-000 Manuale utente

ADJ

ADJ 4 STAGE PAK Manuale utente

Cooper Lighting

Cooper Lighting EGL91SW233 Manuale utente

Max

Max 37496 Manuale utente

BEGA

BEGA 85 143 Manuale utente

Beamz

Beamz 151.226 Manuale utente

EuroLite

EuroLite LED IP FL-8 Manuale utente

Ledj

Ledj PERFORMER 36 RGB Manuale utente

Perel

Perel ELS3 Manuale utente

Perel

Perel ELS3WD Manuale utente

LumX

LumX LM 36130 Manuale utente

Xtricity

Xtricity 4-80053 Manuale utente

Stahl

Stahl 6521/4 Series Manuale utente

Ecosense

Ecosense EcoSpec Manuale utente

Ayrton

Ayrton minipanel FX Manuale utente
