Heatmiser Wireless Series Manuale utente
1
Model: Slimline-RF V3
Wireless Series
Model: Slimline-RF V3 2
Table of Contents
Product Image
Table of Contents
What is a Programmable
Room Thermostat?
Installation Procedure
Installing the Batteries
Replacing the Batteries
Receiver Type
Pairing Menu Explained
Pairing Menu
Pairing with the UH8-RF V2 Wiring Centre
Pairing With the UH8-RF Wiring Centre
Pairing With the RF-Switch V2
Pairing With the RF-Switch
Pairing With the RF-Switch 16 Amp
LCD Display
Setting the Clock
Temperature Display
Comfort Levels Explained
Setting the Hot Water
Switching Times
Locking the Thermostat
Temperature Control
Temperature Hold
Holiday
Hot Water Override
Frost Mode
Heating On/Off
Factory Reset
Re-calibrating the Thermostat
Optional Features Explained
Adjusting the Optional Settings
Optional Settings - Feature Table
1
2
3
4-5
6-7
8
9-10
11
11
12
13
14
15
16
17-18
19
20
21-22
23
24
25
26
27
28
29
29
30
30
31-32
33
34
3
What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
The programmer allows you to set “On” and “Setback” periods to suit your own lifestyle.
The room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it off once
this set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a room thermostat to a higher temperature will not make the room heat up
any faster. How quickly the room heats up depends on the design & size of the heating
system.
Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.
Wireless Series
4
Model: Slimline-RF V3
Room thermostats need a free flow of air to sense the temperature, so they must not be
covered by curtains or blocked by furniture. Nearby electric fires, televisions, wall or
table lamps may also prevent the thermostat from working properly.
Installation Procedure
This wireless thermostat is designed to be surface mounted.
Step 1
Carefully separate the front half of the thermostat from the back plate by placing a
small flat head terminal driver into the slots on the bottom face of the thermostat.
Step 2
Mark 2 hole positions on the wall using the backplate as a positioning template.
Drill at the marked positions and insert a wall plug into each hole.
Step 3
Screw the thermostat back plate securely on the wall.
Step 4
Clip the front of the thermostat back onto the thermostat back plate.
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will affect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.
5Wireless Series
1
34
2
6
Model: Slimline-RF V3
Installing the Batteries
2x AAA batteries have been supplied with this thermostat.
To access the battery holder, push and release the compartment door located
on the bottom face of the thermostat. The thermostat will inform you when the
batteries need to be replaced by displaying the battery icon on screen.
Do NOT use rechargeable batteries with this product!
7Wireless Series

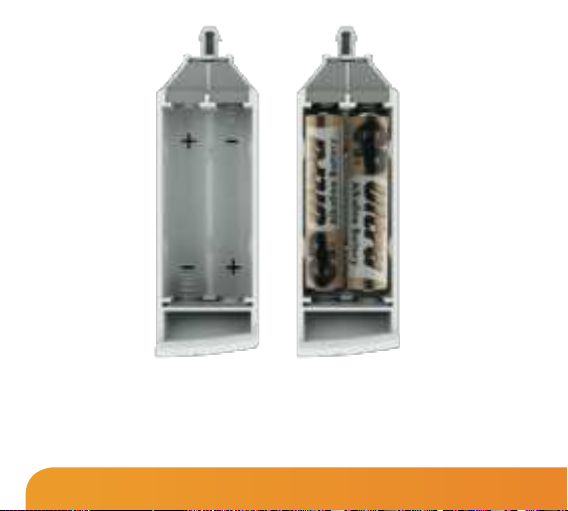

Insert the batteries in the empty battery holder, ensuring that each battery is
orientated for the correct polarity + / - .
Push the battery holder back inside the thermostat until it is secured
in its closed position.
8
Model: Slimline-RF V3

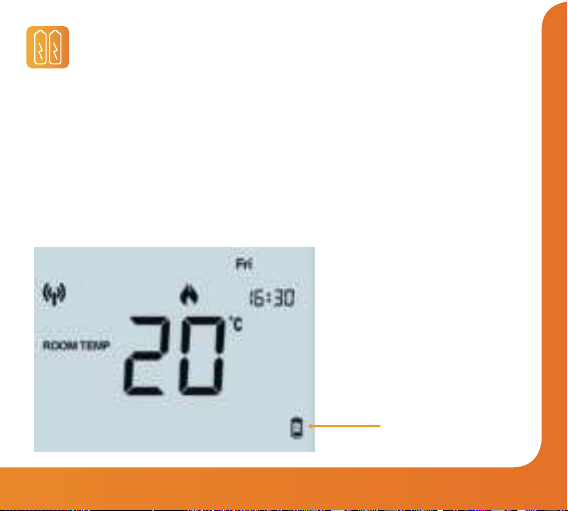

Batteries have a fixed lifespan and will need to be replaced occasionally to
ensure the thermostat operates correctly.
The thermostat will inform you when the batteries need to be replaced by
displaying the battery icon on screen.
Note: You must replace the batteries within 1 minute of removal in order to retain
the current clock and comfort level settings.
Replacing the Batteries
Battery Icon
(Flashes)
9Wireless Series
Receiver Type
Slimline-RF V3 will send a wireless signal to a receiver to switch on the heating
or hot water. Select the receiver type you are using from the list shown here
on pages 9 & 10, and follow the pairing instructions on the relevant page.

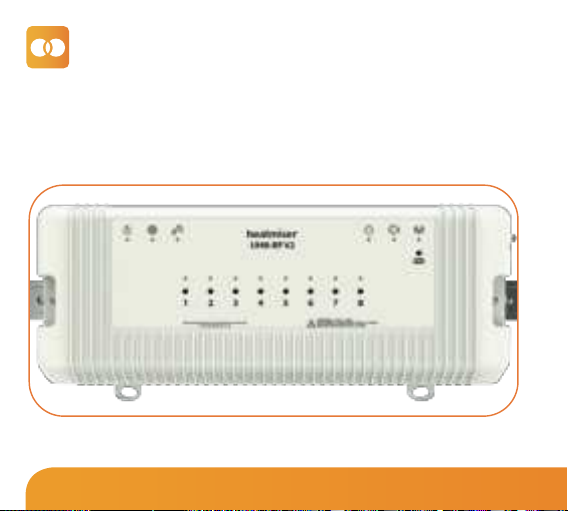

UH8-RF V2
Page 12
To control heating only, configure feature 10 on the Slimline-RF to mode 00 or 01.
To control heating & hot water, configure feature 10 to mode 02, (see page 34).
