Heckler Design WindFall STAND Manuale utente
Assembly & Installation
H571
WindFall®
STAND
Secure Stand for iPad Pro 11-inch
Limited Warranty
Heckler Design warrants your product to be free from defect in material and
workmanship for a period of two years from the original date of purchase.
Electronic components are warranted to be free from defect for a period of one
year from the original date of purchase. If you discover a defect, please contact
new or refurbished components. If repair is not possible, Heckler Design will
replace the item.
Compatible with:
iPad Pro 11-inch
F581
S130
4x
4x
4x
1x
Felt Feet
Friction Feet
F645
F646
Security Screws
Security Assembly Tool
1x
Assembly ToolF529
1:1
1:1
Keep your special assembly tool in a
safe place. To purchase a replacement,
Optional:
Kensington ClickSafe Cable Lock
(sold seperately)
Optional:
PivotTable (sold seperately)
Optional:
Kensington NanoSaver
Keyed Laptop Lock
(sold seperately)
Optional:
PivotTack (sold seperately)
1 Select then install feet
3
F581
4x
Friction feet
4x
S130
Felt feet
Option: Remove original screws
Install security screws
4
F529
F646
F645
F529
2 Loosen and remove screws
3 Remove right-hand tablet bracket
5
Loosen, but
do not remove.
and cord securer
6
4 Install the iPad Pro
5 Route your USB-C cable and
reinstall right-hand tablet bracket
F529
7
5 Fasten cord securer
6 Tighten all screws
Adjust cord securer snug to
your cable
F529
F529
7 Done
8
9

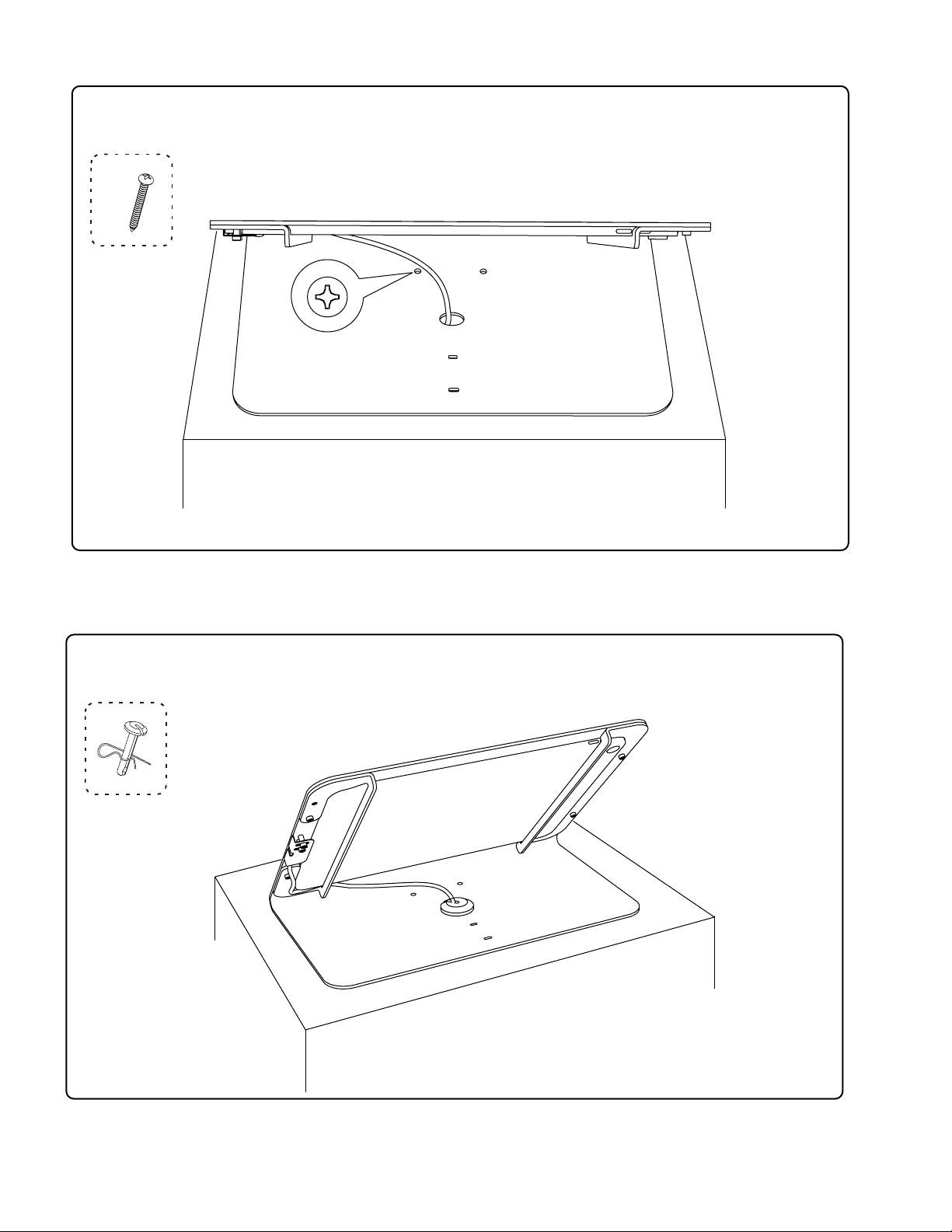

Counter Mounting
2x
(Sold Seperately)
PivotTack
(Sold Seperately)
