HECKLER H965 Manuale utente
Assembly & Installation
for DTEN Board D7 55”
Heckler AV
H965
Limited Warranty
Heckler Design warrants your product hardware to be free from defects in material and
workmanship throughout the life of the product, and electronic components for a period of
one year from the original date of purchase. If you discover a defect in a product covered by
this warranty, we will repair at our option using new or refurbished components, or if repair is
not possible, replace the item. We reserve the right to request order numbers, receipts, and
other supplemental order information as proof of purchase to validate warranty claims.
ROLLING STAND
Compatible with
DTEN Board D7 55”
For any questions or issues, please
contact [email protected].
Please have two people to assemble the
Rolling Stand and to mount the display.

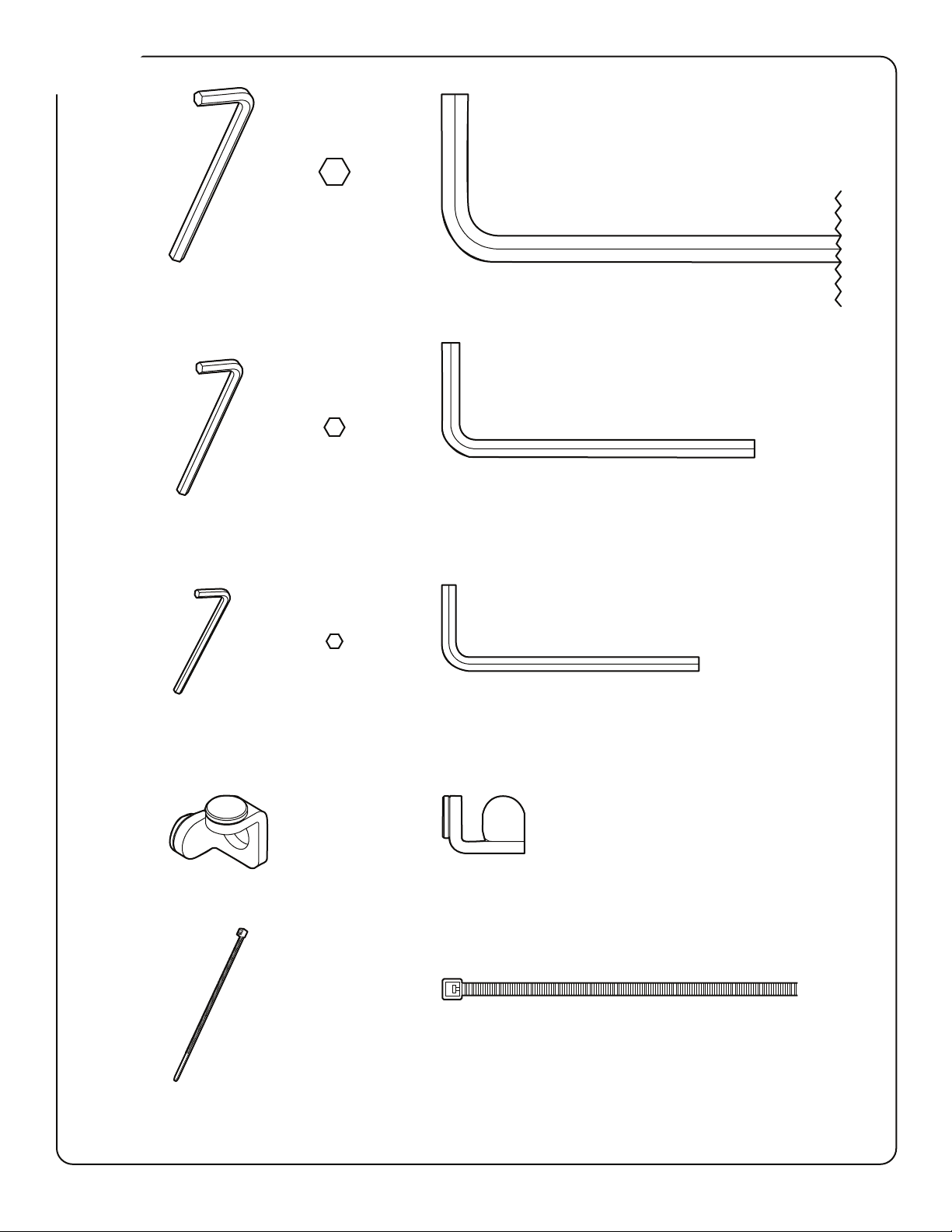

1:1
6mm Hex key
1/8” Hex Key
F535
F674
F180
F530
4mm Hex key
Cable Tie
2x
1x
1x
1x
4x
Cable Manager
2
1:1
8x
4x
Flange Button Head Screws
Button Head Screws
Caster
F694
F693
F534
F748
Socket Head Screws
4x
4x
3
1 Lay down arms as shown and snap casters onto the posts.
2Assemble the wood shelf.
4x
F748
8x
F693
1x
F180
Please do not fully fasten screws,
until after Step 3.
4
3Upright the Rolling Stand, slide the bracket in place,
and fasten screws.
Tightly fasten all bracket and wood
shelf screws.
Engage all caster brakes before
installing the bracket.
4x
F534
1x
F535
5
Put the D7 Display on the soft
surface before installing screws.
Ensure all four screws engage
the keyholes.
Please leave some space between
TV and screws.
4Partially fasten mounting screws to the back of the D7 Display.
5Hang the D7 Display through the keyhole and fasten screws.
4x
F694
1x
F674
1x
F674
6
6Route the power and Ethernet cables.
7Install magnetic cable managers.
2x
F530
4x
7
8Assembly complete
8
