Henny Penny OE-100 Guida

2-1

Henny Penny Model OE-100

SECTION 2. MAINTENANCE

2-1. INTRODUCTION This section provides procedures for checking and replacement of the

various parts used within the unit. Before replacing any parts, refer to

Section 1, Troubleshooting. It will aid you in determining the cause of a

particular malfunction.

2-2. TEST INSTRUMENTS You may use two test instruments to check the electric compo-

nents.

• A continuity light.

• An ohmmeter.

When the manual refers to the circuit being closed, the continuity

light will be illuminated or the ohmmeter should read zero (0)

unless otherwise noted.

When the manual refers to the circuit being open, the continuity

light will not illuminate or the ohmmeter will read one (1).

NOTE

A continuity light cannot be used to check coils or motors.

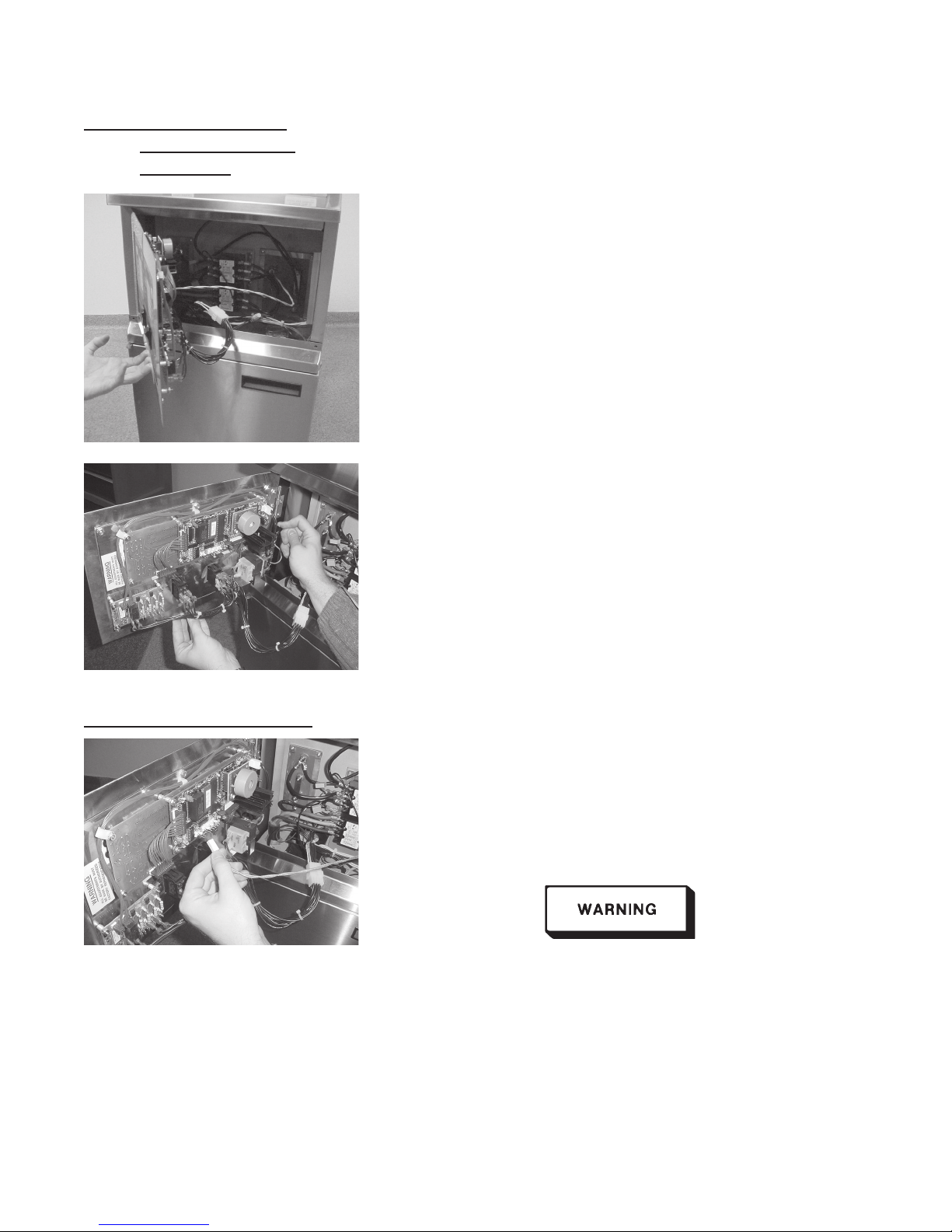

2-3. REMOVING THE

CONTROL PANEL

To replace parts located inside the fryer, you will need to remove the

control panel. The following steps provide the correct procedure.

1. Place the power switch in the OFF position.

Disconnect the power cord from the wall receptacle or

power at the fuse or breaker box, or electrical shock could

result.

2. Remove the decorative strip, one located on each side of the

control panel, by removing the screw located on the bottom

of the decorative strip.

593

Henny Penny Model OE-100

2-2

2-4. THERMAL SENSOR The thermal sensor determines the shortening temperature. If a mal-

function does occur, an E6 will be displayed on the digital readout.

Turn unit to OFF position, then back to COOK position. If E6 is still

displayed, the thermal sensor must be replaced by following these

steps:

1. Remove electrical power supplied to fryer.

Place POWER switch in the OFF position and unplug the

power cord or remove power from the fuse or breaker box.

2. Drain the shortening from frypot.

3. Remove two decorative strips located on each side of control

panel and let control panel swing out.

593

2-3. REMOVING THE

CONTROL PANEL

(Continued)

3. Panel will now swing out with hinge located on left side of panel.

4. Pulling down on the spring loaded hinge pin, pull control panel

straight out to completely remove.

NOTE

When completely removing control panel, all wiring must be

unplugged from control panel. Be sure to mark wires before

removing.

5. Install panel board by reversing order.

2-3

Henny Penny Model OE-100

2-5. HIGH TEMPERATURE

LIMIT CONTROL

The high temperature limit control is a manual reset control which

senses the temperature of the shortening. If the shortening temperature

exceeds the safe operating limit, this control will open and shut off the

heat to the frypot.

The high limit light will then illuminate and control must manually be

reset.

Disconnect the two wires from the high limit temperature control.

Check for continuity between the two terminals after resetting the

control. If the circuit is open, replace the control following these

procedures. If the circuit is closed, the high limit is not defective.

Reconnect the two electrical wires.

1091

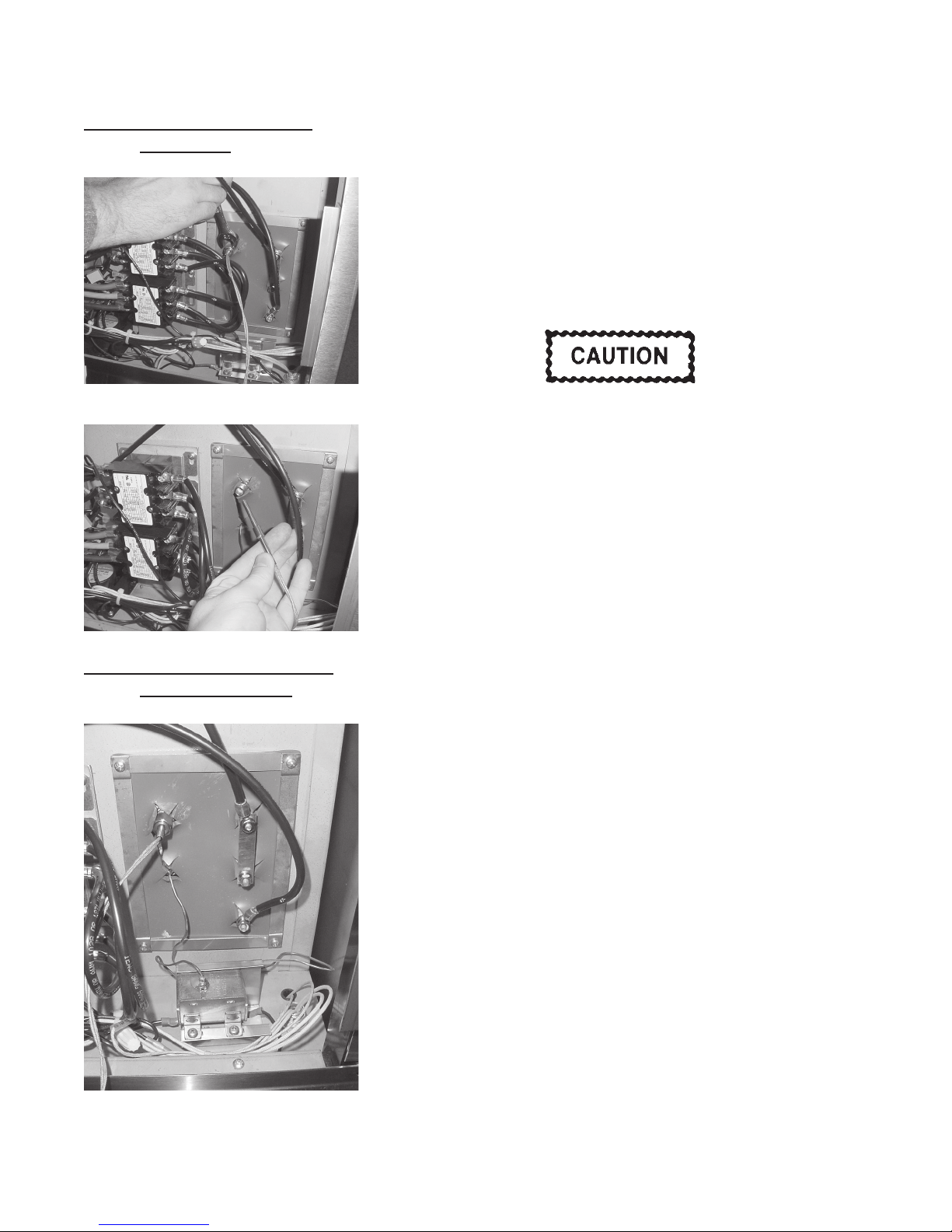

2-4. THERMAL SENSOR

(Continued)

4. Unplug electrical wires from control panel board that are attached

to thermal sensor.

5. Using a 1/2" wrench, loosen screw nut from pot fitting and pull

thermal sensor bulb straight out from pot fitting.

6. Install new thermal sensor, making sure the thermal sensor ex-

tends through pot wall, up to the outer diameter of the heating

element.

Care must be taken not to extend the thermal sensor

beyond this point or damage of sensor could result. Also,

when installing new thermal sensor, you must use a new

locking ferrule in screw nut. Do not overtighten screw nut.

Snug screw nut up and tighten 1/4 turn past this point.

2-4

Model OE-100

409

2-5. HIGHTEMPERATURE

LIMITCONTROL

(Continued) Before following these steps, place POWER switch in the

OFF position and unplug the power cord or open the wall

circuit breaker.

1. Ifthe tubeisbroken orcracked,the controlwillopen,shutting off

electricalpower.Thecontrolcannot bereset.

Usereplacement highlimit,part no.16337,420degree.

2. Drainshorteningfromthefrypot.

3. Removecontrol panelperSection2-3.

4. Removetheretainersecuringthesiliconegasket.

5. Loosensmall insidescrewnutoncapillarytube.

6. Removecapillarybulb frombulbholderinsidethefrypot.

7. Straightenthecapillarytube.

8. Removelarger outsidenutthatthreads intopotwall.

9. Removethe twonutsthatholdthehigh limitbracketfromcontrol

panelarea.

10. Liftdefectivecontrol fromcontrolpanelarea.

11. Insert newcontrol andreplace nutsto bracket.

12. Uncoilcapillaryline,startingatcapillarytube,andinsertthrough

frypotwall.

To avoid electrical shock or other injury, the capillary line

must run under and away from all electrical power wires

and terminals. The tube must never be in such a position

where it could accidentally touch the electrical power

terminals.

13. Carefullybendthe capillarybulbandtube towardbulbholderon

heatingelements.

14. Slipcapillarybulbintobulbholderlocatedonheatingelements.

Pullexcesscapillarylinefrompotandtighten nutintofrypotwall.

2-5

Henny Penny Model OE-100

2-6. HEATING ELEMENTS NOTE

Heating elements are available for 208 and 480 voltage.

Check the data plate to determine the correct voltage.

If the shortening's temperature recovery is very slow or at a

slower rate than required, this may indicate defective heating

element(s). An ohmmeter will quickly indicate if the elements are

shorted or open.

1. Remove electrical power supplied to unit.

Place POWER switch in the OFF position and unplug the

power cord or open the wall circuit breaker.

2. Remove the control panel. Refer to Section 2-3.

3. Perform an ohm check on one element at a time, with wires

disconnected from element. If the resistance is not within

tolerance, replace the element.

Resistance

Voltage Wattage in Ohms (Cold)

480 7333 27.5

415 7333 6.9

380 7333 18.8

240 7333 6.9

208 7333 5.6

480 4500 51.2

415 4500 11.75

380 4500 N/A

240 4500 11.75

208 4500 9.61

593

2-5. HIGH TEMPERATURE

LIMIT CONTROL

(Continued)

15. With excess capillary line pulled out, tighten smaller nut.

NOTE

Tighten nut to snug only. Too tight will damage

capillary line.

16. Replace front panel.

17. Refill with shortening.

Henny Penny Model OE-100

2-6

2-6. HEATING ELEMENTS

(Continued)

1091

Replacement

1. Drain the shortening from the frypot.

2. Remove the heating element wire from the terminals by removing

the nuts and washer. Label each so it can be replaced in the same

position on the new element.

3. Remove the retainer securing the silicone gasket.

4. Loosen the bolts on the four element spreaders.

5. Slide the element spreaders to the center of the heating element.

6. Remove the brass nuts (4) and washers (3) which secure the ends

of the elements through the frypot wall.

7. Remove the heating elements from the frypot as a group by lifting

the far end and sliding them up and out toward the rear of the

frypot.

8. Install new heating elements with new "0" rings (2) mounted on

terminal ends and spreaders loosely mounted in the center of the

heating elements.

9. Replace the heating elements, terminal end first, at approximately

450 angle, slipping the terminal ends through the front end of the

frypot.

10. Replace the brass nuts (4) and washers (3) on the heating element

terminals. Tighten the brass nuts to 30 foot pounds of torque.

11. Move the element spreader from the center of the element into a

position which will spread each element apart evenly on all four

sides and tighten.

12. Reconnect the wires to the appropriate terminal as labeled when

they were removed.

13. Replace the front control panel.

14. Connect the power cord to the wall receptacle or close wall

circuit breaker.

Heating elements should never be energized without short-

ening in frypot.

15. Replace the shortening in the frypot.

2-7

Henny Penny Model OE-100

2-7. CONTACTORS

The following checks are performed with the wall circuit

breaker closed and the Power switch in the ON position.

Extreme caution should be taken. Make connections before

applying power, take reading, and Remove power before

removing meter leads.

1. With power applied, increase setpoint temperature setting allow-

ing heat contactor to activate.

Test Points Results

Heat Contactor The voltage

from terminal 34 to 35 should read the

from terminal 35 to 36 same at each

from terminal 34 to 36 terminal.

Test Points Results

Primary Contactor It should

from terminal 27 to 28 correspond to

from terminal 28 to 29 the voltage

from terminal 27 to 29 rating stated on

the data plate.

If either contactor is defective, it must be replaced as follows:

1. Remove electrical power supplied to the fryer by unplugging

or opening the wall circuit breaker.

2. Remove only those wires directly connected to the contactor

being replaced. Label the wires.

3. Remove the two mounting screws on the base plate and

remove contactor.

4. Install the new contactor and tighten the two mounting

screws.

5. Connect the labeled wires to their respective positions.

6. Install the control panel.

7. Reconnect power to the fryer and test the fryer for proper

operation.

593

Henny Penny Model OE-100

2-8

2-8. FAN The Henny Penny OE-100 has a fan in the circuit which operates only

when the power switch is in the COOK position. The fan helps keep

the control panel cool by pulling out heat from between the control

panel and frypot.

The replacement of a faulty fan is as follows:

To avoid electrical shock or other injury, before starting this

procedure, move power switch to OFF position. Disconnect

main circuit breaker or unplug cord at receptacle.

1. Remove control panel per Section 2-3.

593

2-7. CONTACTORS

(Continued)

The Henny Penny OE-100 requires two switching contactors. Lo-

cated on the bottom is the primary contactor with the heat contactor

stacked to the top of the primary. When closed, the primary contactor

completes the heat circuit. It also supplies power to the heat contactor.

1. Remove electrical power supplied to the fryer.

Place ON/OFF switch to the OFF position and unplug the

power cord to open the wall circuit breaker.

2. Remove the control panel. Refer to Section 2-3.

3. Perform a check on the contactor as follows:

Test Points Results

from 23 to 29 open circuit

from 24 to 28 open circuit

from 25 to 27 open circuit

from 30 to 34 open circuit

from 31 to 35 open circuit

from 32 to 36 open circuit

from 22 to 26 ohm reading 415

from 33 to 37 ohm reading 415

2-9

Henny Penny Model OE-100

2-8. FAN (Continued) 2. Label and disconnect fan motor wires.

3. Remove the four screws, washers, and nuts securing the fan to the

heat shield.

4. Remove the fan from the heat shield.

5. Install the new fan on the heat shield and secure with the four

screws, washers, and nuts.

6. Reconnect the fan motor wires.

7. Install control panel.

2-9. COOK/PUMP SWITCH

Checkout

The Cook/Pump Switch is a three way rocker switch with a center

"OFF" position. With the switch in the COOK position the fryer will

operate. With the switch in the PUMP position the filter pump will

operate, but the unit will not heat.

1. Remove Control Panel, but leave hinged on unit.

Remove electrical power supplied to the fryer by unplug-

ging the unit, or turning off the wall circuit breaker or

electrical shock could result.

2. Remove and label wires from Cook/Pump Switch.

3. "OFF" Position - should be open circuit anywhere on the

switch.

4. "COOK" Position

Check from:

#5 to #6 closed circuit

#1 to #2 closed circuit

5. "PUMP" Position

Check from:

#4 to #5 closed circuit

#3 to #2 closed circuit

Replacement

1. With control panel removed and wires off the switch, push in on

tabs on the switch to remove from the panel.

2. Replace with new switch, and reconnect wires to switch following

the wiring diagram.

3. Replace the control panel.

593

Henny Penny Model OE-100

2-10

2-10. FUSES

To avoid electrical shock or other injury, before starting

this procedure, move power switch to the OFF position.

Disconnect main circuit breaker at the circuit breaker box

or unplug cord from wall receptacle.

Each unit is provided with two fuses to protect the internal cir-

cuitry. These fuses are rated 15 amps at 300 volts. Unthread screw

cap to allow access to fuses located on panel behind door.

2-11. DRAIN SWITCH

To avoid electrical shock or other injury, before starting

this procedure, move power switch to the OFF position.

Disconnect main circuit breaker at the circuit breaker box

and/or unplug cord from wall receptacle.

1. A continuity check should be made to determine if the drain

switch is defective. Check between the two outer terminals with

actuator in groove of the drain valve extension rod. Circuit should

be closed. If drain valve extension rod is turned, actuating drain

switch, circuit should be open.

Replacement

1. To replace drain switch, remove two screws and nuts secur-

ing switch and switch cover.

2. Label and disconnect wires.

3. Connect wires to new drain switch.

4. Position actuator and attach drain switch and switch cover

with the two screws and nuts.

5. Test to see if drain valve extension rod actuates the switch.

NOTE

Listen for click of switch while rotating drain valve extension

rod.

1091

Altri manuali per OE-100

Indice

Altri manuali Henny Penny Friggitrice

Henny Penny

Henny Penny OFG-391 Manuale utente

Henny Penny

Henny Penny OEA-323 Manuale utente

Henny Penny

Henny Penny Evolution Elite Manuale utente

Henny Penny

Henny Penny 590 Guida

Henny Penny

Henny Penny LOV LVE-100 Series Guida

Henny Penny

Henny Penny COMPUTRON 7000 Manuale utente

Henny Penny

Henny Penny PFE-591 Manuale utente

Henny Penny

Henny Penny OFE-342 Manuale utente

Henny Penny

Henny Penny LOV LVG-100 Series Manuale utente

Henny Penny

Henny Penny LOV LVE-100 Series Manuale utente

Henny Penny

Henny Penny LOV LVE-100 Series Manuale utente

Henny Penny

Henny Penny LVE-202 Manuale utente

Henny Penny

Henny Penny Evolution Elite EEE-154 Manuale utente

Henny Penny

Henny Penny KFC Velocity PXE-100 Manuale utente

Henny Penny

Henny Penny OFG-390 Manuale utente

Henny Penny

Henny Penny LVG-202 Manuale utente

Henny Penny

Henny Penny OFE-290 Manuale utente

Henny Penny

Henny Penny F5 Manuale utente

Henny Penny

Henny Penny EVOLUTION ELITE EEE-182 Manuale utente

Henny Penny

Henny Penny Evolution Elite EEE-153 Manuale utente

Henny Penny

Henny Penny OFE-321 Manuale operativo

Henny Penny

Henny Penny OFE-290 Manuale utente

Henny Penny

Henny Penny FDS-200 Manuale utente

Henny Penny

Henny Penny Pressure Fryer Manuale utente

Manuali Friggitrice popolari di altre marche

Innsky

Innsky 55SA1US Manuale utente

Falcon

Falcon G350/11 Guida utente

GoWISE USA

GoWISE USA GW22612 Manuale utente

Wolf

Wolf IF15/S Manuale utente

Electrolux

Electrolux Thermetic 9CHG583284 Guida rapida

Gourmia

Gourmia GAF799 Manuale utente

DeLonghi

DeLonghi D677UX Manuale utente

SEVERIN

SEVERIN DEEP FRYER - Guida utente

Toastmaster

Toastmaster TMFG18-NAT Manuale utente

Domo

Domo DO465FR Manuale utente

Farberware

Farberware FBW FT 43721 B Manuale utente

GERMANICA

GERMANICA GEAF5L3LD Manuale utente

Roller Grill

Roller Grill MF 120 R Manuale operativo

Philips

Philips HD9211 Manuale utente

Linea 2000

Linea 2000 Domo DO536FR Manuale utente

Lakeland

Lakeland 31796 Manuale utente

Dash

Dash Tasti-Crisp DFAF755 Manuale utente

Fagor

Fagor F-200 Manuale utente
