HERA Leoline Series Manuale utente
• Mains power must be switched off before installing products.
• The connection, installation, commissioning and assembly operations of the products
must be performed by qualified technicians.
• Do not install wet, deformed or defective products and equipments,
do not provide power, please contact the nearest technical service.
• Install the products only in accordance with the connection patterns specified
in the relevant Specificiation Sheet.
• Do not open or attempt to repair the products and connection equipments.
• Do not open extra holes on products for mounting and protect products from impacts.
• Do not install the products except as described below.
• Different installation of products may cause products to malfunction or hazardous conditions.
• Use recommended mounting equipments forproducts.
• This product is not suitable for indoor use. Electric shock
may pose a risk of fire or combustion.
• Please follow the steps below when installing the products
.
Packet Contents
1 Pcs. Leoline M6 Series®
Box Dimension HxWxD
Leoline M6 315mm 100x465x80mm
Leoline M6 615mm 100x765x80mm
Installation Guide
LEOLINE SERIES
Installation Guide
Leoline M6 915mm 100x1065x80mm
Leoline M6 1215mm 100x1365x80mm
Leoline M6 1515mm 100x1665x80mm
2 Pcs. Mounting Bracket Set
123
45
7
1
2
0
*Adjustable gear of luminaries with 10 angle
6

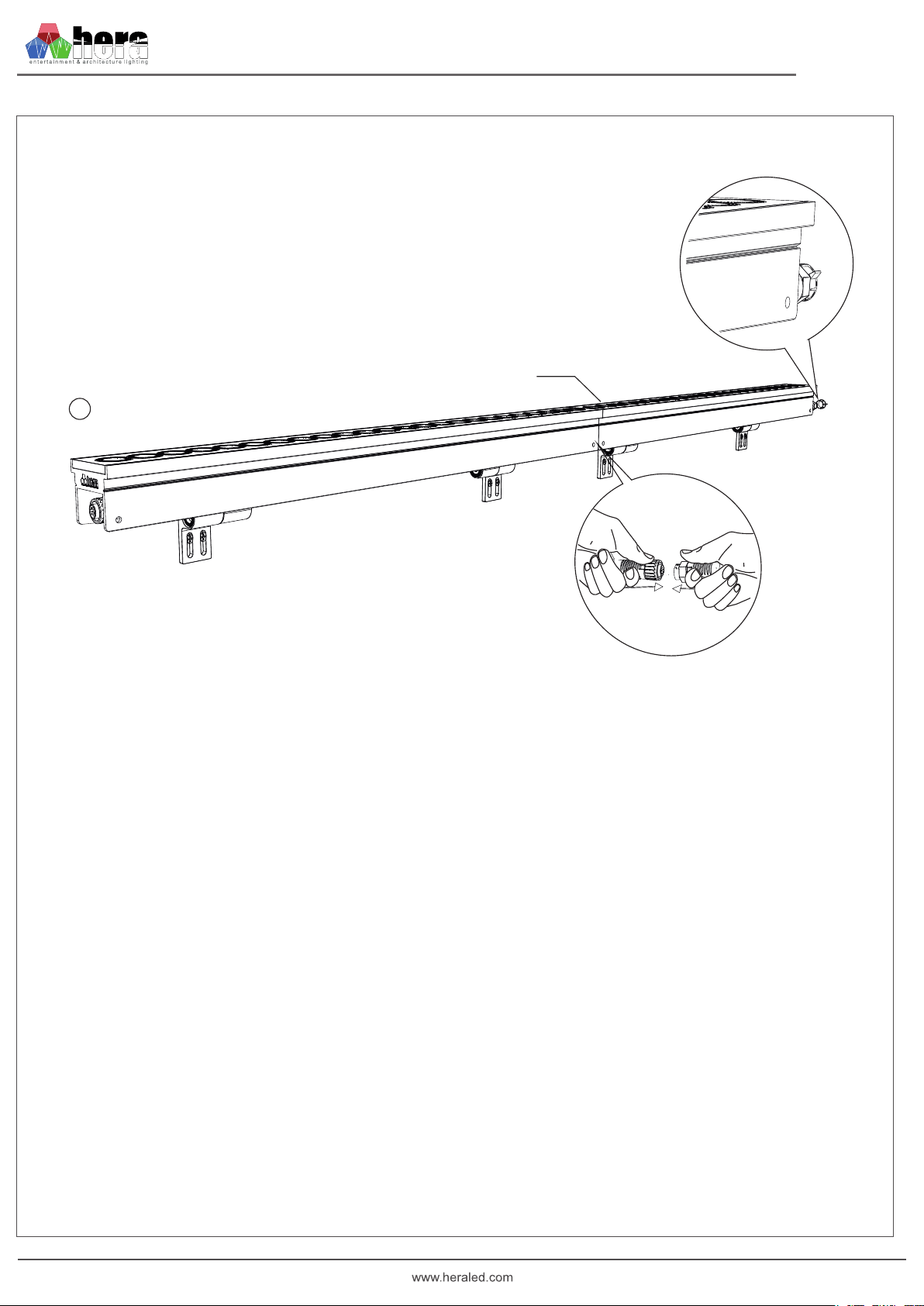

Installation
LEOLINE SERIES
Installation Guide
LEOLINE SERIES
Installation Guide
P20203 Push Lock Type
2+4 Pin Female Plug Cap
Push Lock Type 2+4 Pin
Waterproof Connector
*Leave a space between
8
two products at least 2 mm..
