Hercules UNIVERSAL DJ Manuale utente

1/24

HERCULES UNIVERSAL DJ OVERVIEW

Hercules Universal DJ is a 2-deck DJ controller featuring Bluetooth®

wireless technology. It makes it easy to mix with:

- your computer, using the DJUCED™ 40° software,

- your iPad or Android tablet, using the custom DJUCED™ App

application, or

- dual screens, using the DJUCED™ 40° software on your computer, and

the DJUCED Master app available for download on your tablet or

smartphone.

MINIMUM SYSTEM REQUIREMENTS:

DJUCED™ 40° :

Computer with 2 GHz processor or higher

2 GB of RAM or more

Windows Vista, 7, 8 (32 or 64-bit)

Mac OS X 10.7, 10.8, 10.9 (32 or 64-bit)

DJUCED™ Master :

iOS 7 or later

Android 4.0 or later

To check the list of compatible devices, flash this code:

DJUCED™ App :

2/24

iOS 7 or later

Android 4.0 or later

To check the list of compatible devices, flash this code:

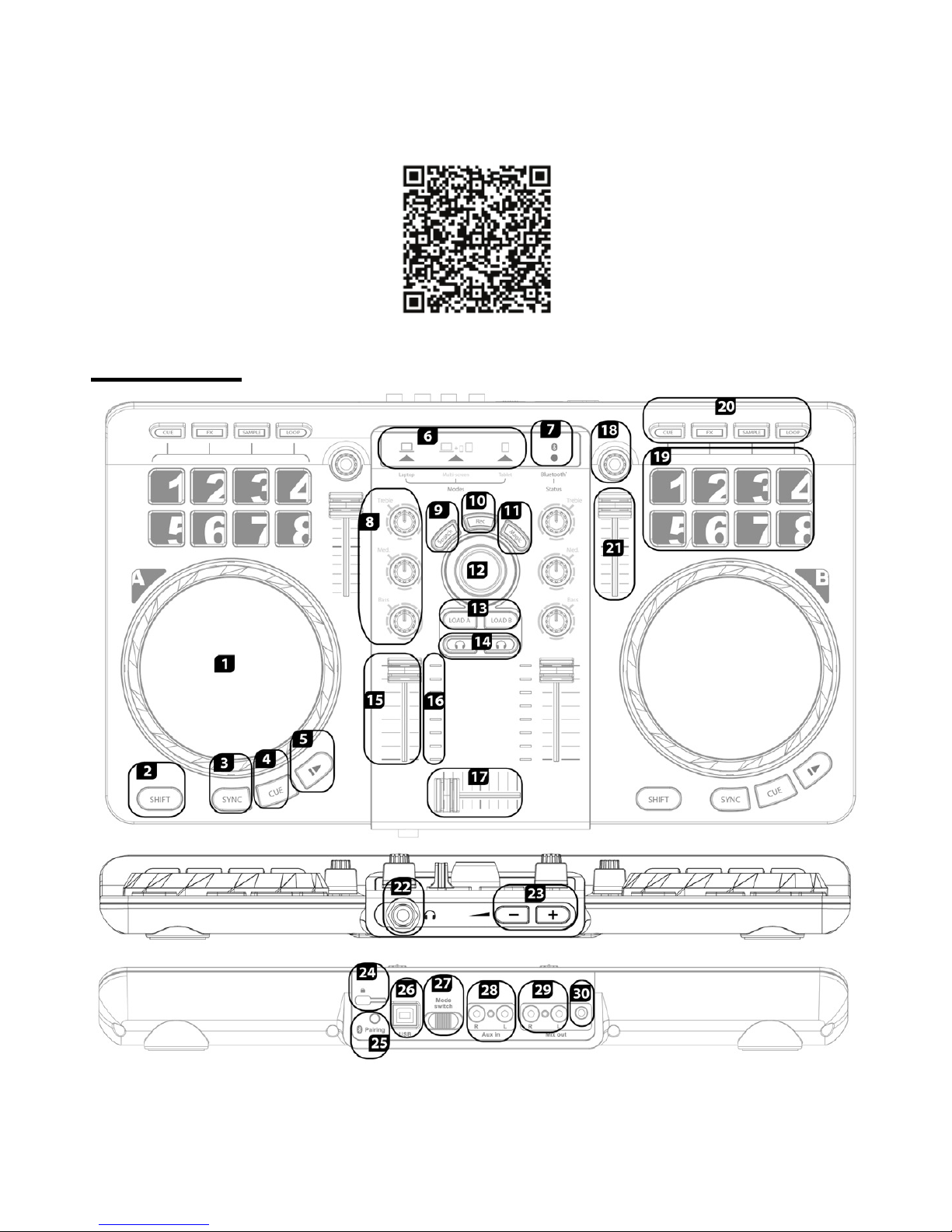

OVERVIEW

3/24

1. Jog wheel with pressure

detection

2. Change function within selected

mode

3. Synchronize deck

4. Set Cue point and stop

5. Play/pause

6. Mode selection indicator:

(1)computer / (2)multi-screen

(computer+tablet or smartphone) /

(3)tablet

7. Bluetooth® wireless technology

mode activation light

8. 3-band equalizer

9. Scratch on/off

10. Record mix

11. Easy transition using 2 high-

pass filters

12. Files/Folders browser

13. Load on deck

14. Monitoring on headphones

15. Deck volume

16. VU meter

17. Crossfader

18. Encoder: modify effects, loop

size / sample volume

19. Pads 1 to 8

20. Mode selector for pads: HotCue

points / effects / samples / loops

21. Pitch fader

22. 6.35 mm headphones output

(channels 3-4)

23. Headphones volume

24. Kensington® lock

25. Bluetooth® pairing button

26. USB connection and power

supply port

27. Mode selector: computer /

multi-screen (computer+tablet or

smartphone) / tablet

28. RCA auxiliary inputs (channels

1-2)

29. RCA mix outputs (channels 1-2)

30. 3.5 mm mix output (channels 1-

Please note that some functions may differ slightly on DJUCED™ 40

(Laptop and Multi-screen modes) and DJUCED™ App (Tablet mode).

More information (forum, tutorials, videos...) available at

www.HERCULESDJMIXROOM.com

4/24

SAFETY INSTRUCTIONS

- Place your device on a flat surface, to avoid the risk of the device falling.

- Never open up your device, as you risk damaging its internal components.

- This device is intended for use in a temperate environment.

- To prevent the risk of fire or electrical discharge, keep your device away

from:

- rain or humidity, as well as all fluids (water, chemical products or any

other liquids),

- sources of heat such as heaters, stoves or any other heat-producing

devices (including amplifiers),

- direct sunlight.

- Do not expose the device to drips or splashes of water.

- Never place any object filled with liquid (a glass, vase...) on your device.

- No naked flame sources, such as lighted candles, should be placed on the

device.

- Power off the device before cleaning. Use a damp cloth and avoid using

aerosol cleaners.

- Markings are located on the underside of the device.

- Replace the device's accessories respecting the specifications of the

manufacturer or its authorized representative.

- This device contains no internal pieces which can be repaired by the user.

Maintenance must be carried out by the manufacturer or its authorized

representative.

- Only use a power adapter of the type stipulated in this manual, with the

following design features: Input: 100/240 VAC, 50/60 Hz; Output: 5 VDC, 1 A.

5/24

LAPTOP MODE

Laptop mode lets you use DJUCED™ 40° with the Hercules Universal DJ

connected to a computer.

- Connect Hercules Universal DJ to the computer using the included USB cable.

- Set the mode switch , located at the back of the Hercules Universal DJ, to Laptop.

If you are using Hercules Universal DJ for the first time:

- Insert the CD-ROM in your computer’s drive.

6/24

- Launch the installer program.

- Follow the instructions.

The Hercules Universal DJ drivers and control panel, along with the DJUCED™ 40° software,

are installed on your computer.

Hercules Universal DJ control panel:

1. Main tab

2. Output balance

(left/right) for channels

3. Volume on channels 1-

2 and 3-4

4. Unlock/lock right and

left channel volume

Mute on/off

6. Set jog wheels

(disable/enable and set

sensitivity)

Please note that the Hercules Universal DJ control panel may differ slightly on Mac.













7/24

MULTI-SCREEN MODE

Multi-screen mode lets you use your smartphone or tablet as an

extension of your computer, by remotely controlling certain functions

in DJUCED™ 40°.

On your computer:

- Connect Hercules Universal DJ to the computer using the included USB cable.

- Set the mode switch , located at the back of the Hercules Universal DJ, to Multi-

screen.

If you are using Hercules Universal DJ for the first time:

- Insert the CD-ROM in your computer’s drive.

- Launch the installer program.

- Follow the instructions.

The Hercules Universal DJ drivers and control panel, along with the DJUCED™ 40° software,

are installed on your computer.

8/24

If you are using an iOS device:

- Open the Settings panel and make sure that the Bluetooth® function is enabled.

- Download the DJUCED™Master app from the App Store.

- Launch the DJUCED™Master app.

- Follow the instructions provided in the app to connect to Hercules Universal DJ and start

mixing.

If you are using an Android device:

- Download the DJUCED™Master app from Google Play.

- Press the pairing button on the Hercules Universal DJ.

- Make sure that the Bluetooth® function is enabled on the Android device, and then select

Hercules Universal DJ in the list of detected devices.

The Bluetooth® indicator LED on the Hercules Universal DJ lights up continuously.

9/24

- Launch the DJUCED™Master app.

10/24

TABLET MODE

In Tablet Mode, you will use your tablet to control DJUCED™ App.

- Connect Hercules Universal DJ to a USB power source: a USB power adapter (not

included), or a computer’s USB port (using the included USB cable).

- Set the mode switch , located at the back of the Hercules Universal DJ, to Tablet.

If you are using an iOS device:

- Download DJUCED™ App from the App Store.

- Launch the DJUCED™ App.

- Follow the instructions provided in the app to connect to Hercules Universal DJ and start

mixing.

If you are using an Android device:

- Download DJUCED™ App from Google Play.

- Press the pairing button on the Hercules Universal DJ.
