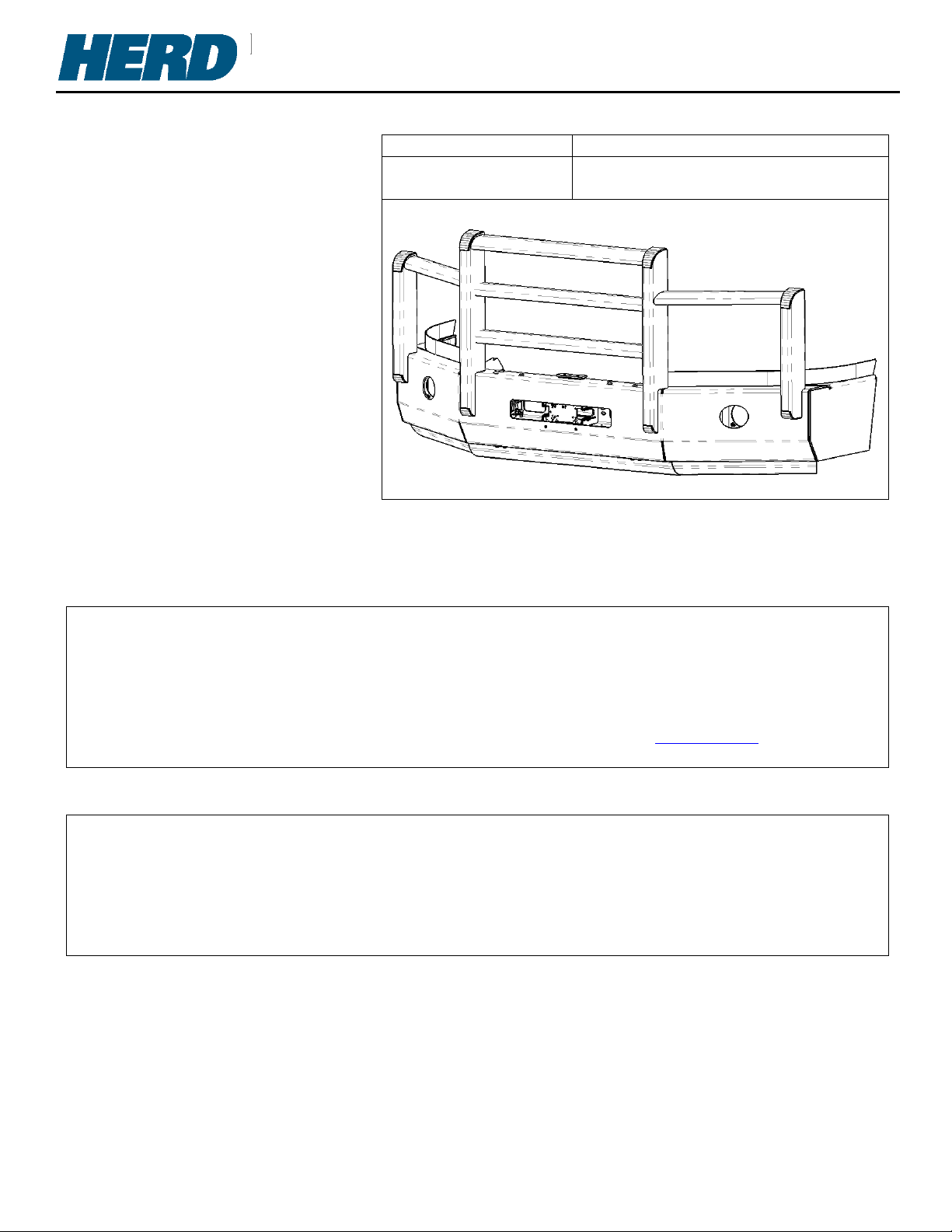

Herd MK15C4-02 Manuale utente

Installation Guide

1-888-543-4373

www.HERD.com

1-888-543-4373

Part No: MK15C4-02-IG

Rev: C

Date: 04-Mar-19

Important

•Herd Bumpers are vehicle "Make & Model" specific. Use of a bumper on a vehicle other than the model it

was designed for will constitute improper use of the product and may void warranty.

•Unless otherwise specified, Grade 8 or Class 10.9 hardware is to be used. For the purposes of these

instructions, OEM hardware means the truck's original factory hardware.

•For further detail of warranty coverage and warranty repair information visit www.HERD.com.

SKU #

Truck Model

MK15C4-02

Mack Anthem

General Safety

•Take time to fully read the instructions before installing the Herd bumper.

•At all times exercise safe work shop practices, wear steel toe boots and safety glasses during installation.

•Parts and components of the Herd bumper can be heavy, handle with care to avoid injuries.

•Respect power tools and use them as advertised.

For assistance call

1-888-543-4373

www.HERD.com

Thank you for

choosing HERD!

HERD North America Inc.

2168 Springfield Road

Box 28, Group 525, RR5

Winnipeg, MB. Canada R2C 2Z2

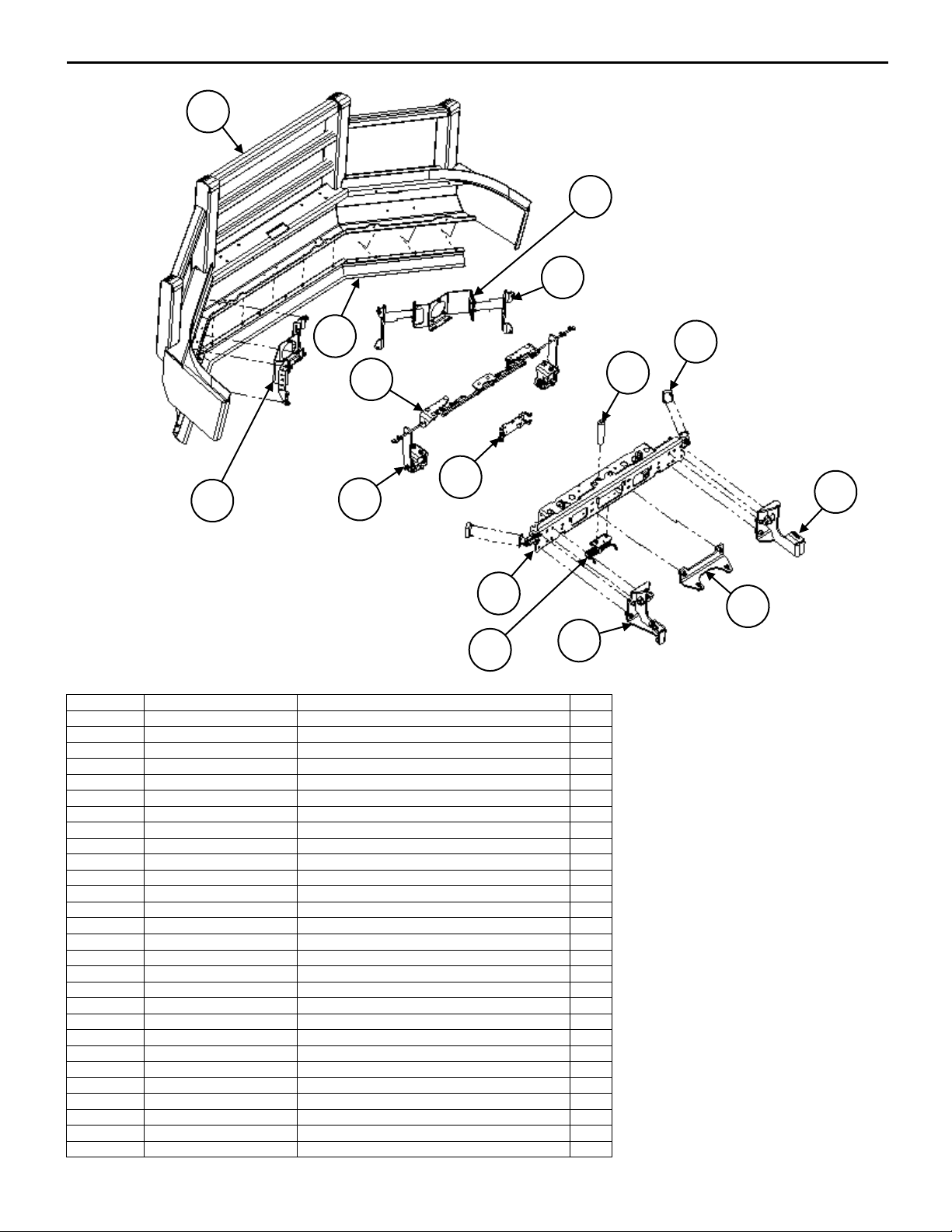

Parts Referenced in this Installation Guide

1-888-543-4373

www.HERD.com

1-888-543-4373

Part No: MK15C4-02-IG

Rev: C

Date: 04-Mar-19

Parts and Hardware Included

Item No

Part No

Description

Qty

2M0005

WLDMT-BUMPER MK15C4-02

100062

ASSY-UNIVERSAL BRACKET

100027

C4 SLAM LATCH ASSEMBLY

100054

ASSY-HINGE

100058

KIT-CHANNEL STRUT

100046

KIT-CAS BRACKET

100049

WLDMT-TOW PIN

1M0005

WLDMT-MOUNT DS MK15

1M0006

WLDMT-MOUNT PS MK15

1M0007

BRKT-MOUNT CTR MK15

400014

KIT-RUMBER 20 MM

400043

KIT-AIR DEFLECTOR MK15

2M0017

KIT-LIGHT MK15 DS

2M0019

KIT-LIGHT MK15 PS

100021

ASSY-LIFT ASSIST

500095

BOLT-HEX 1/4-20X1 NC GR5 WZP

500208

WASHER-FLAT 1/4 SAE GR8 YZP

500169

NUT-NYLOCK 1/4-20 NC GR8 YZP

500085

BOLT-HEX 1/2-13X1-3/4 NC GR8 YZP

500206

WASHER-FLAT 1/2 SAE GR8 YZP

500167

NUT-NYLOCK 1/2-13 NC GR8 YZP

500263

WASHER-FLAT 1/2X1-1/2OD 1/4THICK

500099

BOLT-HEX 1-8X3-1/2 NC GR8 YZP

500179

NUT-NYLOCK 1-8 NC GR8 YZP

500210

WASHER-FLAT 1 SAE GR8 YZP

500310

BOLT-HEX 7/16-14X1-3/4 NC GR8 YZP

500312

NUT-NYLOCK 7/16-14 NC GR8 YZP

500311

WASHER-FLAT 7/16 SAE GR8 YZP

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

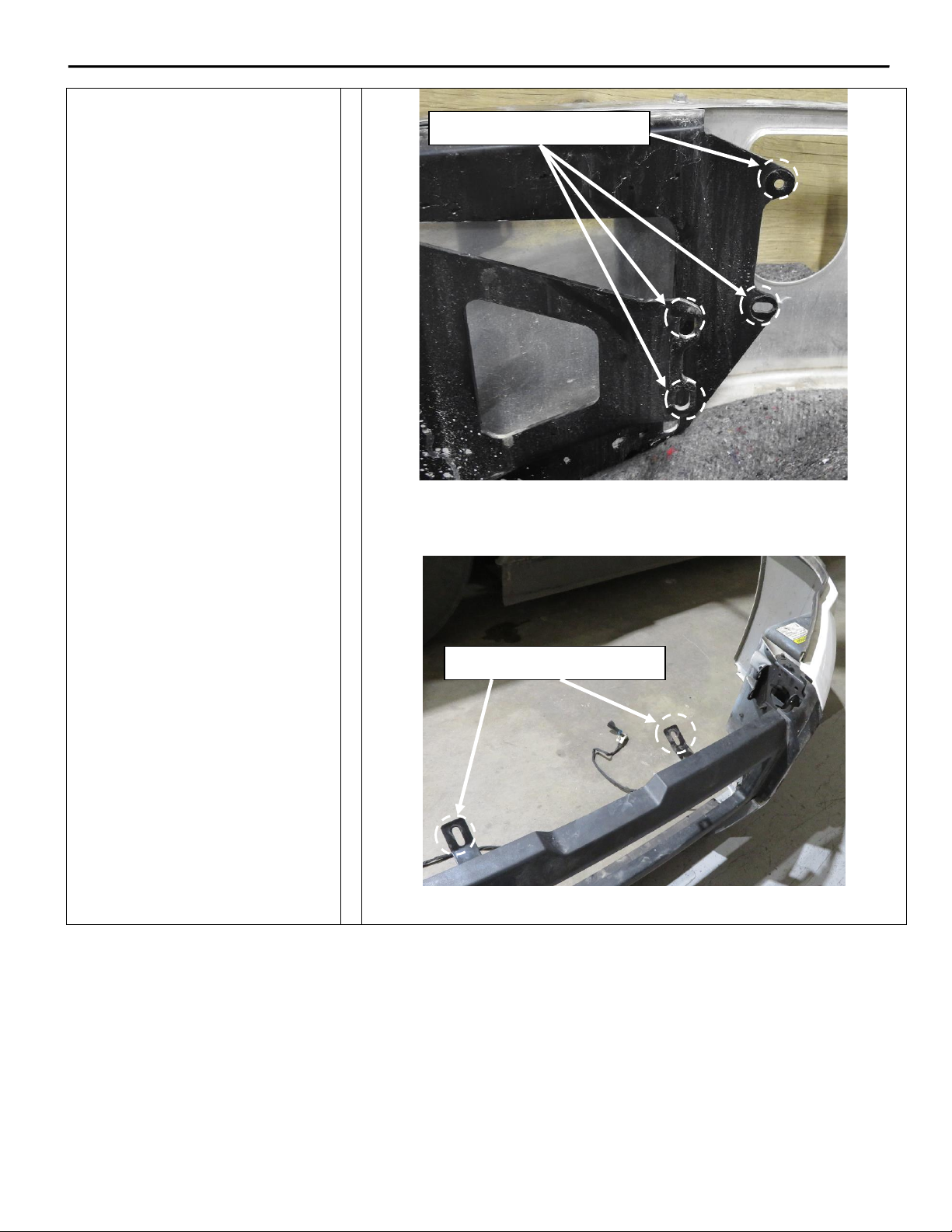

1. Remove factory bumper by

unbolting four bolts per side as

shown in Figure 1.

Note:

if the truck is equipped with

plastic factory bumper, there are

two bolts on top center side of

the bumper which need to be

removed as well (see Figure 1.2)

Figure 1.1 –Remove Factory Bumper (Passenger Side Shown)

Figure 1.2 –Remove center bolts on plastic bumper

Remove 4 bolts per side

Remove 2 bolts on top

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

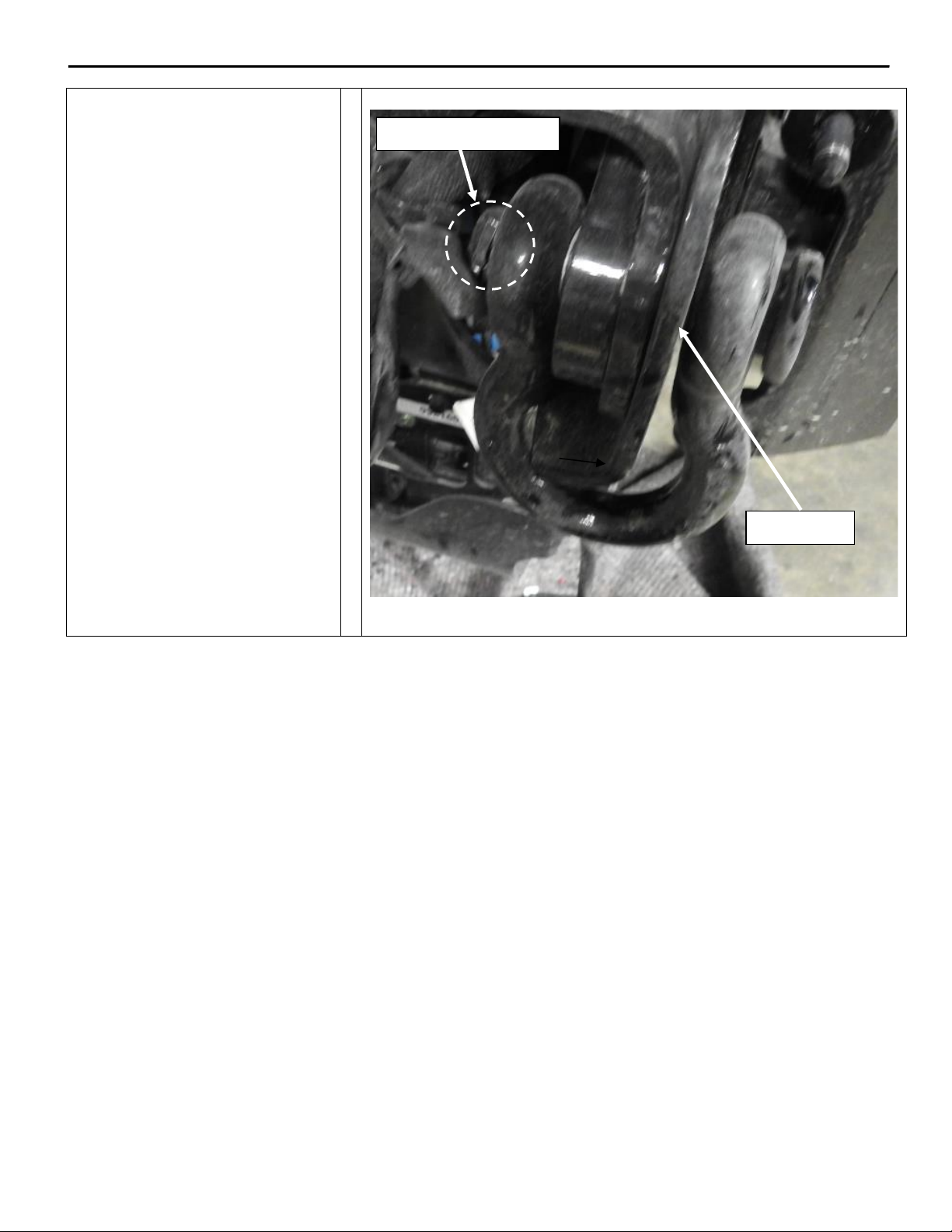

2. Remove factory two hooks as

shown in Figure 2.

Figure 2 –Factory Tow Hook Uninstall (Passenger Side Shown)

Remove Hair Pin

Tow Mount

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

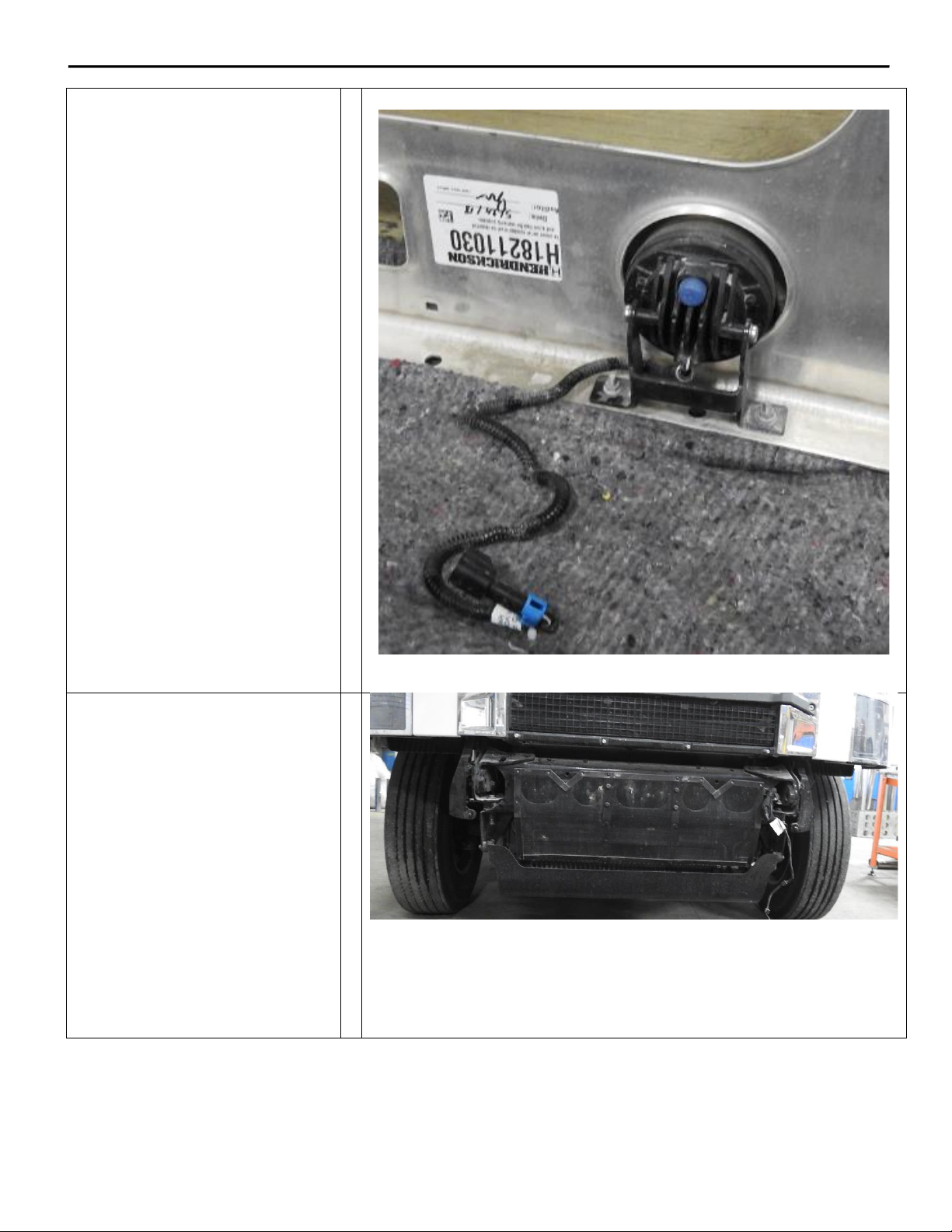

3. Disconnect wiring harness as

shown in Figure 3.

Figure 3 –Wiring Harness Removal (Passenger Side Shown)

4. If truck is equipped with the

mesh plate in front of its

crossmember, remove the mesh

surface.

Note:

if truck is equipped with Collision

Avoidance System (CAS),

disconnect the wiring of the CAS

from its radar and remove the

CAS radar from the

crossmember. (The radar is

mounted in front of mesh plate –

not shown here)

Figure 4 –Mesh plate Removal (Passenger Side Shown)

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

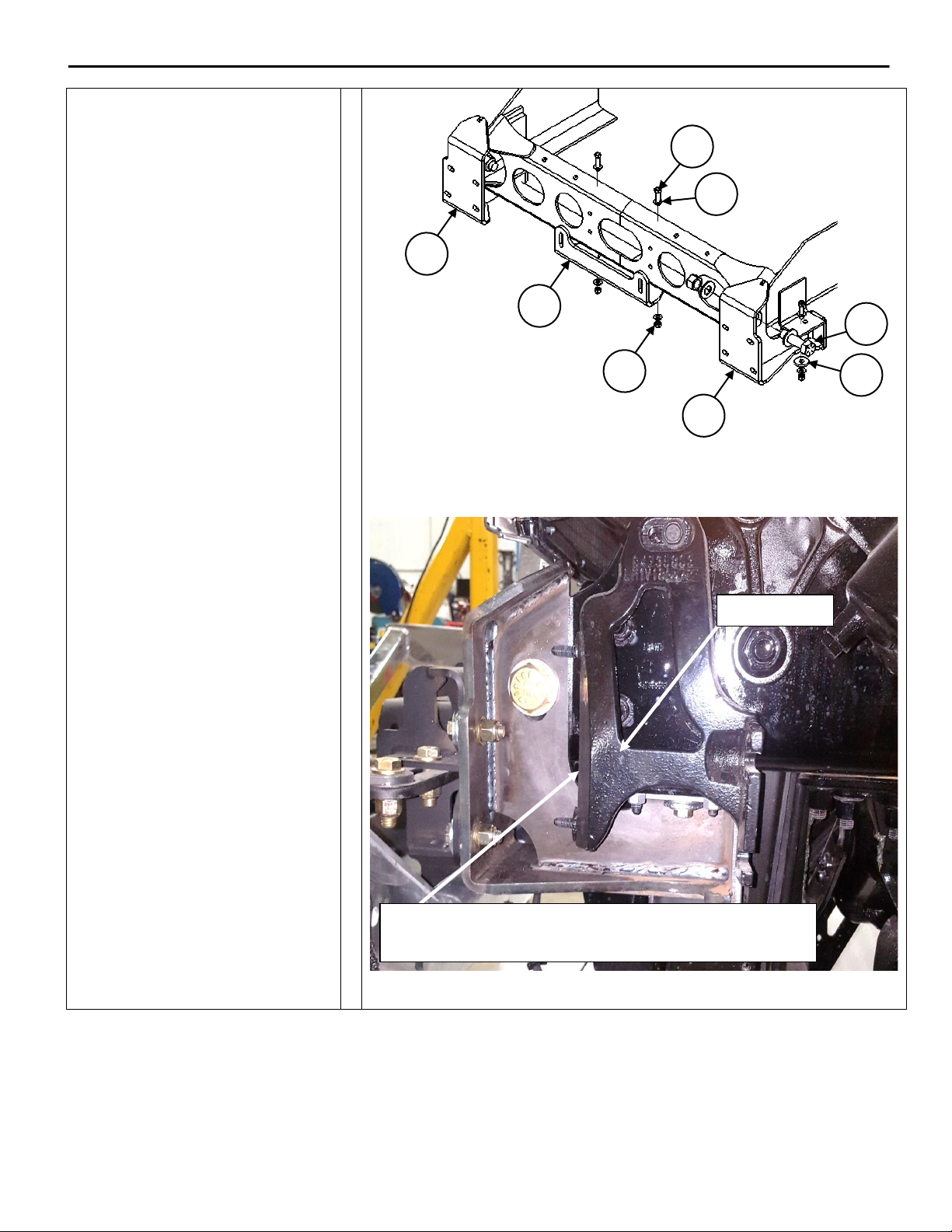

5. Install Herd mounting kit (items

8, 9 and 10) to truck frame. Use

1’’ bolt, nut and washer (items

23, 24 and 25) to attach the

mounting brackets (items 8 and

9) to the tow mounts, torque to

600 lb-ft. Use 7/16’’ bolt, nut and

washer (items 26, 27 and 28) to

attach center mounting bracket

(item 10) to truck frame, torque

to 52 lb-ft.

Note:

Please make sure the mounting

brackets (items 8 and 9) are

mounted from the bottom and

slide in between the truck’s tow

mount and OEM bracket as

shown in Figure 5.2

Figure 5.1 –Herd Mounting Brackets Installation

Figure 5.2 –Herd Mounting Brackets Location (Driver Side Shown)

OEM bracket

There is a gap between OEM bracket and tow mount for

the supplied mounting brackets (items 8 and 9) to slide in.

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

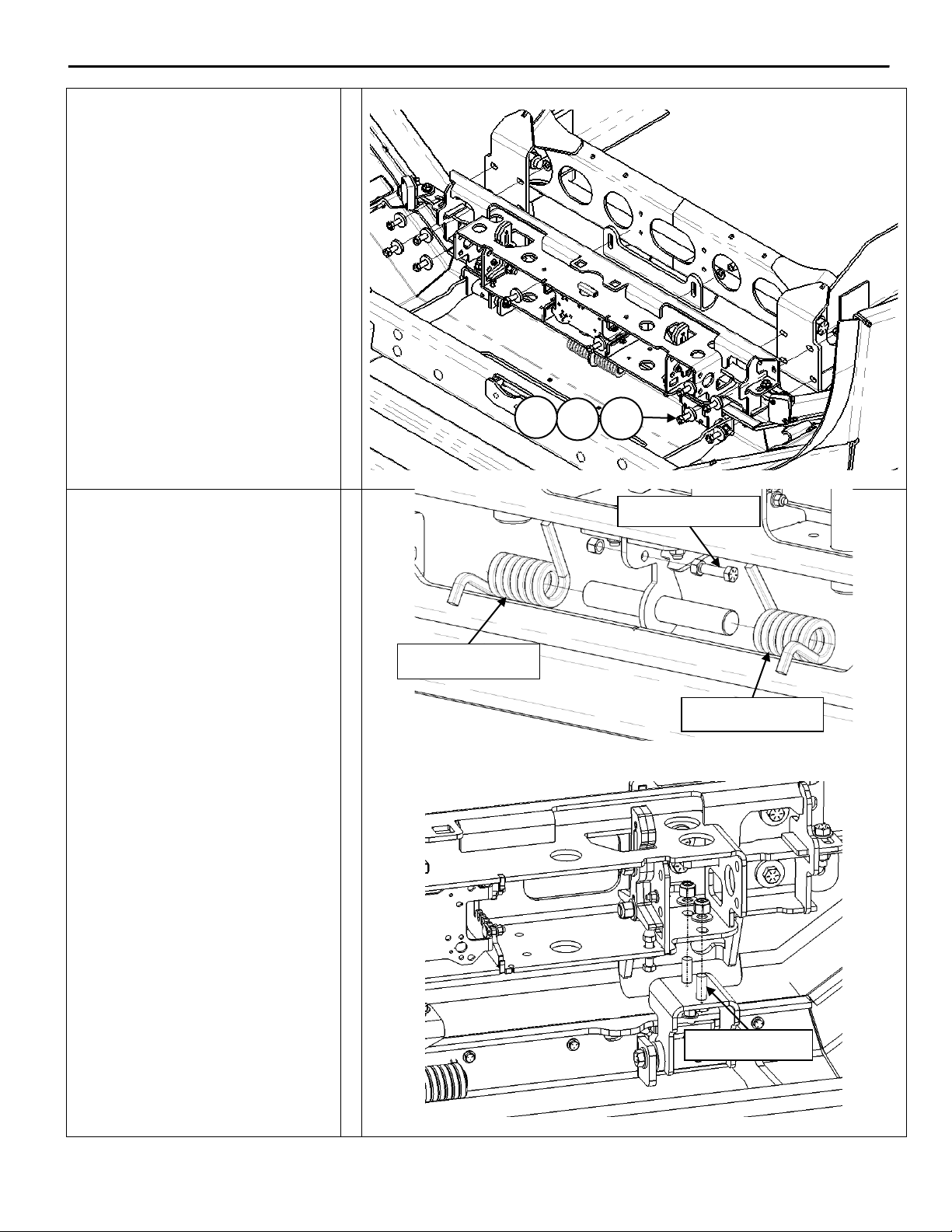

6. Open bumper by pulling on the

handle. Using a crane, lift the

bumper (Item 1) and universal

bracket (Item 2) and attach to

Herd submounts (items 8, 9 and

10).

Note:

If installer does not have a crane

available, bumper can be

disassembled from the universal

bracket to simplify installation as

shown in step 6, otherwise

proceed to step 7.

Figure 6 –Universal Bracket Installation

7. a) Ensure bumper is closed. From

underneath the bumper, remove

the 3/8” hardware securing the

lift assist springs and slide off

springs from the lift assist (Item

15).

b) Once the springs are removed,

carefully open the bumper using

the slam latch. Remove the 1/2”

hardware securing the bumper to

the universal bracket. Remove

bumper and set aside on

cardboard. Now the bracket is

isolated for mounting without a

crane.

Figure 7.1 –Spring Assist Disassembly

Figure 7.2 –Bracket and Bumper Disassembly (Driver Side Shown)

Lift Assist Spring

3/8”Hardware

1/2”Hardware

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

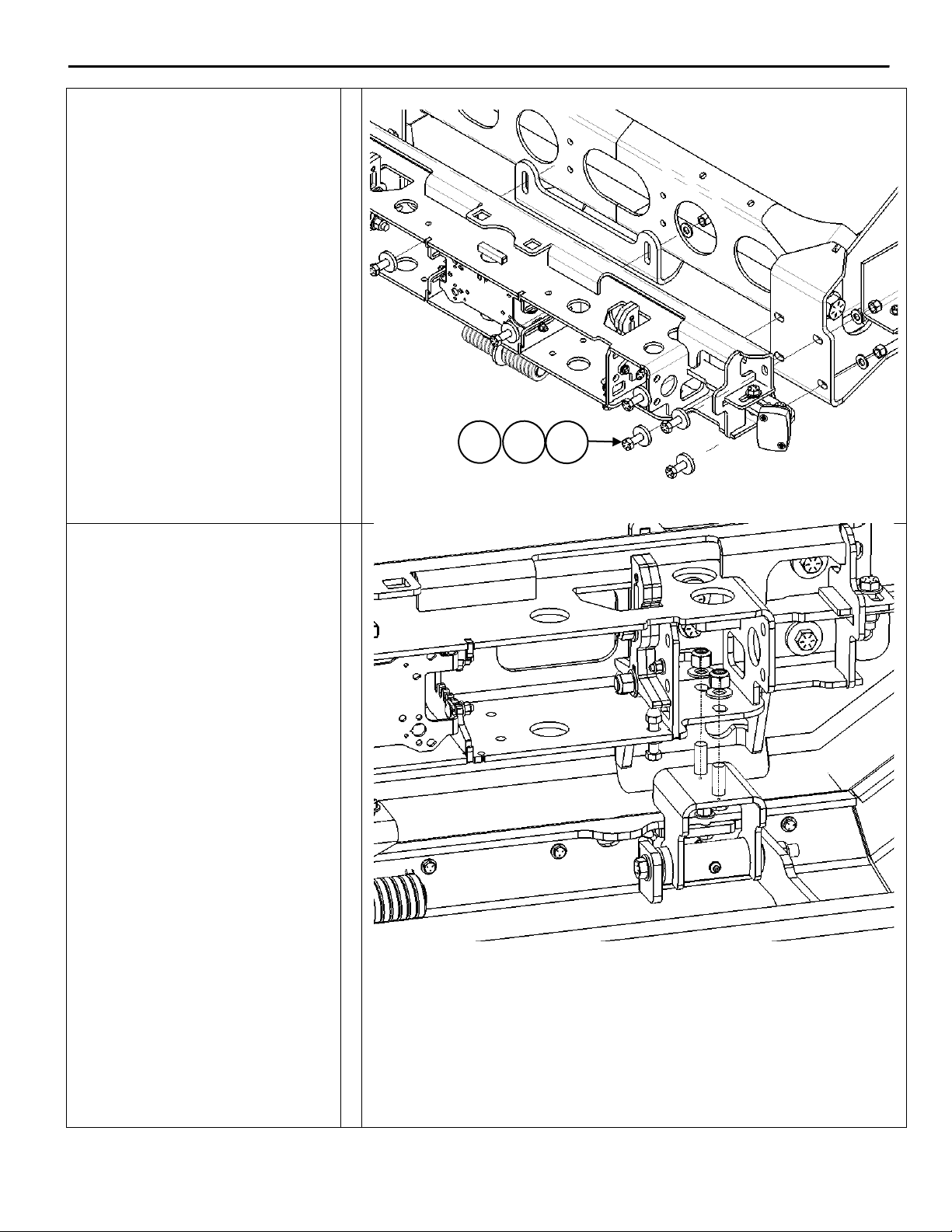

8. Install universal bracket (item 2)

to submounts (items 8, 9 and 10)

using the provided hardware

(items 19, 20, 21). Loosely mount

driver, center and passenger

sides. Once fitment is confirmed,

tighten all mounting bolts. Tight

bolts to 110 lb-ft (10 bolts).

Figure 8 –Universal Bracket Submount Installation (Driver Side Shown)

9. If bumper was disconnected

from the universal bracket in

step 6, reverse the procedure to

mount bumper back onto the

bracket.

a) First ensure the bumper

hinges are open.

b) Attach using previously

removed 1/2” bolts until the

hinge just slightly touches the

bracket.

c) Close the bumper and ensure

the latch engages.

d) Open the bumper and tighten

the bolts until they are snug.

c) Close the bumper again to

ensure the latches engage

properly.

Figure 9.1 –Bracket and Hinge Reassembly

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

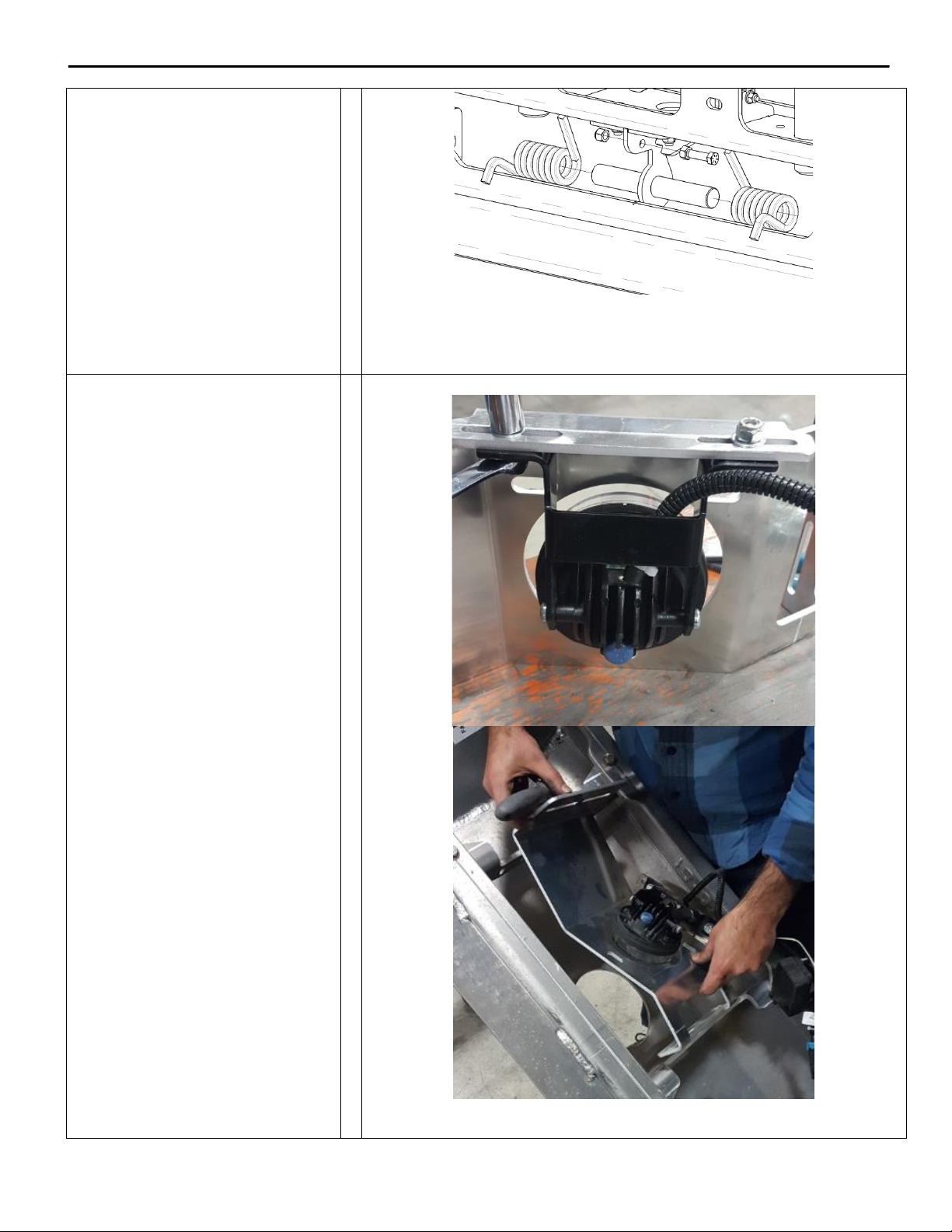

d) Fully tighten the ½” hardware

to 110 ft⋅lb. Latches may need to

be adjusted, refer to Slam Latch

Adjustment guide (S012).

e) Close the bumper and slide

springs onto the lift assist shaft,

ensuring that spring arms are

inserted into slots of bumper.

Reinsert 3/8” hardware securing

the lift assist springs.

Figure 9.2 –Lift Assist Reassembly

10. If equipped with OEM driving

lights, remove driving lights

from factory bumper and retain

OEM hardware.

Mount OEM driving lights into

the mounting bracket for both

passenger and driver sides

using the provided hardware.

Reinstall driving light brackets

into HERD bumper using the

provided hardware.

Figure 10 –OEM Light Installation (Passenger Side Shown)

Installation Procedure

Part No: MK15C4-02-IG

Rev: C

Date: 2020-12-10

1-888-543-4373

www.HERD.com

1-888-543-4373

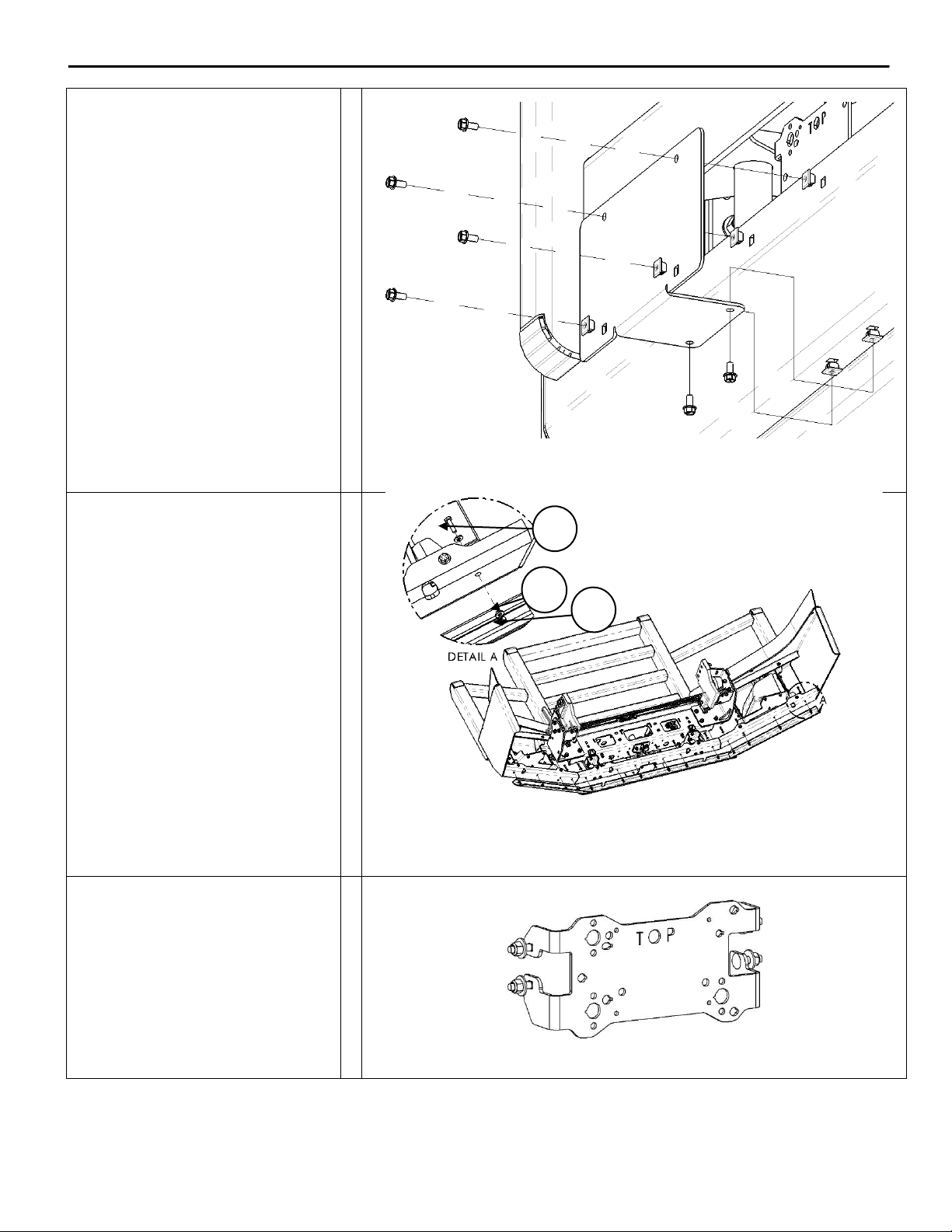

11. Insert the nylon licence plate

nuts into the square cut-outs in

the bumper and licence plate

bracket. Bolt the bracket into

place using the licence bolts. The

front four bolts can be used to

mount a licence plate as needed

(Optional product - please order

when needed).

Figure 11 –License Plate Installation

12. Install Air Deflector (item 12) to

Herd bumper (item 1) with the

provided hardware (items 16, 17

and 18).

Figure12 –Installation of Air Deflector

13. If the truck was equipped with

a radar sensor, please refer to

the HERD S009 Installation

Guide.

Figure 13 –HERD Radar Sensor Bracket
