Herschel HAWAII WAVE Manuale utente

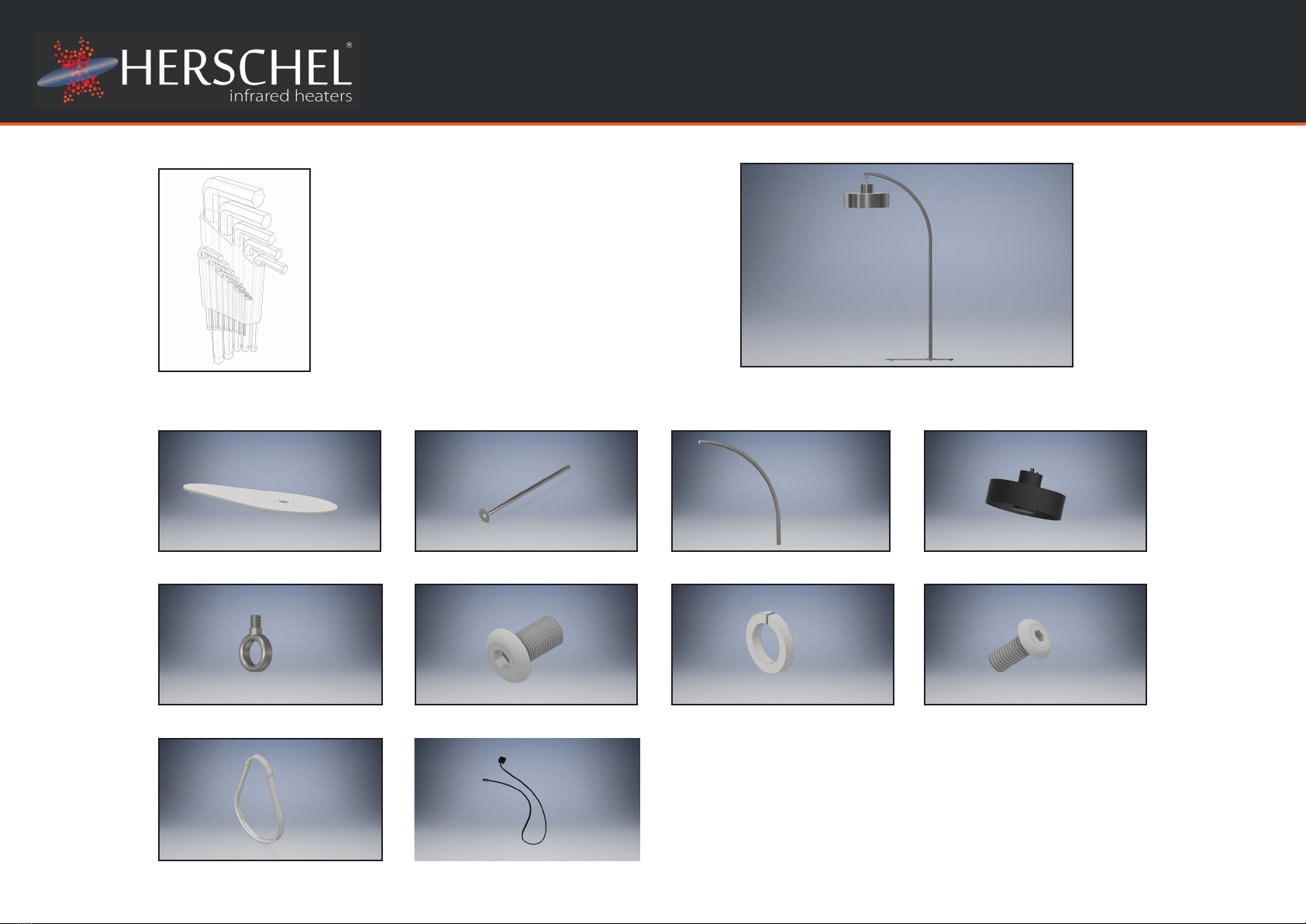

1x Base with feet ed 1x Boom Straight Pole 1x Top Curved Pole 1x Hawaii 2000

1x M8 Eye Bolt 4x M6x10mm Allen screws 4x M6 Split washers 1x M5x12mm Allen screw

1x Carabina clip

1x 4mm Allen Key

1x 3mm Allen Key

TOOLS REQUIRED

PARTS INCLUDED

1x Cable with plug ed Page 1 of 2

HAWAII WAVE INSTALLATION GUIDE

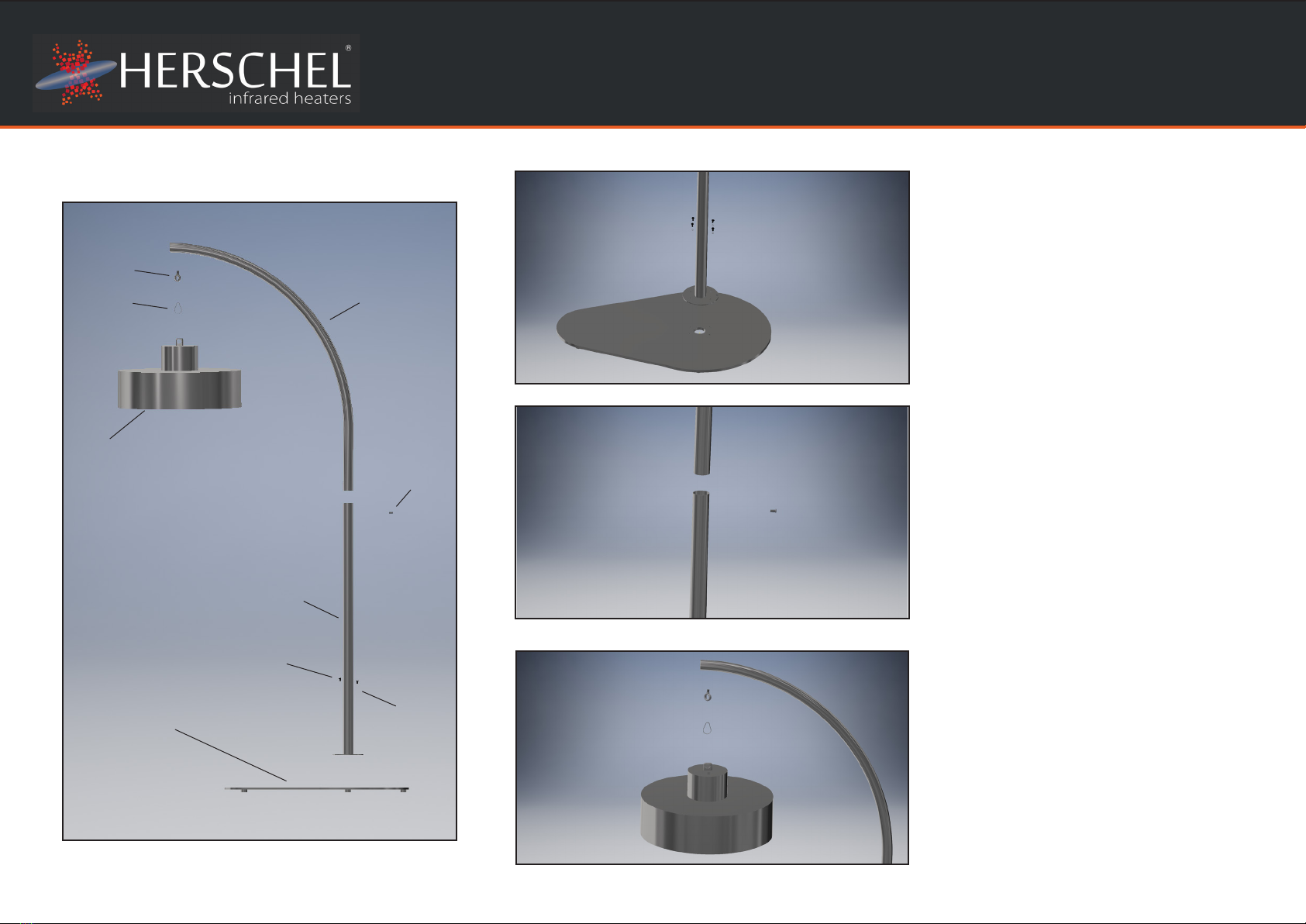

Exploded View

Hawaii 2000

Curved Top Pole

M5x12mm Allen

Screw

Boom Pole

4x M6x10mm

Allen Screws

Base Plate

Clip

M8 Eye Bolt

4x M6 Split

Washers

Feed the cable up through the hole in the boom

of the base plate. Feed the end with the small

connector not the 3-pin plug end.

Now feed the cable up through the boom pole

so that it end up hanging our of the top. Start at

the end with the xing plate.

Fix the boom pole to the base plate using the

four M6x10mm screws and the M6 split washers.

Step 1

The top curved pole will arrive with the cable and

plug ed. Connect the cable from the boom

pole to the cable from the top pole and then slot

the top pole into the boom pole.

Using the M5x12mm allen screw locate the hole

on the back below the join and t the screw. You

will require a 3mm allen key for this.

Step 2

Insert the M8 eye bolt into the threaded hole

located at the top of the curved pole.

Using the clip, aach the Hawaii 2000 to the eye

bolt.

Plug in the top of the cable to the Hawaii making

sure to line up the pins correctly. Screw the two

halves together sealing the inside of the plug.

Step 3

Page 2 of 2
