OUTDOOR LIVING

SUITE

INSTALLATION INSTRUCTIONS

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN

THE INSTALLATION HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN

OR PROFESSIONAL OUTDOOR EQUIPMENT INSTALLER. MANY COMPONENTS ARE HEAVY AND

REQUIRE 2 OR 3 PERSONS TO UN-PACK AND SETUP THIS SUITE. FAILURE TO DO SO MAY RESULT

IN PERSONAL INJURY.

THE ELECTRICAL COMPONENTS SUPPLIED WITH THIS SUITE MUST BE INSTALLED BY A

LICENSED ELECTRICIAN AND CONNECTED IN ACCORDANCE WITH LOCAL CODES. THE SUITE

SHOULD BE CONNECTED TO A DEDICATED CIRCUIT BREAKER. ALL OUTLETS SUPPLIED WITH

THIS SUITE ARE GROUND FAULT CIRCUIT INTERRUPTER OUTLETS AND MUST BE PROPERLY

INSTALLED AND GROUNDED BY A LICENSED ELECTRICIAN TO GUARANTEE SAFE AND RELIABLE

OPERATION.

SOME PARTS INSIDE THE SUITE HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING

THE VARIOUS COMPONENTS TO AVOID PERSONAL INJURY. WEAR GLOVES WHEN HANDLING.

TOOLS REQUIRED:

Work gloves

Safety glasses

Power drill with masonry bits

Concrete / masonry anchors or hardware as needed to attach to mounting surface

Flat and Phillips screwdrivers

Socket wrench with 7/16” & 9/16” sockets and short extensions

Combination wrenches of 7/16” & 9/16” sizes

3/32 Allen wrench

Level

Clear silicone sealant

IF THE INFORMATION IN THE GAS-FIRED APPLIANCE MANUALS

ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT

CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

Flammable Gas - disconnect all propane or natural gas supplies to this unit

before servicing.

Electrical Parts and Components – disconnect all power supplies and

batteries before servicing.

AFTER INSTALLATION OF YOUR GRILL AND OTHER GAS-FIRED EQUIPMENT IN THIS

SUITE, READ THE MANUAL(S) PROVIDED WITH THOSE PRODUCTS CAREFULLY AND

COMPLETELY BEFORE USING THEM TO REDUCE THE RISK OF FIRE, BURN HAZARD,

OR OTHER INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE.

GESS08 GESS12 GESSP12 GESSK12 GESSC12

GESD08 GESD12 GESDP12 GESDK12 GESDC12

GESSB08 GESSB12 GESSBP12 GESSBK12 GESSBC12

GESDB08 GESDB12 GESDBP12 GESDBK12 GESDBC12

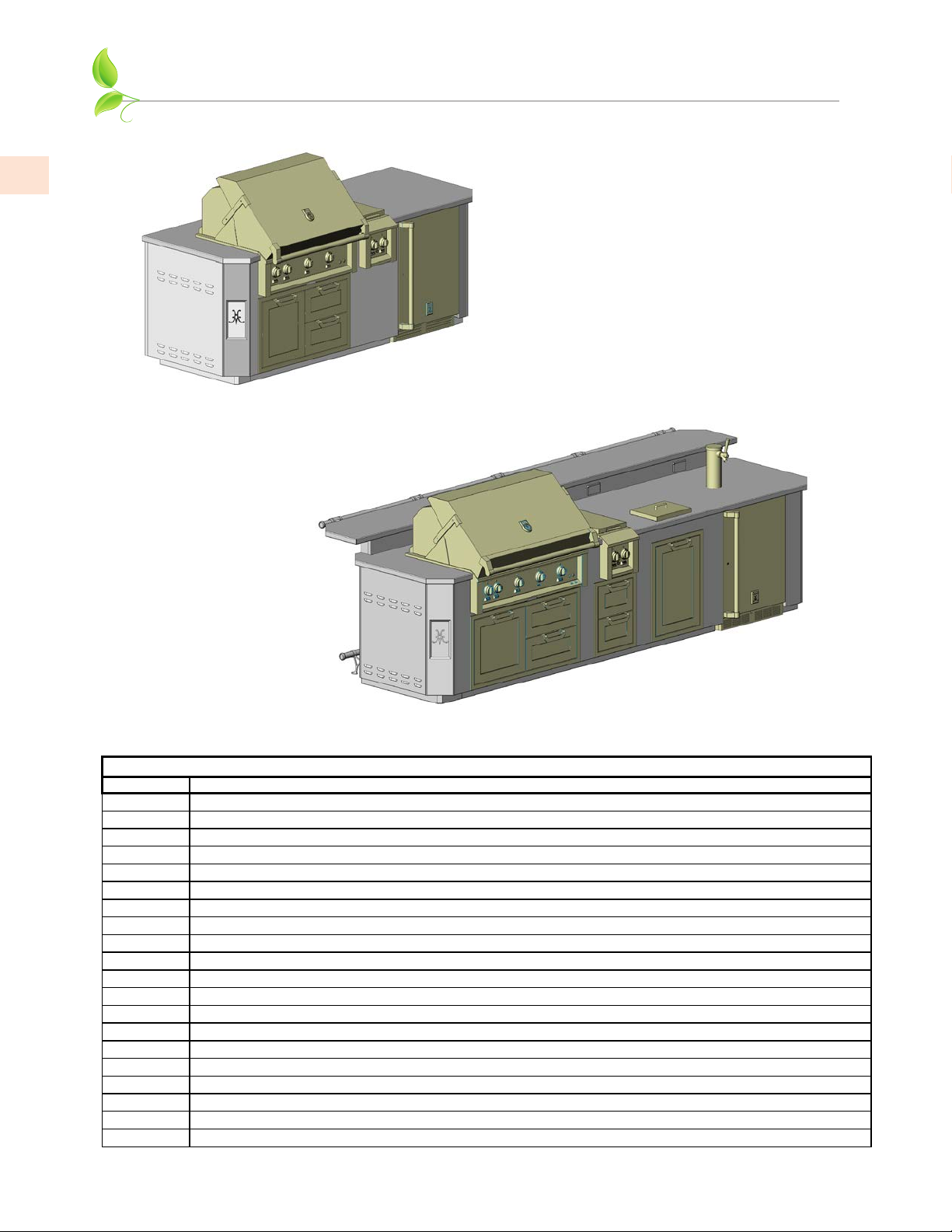

Suite GESS08 shown with:

GABR36 Built-In Gas Grill

AGB122 Double Side Burner

AGSDR36 Combo Door/Drawer Cabinet

GRSR24 Outdoor Solid Door Refrigerator

ALL ITEMS PURCHASED SEPARATELY

SUITE MODELS WITH STAINLESS STEEL TOP

Below are representations of some Hestan Outdoor Living Suites covered in this manual.

Suite GESDB12 shown with:

GABR42 Built-In Gas Grill

AGB122 Double Side Burner

AGTC Trash Chute

AGSDR42 Combo Door/Drawer Cabinet

AGDR16 Double Drawers

AGTRC20 Trash & Recycling Center

GFDSR241 Outdoor Single Faucet Beer Dispenser

ALL ITEMS PURCHASED SEPARATELY

MODEL # DESCRIPTION

GESS08 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP, 8 FOOT

GESD08 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER, 8 FOOT

GESSB08 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP & BAR, 8 FOOT

GESDB08 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER & BAR, 8 FOOT

GESS12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP, 12 FOOT

GESD12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER, 12 FOOT

GESSB12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP & BAR, 12 FOOT

GESDB12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER & BAR, 12 FOOT

GESSP12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP, POWER BURNER, 12 FOOT

GESDP12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER, POWER BURNER, 12 FOOT

GESSBP12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP & BAR, POWER BURNER, 12 FOOT

GESDBP12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER & BAR, POWER BURNER, 12 FOOT

GESSK12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP, KAMADO GRILL, 12 FOOT

GESDK12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER, KAMADO GRILL, 12 FOOT

GESSBK12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP & BAR, KAMADO GRILL, 12 FOOT

GESDBK12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER & BAR, KAMADO GRILL, 12 FOOT

GESSC12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP, PIZZA OVEN, 12 FOOT

GESDC12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER, PIZZA OVEN, 12 FOOT

GESSBC12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP & BAR, PIZZA OVEN, 12 FOOT

GESDBC12 GRILL, OUTDOOR LIVING SUITE, SS COUNTERTOP w/ BEER DISPENSER & BAR, PIZZA OVEN, 12 FOOT

HESTAN OUTDOOR LIVING SUITES

LOCATING THE SUITE

LOCATIONLOCATION

When determining a suitable location for your grill and suite, take into account concerns such as exposure to

wind, rain, sprinklers, proximity to traffic paths, and keeping any gas supply line runs as short as possible.

Locate the grill only in a well-ventilated area. Never locate the grill in a building, garage, or other such

enclosed areas. Never locate the grill over, under, or next to unprotected combustible construction. Further

definitions of these areas, combustible vs. non-combustible construction, etc. can be found in the manual(s)

accompanying the individual appliances.

AIRFLOW / WINDY AREASAIRFLOW / WINDY AREAS

During heavy use, the grill will produce a lot of heat and smoke. The grill is designed to take in cool air at the

front control panel area, and send the combustion products and smoke out the exhaust gap at the rear of the

hood. IT IS IMPORTANT TO MAINTAIN THIS FLOW AT ALL TIMES.

Using the grill in windy areas can disrupt the proper airflow and cause damage to your grill, or result in burn

hazards to the user. Initial indications of this situation are very hot control knobs. Using an oven mitt or

other protection, and while keeping your face away, immediately open the hood to release the built up heat

inside the grill. Turn down the burners to a lower setting. It is very important that the suite and grill is

oriented so the prevailing wind is toward the front of the grill as seen below in Fig. 1.

For built-in grill installations which consistently receive wind at the rear of the grill, a Wind Screen accessory

is available from Hestan. Contact your Hestan dealer for details.

Damage caused from use in windy conditions, such as melted knobs

and/or wiring, discoloration of the control panel, etc., is excluded from

warranty coverage.

The Hestan Outdoor Living suite features ventilation openings (louvers) on each end. These

openings must be clear to avoid accumulation of gas should there be a leak. These openings are

further described later in this manual.

Figure 1

2. The curb should be as level as possible and permanently anchored to the mounting surface using

stainless steel masonry anchors and bolts, or other fasteners as appropriate (not included). If you

choose not to permanently anchor your suite, be sure you have moved it to its final location. Also

be aware that the suites featuring a bar are prone to tipping over unless the curb is anchored to the

floor surface.

If you intend to tile around the curb base, take into consideration the footrails provided with suites

featuring a bar. See pg. 18 for more details.

The Outdoor Living Suite is very heavy and difficult to move once assembly is complete and all

equipment has been installed. (8 foot Outdoor Living Suite curb shown)

CURB INSTALLATION AND SERVICE LINES

1. The Hestan Outdoor Living Suite must be located on a flat and level mounting surface, not on

direct soil. The mounting surface must be capable of handling the weights of all the equipment

including the suite, countertop materials, installed appliances and cabinets, refrigeration

equipment, etc. This could be as much as 2400 lbs. [1088 kg] of equipment. The contractor /

architect responsible for the design of this mounting surface must also take into account other

items such as furniture, people, snow loads in winter, etc., in accordance with local codes.

A licensed plumber and electrician should run their service lines to the suite area prior

to installation of the curb, in accordance with local codes. See dimensions below for

recommended location. See ELECTRICAL ITEMS section of this manual for further details.

The gas line to the suite will require a shut-off that is easily accessible. Local codes may also

require a tracer wire be buried alongside the gas line for underground detection. See the GAS

CONNECTIONS section of this manual, and the appliance manual(s) for more details.

BACK AND SUPPORT WALL ASSEMBLY

3. Use 4 each 3/8-16 x 5/8” long hex bolts to align and attach the back wall to the curb. Be careful the

back wall does not tip over if the curb was not anchored down. Tighten all bolts.

BACK AND SUPPORT WALL ASSEMBLY

(continued)

1/4-20 x 1/2” BOLTS

& NUTS HERE

MAIN ELECTRICAL BOX

ROUTE THIS BOX

BETWEEN THIS SPACE.

ATTACH TO THIS WALL USING

2 STUDS AT REAR OF BOX.

ARROWS

POINTING UP

NUMBERING

PRINTED ON

TOP FACES

4. Each support wall is numbered at the factory on the top faces. Attach support wall #1 to curb

assembly and back wall at location #1 as shown using 6 each 1/4-20 x 1/2” hex bolts and hex nuts

where needed. Do not fully tighten bolts yet. Route the main electrical box as described below and

attach using 2 each 1/4” hex nuts.

5. Install remaining support walls as you did in step 4. Each wall is numbered and has a corresponding

number on the rear wall for ease of locating. (8 foot Outdoor Living Suite shown)

Do not fully tighten bolts yet. Note all arrows are pointing up.

INSTALL CORNER ASSEMBLY

6. Install corner assembly brackets as shown using 1/4-20 x 1/2” long hex bolts and hex nuts where

needed. For suites with Bar Top, install 4 brackets on each side.

7. Install 2 corner assemblies (4 assemblies for suites with Bar Top). Use 1/4-20 x 1/2” long hex bolts

and hex nuts where needed. Do not tighten until lift-off panels have been checked for proper t

(see Step 13).

1/4-20 x 1/2” BOLTS

& NUTS HERE

ELECTRICAL ITEMS

ELECTRICAL BOXES AND CONDUIT

8. As mentioned in Step 1, a licensed electrician must run the electrical supply lines from the house

main electrical panel (20 amp breaker), to the recommended area below the curb base. This supply

is brought into the main electrical box as shown in the photo on the next page. The flex conduits

coming out of this box are labeled “A” or “B”. The electrician will make up the final connections as

shown in the diagrams on the following pages.

This main electrical box contains a GFCI outlet, which protects all the “B” outlets. The “A” circuit

runs to the weather-proof GFCI outlet located on the right side of the Suite, or to the outlets at

the bar (for those models featuring a raised bar). Should the GFCI trip due to a fault at the Grill,

Refrigerator or other appliances (“B” outlets), it must be reset, and the other “A” outlets will not be

affected. Similarly, the “A” GFCI will not affect the “B” outlets if it trips due to a fault.

ELECTRICAL SUPPLY

The Hestan Outdoor Living Suite is completely pre-wired for ease of installation. The suite will

require a 20 amp supply (breaker) from the house main electrical panel. The licensed electrician

will have to run the appropriate wire size and conduit for this application. Rigid or flexible

conduit suitable for burial with water-tight connections are highly recommended from the house

main electrical panel, to the suite.

Important: The appliance(s) must be electrically grounded in accordance with local codes, or in

the absence of local codes with the National Electrical Code,

ANSI/NFPA 70-1990

Appliances (grill, side burner, refrigerators, etc. ) are equipped with a flexible electrical supply

cord featuring a three-prong grounding plug. It is imperative that this plug be connected to a

properly grounded three-prong receptacle. If the receptacle is not the proper grounding type,

contact an electrician. Do not remove the grounding prong from this plug.

The appliances are designed for 120 volt AC power and must be plugged into a Ground Fault

Circuit Interrupter (GFCI) protected circuit. For gas-burning appliances, do not connect to

the electrical supply until after gas connections have been made and leak checks have been

performed.

KEEP ANY ELECTRICAL CORDS AND FUEL SUPPLY HOSES AWAY FROM ANY HEATEDKEEP ANY ELECTRICAL CORDS AND FUEL SUPPLY HOSES AWAY FROM ANY HEATED

SURFACES.SURFACES.

• To protect against electric shock, do not immerse cord or plugs in water or other liquid.

• Unplug from the outlet when not in use and before cleaning. Allow to cool before putting

on or taking off parts.

• Do not operate any outdoor cooking gas appliance with a damaged cord or plug, or after the

appliance malfunctions or has been damaged in any manner. Contact the manufacturer for

repair.

• Do not let the cord hang over the edge of a table or touch hot surfaces.

• Do not use an outdoor cooking gas appliance for purposes other than intended.

• Use only a Ground Fault Circuit Interrupter (GFCI) protected circuit with this outdoor

cooking gas appliance.

• Never remove the grounding prong or use with a 2-prong ground adapter.

• Use only extension cords with a 3-prong grounding plug, rated for the power of the

equipment, and approved for outdoor use with a W-A marking.

MAIN ELECTRICAL BOX SHOWING SUPPLY

LINE ENTERING ON RIGHT SIDE OF BOX.

ELECTRICAL ITEMS

(continued)

ELECTRICAL ITEMS

(continued)

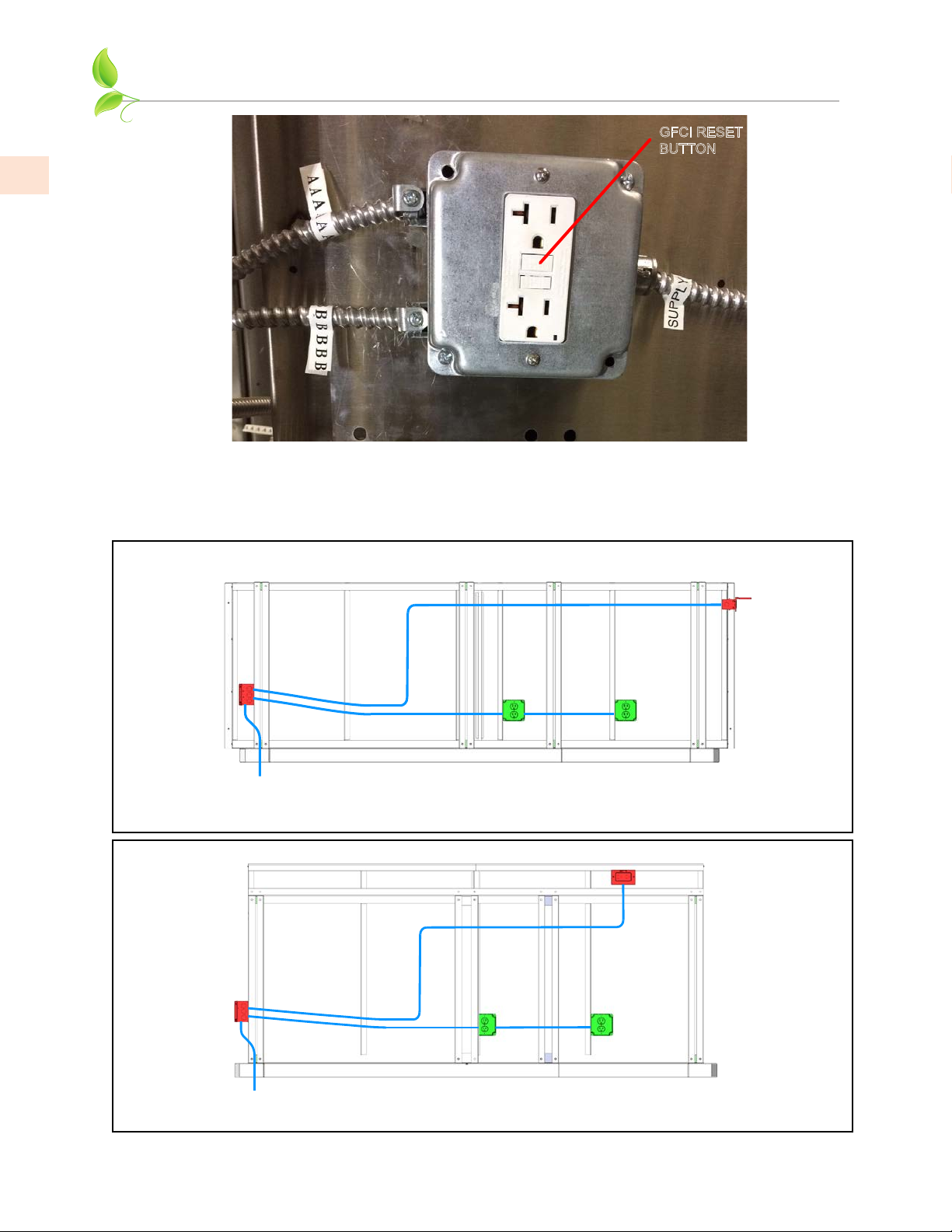

MAIN ELECTRICAL BOX

WITH GFCI OUTLET

GFCI

OUTLET

OUTLET OUTLET

SERVICE

LINE IN 8 FOOT SUITE WITHOUT BAR

GESS08, GESD08, GES08

MAIN ELECTRICAL BOX

WITH GFCI OUTLET

SERVICE

LINE IN

GFCI

OUTLET

OUTLET OUTLET

8 FOOT SUITE WITH BAR

GESSB08, GESDB08, GESB08

GFCI RESET

BUTTON

MAIN ELECTRICAL BOX COMPLETE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali hestan Griglia

hestan

hestan Aspire EABR Manuale utente

hestan

hestan GESS08 Manuale utente

hestan

hestan GABR Manuale utente

hestan

hestan GES08 Manuale utente

hestan

hestan Aspire EABR30-NG Manuale utente

hestan

hestan GABR Series Manuale utente

hestan

hestan Aspire ECD0-LP Manuale utente

hestan

hestan Deluxe GABR CX2 Series Manuale utente

hestan

hestan Aspire ECD30 Manuale utente

hestan

hestan GESC12 Manuale utente

hestan

hestan GABRCX2 Series Manuale utente

hestan

hestan Aspire EABR36LPBK Manuale utente

hestan

hestan OUTDOOR LIVING SUITE Manuale utente

hestan

hestan DELUXE GRILL AGCP36 Series Manuale utente

hestan

hestan GABR30-NG Manuale utente

Manuali Griglia popolari di altre marche

Orbegozo

Orbegozo GR 2300 Manuale utente

bora

bora PT11 Manuale utente

Klarstein

Klarstein 10031664 Manuale utente

Garland

Garland MWE3W Manuale utente

Char-Broil

Char-Broil 463722714 Manuale utente

Nexgrill

Nexgrill 720-0830HK Manuale utente

Kenmore

Kenmore 415.16123800 Manuale utente

Camp Chef

Camp Chef PG24CLAU Manuale utente

Tucker Barbecues

Tucker Barbecues GTR Series Istruzioni per il montaggio

Monogram

Monogram ZGG540NCP1SS Manuale utente

Equipex

Equipex Sodir Savoy Manuale utente

Gaggenau

Gaggenau VR 414 610 Manuale utente

Miele

Miele KM 408-1 Manuale utente

George Foreman

George Foreman GGR50B Manuale utente

AOG

AOG T series Manuale utente

Gorenje

Gorenje TG2000CB Manuale di istruzioni

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuale utente

Glen

Glen SA 3037 Manuale utente

hestan GESSC12 Manuale utente

Manuali Griglia popolari di altre marche
