HID®Mercury™ MR16in-S3 Processor Installation and Specifications
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
PLT-05250, A.1
August 2022
Copyright
© 2020 - 2022 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
This document may not be reproduced, disseminated or republished in any form without the prior written permission of
HID Global Corporation.
Trademarks
HID GLOBAL, HID, the HID Brick logo, and HIDMercury are trademarks or registered trademarks of HID Global, ASSA
ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All other trademarks,
service marks, and product or service names are trademarks or registered trademarks of their respective owners.
Contacts
For technical support, please visit: https://support.hidglobal.com.
What's new
Date Description Revision
August 2022 New branding. A.1
A complete list of revisions is available in Revision history.
PLT-05250, A.1 2 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
Section 01
Overview

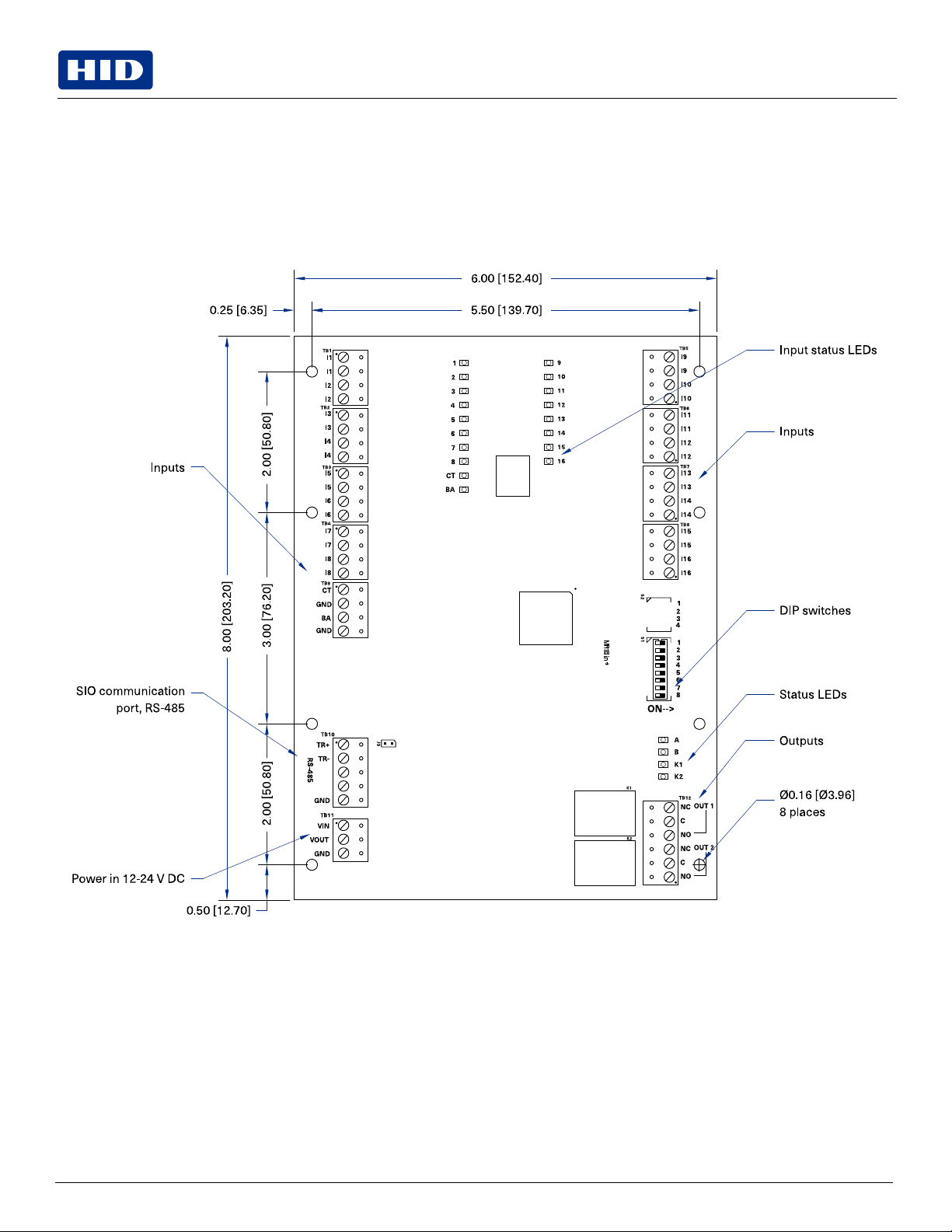

1.1 MR16in processor
The MR16in processor provides a solution to the OEM system integrator for sensor monitoring and output control.
The MR16in has sixteen non-supervised/supervised inputs and two Form-C contact relays for load switching. In addition,
two digital inputs are used for cabinet tamper and power fault status monitoring.
The MR16in processor requires 12 to 24 V DC for power.
PLT-05250, A.1 4 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
Section 02
MR16in wiring and setup

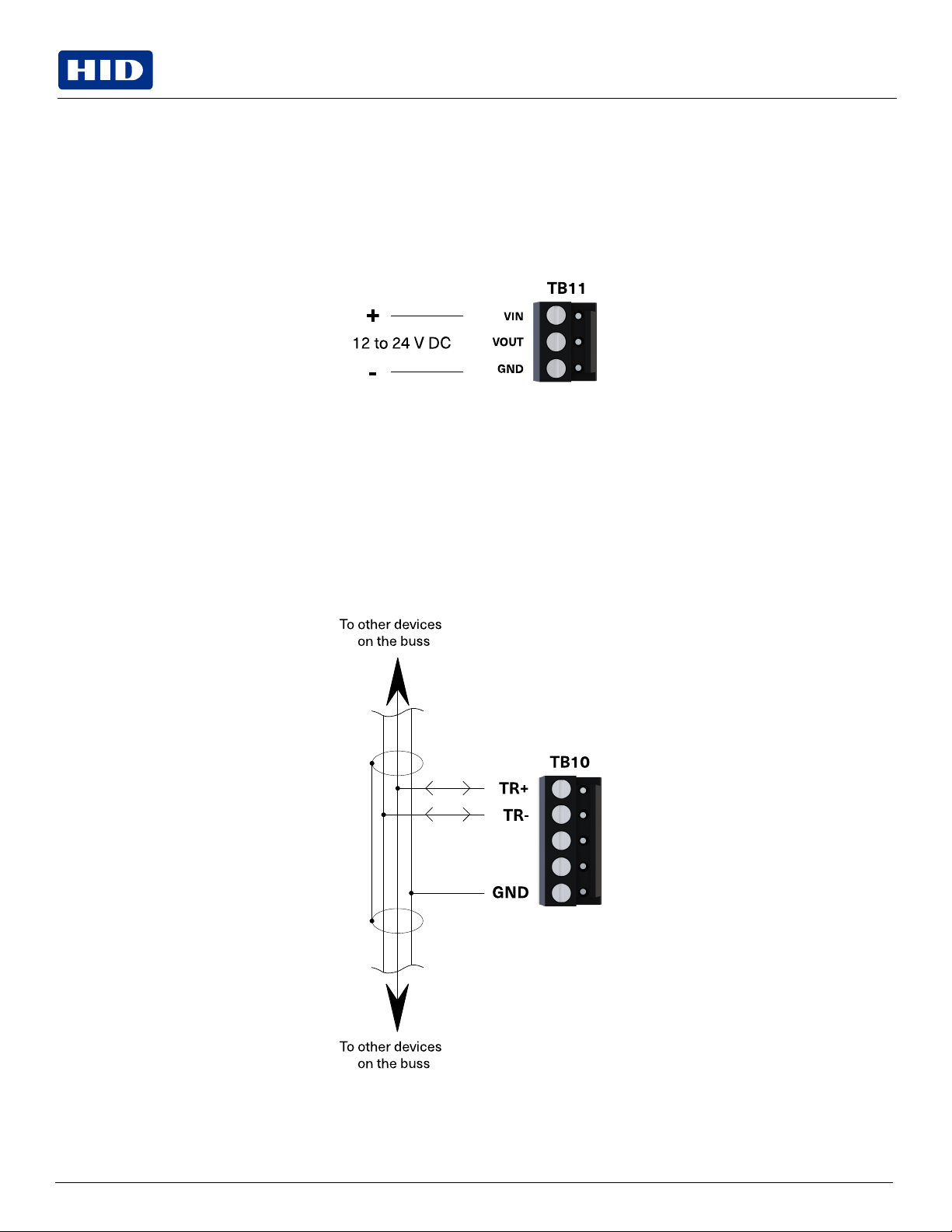

2.1 Supplying power to the MR16in
The MR16in accepts 12 to 24V DC for power. Locate power source as close to the unit as possible.
Connect power with minimum of 18 AWG wire.
Observe POLARITY on VIN!
The VOUT terminal on TB11 is the same as VIN.
2.2 Communication wiring
The MR16in communicates with an intelligent controller (EP2500 for example) via a 2-wire RS-485 interface. The
interface allows multi-drop communication on a single bus of up to 4,000 feet (1,200 m). Shielded cable of 24 AWG with
characteristic impedance of 120Ω is specified for the RS-485 interface. See Specifications.
Install RS-485 termination jumper, J3, on the interface boards at each end of the communication line only.
2-wire RS-485
(only 2-wire RS-485 is supported)
PLT-05250, A.1 6 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications

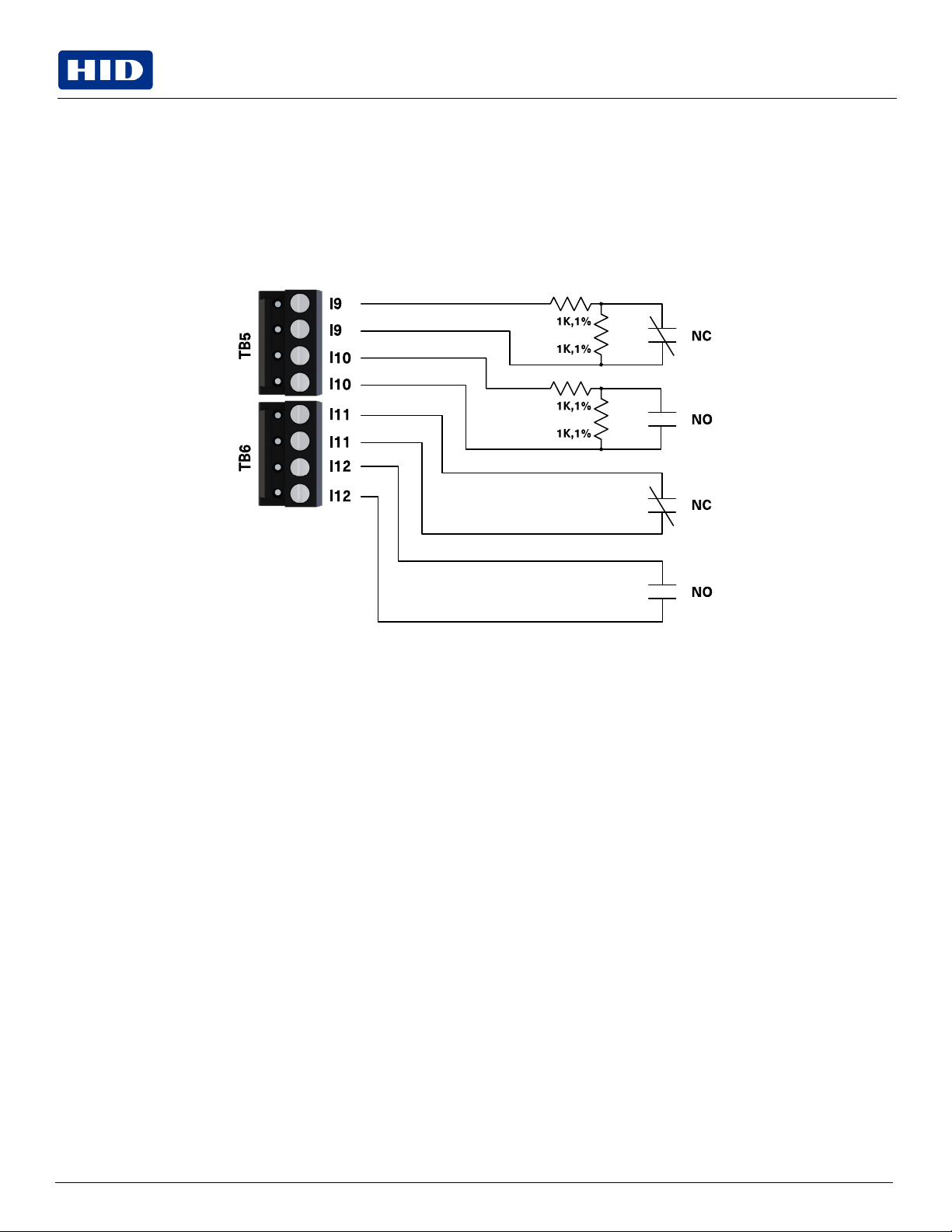

2.3 Alarm inputs wiring
Inputs 1 to 16 may be configured to use or not use End Of Line (EOL) resistors, and to use normally open or normally
closed contacts.
Input CT and input BA are used for monitoring cabinet tamper and power failure, respectively. These two inputs are for
contact closure monitoring only, and do not use EOL resistor(s).
Input configuration is set via host software.
PLT-05250, A.1 7 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications

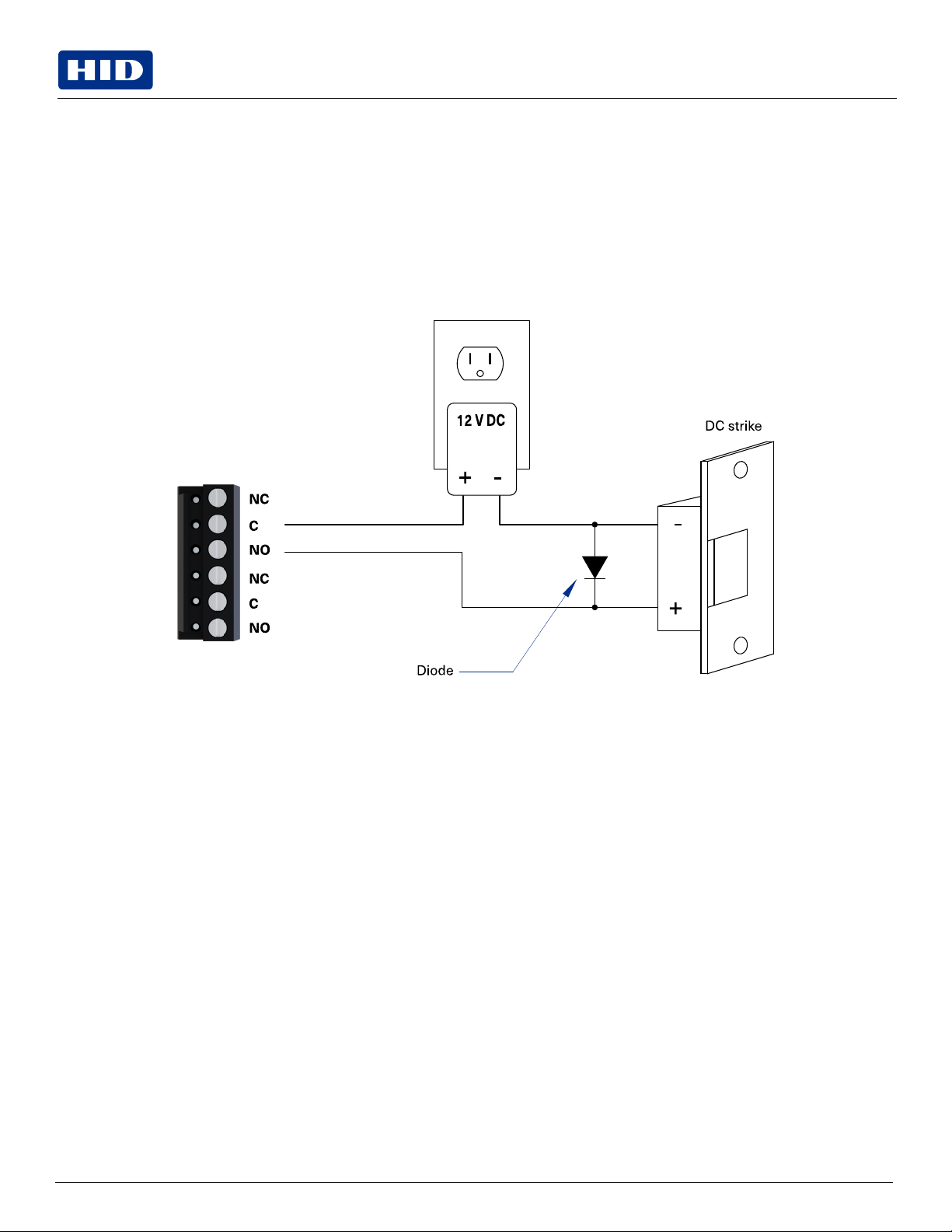

2.4 Relay outputs
Two Form-C contact relays are provided for controlling door strikes or other devices. Load switching can cause abnormal
contact wear and premature contact failure. Switching of inductive loads (strike) also causes EMI (electromagnetic
interference) which may interfere with normal operation of other equipment. To minimize premature contact failure and
to increase system reliability a contact protection circuit must be used. The following two circuits are recommended.
Locate the protection circuit as close to the load as possible (within 12 inches [30 cm]), as the effectiveness of the circuit
will decrease if it is located further away.
Use sufficiently large gauge of wire for the load current to avoid excessive voltage drop.
Diode selection
lDiode current rating > 1x strike current.
lDiode break down voltage: 4x strike voltage.
lFor 12 V DC or 24 V DC strike, diode 1N4002 (100V /1A) typical.
PLT-05250, A.1 8 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
2.5 DIP switch and jumper usage
lSwitches 1 to 5 select the device address. Switch 6 and 7 select the communication baud rate.
lSwitch 8 enables encrypted communication. All other configuration settings are set via host software.
S8 S7 S6 S5 S4 S3 S2 S1 Selection
OFF OFF OFF OFF OFF Address 0
OFF OFF OFF OFF ON Address 1
OFF OFF OFF ON OFF Address 2
OFF OFF OFF ON ON Address 3
OFF OFF ON OFF OFF Address 4
OFF OFF ON OFF ON Address 5
OFF OFF ON ON OFF Address 6
OFF OFF ON ON ON Address 7
OFF ON OFF OFF OFF Address 8
OFF ON OFF OFF ON Address 9
OFF ON OFF ON OFF Address 10
OFF ON OFF ON ON Address 11
OFF ON ON OFF OFF Address 12
OFF ON ON OFF ON Address 13
OFF ON ON ON OFF Address 14
OFF ON ON ON ON Address 15
ON OFF OFF OFF OFF Address 16
ON OFF OFF OFF ON Address 17
ON OFF OFF ON OFF Address 18
ON OFF OFF ON ON Address 19
ON OFF ON OFF OFF Address 20
ON OFF ON OFF ON Address 21
ON OFF ON ON OFF Address 22
ON OFF ON ON ON Address 23
ON ON OFF OFF OFF Address 24
ON ON OFF OFF ON Address 25
ON ON OFF ON OFF Address 26
ON ON OFF ON ON Address 27
ON ON ON OFF OFF Address 28
ON ON ON OFF ON Address 29
PLT-05250, A.1 9 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
S8 S7 S6 S5 S4 S3 S2 S1 Selection
ON ON ON ON OFF Address 30
ON ON ON ON ON Address 31
OFF OFF 115,200 BPS1
OFF ON 9,600 BPS
ON OFF 19,200 BPS
ON ON 38,400 BPS
OFF Encrypted communication not required2
ON Encrypted communication required2
1. Firmware revisions prior to 1.30.1, this setting is 2,400 BPS.
2. Firmware revisions prior to 1.30.1, S8 is not defined. Set to the OFF position.
2.5.1 Jumpers
Jumper Description
J3 RS-485 termination, install in first and last units only.
Note: All other jumpers are for factory use only.
PLT-05250, A.1 10 August 2022
Powering
Trusted Identities
HID®Mercury™ MR16in-S3 Processor
Installation and Specifications
