Armor Flex

Low-E Patio Pet Door

Installation Manual

Power Pet, Regular Height, Patio Door Assembly Steps

1. Size #1 Phillips screwdriver

2. Electric drill

3. #32 (.117”) drill bit

4. 3/32” drill bit

5. 1/4 drill bit

6. Scissors

7. Tape Measure

8. Pencil

9. Safety Glasses

STEP 2. Unpack your door

Remove all parts from box. Plastic corner protectors may be discarded.

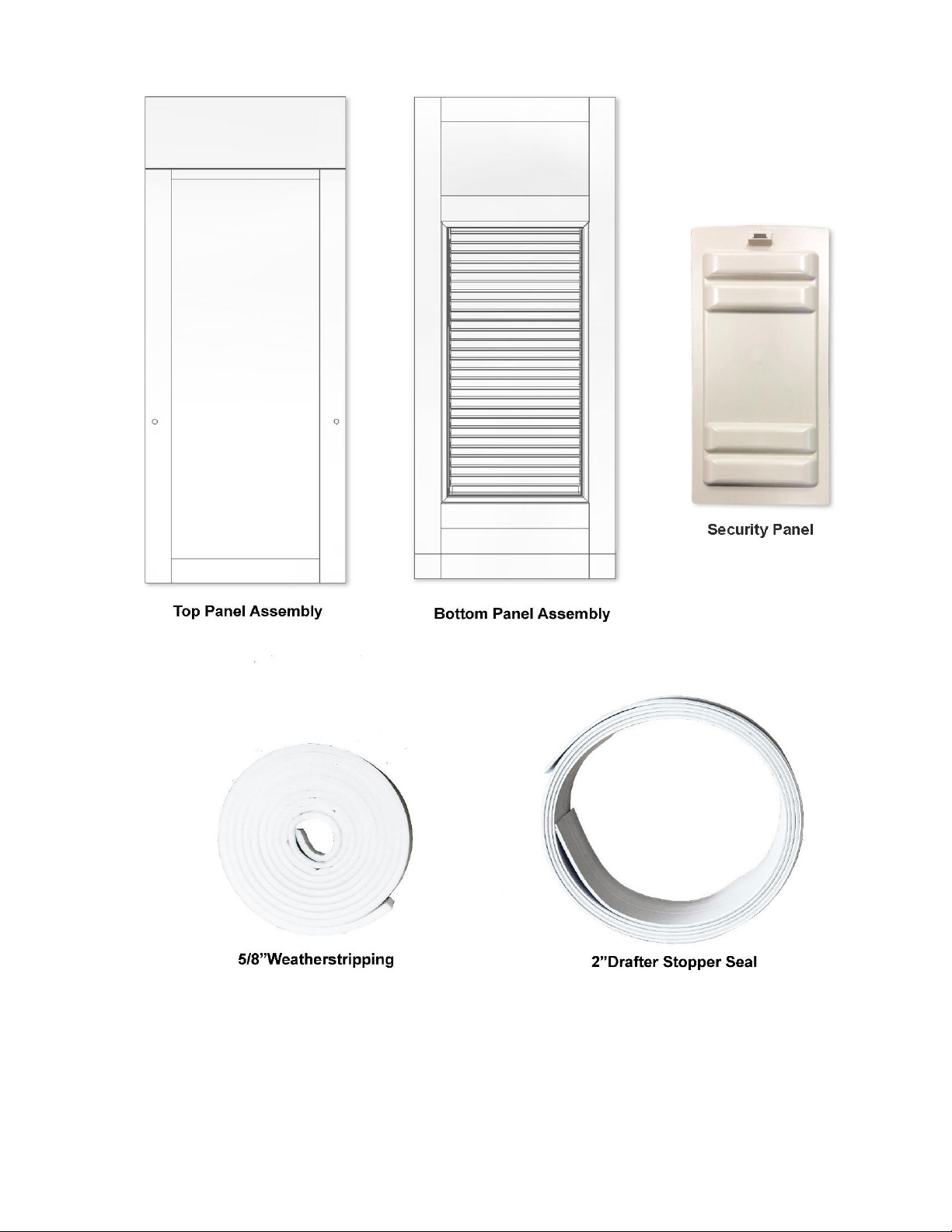

STEP 3: Lay Out All Included Parts

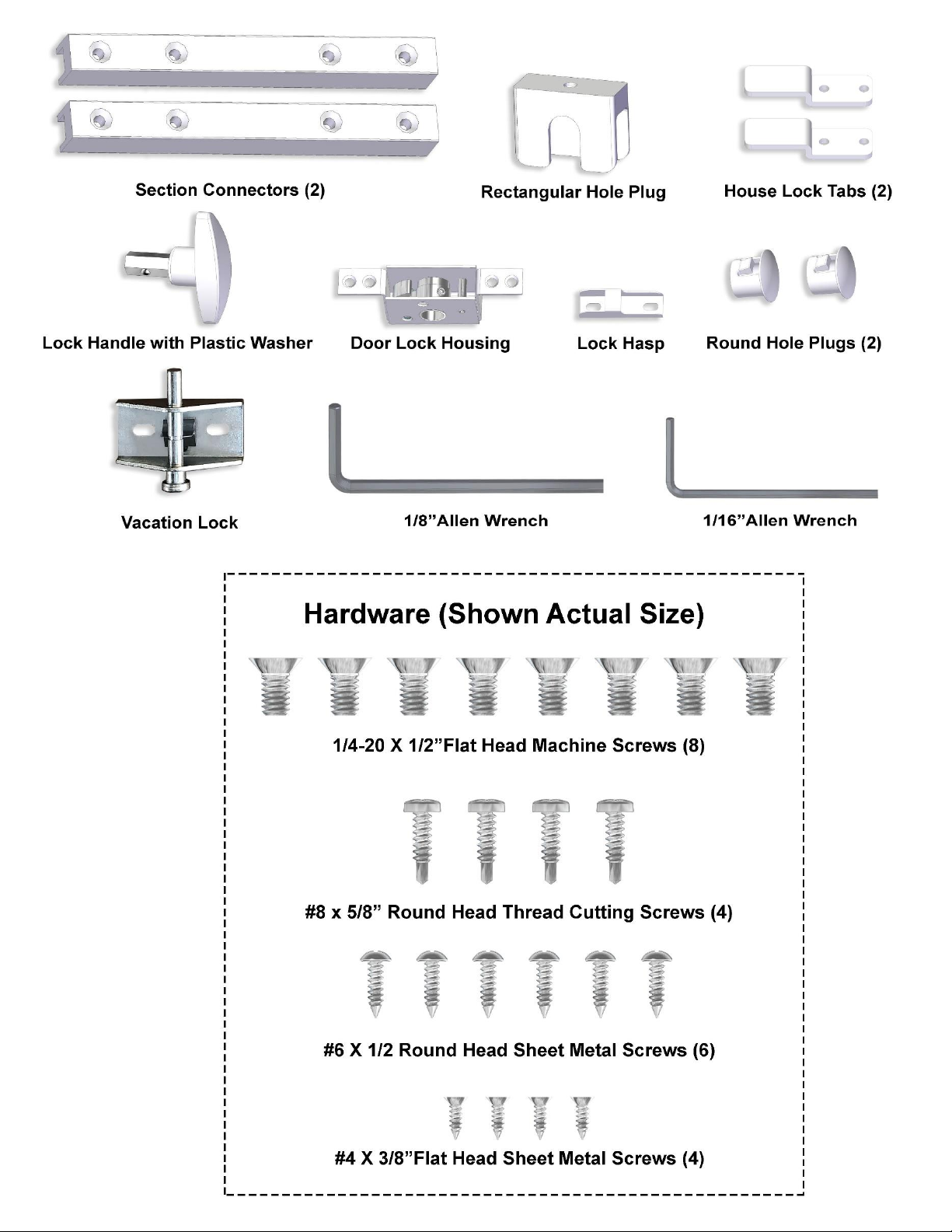

Your door contains all of the parts shown in Figures 3A and 3B and

listed below.

1. Bottom Panel Assembly with PX-2 Power Pet Door

2. Top Panel Assembly

3. Security Panel

4. Weather Stripping

5. Draft Stopper Seal

6. Section Connectors (2)

7. Door Lock Housing (1)

8. Lock Handle (1)

9. Lock Hasp

10. House Lock Tab (2)

11. Vacation Lock (1)

12. Rectangular Hole Plug (1)

13. Round Hold Plug (2)

14. 1/16 Allen wrench

15. 1/8 Allen wrench

16. 1/4-20 X 1/2 flat head machine screw (8)

17. #8 X 5/8 round head sheet metal screw (4)

18. #6 X 1/2 round head sheet metal screw (6)

19. #4 X 3/8 flat head sheet metal screw (4)

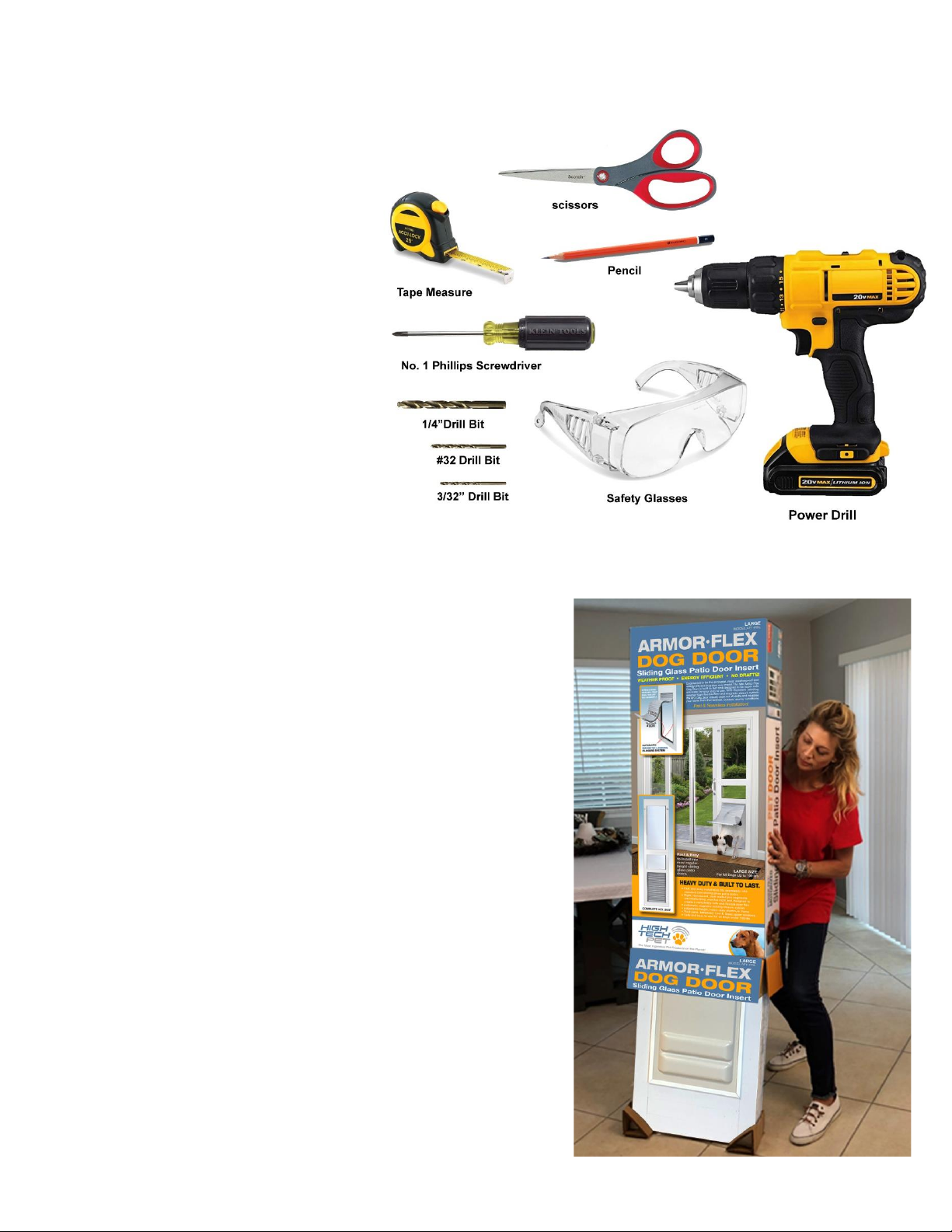

STEP 1: Assemble the tools you will need:

Figure 1

Figure 2

Fig 3A

Figure 3B

Fig 3A

Figure 3C

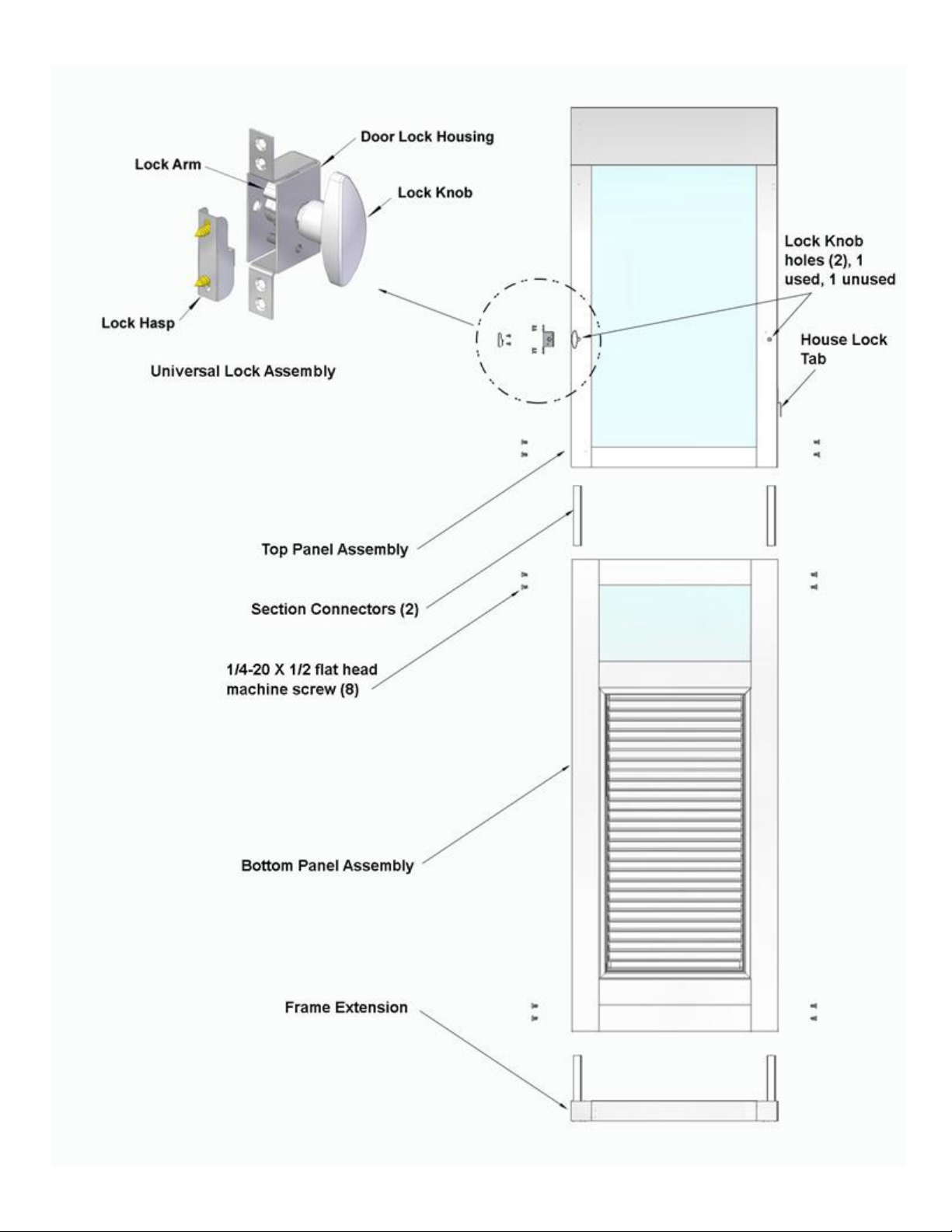

Basic Door Assembly

May be placed on left or

right side of Patio Pet

Door assembly.

Fig 4

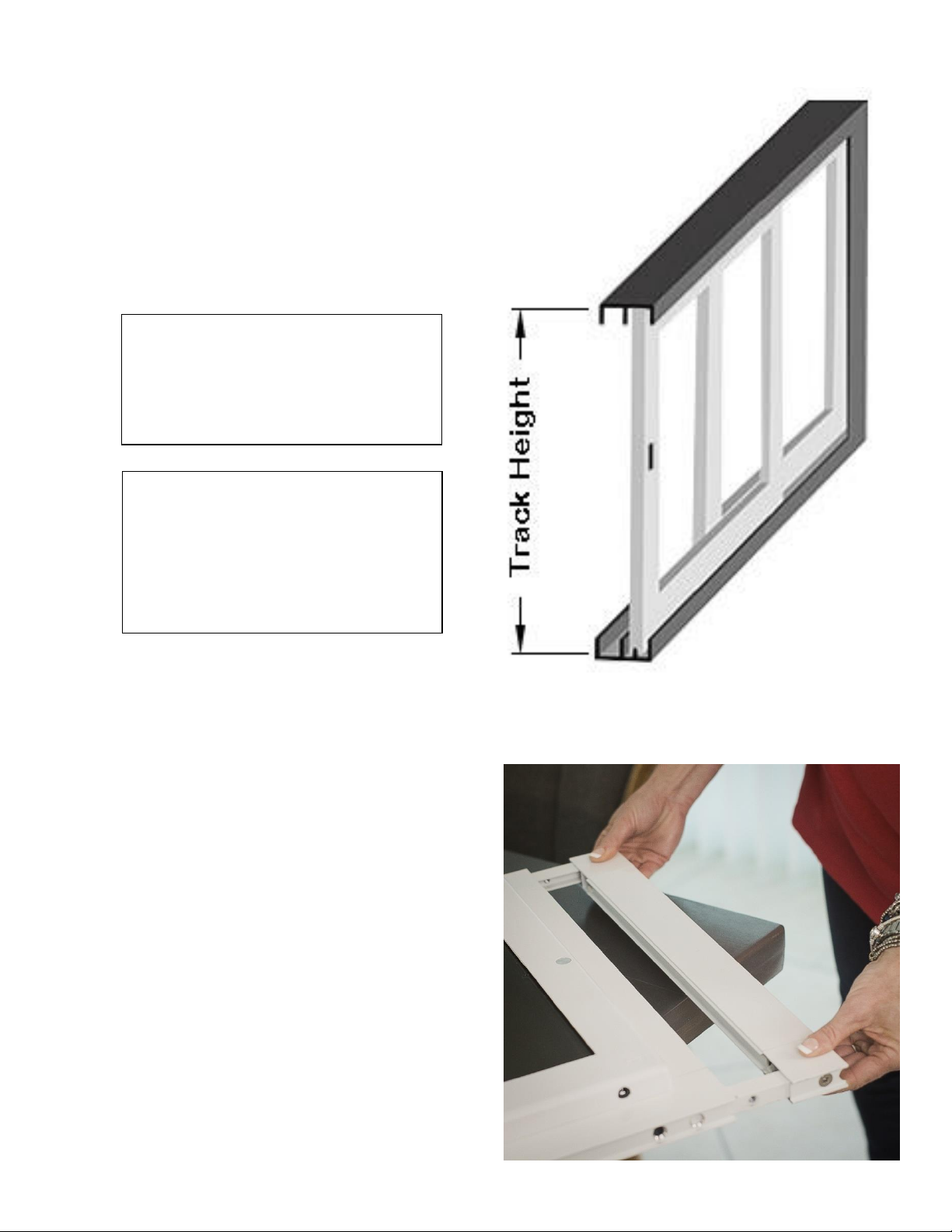

STEP 4: Determine your patio track height

Measure from the inside bottom of your sliding glass door track to

the inside top as shown in Figure 4.

STEP 5: For short installations, remove Riser Extension

If your sliding glass door frame measures between 75”

and 77” high, remove the Riser Extension on the

Bottom Panel Assembly by unscrewing the connector

screws on each side of the Riser Extension as shown in

Figure 5. The aluminum Riser Extension may be

recyled. For patio doors taller than 77”, do not

remove the extension.

Fig 5

75” – 77”

Remove Riser Extension

(Step 5)

77” –80 1/4”

Do Not Remove Riser

Extension

(Skip Step 5)

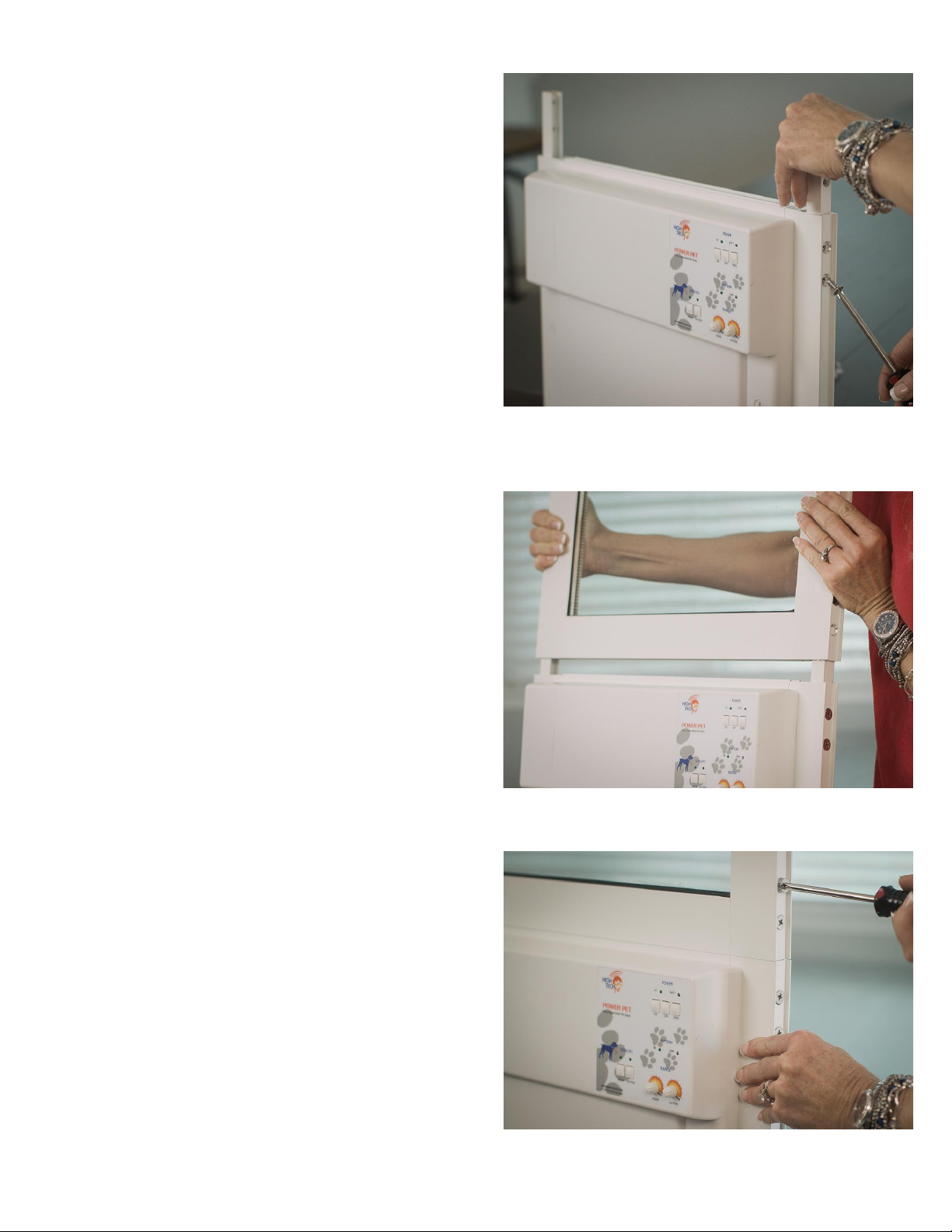

STEP 6: Insert Section Connectors

Insert Section Connectors on the Bottom Frame

Assembly panel using (2) 1/4-20 X 1/2 flat head

machine screws for each Section Connector as shown

in Figure 6.

STEP 7: Put Top and Bottom Panel Assemblies together

Insert Top Frame Assembly on to Bottom Frame

Assembly as shown in Figure 7.

STEP 8: Install Section Connector screws

Screw panels together using (2) 1/4-20 X 1/2 flat head

machine screws for each Section Connector. The Top

and Bottom Frame Assemblies now form a single

Door Panel as shown in Fig 8.

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10A

Fig 11

Fig 10B

Fig 10C

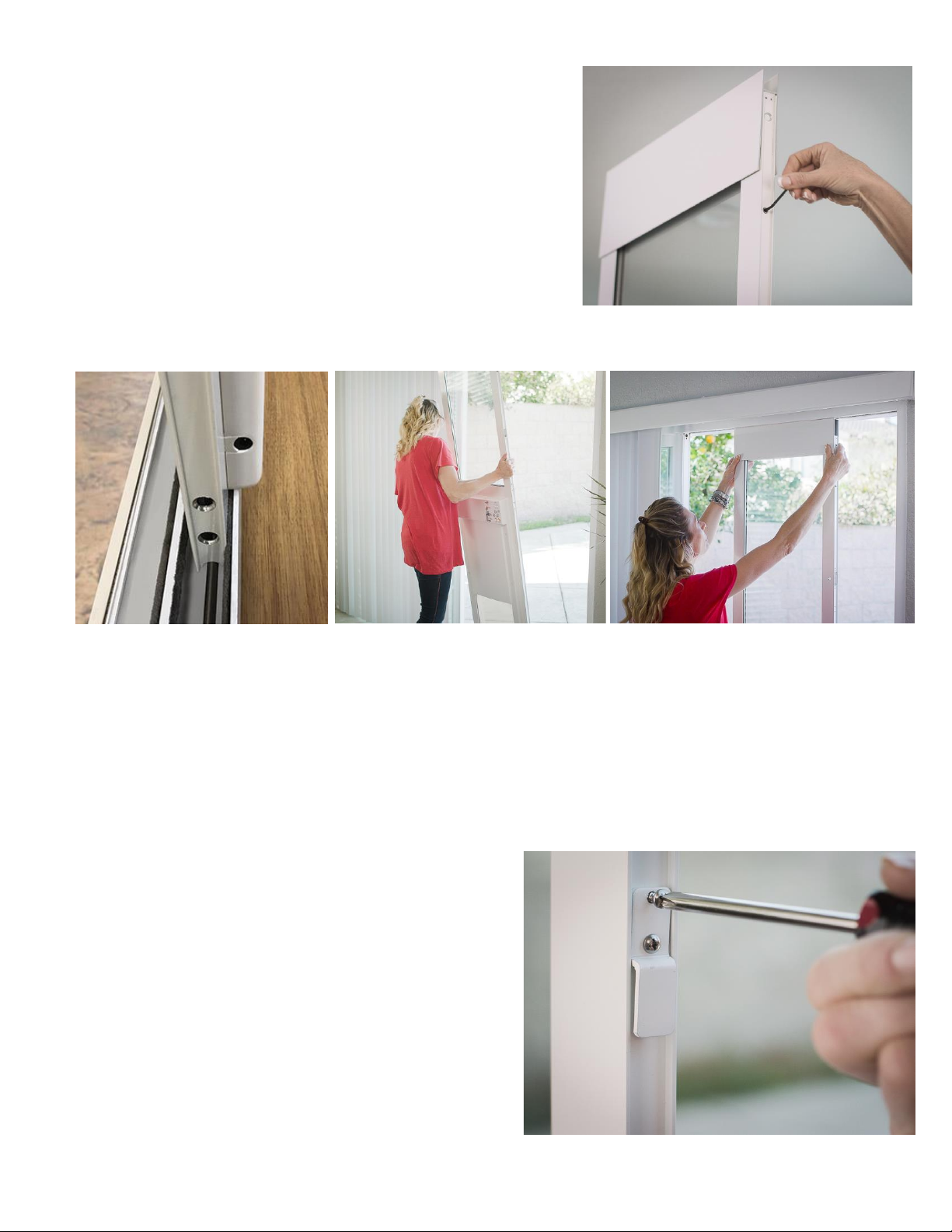

STEP 9: Loosen the Top Slider set screws

Loosen the Top Slider locking set screws on the left and right

sides of the Top Panel Assembly using the 1/8” Allen wrench

provided. If the Top Slider does not immediately release, push it

up by hand so that it slides to its highest position.

STEP 10: Insert the patio pet door into your sliding glass door track

Make sure the lock holes in the Top Frame Assembly are facing the inside of your home. Position the pet

door assembly into your sliding glass door frame by first inserting the pet door Bottom Panel into the

bottom of your door track so that the Simi-circular groves in the pet door Bottom Panel are placed over

the sliding rail at the base of your sliding glass door track (Fig 10A). Tilt the pet door assembly up. (Fig

10B). pull down on the Top Slider. Insert the Top Slider into the top of your door track and release,

allowing it to move up into the top of the track.

STEP 11: Install a House Lock Tab on the

Top Panel Assembly

Install a House Lock Tab on the wall side of the pet door

by screwing (2) #6 X ½” round head sheet metal screws

into the pre-drilled holes on the pet door. Position the

Tab with the open end pointing downward as shown.

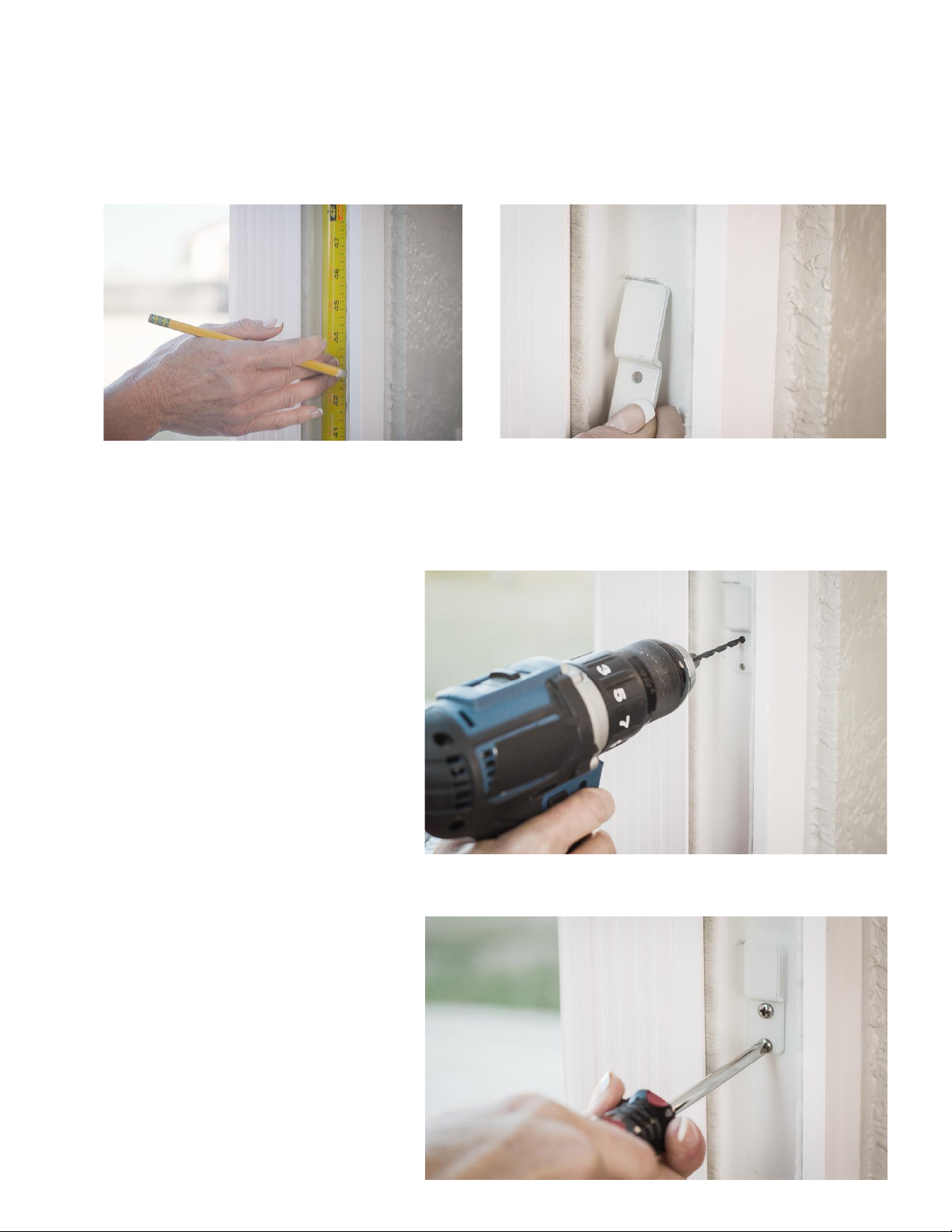

STEP 12: Mark the height of the House Lock Tab on your sliding glass door track

Measure from the sliding rail at the base of your door track to a height of 46 5/8” if you are using the

Riser Extension or 44 5/8” if you are not using the Riser Extension. Mark this height on the inside of

your door track (Figure 12A). Remove the tape liner from a House Lock Tab and Position the top of the

non-drilled end at this mark.as shown in Figure 12B.

STEP 13: Drill the Lock House Tab mounting holes in your sliding glass door track

Drill (2) holes into your door track using a

1/16” drill bit.

STEP 14: Screw in the Lock

House Tab

Screw the Lock House Tab to your door

track using (2) #6 X 1/2” screws.

Fig 13

Fig 12A

Fig 12B

Fig 14

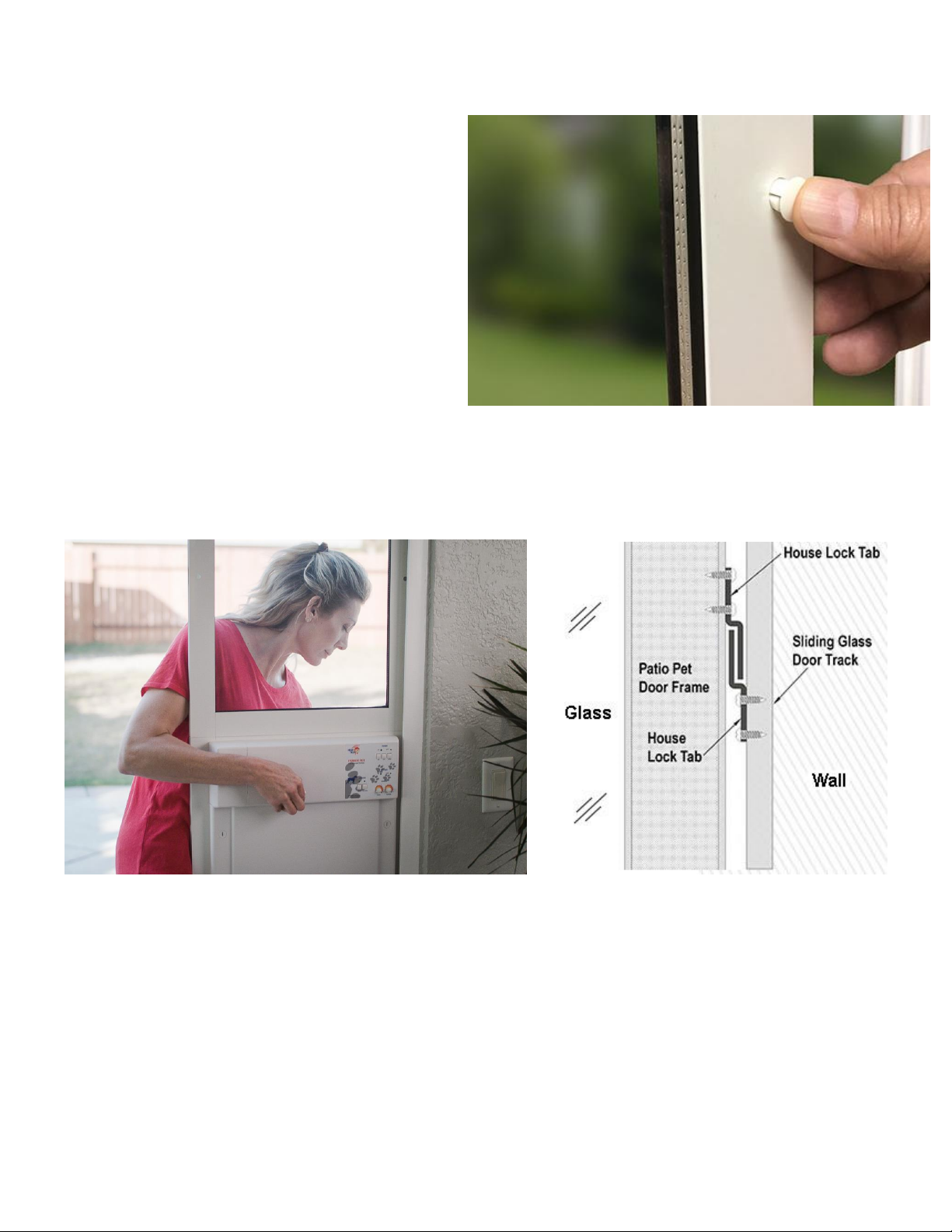

STEP 15: Insert Round Hole Plug(s)

The purpose of the Round Hole Plugs is to fill the

unused Lock Knob hole. Lock Knob holes are

provided on both sides of the Top Panel

Assembly for left and right opening sliding glass

doors. When using the Universal Lock Assembly,

one Lock Knob hole will not be used. Install a

Round Hole Plug in the unused Lock Hole on the

side of the pet door assembly which butts

against your sliding glass door track. This is the

side that does not require the lock. If you chose

not to use the Universal Lock Assembly, install a

Round Hole Plug in both Lock Knob Holes.

STEP 16: Engage the House Lock Tabs

Slide the assembled pet door so that it butts up against the inside of your sliding glass door track. Firmly

grab the pet door from the inside and outside. Lift up and push against the sliding glass door track

letting the House Lock Tabs engage each other as the door frame drops into its final position.

Fig 15

Fig 16A

Fig 16B
